Chromag Wideangle Frame 2016

Item #: FR208H00
Qty
Found a Lower Price?

Chromag Wideangle Frame 2016

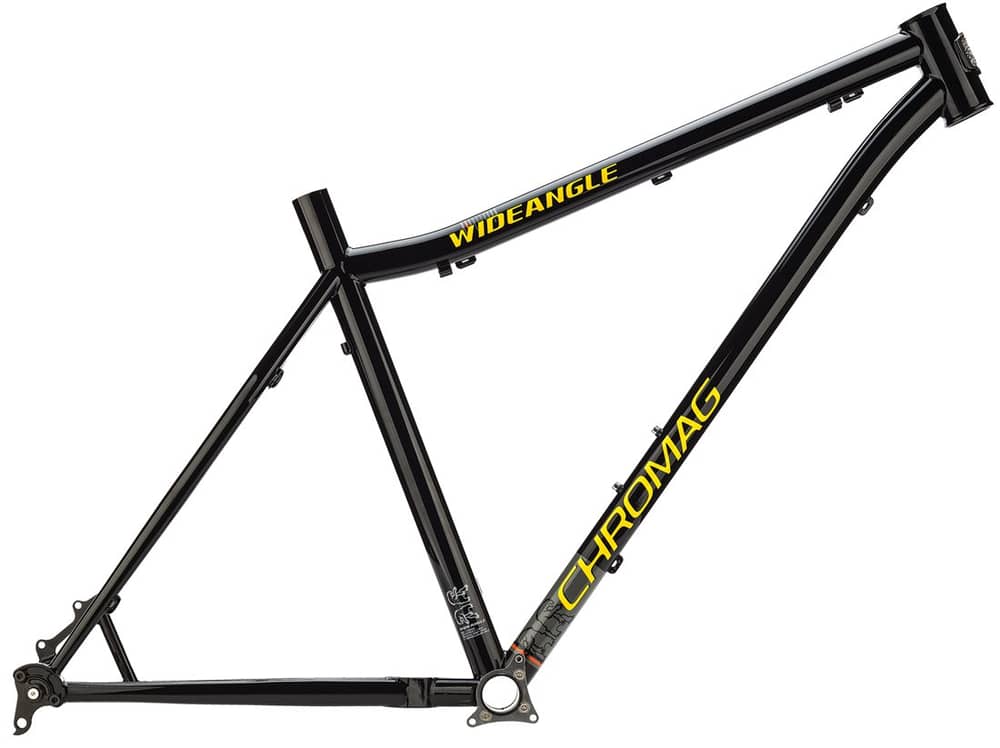

Chromag Wideangle Frame

Please Note: The photograph above depicts a complete bike, but this listing is for a frame only.

A Contemporary Classic

It’s a steel, All-Mountain oriented beauty that is ready to deal with the ever changing mountain bike market. The Chromag Wideangle frame is hand built using a custom chromoly tubeset. Chromag is able to produce their own custom tubing which plays a key factor in the frames aesthetics as well as allowing them to tailor the frame to perform exactly as they want it to. At the bottom bracket and chainstay intersection they have opted for the use of their “Yokel." It is a small machined piece allowing for increased drivetrain and tire clearances. Additional versatility and adaptability are built into the rear drop outs. They are modular in design and can currently accommodate both 10 x 135 and 12 x 142 hubs. The modular capability brings a little future-proofing to the table as well. Who knows what the market will do next? Addition features include a 44mm headtube, removable ISCG mounts, 27.5" trail honed geometry and a dang good looking headbadge.

Features

  • Trail honed hardtail geometry optimized for 27.5” wheels
  • Custom chromoly steel tubeset
  • Super short chainstay length 16.5” / 419mm for maximum playfulness
  • Modular/replaceable dropout system for 10x135mm or 12x142mm
  • Proprietary removable ISCG mount
  • 44mm headtube accepts tapered steerer forks
  • Optimized for 140-150mm forks
  • 31.6mm seattube with stealth dropper post routing
  • 35mm seat collar
  • Handmade in Chromag's Taiwanese partner factory
SPECIFICATIONS
Frame Chromag Wideangle, Custom chromoly tube set, 12 x 142 or 10 x 135 rear drop outs
Fork Optimized for 140-150mm travel forks
Headset Size 44mm
Front Derailleur Size 34.9mm
Bottom Bracket Shell 73mm Shell
Seatpost Size 31.6mm
Seat Clamp Size 35mm
Intended Use Trail, All Mountain,
Weight TBD

Note: Components are subject to change without notice.


GEOMETRY (inch/mm)
Size Small Medium Medium/Large Large
A: Seat Tube Length 15.5 / 393 17 / 432 18.5 / 470 19 / 495
B: Effective Top Tube 22.25 / 565 23 / 584 23.75 / 603 24.35 / 618
C: Stack - - - -
D: Reach - - - -
E: BB Height 12.9 / 327 12.9 / 327 12.9 / 327 12.9 / 327
F: BB Drop/Rise - - - -
G: Head Tube Length 4.13 / 105 4.13 / 105 4.13 / 105 4.13 / 105
H: Head Tube Angle 68° 68° 68° 68°
I: Seat Tube Angle 73° 73° 73° 73°
J: Standover Height - - - -
K: Chainstay Length 16.5 / 419 16.5 / 419 16.5 / 419 16.5 / 419
L: Wheelbase - - - -
4.8 / 5.0
5 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Stars
4
1
0
0
0
Shreds.
Who ever thought hardtails could be so fun?! This blows Aluminum out of the water... AL is harsh and in my opinion, not very fun. Steel is a new world to me. I have been riding carbon FS for the past 2 years. This bike has blown any and and expectations out of the water.

This bike is an absolute blast.

PROS: Steel Close The Deal, Durable, Steel Is Rad, Steel Is Real, Attractive Design

CONS: Graphics

BEST USES: Trail Ridng, Mountain Biking
March 24, 2016
Location:
East Tennessee
chromag wide angle. great bike!
This frame is Awsome, super playfull, nice short chain stays and with the rear through axle makes the bike very solid. I love the fact that the frame has multiple cable mounting and routing options. I built the bike using a fox float 34 fit with ctd 150mm front fork, 1x10, and basic shimano deore brakes and shifter and a set of 32 spoke enduro wheels. The only thing about the frame is i wish it was a tad lighter but i knew what u was getting into before i purchased it ( chromag advertises 8
It as a med weight hardtail) my complete build ended up at 30lbs wich also included a rockshox dropper post, both wheels had tubes still and shimano saint DH pedals. Awsome quality welds, zero issues with the frame.

PROS: Attractive Design, Durable, Easy To Install

BEST USES: Casual Riding, Mountain Biking, Racing, Upgrade
February 23, 2016
Location:
Portland Oregon
Awesome frame
Fast shipping great packaging
November 7, 2016
Location:
Washington
Simple sexy
Super fast
November 23, 2016
Location:
Colorado
Totally.
After riding squishy bikes for the past couple years, it's great going back to a hardtail. I built this frame up with a 150 mm RockShox Revelation on some 27.5 I9sa with 2.4 Maxxis High Rollers, along with a dropper post and a short stem. WIth this set up I'm charging chunky downhill I'd be nervous to ride on my full suspension bike and dropping friends in the process. This bike also climbs fast and is very playful and flickable on the trail. It amazes me how fun and capable the Chromag is if set up correctly and ridden with the right mindset.
November 18, 2016
Location:
Chattanooga, TN

Q & A

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question
What is the max tire width this frame can accommodate?
