Diamondback Haanjo Comp Carbon Bike 2017

Item #: BI196G01
USD$2,200.00 SAVE 12% USD$2,500.00 msrp
Choose Color
Raw Carbon Matte
Choose Size
Qty
CHOOSE YOUR FAVORITE PEDALS
Found a Lower Price?

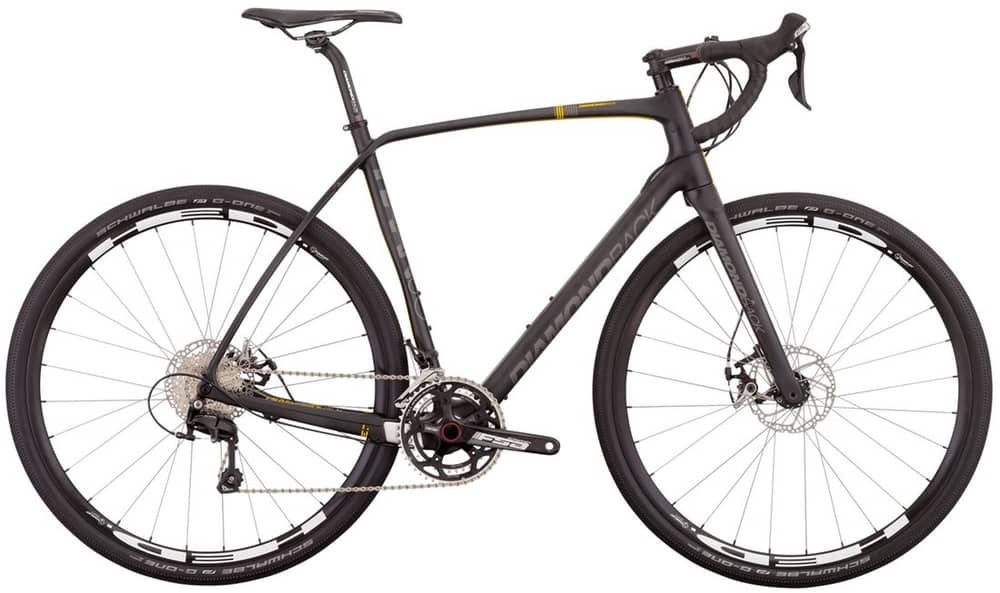

Diamondback Haanjo Comp Carbon Bike 2017

Diamondback Haanjo Comp Carbon 2017

Ride without boundaries

It’s liberating to know that you are not bound to riding only the paved roads amongst the cars. Go ahead, take that dirt road you’ve been eyeballing for a while now, see what new adventures await just over that hill. The goal of the Haanjo Comp Carbon is to keep riding, on any road, anywhere.

At the core of the Haanjo Comp Carbon is a completely new hand built carbon fiber frame and fork with a slightly relaxed geometry, smoothing out jarring bumps so you can comfortably spend long days in the saddle. The 2x11 Shimano drivetrain with FSA cranks turn smoothly, providing accurate shifts with a gear for any condition. TRP Spyre disk brakes provide powerful, predictable braking wet or dry. Wide 40c Schwalbe tires remain fast on paved surfaces, and offer plenty of traction when you venture off the beaten path. The lightweight and durable DB X-Durance cockpit tops off the Haanjos superb ride characteristics.

Whether it’s a grand fondo, a beer run, or daily commuting, the Haanjo Comp Carbon is one bike that really can do it all. We’re not saying it’ll turn every gravel road or potholed street into freshly laid asphalt, but it’s close!

REVIEWS

Outside - ” And more than anything, the Haanjo carbon is an incredibly confident descender” - Aaron Gulley

Features

  • Hand built carbon monocoque frame w/ Endurance Geometry, 12mm thru axle rear lightweight and comfortable for all day adventures
  • DB Gravel Disc Full Carbon fork, 12mm thru axle Steering precision with bump compliance
  • HED Tomcat Disc wheels, 24h, 21mm internal width, Schwalbe G-One tires tubeless ready performance for a variety of conditions
  • TRP Spyre Mechanical Disc, 160mm rotors f/r all weather braking performance
  • Shimano 105 ST-5800 Dual Control shifters Shimano reliability, precision shifting
SPECIFICATIONS
Frame DB Carbon Alternative Road Frame, Endurance Geometry, Relaxed Headtube Angle, Disc Specific, w/ 142x12 Thru-axle & Replaceable Hanger
Fork DB Gravel Disc, Full Monocoque Carbon "CFT", 12mm Thru-axle Drop Outs, Flat Mount Disc Tabs, 1.5" Tapered Steerer Tube, Low-Rider Rack Mounts.
Headset FSA NO.42, Sealed Cartridge for Tapered Headtube
Shifters Shimano 105 ST-5800 Dual Control, 2x11 Speed
Front Derailleur Shimano 105 FD-5800, 31.8mm Band Clamp
Rear Derailleur Shimano 105 RD-5800, 11 Speed
Crankset FSA Gossamer Compact BB386-DB Evo, 46/36T
Bottom Bracket FSA BB-EVO8681
Pedals Wellgo Alloy Road
Chain KMC X11L, 11 Speed
Cassette Shimano 105 CS-5800 Cassette, 11 Speed, 11-32T
Brakes TRP Spyre Mechanical Disc, w/ 160mm Front / 160mm Rear Rotors
Wheelset HED Tomcat Disc, 24h, 21mm Internal Width, Tubeless Ready, 28h Alloy, Sealed Cartridge, HighLow Flange, 12mm Thru-axle w/ CNC Disc Mount (front hub), 28h Alloy, Sealed Cartridge, HighLow Flange, 142x12mm Thru-axle, w/ CNC Disc Mount, Cassette (rear hub)
Tires Schwalbe G-One, Performance, Folding, 700x40c
Handlebar DB X-Durance Gravel Bar, 8° Flare, 31.8mm Bar Bore
Stem DB X-Durance 3D Forged Alloy, +/-7° Rise, 31.8mm Bar Bore
Bar Tape EVA Cork w/ Gel
Seatpost DB X-Durance, Alloy 27.2mm
Seatclamp Alloy
Saddle DB Eldorado
Intended Use Adventure Road, Gravel Grind
Weight TBD
TBD

Note: Components are subject to change without notice.

”GeometryChart”/
GEOMETRY (mm / inch)
Size SM/50cm MD/53cm LG/56cm XL/59cm
A: Seat Tube Length 500
19.7
530
20.9
560
22.0
590
23.2
B: Effective Top Tube 525
20.7
540
21.3
560
22.0
580
22.8
C: Stack 543
21.4
570
0.0
593
23.3
622
24.5
D: Reach 374
14.7
371
14.6
373
14.7
378
14.9
E: BB Height 0
0.0
0
0.0
0
0.0
0
0.0
F: BB Drop 70
2.8
70
2.8
70
2.8
70
2.8
G: Head Tube Length 130
5.1
155
6.1
175
6.9
200
7.9
H: Head Tube Angle 69.0 ° 70.0 ° 71.0 ° 72.0 °
I: Seat Tube Angle 74.5 ° 73.5 ° 72.5 ° 72.0 °
J: Standover Height 788
31.0
808
31.8
834
32.8
858
33.8
K: Chainstay Length 430
16.9
430
16.9
430
16.9
430
16.9
L: Wheelbase 1028
40.5
1025
40.4
1025
40.4
1028
40.5
Suggested Rider Height -
-
-
-
-
-
-
-
