Diamondback Overdrive Comp 29 Bike 2017

Item #: BI194P00
USD$1,000.00 SAVE 17% USD$1,200.00 msrp
Choose Color
Gray
Choose Size
Qty
Found a Lower Price?

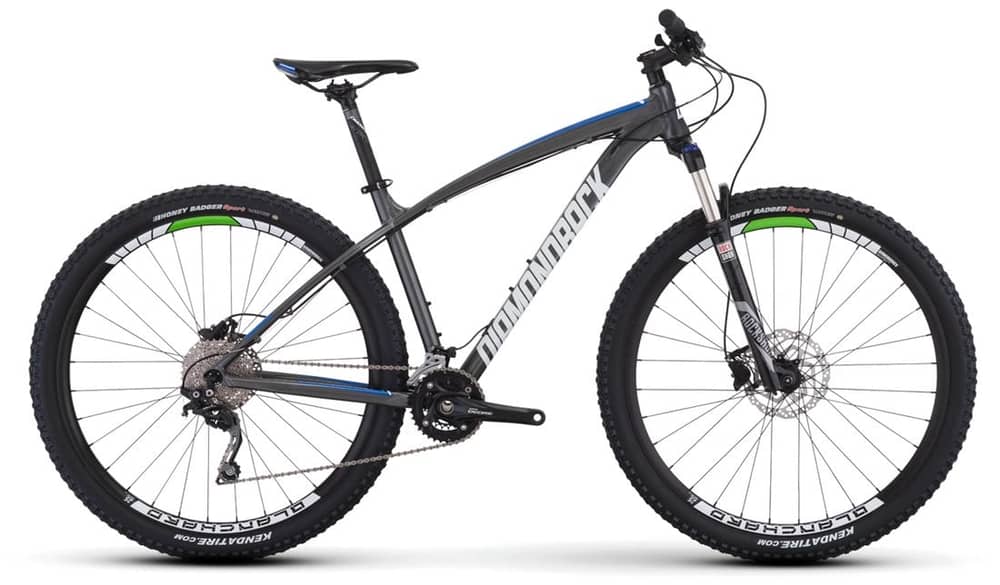

Diamondback Overdrive Comp 29 Bike 2017

Diamondback Overdrive Comp 29 2017

Adventure on Overdrive

Pedal into Overdrive with this classic hardtail that is made for riders who have a hunger for speed. The Diamondback Overdrive Comp features a 6061-T6 aluminum butted and formed frame with neutral geometry, making it lightweight and responsive on the trail. The Overdrive Comp’s 29” wheels and smooth Rock Shox Suspension take trail obstacles and chews them up into little bits, spits them out and begs for more. The efficient and reliable Shimano 2x10 drivetrain keeps you rocketing through rolling terrain and flying up the climbs, while the powerful Shimano hydraulic disc brakes keeps everything under control when the trail turns downward. Knock some time off your personal best and get ready to experience fun on a whole new level with this fast hardtail.

Features

  • Butted 6061-T6 Aluminum Frame lightweight and responsive
  • Big 29” Wheels 2 Roll fast and help smooth out the trail
  • Shimano 2x10 Drivetrain Reliable and durable drivetrain in the Shimano tradition
  • Rock Shox 100mm travel suspension fork Smooth action that gobbles up trail obstacles
  • Shimano Hydraulic Brakes Powerful braking with total control
SPECIFICATIONS
Frame Overdrive 29" Butted 6061-T6 Aluminum, Formed Top / Down Tube, Machined Headtube, Forged Drop Outs w/ Replaceable Hanger
Fork Rockshox Recon Silver, Coil, 100mm Travel, 15mm Thru-axle, w/ Turn Key Lockout
Rear Shock -
Headset FSA NO.42, Sealed Cartridge for Tapered Headtube
Shifters Shimano Deore M610, 2x10 Speed Rapidfire
Front Derailleur Shimano Deore M617, Low Clamp, Side Swing, 34.9mm Clamp Diameter
Rear Derailleur Shimano Deore M610 Shadow, 10 Speed
Crankset Shimano Deore M617, 36/22T
Bottom Bracket Shimano Outboard Bearing
Pedals DB4L Alloy Platform
Chain KMC X10, 10 Speed
Cassette Shimano HG50, 10 Speed Cassette, 11-36T
Brakes Shimano BR-M315 Hydraulic Disc, w/ 180mm Front /160mm Rear Rotors
Wheelset Diamondback Blanchard 25, Tubeless Compatible rims, 32h SL-7 Alloy w/ Center Lock Disc Mount, Cassette rear hub, 32h SL-7, 15MM Thru-Axle, Alloy w/ Center Lock Disc Mount, front hub
Tires Kenda Honey Badger 29x2.2"
Handlebar Diamondback "Pro Bar", 740mm Wide, 15mm Rise, 31.8 Bar Bore
Stem DB 3D Forged, 7° Rise, 31.8 Bar Bore
Grips DB4L 135mm Kraton
Seatpost DB Alloy Micro Adjust 30.9mm
Seatclamp DB alloy quick release
Saddle DB Race M-series
Intended Use Cross country, trail
Weight TBD
TBD

Note: Components are subject to change without notice.

”GeometryChart”
GEOMETRY (mm / inch)
Size Small Medium Large Extra Large
A: Seat Tube Length 400
15.7
450
17.7
500
19.7
600
23.6
B: Effective Top Tube 580
22.8
609
24.0
630
24.8
648
25.5
C: Stack -
-
-
-
-
-
-
-
D: Reach -
-
-
-
-
-
-
-
E: BB Height -
-
-
-
-
-
-
-
F: BB Drop -
-
-
-
-
-
-
-
G: Head Tube Length 95
3.7
105
4.1
120
4.7
135
5.3
H: Head Tube Angle 71.0 ° 71.0 ° 71.0 ° 71.0 °
I: Seat Tube Angle 73.0 ° 73.0 ° 73.0 ° 73.0 °
J: Standover Height 767
30.2
782
30.8
810
31.9
831
32.7
K: Chainstay Length 450
17.7
450
17.7
450
17.7
450
17.7
L: Wheelbase 1074
42.3
1104
43.5
1125
44.3
1144
45.0
Suggested Rider Height 162.5-170 cm
5’4”-5’7”
170-177.5 cm
5’7”-5’10”
177.5-185.5 cm
5’10”-6’1”
185.5-193 cm
6’1”-6’4”
