Fox Float DPS Factory Shock 2017

Item #: RS199B01
From USD$449.00
Qty
Found a Lower Price?

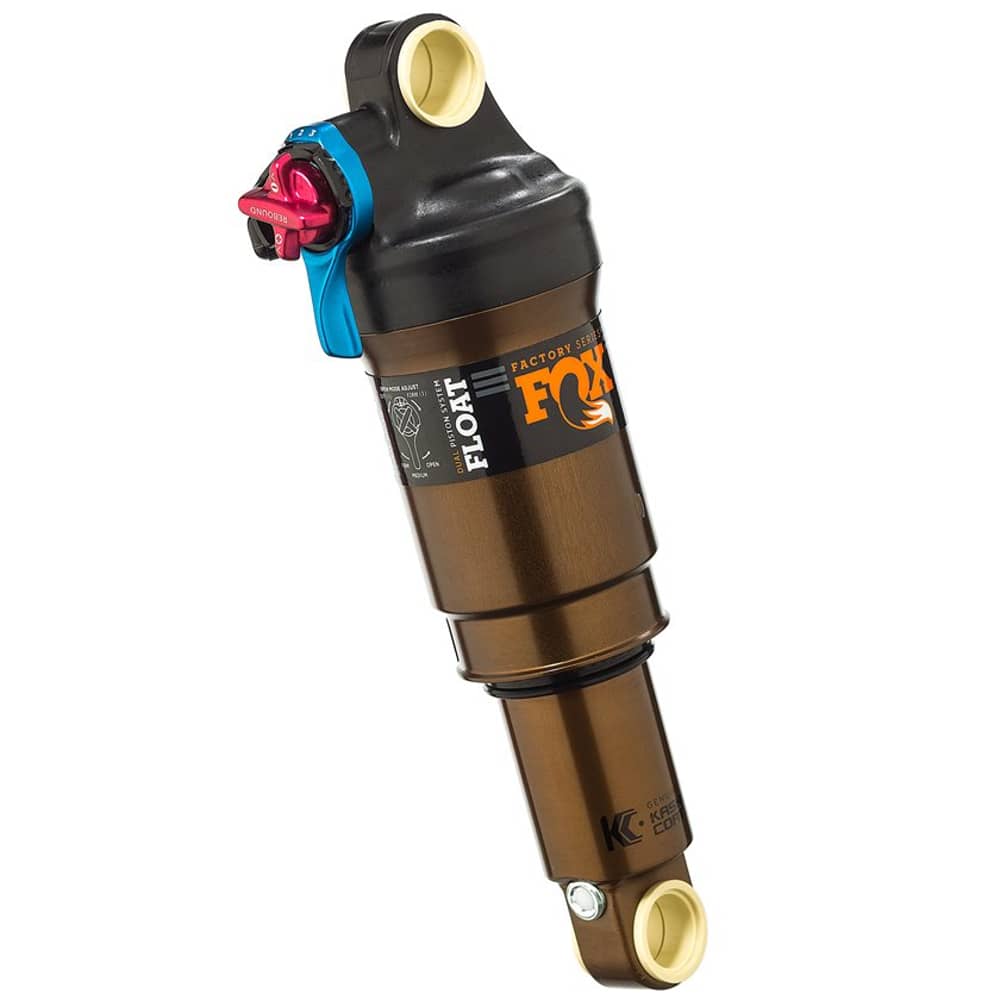

Fox Float DPS Factory Shock 2017

Fox Float DPS Factory Shock 2017

Fox’s highest performing inline shock

The Float DPS features a dual piston valve design with three on-the-fly settings (Open, Medium, Firm,) permitting riders to adapt to a wider array of terrain. This state of the art design offers complete lockout without sacrificing bump compliance, ride control, or efficiency. As a Fox Factory series shock, this model of the DPS features an additional 3 clicks of low-speed compression adjust while in the “Open” position.

As an available option, Fox’s Extra Volume, or EVOL, air sleeve greatly increases negative air volume to produce a softer initial stroke, adding sensitivity and improving small bump compliance. The progressiveness of the spring curve can be tailored with air volume spacers, enabling the feel of the air-spring to be fine-tuned.

Finishing off this gem of a shock, is Fox’s signature Kashima coat which ensures all the travel is silky smooth. Kashima coating is an anodizing process to fill in micro pores that may exist in the material, resulting in a smoother and harder surface in comparison to other anodization processes. Its distinctive gold color is backed by its high performance and extreme durability.

Features

  • DPS damper with three positions to match any terrain
  • EVOL air sleeve improves responsiveness and sensitivity
  • Genuine Kashima Coat improves durability and decreases friction.
  • Rotary Remote allows for quicker and more frequent use.
  • SV (Standard Volume) Eyelet is the FLOAT eyelet standard introduced in 2005.
  • XV (Extra Volume) air sleeves provide increased volume in the positive air chamber which can offer a more linear spring curve over a smaller volume air sleeve such as an SV or SV EVOL.
  • LV (Large Volume) the LV option offers similar positive air volume to the XV sleeves, but does this at a lighter weight and with better cooling.
SPECIFICATIONS
Damping DPS DPS DPS
Spring Air Air Air
Adjustments Lever actuated Open, Medium, Firm modes
Open mode adjust tuning range (1, 2, 3)
Rebound
Air spring pressure
Lever actuated Open, Medium, Firm modes
Open mode adjust tuning range (1, 2, 3)
Rebound
Air spring pressure
Remote actuated Open, Medium, Firm modes
Rebound
Air spring pressure
Coating Kashima Coat Kashima Coat Kashima Coat
Size Options
7.875x2.0 EVOL LV
7.875x2.0 EVOL SV
7.5x2.0 EVOL LV
8.5x2.5 EVOL LV
5.5x1.0 SV
6.0x1.25 SV
6.5x1.5 SV
7.5x2.0 XV
7.875x2.25 XV
7.25x1.75 SV
8.5x2.5 EVOL LV, Remote
7.5x2.0 XV, Remote
6.5x1.5 SV, Remote
7.875x2.25 XV, Remote
7.5x2.0 EVOL LV, Remote
7.875x2.0 EVOL SV, Remote
7.875x2.0 EVOL LV, Remote
Intended Use XC, Trail XC, Trail XC, Trail
Weight 274g (7.5"x2.0") tbd tbd

Do you have questions about this product?

Get answers from real customers and in-house experts with AnswerBox.

1 Question | 4 Answers
Displaying question 1
  • Q:

    I have a 2016 Giant Trance 2, 7.875 x 2 shock 140mm travel SV case. Will this product work on my bike?
    Asked on 10/5/2016 by Sal from Miami, Fl

    4 answers

    • VERIFIED BUYER

      A:

      Hi, you have to match the travel in your current bike. You meed to find out the eye to eye measurement on your current shock. That information is usually found in the bike manufactures web page.
      Sent from my iPhone

      Answered on 10/6/2016 by Anonymous
    • VERIFIED BUYER

      A:

      I ride a Yeti ASRc and I exchanged the original shock for this one. It works much better than the CTD which came with the bike. Be sure specks on length eye to eye and travel are the same as the original. Specially the eye to eye. More travel could be good but not sure. Maybe write to Giant and double check.
      Best of luck!
      Sent from my iPhone

      Answered on 10/5/2016 by Anonymous
    • VERIFIED BUYER

      A:

      I am not familiar with the Giant Trance. I would recommend that you contact Giant.

      Answered on 10/5/2016 by Anonymous
    • VERIFIED BUYER

      A:

      Sal, I would say yes (as long as you order the same 7.875" x 2"), but...  There are a couple of things to consider:  I replaced the basic Rock Shox Monarch on my 2016 Fezzari Alta Peak with this shock (7.875" x 2.25").  If you are changing from a Rock Shox to a Fox shock, you will need to purchase the correct bushing kit.  Also, as I researched this, I was told by Fezzari that the Monarch (as well as the Fox Float on the Nebo Peak) have a special tune.  I am not sure what that means - bottoming tokens, reducer bands?  Anyway, once James at Jenson and I got the correct bushing kit worked out, installation was a breeze.  I opted for the remote and am happy I did.  If you have any questions, James is the guy who can walk you through it.  Good luck.
      Dennis

      Answered on 10/5/2016 by Anonymous
