Jamis Dakar XCT Comp Bike 2016

Item #: BI189B07
USD$1,499.99 SAVE 40% USD$2,499.00 msrp
Choose Color
Ano Black
Choose Size
Qty
Only 2 Left!
Found a Lower Price?

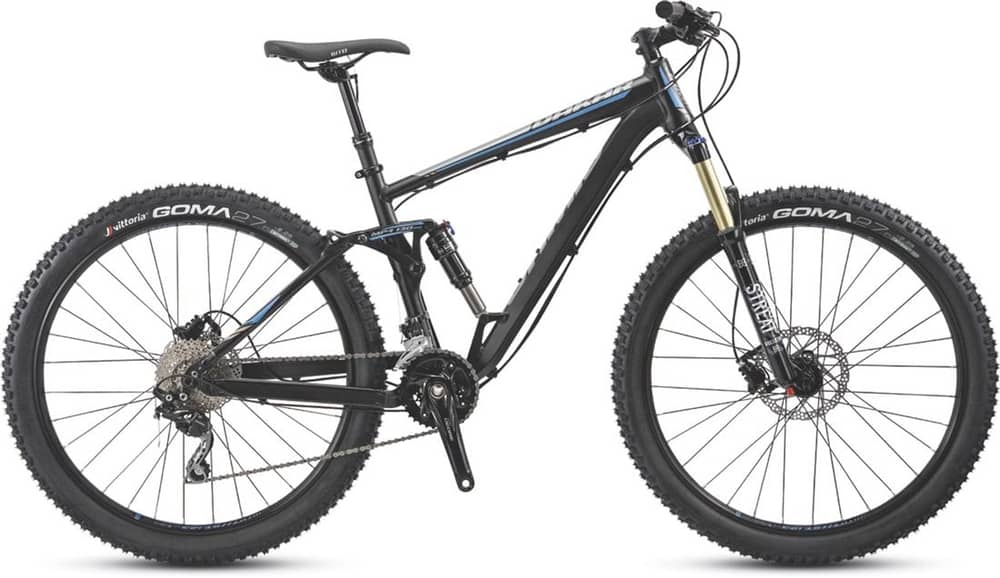

Jamis Dakar XCT Comp Bike 2016

Dakar XCT Comp Bike 2016

a reliable frame with affordable components

The new Dakar XCT Comp by Jamis is an affordable 27.5” cross country machine that's as reliable as it is efficient. A 69 degree headtube angle is the perfect balance between slack and steep, getting you up hills and down them with ease. All sizes also feature a 450mm chainstay, and a 341mm bottom bracket height, putting you in an excellent position for riding all over the mountain. This bike holds excellent control over the trails with 130mm of plush travel delivered by X-Fusion. The fork and shock both offer adjustable rebound and lockout options. A tapered steer tube keeps things feeling solid up front, and the Shimano 2x10 drivetrain has fantastic range. Vittoria Goma tires also roll fast, and provide excellent grip.

The Dakar XCT Comp features X-Fusion suspension that gives you prowess over a variety of terrain types. It also has a 2 x 10 Shimano Deore kit, meeting the perfect point between performance and price. The Ritchey Trail cockpit is is short, low, and wide, giving you optimal control. The KS dropper seatpost lets you climb and descend with ease, while Jamis lock on grips and a WTB Volt Comp saddle offer premium comfort and handling.

Features

  • X-Fusion Suspension with rebound adjust and lockout
  • Shimano Deore 2 x 10-speed drivetrain gives terrific range
  • Vittoria’s Goma is a great enduro tire. Stepped side knobs make this tire grip in every condition, while still rolling fast
  • Stiff alloy frame fitted with versitile dropper post
SPECIFICATIONS
Frame Triple-butted 6061 alloy, 130mm travel mp4 suspension, asymmetrical chainstays with 12 x 142mm dropouts, 1 1/8”- 1.5” tapered head tube, dropper post routing, ISCG05 chainguide mounts, Enduro® Max sealed bearing pivots, X-Fusion O2 Pro RL high volume shock, 10mm hardware, replaceable derailleur hanger, Formula axle
Fork X-Fusion Streat RL2 27.5" w/15mm axle, 32mm stanchions, tapered alloy steerer, air spring compression, rebound & lockout adjust, magnesium lower legs, 130mm travel
Rear Shock X-Fusion O2 Pro RL high volume shock, 10mm hardware,
Headset FSA Orbit 1.5 Zero-Stack internal cup, for tapered head tube, 8mm cone spacer
Shifters Shimano Deore, 2x10-speed
Front Derailleur Shimano Deore, Double
Rear Derailleur

Shimano Deore shadow plus, 10-speed

Crankset Shimano Deore M617, 36/22T, 170mm (15”), 175mm (17-21”)
Bottom Bracket Enduro BSA
Pedals N/A
Chain Shimano HG54, 10-speed
Cassette Shimano HG50, 10-speed, 11-36T
Brakes Shimano M396 hydraulic disc, 180mm front & 160mm rear RT56 rotors
Wheelset WTB ST i23 TCS 27.5" tubeless rims, 32H, eyeleted, with Formula sealed bearing 15mm front and 12x142mm rear 6-bolt disc hubs, stainless spokes & brass nipples
Tires Vittoria Goma, 27.5 x 2.25", folding
Handlebar Ritchey Trail, 740mm x 20mm rise, 9˚ sweep
Stem Ritchey Trail
Length: 70mm (15”), 80mm (17”), 90mm (19"), 100mm (21”)
Grips Jamis Lock-On
Seatpost KS eTen , 100mm travel, handlebar remote, 385x31.6mm
Seatclamp Jamis
Saddle WTB Volt Sport
Intended Use Trail, All-Mountain
Weight -

Note: Components are subject to change without notice.

”GeometryChart”/
0.0
GEOMETRY (mm / inch)
Size Small Medium Large Extra Large
A: Seat Tube Length 349
13.7
387
15.2
416
16.4
465
18.3
B: Effective Top Tube 565
22.2
585
23.0
605
23.8
625
24.6
C: Stack -
-
-
-
-
-
-
-
D: Reach -
-
-
-
-
-
-
-
E: BB Height 341
13.4
341
13.4
341
13.4
341
13.4
F: BB Drop 13
.5
13
.5
13
.5
13
.5
G: Head Tube Length 115
4.5
120
4.7
140
5.5
150
5.9
H: Head Tube Angle 69.0 ° 69.0 ° 69.0 ° 69.0 °
I: Seat Tube Angle 73.0 ° 73.0 ° 73.0 ° 73.5 °
J: Standover Height 780
30.7
806
31.7
830
32.7
863
34.0
K: Chainstay Length 450
17.7
450
17.7
450
17.7
450
17.7
L: Wheelbase 1101
43.3
1121
44.1
1143
45.0
1169
46.0
Suggested Rider Height Under 170 cm
Under 5'7"
170-180 cm
5’7”-5’11”
170-180 cm
5’11”-6’2”
170-180 cm
5’11”-6’2”
Weight (kg / lbs) -
-
-
-
-
-
-
-
