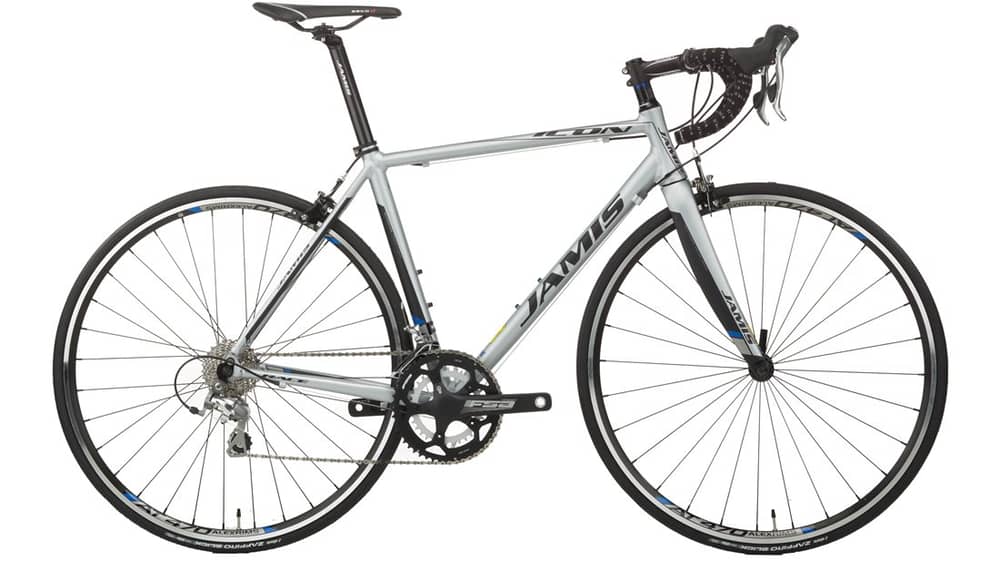

Jamis Icon Race Bike 2015
The Jamis Icon is Jamis' performance line of aluminum road bikes that is more than ready to hit the circuit and earn you a spot on the podium. Whether you plan on ripping up the race course or just ripping up your commute, this is more than enough bike to get you up to speed. The Jamis Icon Race Bike 2015 features a Synthesis double-butted 6061 aluminum frame features an ovalized down tube with SST tubing diameters, butted chainstays and a tapered head tube, which is just fancy talk for a lightweight and comfortable ride with great power transfer. The full carbon fork dampens road vibrations, damping out those bad roads without sacrificing weight or performance to do so.
You'll often find yourself ahead of the pack without putting out as much effort as everyone else with this generous package. The Shimano Tiagra will provide you with the same well known smooth and reliable shifting Shimano is known for, giving you the freedom to attack at any moment without hesitation. The Alex AT 470 rim with TCS wheels come tubeless ready, which with the compatible tires will provide you with the benefits of running a tubeless tire system. In other words: This bike rips!
|Frame||Synthesis double-butted 6061 aluminum, tapered top and ovalized down tube with SST tubing diameters, butted chainstays, twin seat stays, 1 1 /8"-1.5" tapered head tube, Press Fit 30 BB shell, 34.9mm seat tube and replaceable derailleur hanger|
|Fork||Jamis Road carbon fork, 1.5" hollow formed crown, monocoque one-piece forming technology, carbon dropouts with stainless axle interfaces|
|Headset||FSA integrated, sealed bearing with nylon upper compression ring, 1 1 /8"- 1.5"|
|Shifters||Shimano Tiagra ST-4700 Dual Control STI, 2x10-Speed|
|Front Derailleur||Shimano Tiagra FD-4600|
|Rear Derailleur||Shimano Tiagra RD-4600|
|Crankset||Omega compact double with Press Fit 30, 50/34T, 165mm (44), 170mm (48/51), 172.5mm (54/56), 175mm (58/61)|
|Bottom Bracket||FSA PressFit 30|
|Chain||SRAM PC1031 w/Powerlock|
|Cassette||Shimano 10-Speed 12-28T|
|Brakes||Tektro R312 alloy dual pivot calipers with Shimano Tiagra ST-4700 STI brake levers|
|Wheelset||Alex AT 470 rim with TCS (Tubeless Compatible System) with CNC sidewalls, 28/32H, Formula alloy hubs with QR and 14g stainless steel spokes|
|Tires||Vittoria Zaffiro Slick, 700 x 23c|
|Handlebar||Ritchey Comp Logic Curve, 6061 aluminum, 31.8 x 380mm (44), 400mm (48/51), 420mm (54/56), 440mm (58/61)|
|Stem||Ritchey 4-Axis, 3D forged 6061 alloy, 6° x 80mm (44), 90mm (48/51), 100mm (54/56), 120mm (58/61)|
|Bar Tape||Fizik Soft Touch|
|Seatpost||Jamis carbon fiber micro-adjust, 31.6 x 300mm with Jamis 7075-AL CNC aluminum 1-bolt seat post clamp|
|Saddle||Selle Royal Seta S1 with Integrated Clip System, embossed cover and steel rails|
|Intended Use||Race, Recreational, Urban Commuter|
|Weight||TBAkg / TBAlbs|
|A: Seat Tube Length||TBA||TBA||TBA||TBA||TBA||TBA|
|B: Effective Top Tube||20.27 / 515||20.82 / 529||21.42 / 544||22.24 / 565||22.83 / 580||23.23 / 590|
|C: Stack||19.53 / 496||20.35 / 517||21.30 / 541||22.09 / 561||22.83 / 580||23.58 / 599|
|D: Reach||14.29 / 363||14.61 / 371v||14.92 / 379||15.51 / 394||16.02 / 407||16.02 / 407|
|E: BB Height||TBA||TBA||TBA||TBA||TBA||TBA|
|F: BB Drop/Rise||2.68 / 68||2.68 / 68||2.68 / 68||2.68 / 68||2.68 / 68||2.68 / 68|
|G: Head Tube Length||3.94 / 100||4.72 / 120||5.51 / 140||6.30 / 160||7.08 / 180||7.87 / 200|
|H: Head Tube Angle||71.5°||72.0°||73.0°||73.0°||73.0°||73.0°|
|I: Seat Tube Angle||73.0°||73.0°||73.0°||73.0°||73.0°||73.0°|
|J: Standover Height||28.15 / 715||29.33 / 745||30.16 / 766||30.94 / 786||31.65 / 804||32.32 / 821 2|
|K: Chainstay Length||15.94 / 405||15.94 / 405||15.94 / 405||15.94 / 405||15.94 / 405||15.94 / 405|
|L: Wheelbase||37.72 / 958||38.11 / 968||38.07 / 967||38.90 / 988||39.49 / 1003||39.88 / 1013|
6 months ago
5 months ago
6 months ago
The silver paint is a flat finish. I was really hoping for a gloss finish but it's ok. The seat is pretty comfortable. I can ride 35 miles with little discomfort. The shifting is smooth & very quiet. The brakes work really well.
I replaced the 23c cheap tires with 25c Continental Grand Prix 4 Seasons. They look awesome but now wish that I had put 28c tires on but not sure if there's enough clearance.
Overall, I'd say that if you're looking to get into this sport, this is a great starting point.
