Kona Supreme Operator Al 27.5 Frame 2017

Takes a Downhill lickn' and keeps on tickn'

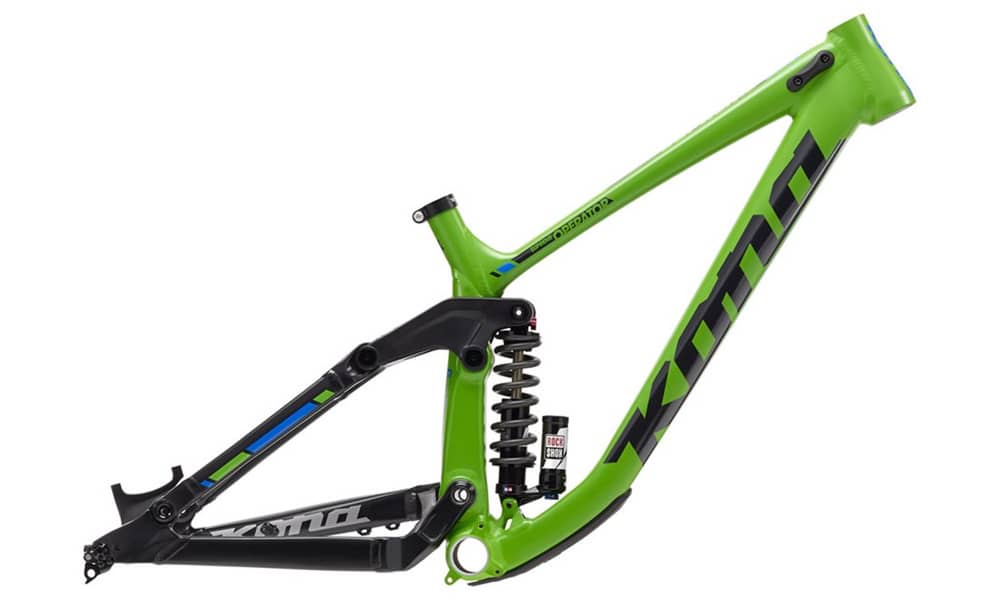

This abuse-taking, World Cup-ready DH 6061 Aluminum Butted frame with 27.5-inch wheels is built with a speedy geometry and Kona's own Beamer Independent Suspension. This suspension system lets the Supreme Operator stay higher in the travel and recover from hits more quickly. Paired with a Rockshox Kage RC 200mm shock, it is also a highly tuneable and durable linkage system. 12x157mm rear dropouts give this race machine a stiff rear axle and plenty of tire clearance. This Kona Supreme Operator frame is ready to be built up and rolled straight to the start gate.

Reviews

Pinkbike - " - it is a very lively ride, thanks especially to the progressive suspension, but it is very stable when ridden with purpose, and really rewards a take-charge style of riding. "- AJ Barlas

Features

  • Beamer Independent Suspension is designed to be highly tuneable and extremely durable.
  • Kona 6061 Aluminum Butted Alloy Is a tough, durable, light, and shaped to deliver a great ride characteristics.
  • 12x157mm Axle provides a stiff rear axle and ample tire clearance a the yoke.
  • Lifetime Warranty when registered with Kona within three months of purchase.
SPECIFICATIONS
Frame Kona DH 6061 Aluminum Butted 200mm Travel
Wheel Size 27.5"
Fork Designed for 200mm Travel Forks, *not compatible with tapered steer tubes
Rear Shock Rockshox Kage RC
Headset Included -
Headtube Diameter 1-1/8"-1-1/2" Tapered
Front Derailleur -
Bottom Bracket -
Seatpost 34.9mm
Seat Clamp Kona
Dropout Style 157x12mm Thru Axle
Accessory Mounts ISCG 05
Cable routing Internal
Intended Use Gravity
Weight tbd

Note: Components are subject to change without notice.

GeometryChart
GEOMETRY (mm / inch)
Size Medium Large Extra Large
A: Seat Tube Length 410
16.1 		410
16.1 		410
16.1
B: Effective Top Tube 584
23.0 		611
24.1 		641
25.2
C: Stack 615
24.2 		620
24.4 		629
24.8
D: Reach 435
17.1 		460
18.1 		485
19.1
E: BB Height 349
13.7 		349
13.7 		349
13.7
F: BB Drop 10
0.4 		10
0.4 		10
0.4
G: Head Tube Length 120
4.7 		125
4.9 		135
5.3
H: Head Tube Angle 63.0 ° 63.0 ° 63.0 °
I: Seat Tube Angle 76.5 ° 76.5 ° 76.5 °
J: Standover Height 720
28.3 		720
28.3 		720
28.3
K: Chainstay Length 423
16.7 		423
16.7 		423
16.7
L: Wheelbase 1220
48.0 		1248
49.1 		1277
50.3
