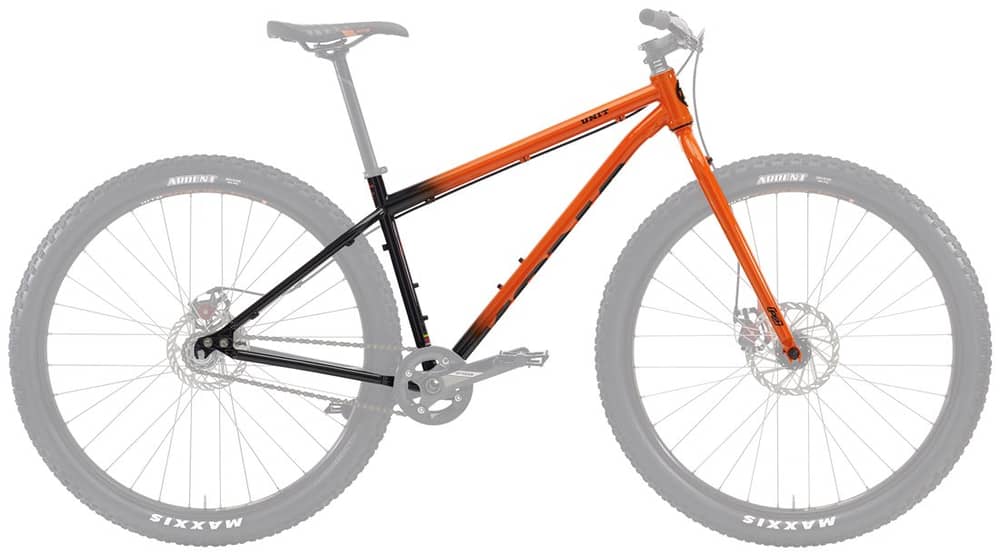

Kona Unit Frame 2016

Item #: FR193H07
USD$525.00
Qty
Found a Lower Price?

Kona Unit Frame 2016

Kona Unit Frame 2016

Rigid Single Speeders Rejoice!

Free yourself of the complexities of derailleurs and suspension, and tap into Mountain Biking in its purest form. Build yourself the ultimate rigid, single speed 29er with the Kona Unit frame. The Kona Unit frame and fork is built from tried and true Reynolds 520 cromoly that is stiff where it needs to be, yet has the forgiving qualities of steel that we all love. If you’re looking for more versatility, no worries, built into the Units frame are cable guides and modular rear dropouts that allow you the option to run gears, should you choose. The Kona Unit takes trails of all types and fills them full with fun.

Features

  • Reynolds 520 tubing (Steel is Real)
  • New redesigned Kona Cromoly rigid fork
  • Modular rear dropouts add versatility
  • 29er specific geometry
SPECIFICATIONS
Frame Reynolds 520 Butted Cromoly Steel Is Real
Fork Kona Project Two 29 Disc
Headset Size 44mm
Front Derailleur Size 28.6mm
Bottom Bracket Shell 73mm English Thread
Seatpost Size 27.2mm
Seat Clamp Size 28.6mm
Intended Use XC / Trail
Weight TBD

Note: Components are subject to change without notice.


GEOMETRY (inch/mm)
Size Small Medium Large Extra Large
A: Seat Tube Length 14.6 / 370 16.5 / 420 18.5 / 470 20.9 / 530
B: Effective Top Tube 22.4 / 564 23.5 / 614 24.5 / 641 25.8 / 668
C: Stack - - - -
D: Reach - - - -
E: BB Drop 2.4/ 60 2.4 / 60 2.4 /60 2.4 /60
F: BB Height - - - -
G: Head Tube Length 3.7/ 95 4.1 / 105 4.5 / 115 4.9 / 125
H: Head Tube Angle 69° 69° 69° 69°
I: Seat Tube Angle 74° 74° 74° 74°
J: Standover Height - - - -
K: Chainstay Length 17.1 / 434 17.1 / 434 17.1 / 434 17.1 / 434
L: Wheelbase - - - -
There are no reviews for this item. Write Review

Q & A

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 2 questions Browse 2 questions and 1 answer
Does it come with a headset?
A shopper on Aug 4, 2017
what is the dropout spacing?
A shopper on Sep 12, 2017
BEST ANSWER: The dropouts are standard 135mm qr dropouts. I am using a bolt on rear hub.

Cheers,
-A
