Niner RLT 9 Frameset

Item #: FR231E00
Qty
Found a Lower Price?
Request a Price Match
365 Day Returns

Niner RLT 9 Frameset

Niner RLT 9 Road Frameset

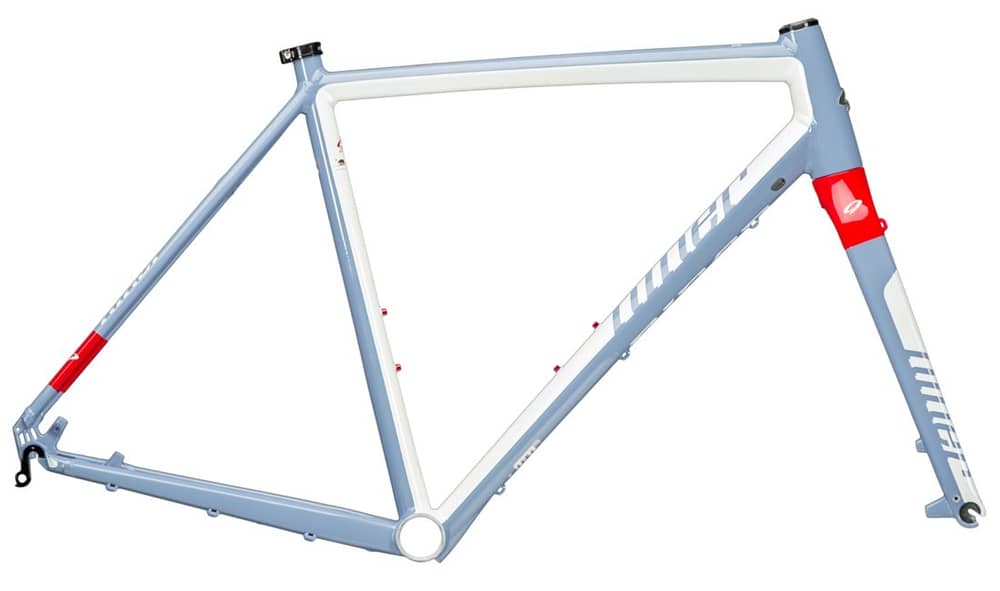

The RLT 9 is the first Niner bike designed for 700c wheels. If you mainly stick to the street or fire roads you can use 700c wheels to run road or cross tires, or if you want something a little wider (up to 1.75”) you can use a 29” wheelset thanks to the 135mm rear hub spacing. The slightly longer chainstays, slightly lower bottom bracket, and a slacker head tube angle make this a real gravel grinder ready for adventure. To make this a bike you can truly ride on and off road all day, the RLT 9 features a hydroformed tube set similar to the Air 9, engineered to meet Niner’s ride quality standards which is also why it comes with a gravel-tuned, custom painted Niner Carbon fork to eat up all those road vibrations. The RLT 9 features internal cable routing (Di2 compatible) and uses a PF30 bottom bracket shell allowing you to run it geared or single speed with Niner’s new BioCentric 30. The RLT 9 is exactly what you’d think of when hearing Niner made a 700c drop bar bike: beautiful, versatile and ready to shred!

Niner RLT 9 Specifications

  • 73mm PF30 BB width
  • PF30 BB adaptable to threaded via adapters
  • Compatible with BioCentric 30 for singlespeed use
  • Internal shifter routing ports are ready for Di2 and seat post battery routing
  • Integrated shifter rack/fender mounts
  • 27.2mm seat post, 400mm length recommended
  • 31.8mm seat collar
  • 34.9mm high mount front derailleur, bottom pull
  • 1.125" - 1.5" tapered head tube with integrated (Campy style) headset (headset included) Cane Creek IS42/28.6 is52/40
  • Disc brake only - 160mm Max Rotor size
  • 135mm rear spacing
  • All sizes have two inner triangle bottle mounts
  • Can fit up to a 1.75" tire (tire size varies by brand, some tires may not fit)
  • Compatible with standard 2x and 3x chainring systems


GEOMETRY (mm / inch)
Size 47 50 53 56 59 62
A: Seat Tube Length 470
18.5		 500
19.7		 530
20.9		 560
22.0		 590
23.2		 620
24.4
B: Effective Top Tube 510
20.1		 525
20.7		 545
21.5		 565
22.2		 585
23.0		 605
23.8
C: Stack 532
20.9		 553
21.8		 574
22.6		 589
23.2		 610
24.0		 631
24.8
D: Reach 363
14.3		 367
14.4		 375
14.8		 385
15.2		 398
15.7		 406
16.0
E: BB Height - - - - - -
F: BB Drop 70
2.8		 70
2.8		 70
2.8		 70
2.8		 70
2.8		 70
2.8
G: Head Tube Length 105
4.1		 125
4.9		 145
5.7		 165
6.5		 185
7.3		 205
8.1
H: Head Angle 70º 70.5º 71º 71.5º 72º 72.5º
I: Seat Angle 74.5º 74º 73.5º 73º 73º 72.5º
J: Standover Height 740
29.1		 764
30.1		 788
31.0		 815
32.1		 842
33.1 		867
34.1
K: Chain Stay Length 435
17.1		 435
17.1		 435
17.1		 435
17.1		 435
17.1		 435
17.1
L: Wheelbase 1008
39.7		 1015
40.0		 1025
40.4		 1038
40.9		 1053
41.5		 1062
41.8
Suggested Rider Height 5'1" - 5'3" 5'3" - 5'5" 5'5" - 5'9" 5'9" - 5'11" 5'11" - 6'3" 6'3" - 6'5"
Powered by TurnTo
4.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Stars
0
1
0
0
0
GOOD FRAME BAD CABLE ROUTING
Internal cable routing adds weight. Most cable kits don't have enough housing so you need more' requiring a housing joint ferrule which doesn't necessarily match both housings. As cable housing exits frame at bottom bracket it loops away from frame looking sloppy & reducing ground clearance. Grommets sealing housing to frame where housing enters down tube is difficult to install. None of supplied parts were identified, I have unidentified left overs. Other than that, it's great.

PROS: Durable, Attractive Design

CONS: Difficult To Install
