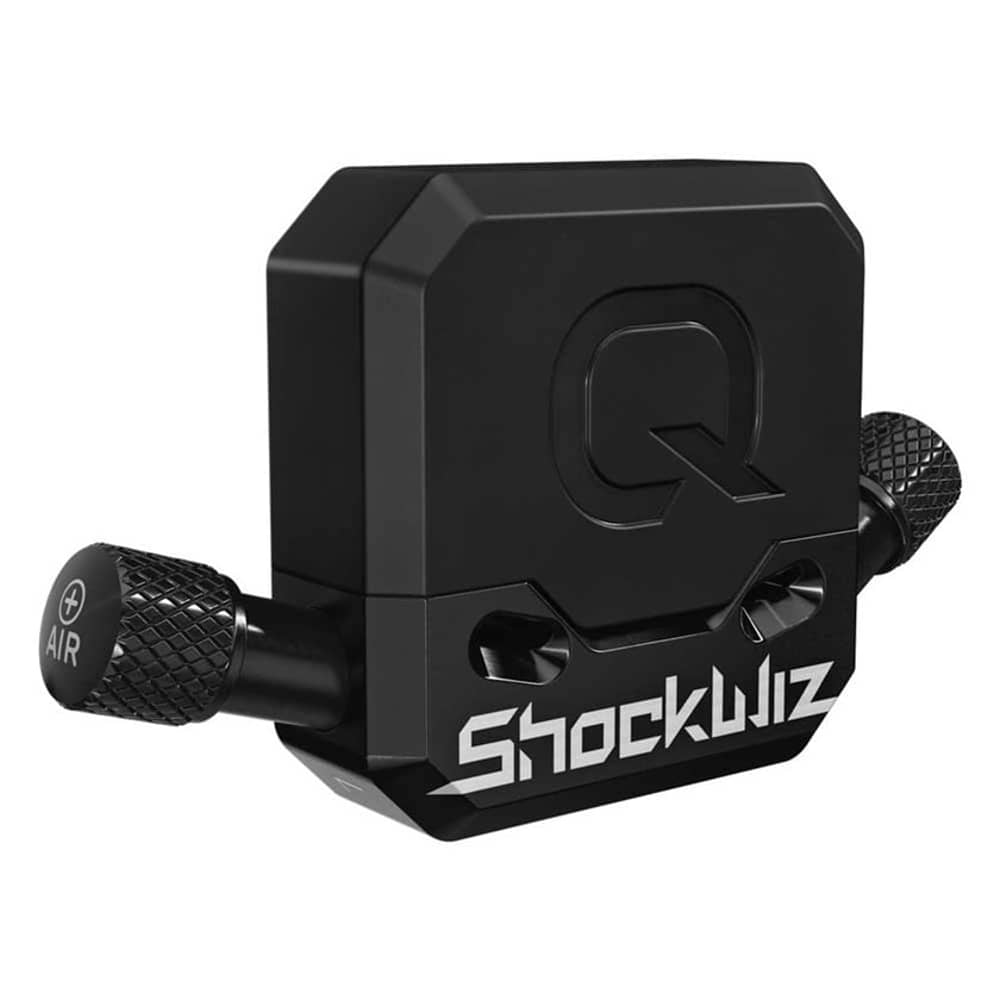

Quarq Shockwiz Shock Tuning Device

Item #: EL190H00
USD$399.00
Qty
Only 3 Left!
Found a Lower Price?

Quarq Shockwiz Shock Tuning Device

Quarq Shockwiz Shock Tuning Device

MTB suspension tuning that combines high tech mechanical sensing with an app that delivers easy to understand recommendations.

Regardless of your riding style, experience or preference for hardtails or dual suspension rigs, the Quarq ShockWiz Tuning device will let you know exactly how your suspension is performing. Not only how it’s doing, but also how to make it better and find your optimal fork and rear shock settings. ShockWiz’s small, waterproof case houses an extremely accurate pressure sensor and microprocessor. You connect it to your fork or shock’s Schrader valve and it samples air pressure 100 times-a-second while you ride. It will decide if adjustments need to be made, what those adjustments should be and then displays them in the ShockWiz smartphone app. Puzzling and time consuming trial and error experiments with your baseline air pressure, air spring ramp, rebound, and compression are all yesterday’s news. The aim of ShockWiz is to give you the knowledge to eliminate undesirable pogo, pack-down and bob characteristics in your suspension setup. This can mean the difference in being King of the Mountain or the guy still in the parking lot fiddling with his shock pump.

FEATURES

  • Made for everyone ShockWiz is designed for all mountain bike riders, regardless of their experience or bike's intended use.
  • Multiple tuning options You can tune for every riding style: Efficient (pedaling), Balanced, Playful or Aggressive.
  • Clear Suggestions Advice for air pressure, spring rate, compression and rebound is displayed in the intuitive smartphone app.
  • Widely compatible ShockWiz works with most air-sprung suspension forks and rear shocks, from many different manufacturers.
  • Use it every ride Trails, skills, components and conditions are always changing. Use ShockWiz every ride to unite bike, rider and terrain.
  • No Phone Required You do not need to ride with your smartphone. ShockWiz stores the data for display on your phone later.
  • Automated tuning recommendations
  • Shock tuning score a snapshot of how well your suspension is set up for you.
  • Works on hardtail and dual suspension bikes Works for Cross-Country, Trail, All Mountain and Downhill.
  • Smartphone App compatible with Apple and Android phones.

ShockWiz in the Apple App Store (iOS)

ShockWiz on Google Play (Andriod)

Specifications
Air Volume ShockWiz and one hose add around 0.50mL of air volume. (The volume of a single M&M candy piece is 0.60-0.65mL.)
Wireless Communication Bluetooth low energy (also called BLE; formerly called Bluetooth Smart)
Waterproof, Dust Proof Rating IP67
Battery Type CR2032
Weight 45g (with rubber mounting boot and valve caps)

Compatibility
Hardware
  • The fork or shock must have a positive chamber with a single volume.
  • RockShox Solo Air and Dual Air are compatible.
  • Adjustable travel forks such as TALAS and Down - Low Adjust need to be kept in the same travel position or a new calibration is required.
  • Non-linear, bump detecting dampers such as Terralogic, Brain, iCTD and E:I will not work as well, but you still get usable suggestions.
  • Suspension with variable chambers such as DRCV and Equalizer are not supported.
  • Suspension where the positive and negative chambers are joined when a shock pump is installed, such as some Manitou forks, or filled through the negative chamber, such as White Brothers and MRP forks, are not supported.
  • RockShox Dual Position Air is not compatible.
Software
  • The ShockWiz app is compatible with most smartphones and tablets that feature Bluetooth Low Energy (formerly called Bluetooth Smart).
  • Android devices require Jellybean 4.3 or newer and Apple devices require iOS 9 or newer.
  • The app includes language translations.
5.0 / 5.0
4 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Stars
4
0
0
0
0
Great tool for tuning
I've found the Wiz to be a great tool for figuring out different ways to tune my suspension. Although I've spent a fair amount of time bracketing my suspension in the past, the Wiz suggested tuning options that I wouldn't have tried previously and they've been solid improvements. Highly recommend this device.
April 18, 2017
Without a doubt an improvement over what I was able to accomplish without it!
I have worked long and study hard to get good at setting up my suspension. And according to money shockwaves I was very close however after following its recommendations I can definitely say at the shop with recommendations are Improvement over what I was running.
March 15, 2017
Purchased
6 months ago
Location:
TEXAS
So far very happy!!
So far it's been a great tool to help set up my suspension. I'm just not solid enough to figure out a perfect setup. No trouble setting and using. Look forward to finishing up my set up!!
April 6, 2017
Purchased
7 months ago
The wiz delivers
Easy to setup and use. Delivers insightful tuning suggestions. Very positive user experience. My only complaint is I wish I could save sessions and results, instead this is all lost when starting a new session. It would be phenomenal if you could compare or overlay sessions but that might be a little out of the scope of this product.
June 1, 2017
Purchased
4 months ago
Location:
Denver, CO

Q & A

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 4 questions Browse 4 questions and 10 answers
Are the hoses and mount included or sold separately?
emarquar on Feb 16, 2017
BEST ANSWER: Quarq site says, "In the box: ShockWiz hardware, two hoses, rubber mounting boot and zip ties."
does it also work with FOX 40s?
jay s on Feb 27, 2017
BEST ANSWER: Any Air spring suspension with a Schrader connector.
Does this kit come with 2 devices. 1 for the fork and 1 for the shock?
AARON J on Mar 22, 2017
BEST ANSWER: It comes with one device and the needed parts to use it. You will however need extra zip ties As you move it from bike to bike it comes with enough to use it twice
Can I use this on the rockshox lyric ?
Alex S on Apr 13, 2017
BEST ANSWER: Yes. It's compatible with any air fork or shock.
