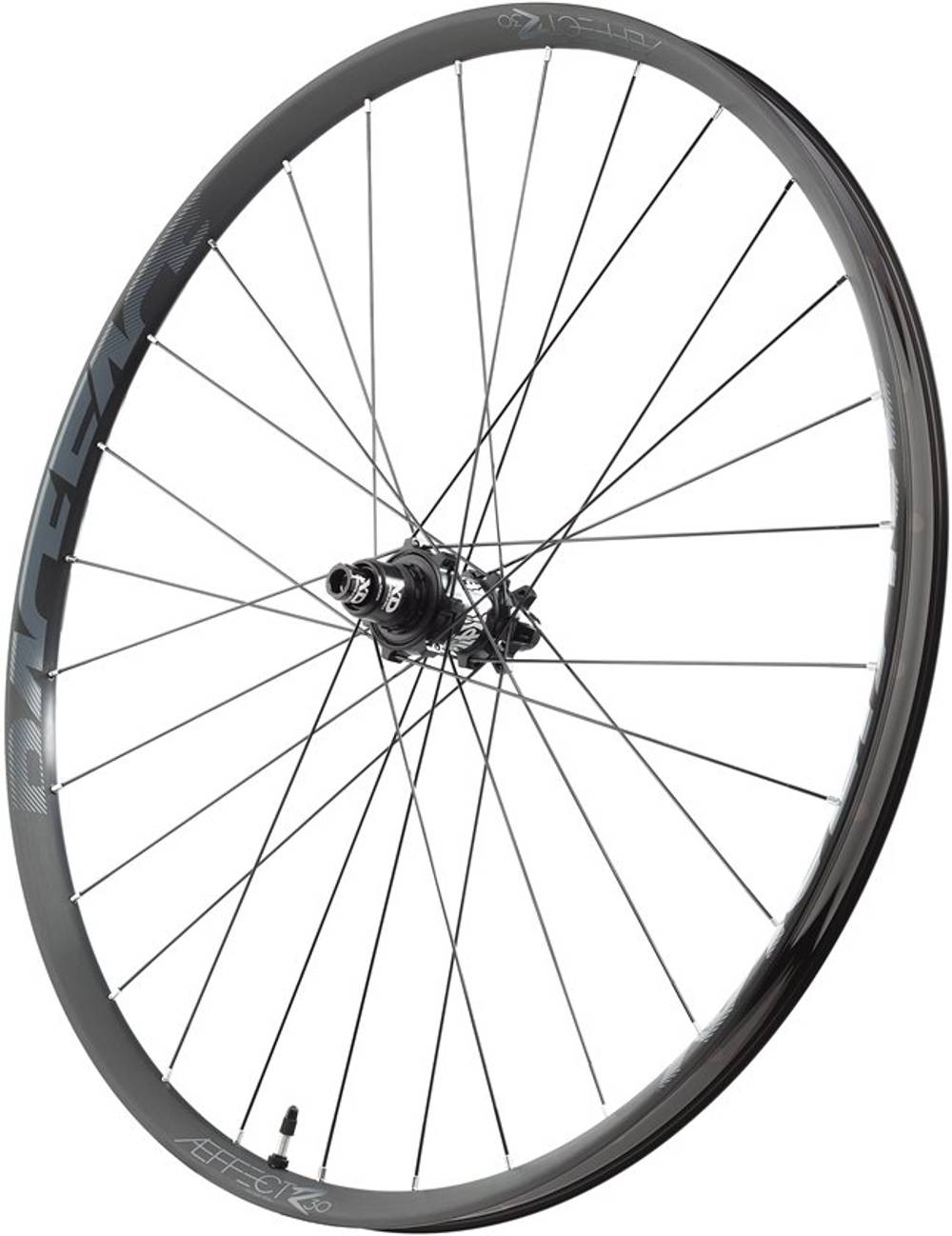

Race Face Aeffect-R 29" Wheels

Item #: WH196G04
From USD$159.99 SAVE 36% USD$250.00 msrp
Qty
Found a Lower Price?

Race Face Aeffect-R 29" Wheels

Race Face Aeffect-R 29" Wheels

The Æffect R wheels are built to absolutely shred. With a 30mm internal rim width and increased strength, they are itching to eat up all the aggressive all-mountain trails and Enduro races you can throw at them. In addition to a great rim, the Æffect R incorporates a new Race Face Trace hub design with full cartridge bearings for extended life and durability. The hub also come with a competitive 9.2º of engagement using a durable 3 pawl design. These hubs are tough, think Hacksaw Jim Duggan, beat ‘em with a 2x4 tough.

Features

  • Brushed finish, water transfer graphics.
  • One spoke length throughout wheelset.
  • Rim decal kits available separately in 8 colors (sold separately).
  • 9.2º hub engagement.
  • Standard 6 bolt brake rotor mount.
  • Extra spokes (5) included with rear wheels.
  • Straight pull Double Butted spokes with Silver Brass nipples.
  • Front hub converts to 9x100QR with caps sold separately
  • Rear hub converts to 135 QR with caps sold separately (minor disassembly required)
SPECIFICATIONS
Size 29”
Material Aluminum
Outer Width -
Inner Width 30mm
Height -
Spoke Drilling -
Valve Type Schrader
Tubeless Yes
Tire Type<
Brake Compatibility Disc Only, with 6-bolt rotor mounting
Driver Type SRAM XD or Shimano HG 8/9/10 speed
Front Axle 15mmx100 or 15mmx110
Rear Axle 12mmx148 or 12x142mm
Intended Use Trail
Weight 1930g
3.5 / 5.0
2 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Stars
1
0
0
1
0
Poor Rear Hub Reliability
A bearing in the rear hub failed on my original and then my replacement, total of 11 rides between them. Same failure. Rim is great, hub body is nice with the straight pull, but I had major reliability issues with the rear hub. Front is going strong.
July 25, 2017
Location:
Victoria BC
Best MTB wheels for the price!!!
Best MTB wheels for the price.
This wheels are just incredible.
Awesome wheels!!!
Awesome wheels!!!
July 31, 2017
Purchased
1 month ago
Location:
Denton, TX

Q & A

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 10 questions Browse 10 questions and 6 answers
Can this wheelset be setup tubeless?
A shopper on Apr 22, 2017
BEST ANSWER: Yup! these are supplied tubeless-ready.
Does this come with a Presta valve?
A shopper on Apr 18, 2017
BEST ANSWER: Yes, comes exactly as shown in the photo.
Will these wheels require tape to convert to tubeless or is there a rim strip pre-installed for this purpose (like Bontrager TLR wheels)?
A shopper on Jun 11, 2017
BEST ANSWER: Tape is already installed & ready for Tubeless set up
The only front wheel listed is the 110 boost; can this be converted to 100/15? I would like to get the wheel set but my frame/forks dont have boost spacing
Dave P on May 30, 2017
BEST ANSWER: Boost wheels are not convertible to other standards, sorry. This is due to the different brake rotor mounting point.
Can the 110 Boost Front Hub be converted to a traditional QR Front with the optional endcaps?

Thanks!
Alan D on May 8, 2017
BEST ANSWER: Sorry, it cannot be converted. Boost hubs in general cannot be converted to other standards because the rotor mounting points are different.
Can the rear be converted to 135mm with caps like the front too?
A shopper on Apr 30, 2017
BEST ANSWER: Yes, you would use these. To convert the rear you need a 17mm open end cone wrench and a 12mm hex key. A bench vise or visegrips are useful for getting the pesky end caps off.
Race Face Turbine End Cap
Race Face Turbine End Cap
Is the boost rear available in xd driver ? Seems to be on other sites but not here.
A shopper on Aug 15, 2017
is it possible to get the rear wheel with centrelock brake rotor attachment instead?
Jeff N on Jul 10, 2017
Does the shimano driver utilize cartridge bearings for the axle? I currently have the two piece cone bearing that came on my bike, and I'm tired of dealing with it.
Jeff N on Jul 10, 2017
Is there a rider weight limit on either the front or rear wheel?
Heraldo on Jun 22, 2017
