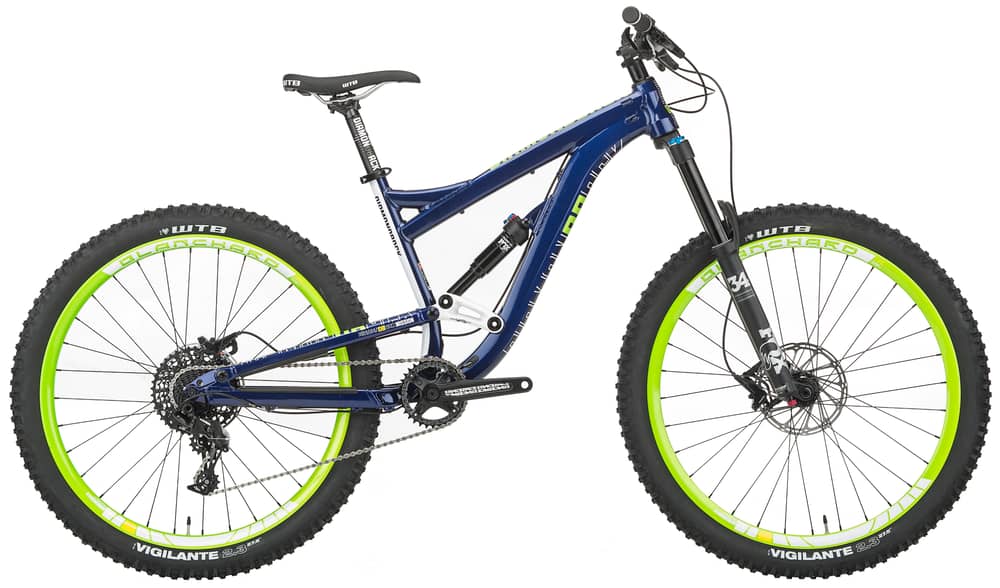

Diamondback Mission 1.0 Bike 2017

(32)
Item #: BI195B03
This item is unavailable.
Close

Double-check!

Confirm your options before continuing

*Free Shipping over $50

90-Day Returns

Insider - Exclusive Coupons and more.

Price Protection

Diamondback Mission 1.0

Crushing it downhill is one thing, but the aspiring enduro racer needs to be able to climb efficiently too. Not a problem for the Mission 1! The Fox CTD equipped Knucklebox Migration suspension design reduces pedal induced motion without compromising small bump compliance, delivering you to the top efficiently and comfortably so you have more energy for another rip back down. With 27.5" wheels, you retain the snappy handling of 26" wheels combined with the added obstacle clearance and acceleration typical of the 29er platform. Get on board, this ride is taking off and you don't want to be left behind!

For the Mission 1 build, Suspension duties are handled beautifully by a plush pair from Fox Racing Shox. A Fox Fox Performance 34 Float 27.5" with 160mm travel soaks up everything from small bumps to daring drops and rock gardens, all while the rear Fox Float DPS keeps things tame in the rear.

The Mission 1's drivetrain is a practical blend of tested workhorse components, resulting in a pedaling platform that shreds as hard as you plan to push it. An 11 speed SRAM NX drivetrain forms the sturdy core of the Mission 1's drivetrain. SRAM Level T Hydraulic disc brakes offer all of the stopping power needed to handle daring terrain and modulate speed through tricky descents. The Mission 1 rolls confidently on Diamondback Blanchard 28R, Tubeless Compatible wheels paired with a set of reliable WTB Vigilante Comp tires. Diamondback rounds out the cockpit of the Mission 1 with a full complement of DB branded components, ensuring that when you take a seat at mission control, everything is dialed!

Features

  • Mission All Mountain 27.5, 160mm 6061-T6 Weapons Grade Aluminum w/ Hydroformed Top Tube, Butted / Formed Down Tube / Seatstays durable, lightweight and reliable performance
  • Fox Shox front and rear suspension for a superior feel and ride
  • SRAM Level T Hydraulic Disc brakes for steadfast braking ability
  • 1 x 11spd SRAM drivetrain Smooth and reliable shifting
  • RaceFace Ride 1x crankset with 32t Narrow Wide chainring Never drop a chain!
  • Ready to Ride in 3 Minutes Your new bike arrives fully ready to ride in under three minutes. Simply install your front wheel and your favorite pedals, and you're ready to chase your own adventure.



NOT QUITE THE PERFECT BUILD? We can help you out. Give one of our Gear Advisors a call and they’ll fine tune the details of your dream bike.  888-880-3811



SPECIFICATIONS
Frame Mission All Mountain 27.5, 160mm 6061-T6 Weapons Grade Aluminum w/ hydroformed top tube, Butted / formed down tube / Seatstays, under arch seatstay bridge, Tapered head tube, Knuckle Box Technology, ISCG, 142x12mm E-Thru axle dropout
Fork Fox Performance 34 Float 27.5", 160mm Travel, Open Cartridge, 3 Position Lever w/ External Rebound Adjust, 1.5" Butted Alloy Tapered Steerer Tube, 34mm Easton Aluminum Stanchions, w/ 15mm Thru-axle
Headset TBA
Rear Shock Fox Float DPS, 3 Position Lever, "LV" Eyelet, 8.5x2.5" Air, w/ Rebound Adjust
Wheelset Diamondback Blanchard 28R, Tubeless Compatible, 32h
Tires WTB Vigilante Comp, 27.5x2.3"
Brakes SRAM Level T Hydraulic Disc, w/ 180mm Front / 180mm Rear Centerline Rotors
Brake Levers SRAM Level Hydraulic Levers w/ Tooled Reach Adjust
Shifters SRAM NX 11 Speed X-Actuation Trigger
Rear Derailleur SRAM NX X-Horizon, 11 Speed
Crankset Raceface Ride, 32T "Narrow Wide" Single Ring
Bottom Bracket Raceface Outboard Bearing
Cassette SRAM PG1130, 11 Speed, 11-42T
Chain KMC X11EL, 11 Speed
Pedals DB4L alloy platform with replaceable pins
Handlebar DB35 Alloy, 780mm Wide, 15mm Rise, 35mm Bar Bore
Stem DB35 Alloy, 50mm Reach, 35mm Bar Bore
Grips DB4L "Lock on" 135mm Kraton
Saddle WTB Volt Comp
Seatpost DB Alloy Micro Adjust, 30.9mm
Weight 32 lbs (Small)   32.2 lbs (Medium)   32.5 lbs (Large)

Note: Components are subject to change without notice.

”GeometryChart”/

GEOMETRY
Size Small Medium Large Extra Large
A: Seat Tube Length 15” 17” 19” 21”
B: Effective Top Tube 22” 23” 24” 25”
C: Stack 509mm 509mm 604mm 622mm
D: Reach 380mm 404mm 416mm 430mm
E: BB Height 342mm 342mm 342mm 342mm
F: BB Drop 2mm 2mm 2mm 2mm
G: Head Tube Length 105mm 105mm 120mm 140mm
H: Head Tube Angle 66.5° 66.5° 66.5° 66.5°
I: Seat Tube Angle 73° 73° 73° 73°
J: Standover Height 30.0” 30.5” 31.5” 32.0”
K: Chainstay Length 451mm 451mm 451mm 451mm
L: Wheelbase 1134mm 1159mm 1176mm 1198mm
