Niner Air 9 Carbon Frame

Item #: FR216A02
This item is discontinued and no longer available.
Choose Color
365 Day Returns

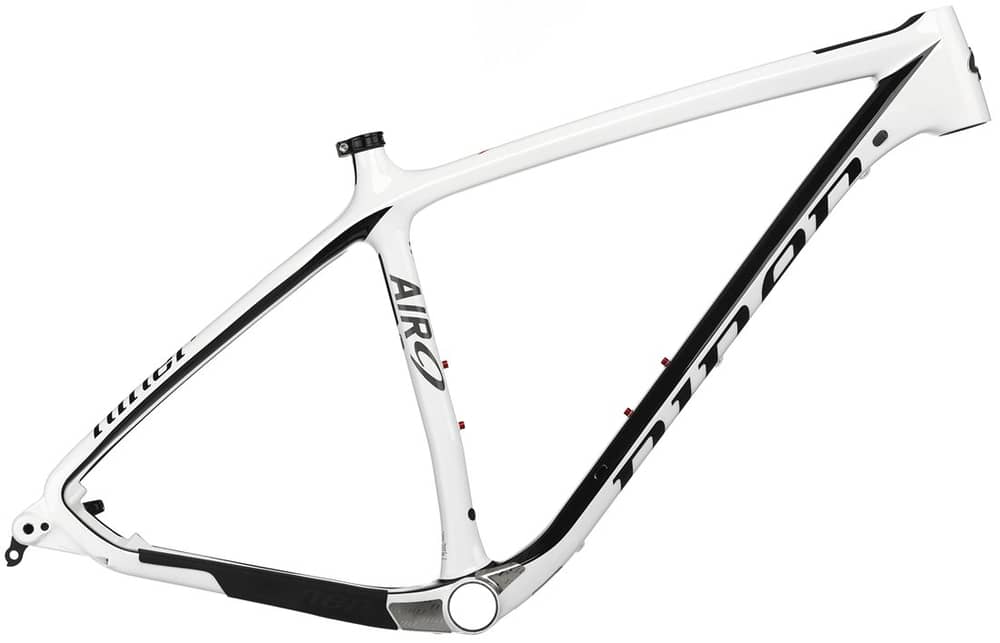

Niner Air 9 Carbon Frame

The Niner Air 9 Carbon is Niner's latest iteration of the renowned Air 9 frame. Niner has proven year after year that they've got the 29er hardtail geometry down to a science, which they are demonstrating yet again with the new Air 9 Carbon. Although it's technically not an RDO, it borrows the mold and several other features previously only seen on the Air 9 RDO frame.

The Air 9 Carbon features internal cable routing (the frame is Di2 ready and side swing front derailleur compatible), thinner tube profiles, smaller junctions, carbon molded headset races, a low profile disc brake mount, and a PF30 carbon bottom bracket shell. Niner decided to go with a PF30 bottom bracket shell for the Air 9 Carbon geared-only carbon hardtail. The PF30 bottom bracket shell allows for 24mm or 30mm spindle cranks to be installed, however this frame is not compatible with an EBB (hence €˜geared-only').

To keep this horse tame, Niner continues to use tapered headtubes in order to maintain a stiffer front end to drastically improve the overall handling and control. Additionally, Niner also decided to go with a very sleek integrated headset that is lightweight, easy to install and maintain.

This version of the Air 9 Carbon is the first to feature a 12 x 142 rear hub spacing allowing a thru axle to be used as an added measure to increase the overall stiffness of the ride while shedding roughly 50 grams. Other improvements making their debut on the Air 9 Carbon include its 2.4" tire clearance versus its previous 2.35" clearance, as well as the lighter headbadge that sheds valuable grams without expensing the Niner charm.

The new Air 9 Carbon is a stellar frame that anyone can and will enjoy. Although it's technically not €˜Race Day Optimized', this bike is as much at home on the XC course as it is enjoying the scenery on your weekend loop. By providing their proven hardtail geometry in a lightweight carbon frame, Niner definitely knew what they were doing when they designed the new Air 9 Carbon.

Niner Air 9 Carbon Frame Features

  • Niner Carbon for strength, stiffness and ride quality
  • 142 x 12 rear spacing (over 50 grams lighter)
  • Tapered head tube for front end stiffness, strength and steering precision
  • PF30 Bottom Bracket
  • Low profile disc brake mount
  • Replaceable rear derailleur hanger
  • Clearance for 2.4" tire
  • New lighter Niner headbadge
  • Titanium chain drop and chain suck protection pieces
  • Compatible with standard 3x chainring systems
  • SRAM recommended 2x chainrings: 26/39 or lower
  • SRAM XX1 recommended max chainring: 32T Q-Factor: 168mm
  • SHIMANO XT recommended 2x chainrings: 28/40 or lower
  • SHIMANO XTR FC M9000 series recommended 2x chainrings: 28/38 or lower. XTR FC M980 series 2x chainrings not recommended
  • C5 Carbon warranty €“ 5 years
  • Frame Weight: 3.4 lbs
  • Includes Headset and seat post collar
  • Seat post size: 31.6mm
  • PF30 Bottom Bracket
  • Headset compatibility: IS42/28.6 IS52/40

Note: White/Black sku image is for color illustration purposes only. Upon purchasing, you will be shipped only the frame.

Niner Air 9 Geometry (100mm Fork)
Size Extra Small Small Medium Large Extra Large
Effective Top Tube Length 575mm 590mm 607mm 626mm 645mm
Seat Tube Length 381mm 394mm 419mm 483mm 533mm
Head Tube Length 95mm 105mm 110mm 125mm 145mm
Head Angle 71.0° 71.0° 71.0° 71.0° 71.0°
Seat Angle 73° 73° 73° 73° 73°
BB Drop 54mm 54mm 54mm 54mm 54mm
Front Center 639mm 643mm 660mm 680mm 699mm
Wheel Base 1073mm 1088mm 1094mm 1114mm 1134mm
Chain Stay Length 439mm 439mm 439mm 439mm 439mm
Reach 392mm 403mm 418mm 433mm 446mm
Stack 599mm 612mm 617mm 631mm 651mm
Standover Height 688mm 724mm 744mm 796mm 837mm
Niner Air 9 RDO Frame Geometry (120mm Fork)
Size Extra Small Small Medium Large Extra Large
Effective Top Tube Length 578mm 593mm 610mm 629mm 648mm
Seat Tube Length 381mm 394mm 419mm 483mm 533mm
Head Tube Length 95mm 105mm 110mm 125mm 145mm
Head Angle 70° 70° 70° 70° 70°
Seat Angle 72° 72° 72° 72° 72°
BB Drop 47mm 47mm 47mm 47mm 47mm
Front Center 645mm 649mm 665mm 685mm 705mm
Wheel Base 1079mm 1094mm 1100mm 1120mm 1127mm
Chain Stay Length 439mm 439mm 439mm 439mm 439mm
Reach 382mm 392mm 408mm 422mm 436mm
Stack 606mm 619mm 624mm 639mm 658mm
Standover Height 692mm 729mm 749mm 802mm 843mm
Powered by TurnTo
5.0 / 5.0
16 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Stars
16
0
0
0
0
solid and lightweight frame
Pretty good, my order came 1 day before estimated delivery date
August 19, 2016
Location:
Fraijanes, GT
budget racer
I'm a high school league racer who doesn't have the means to ride the latest and greatest S-works, but I can tell you i've beat people on shiny new $10k+ bikes on multiple occasions. The frame is bulletproof, it't not nearly the lightest but neither am i, nor do i really care considering how cheap it was to purchase. It's responsive, fast, and Niner really worked their magic on this bike, the geometry is flawless.
January 3, 2017
Location:
92220
Love my Niner
Arrived in perfect conditionand on time
October 17, 2016
Location:
Mpls, MN
Yes!
Fast delivery!
September 19, 2016
Location:
Laguna Hills
Location:
Laguna Hills
Get ready to go fast!
I was very impressed with how quickly I received my frame which was shipped for free!
September 14, 2016
Location:
Huntersville, NC
Awesome
Very fast delivery and packaged great.
August 22, 2016
Location:
Beckley, WV
Great frame at awesome price
Love my new Air9 Carbon . Been contemplating buying this bike for a while. A few years back I ordered the same frame to be built by another online bike company. Excited about new purchase then I started to notice some issues with what I thought I was getting and what the order said I was going to get. I cancelled the order. With many plea's from the other online dealer to make the purchase at even more of a discounted price. They lost my trust. It's taken me a while to pull the trigger. Thank you Jenson USA for your help in purchasing the right bike for me.
August 16, 2016
Location:
Wisconsin
Yes!
Fast delivery!
September 23, 2016
Location:
Laguna Hills
Location:
Laguna Hills
I love this frame, very light and looks great!!!
The service at Jenson USA is awesome, quick response by the customer service and very helpful. They guided me through the process. I'm impressed!!!
October 2, 2016
Location:
Cayey, P.R.
Stepping up from aluminum!
Even though I only been on a few rides on this frame, the comfort level has drastically improved from the aluminum frame that I was riding. I can tell that there will be many more enjoyable mile to be had on this frame.
October 27, 2016
Location:
East Coast

Q & A

Powered by TurnTo
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 4 questions Browse 4 questions and 28 answers
I want to set this frame as 1x. Looking at shimano XT group set and the cassette is 11-42. Will this work on this frame?
Ryan on Oct 4, 2016
BEST ANSWER: That is my plan exactly! But I will build this bike over the winter as deals become available and at this point I only have the frame. If I remember correctly the description of the frame on the website had detailed info on compatible drivetrains.
Sent from my iPad
What is the difference between this frame and the Air 9, and what size would I run if I'm 6 feet tall with an inseam of 30 (I'm a 56-57 in a road bike)? Thanks.
A shopper on Dec 16, 2016
Niner Air 9 Carbon Frame
Niner Air 9 Carbon Frame
Niner One 9 RDO Frame
Niner One 9 RDO Frame
BEST ANSWER: Hi there, Niner sent us their flagship feather-weight Air 9 RDO (Race Day Optimized for those not in the know), stacked with some of their house components, XTR drivetrain, and RockShox’s RS-1 carbon inverted fork. The RDO definitely puts the purpose of this bike into perspective when it comes to “Race Day Optimized”. Check out what made me grin… and what made me cringe riding this race machine…
About your size it's between M or L, check size chart in niner website
Can I use a 1 1/8" straight fork steerer tube on this frame?
JerJer on Aug 23, 2016
BEST ANSWER: Non-tapered fork for a tapered head tube can be used with an adapter. Just make sure you get one from your headsets manufacturer. Crown races usually aren't cross compatible.
Edgardo
Life is too short for all the fun and laughters to be enjoyed. Don't spend your time dwelling on failures and miseries. Smile and have gladness in your heart for God loves you and blesses you so much. You have more to be thankful for ...
Does this frame have internal cable routing for dropper post?
Nick on Jul 27, 2016
