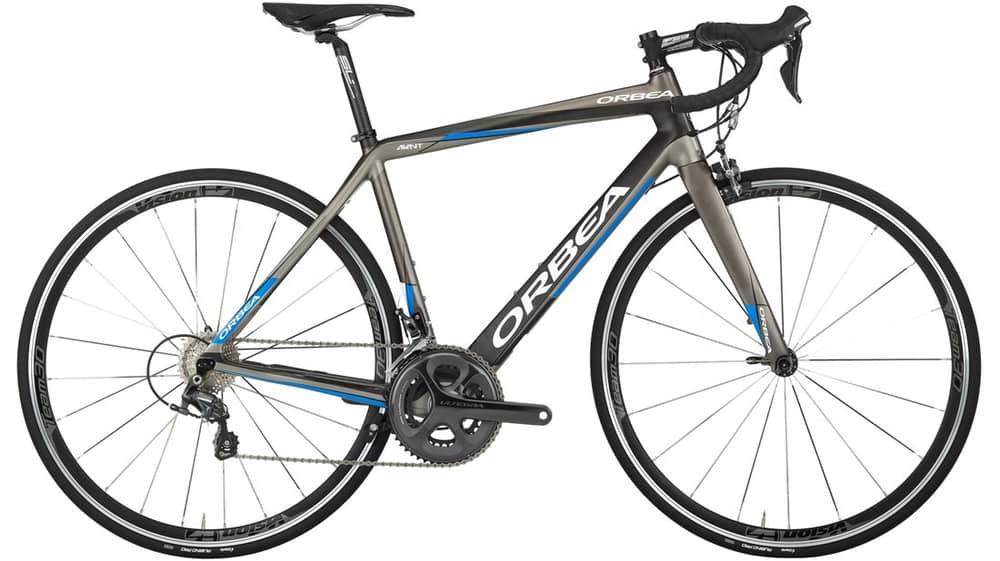

Orbea Avant M20 Bike 2015

(3)
Item #: BI197C04
This item is unavailable.
Close

Double-check!

Confirm your options before continuing

*Free Shipping over $50

90-Day Returns

Insider - Exclusive Coupons and more.

Price Protection

Orbea Avant M20 Bike 2015

Challenge Accepted

The Avant delivers a formidable blend of comfort, endurance, and versatility for those who put a value on distance over speed. The seat stays and seat tube have been shaped specifically to enhance vertical stiffness for less repetitive stress on the body, while the higher stack, shorter reach, broader wheelbase, and longer chainstays increase stability and decrease vibration, minimizing the amount of effort put into taming the horse, and leaving more energy to gut out the late miles.

Fully aware of the plethora of varying terrain, weather conditions, and practicalities the adventurist is likely to encounter, the Avant is all about providing choices for compliance. With a drivetrain dominated by the Shimano Ultegra 6800 11 speed group, the Orbea Avant M20 Bike 2015 captures the perfect combination of value and performance. The Avant frame also features an internal routing system that's compatible with both traditional cables or the more modern, electronic wiring systems, including a hidden seatpost-mounted battery. As more and more roadies are moving away from the 23c tire and fancying wider tire sizes, the Avant has the tire clearance to accommodate up to 28mm tires. The wider tire size is ideal for hard-pack dirt exploration, and also significantly increases comfort and stability during lengthy days in the saddle.

Features

  • Orbea Avant carbon OME (Orbea Monocoque Performance) frameset
  • Shimano Ultegra 6800 drivetrain
  • Vision Team 30 Clincher wheelset
SPECIFICATIONS
Frame Orbea Avant carbon OMP, monocoque, tapered 1-1/8" - 1.5", internal cable routing, EC/DC compatible
Fork Orbea Avant OMP carbon fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts
Headset FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings
Shifters Shimano Ultegra 6800
Front Derailleur Shimano Ultegra 6800
Rear Derailleur Shimano Ultegra 6800
Crankset Shimano Ultegra 6800, 50/34
Bottom Bracket PF 86mm, powermeter compatible
Pedals n/a
Chain Shimano Ultegra 6800
Cassette Shimano Ultegra 6800, 11-28
Brakes Shimano 105 5800
Wheelset Vision Team 30 Clincher
Tires Vittoria Rubino Pro 700x25 120TPI
Handlebar FSA Gossamer Compact
Stem FSA Gossamer Pro
Bar Tape Orbea Black/White
Seatpost Orbea OC-II Carbon 27.2x350mm
Seat Clamp Bolt-On Type
Saddle Prologo Kappa Evo STN, 134mm
Intended Use Road Racing, Road Sport, Endurance
Weight 17.7 lbs (53cm)

Note: Components are subject to change without notice.


GEOMETRY (mm/inches)
Size (cm) 47 49 51 53 55 57 60
A: Seat Tube Length 410/ 16.141 440/ 17.3 470/ 18.5 490/ 19.29 510/ 20.07 530/ 20.86 560/ 22.04
B: Effective Top Tube 516.2/ 20.32 525.8/ 20.7 535.2/ 21.07 548.1/ 21.57 563.4/ 22.18 579.6/ 22.81 594.8/ 23.41
C: Stack 517.4/ 20.37 535.8/ 21.09 554.8/ 21.84 572.8/ 22.55 596.1/ 23.46 614.6/ 24.19 636.5/ 25.05
D: Reach 363/ 14.29 367.1/ 14.45 371/ 14.60 378.4/ 14.89 383.4/ 15.09 391.7/ 15.42 400/ 15.74
E: BB Height 269/ 10.59 269/ 10.59 269/ 10.59 269/ 10.59 269/ 10.59 269/ 10.59 269/ 10.59
F: BB Drop/Rise 72.5/ 2.85 72.5/ 2.85 72.5/ 2.85 72.5/ 2.85 72.5/ 2.85 72.5/ 2.85 72.5/ 2.85
G: Head Tube Length 113/ 4.44 132/ 5.19 150.1/ 5.90 165/ 6.49 187.6/ 7.38 205/ 8.07 226/ 8.89
H: Head Tube Angle 71.2° 71.4° 71.8° 72° 72.5° 73° 73°
I: Seat Tube Angle 73.5° 73.5° 73.5° 73.5° 73.2° 73.2° 73.2°
J: Standover Height 708.5/ 27.89 720.5/ 28.36 754/ 29.68 774.5/ 30.49 797/ 31.37 817.5/ 32.16 841.5/ 33.12
K: Chainstay Length 414/ 16.29 414/ 16.29 414/ 16.29 414/ 16.29 418/ 16.45 418/ 16.45 418/ 16.45
L: Wheelbase 978/ 38.5 986.6/ 38.84 992.9/ 39.09 993.7/ 39.12 1005.3/ 39.57 1014/ 39.92 1023.8/ 40.3
M: Stem 90 100 100 110 110 110 110
N: Handlebar (mm/cm) 400/ 40 400/ 40 420/ 42 420/ 42 420/ 42 440/ 44 440/ 44
O: Crank Length 170 170 170 170 172 172 175
