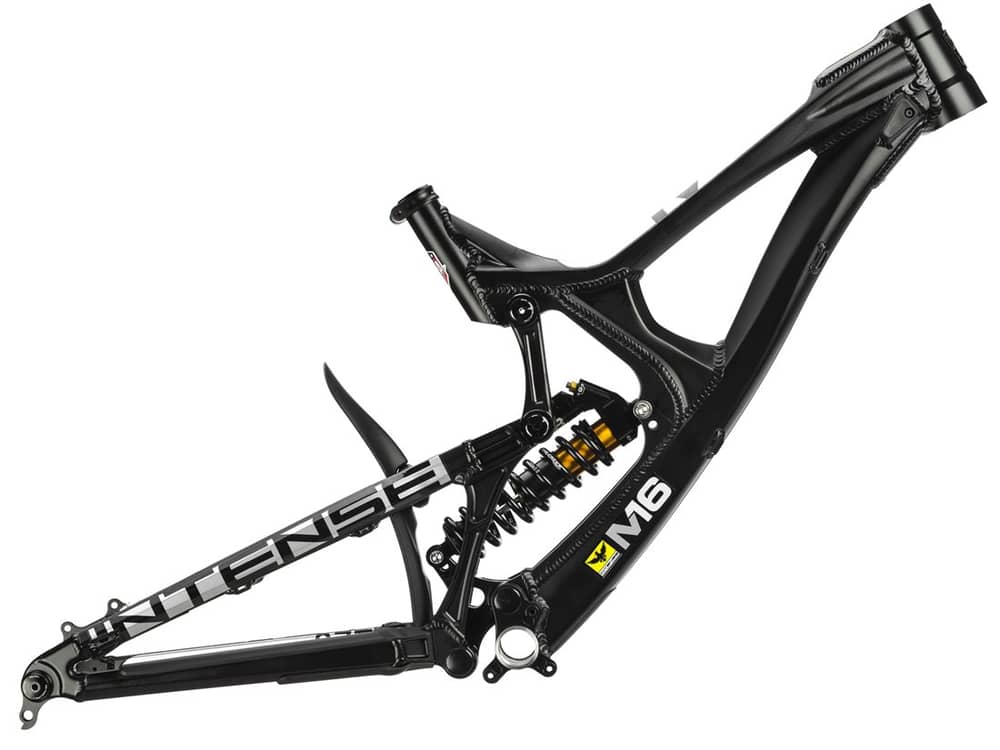

Intense M16 Frame 2015

We've all heard the saying, "Learn from your mistakes!" But what about learning from your successes? Looking at the history of Intense's M series, you'd be quick to notice it's decorated past and proven progression of elite level downhill race machines. Ultimately, you'd be able to see that the M16 is the latest result of Intense learning from its M series success of yesteryear.

Designed with an insistent geometry, plenty of travel, and the perfect 27.5" wheel size, the M16's talent lay in today's World Cup race scene. Sculpted to trim milliseconds, the M16 features VPP (Virtual Pivot Point) suspension to rid the rig of unnecessary compression without compromising bump absorption. The finished product gushes plush travel for more control, which therein equates to more speed.

Without any shortage of adjustability, the M16 allows you dial in the bike depending on what the run is looking like for the day. With 8.5 to 9.5 inches (215mm €“ 240mm) of travel via Can Creek Double Barrel Coil rear shock, and its gravity-tuned geometry, technical descents will become your playground in a hurry.

To provide the required muscle for taking on rock gardens and massive roots, Hydroformed Alloy is the frame material of choice, meaning its constructed right here in the USA.

Intense M16 Frame 2015 Features:

  • 27.5" Wheel Size
  • Made in the USA
  • Hydroformed Aluminum Construction
  • 215mm €“ 240mm (8.5" €“ 9.5") of adjustable rear travel
  • Standard with Cane Creek Double Barrel Coil Shock
  • 157mm rear hub spacing
  • Comes with 12X157 Locking collet axle
  • Serviceable pivot points featuring collet bolts and grease ports
  • Two levels of adjustable shock progression
  • Molded FLK-GRD protection
DIALED App Store Google Play

A free App from Cane Creek that turns your phone into a Double Barrel rear shock tuning expert. Learn More.

GeometryChart
GEOMETRY
Size Small Medium Large
Top Tube Length 565 mm/ 22.25" 591 mm/ 23.25" 616 mm/ 24.25"
Seat Tube Length 436 mm/ 17.2" 442 mm/ 17.4" 454 mm/ 17.9"
Standover Height 797 mm/ 31.4" 803 mm/ 31.6" 809 mm/ 31.9"
Stack 587 mm/ 23.1" 592 mm / 23.3 598 mm/ 23.55"
Reach 391 mm/ 15.4" 413 mm/ 16.3" 436 mm/ 17.15"
Head Tube Length 109 mm/ 4.3" 115 mm/ 4.5" 122 mm/ 4.8"
Head Tube Angle 63.5° 63.5° 63.5°
Seat Tube Angle (actual) 73.3° 73.3° 73.3°
Seat Tube Angle (effective) 59.5° 59.5° 59.5°
Wheelbase 1194 mm/ 47" 1219 mm/ 48" 1245 mm/ 49"
Chainstay Length 445 mm/ 17.5" 445 mm/ 17.5" 445 mm/ 17.5"
BB Height 365 mm/ 14.375" 365 mm/ 14.375" 365 mm/ 14.375"
Stem Length (mm) 50 50 50
Handlebar Width (mm) 740 740 740
