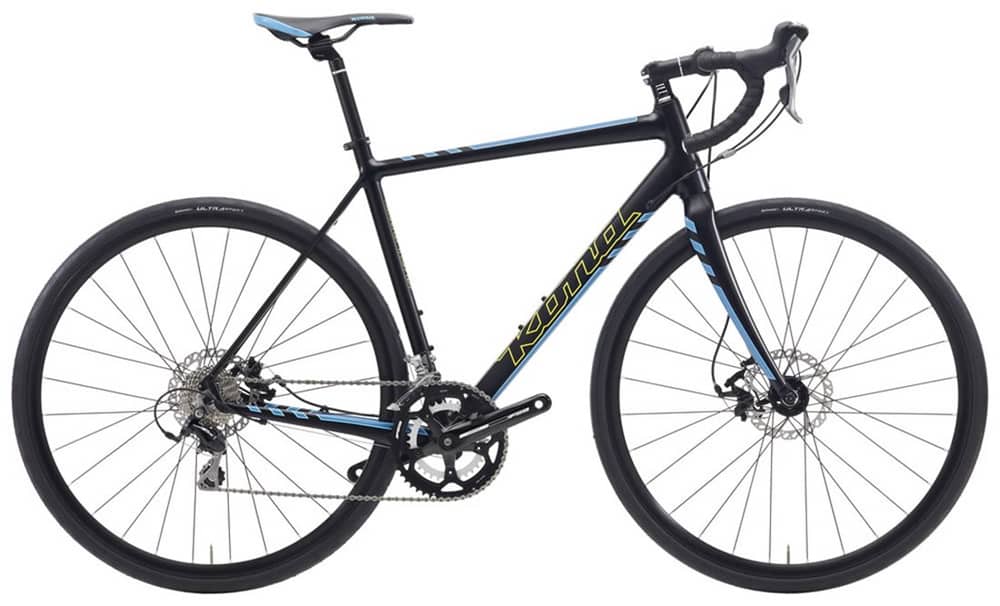

Kona Esatto D Bike 2015

It's a modern road bike

The Kona Esatto D Bike 2015 is a modern bike, ready to do take on all your standard road bike needs, such as all-season training, group rides, Gran Fondos. Everything, in other words, it's a road bike, and Kona gave it sensibility, comfort, and all the benefits you gain from having disc brakes on board. Look at the Kona Scandium 69 tubeset, the full carbon disc-specific fork with tapered steerer, and the company's new Endurance Geometry that will help take the edge off of bigger rides. At this pricepoint, too, there won't be much of an edge on your purchase decision, either.

And for your money you get Shimano Tiagra shifters tied to a 12-28T cassette, an FSA Vero crank at 34/50T, and Hayes CX Comp brake calipers with a Hayes L-Series 160mm rotor out back, and an L-Series 140mm one in front. The wheelset is Alex CXC7, rolling Continental UltraSport II tires at 28 width, and Kona takes care of the bar, saddle and seatpost (Kona Road), the stem (Kona Road Light), and the clamp and bar tape. The headset is FSA No. 42. The Scandium frame tubes are actually something like 50 percent better than regular alloy. How? The scandium element does this by "straightening" out the grains of the alloy, making the metal less susceptible to failure. And Kona says the use of this allows them to shave weight from their aluminum frames by 10 to 15 percent.

Features:

  • Scandium 69 tubing has one of the highest strength-to-weight ratios for any alloy
  • A full carbon disc-specific fork has a tapered steerer
  • Endurance-focused geometry will help out on those longer rides
SPECIFICATIONS
Frame Kona Race Light Scandium 69
Fork Kona Carbon Race Disc
Headset FSA No. 42/ACB
Shifters Shimano Tiagra
Front Derailleur Shimano Tiagra
Rear Derailleur Shimano 105
Crankset FSA Vero
Bottom Bracket TH 7421
Pedals -
Chain KMC X10
Cassette Shimano Tiagra 12-28T 10-speed
Brakes Hayes CX Comp with L-Series rotors (160mm rear, 140mm front)
Wheelset Alex CXD7
Tires Continental Ultrasport II 200x28
Handlebar Kona Road
Stem Kona Road Light
Bar Tape Kona Cork Tape
Seatpost Kona Road w/offset
Seatclamp Kona Clamp
Saddle Kona Road
Intended Use Sport, Recreatio0l, Urban Commuter
Weight 0 kg
0 lbs

Note: Components are subject to change without notice.


GEOMETRY (mm / inch)
Size Small Medium Large
A: Seat Tube Length 520
20.5 		540
21.3 		560
22.0
B: Effective Top Tube 535
21.1 		550
21.7 		565
22.2
C: Stack 562
22.1 		579
22.8 		598
23.5
D: Reach 374
14.7 		378
14.9 		382
15.0
E: BB Height 0
0 		0
0 		0
0
F: BB Drop 76
3.0 		74
2.9 		74
2.9
G: Head Tube Length 145
5.7 		165
6.5 		185
7.3
H: Head Tube Angle 72 ° 72 ° 72 °
I: Seat Tube Angle 74 ° 74 ° 73 °
J: Standover Height 765
30.1 		785
30.9 		800
31.5
K: Chainstay Length 418
16.5 		418
16.5 		418
16.5
L: Wheelbase 990
39.0 		1001
39.4 		1011
39.8
Rider Height 157-170cm
5'2"-5'7" 		168-180cm
5'6"-5'11" 		178-190cm
5'10-6'3"
Weight (kg / lbs) 0
0 		0
0 		0
0
