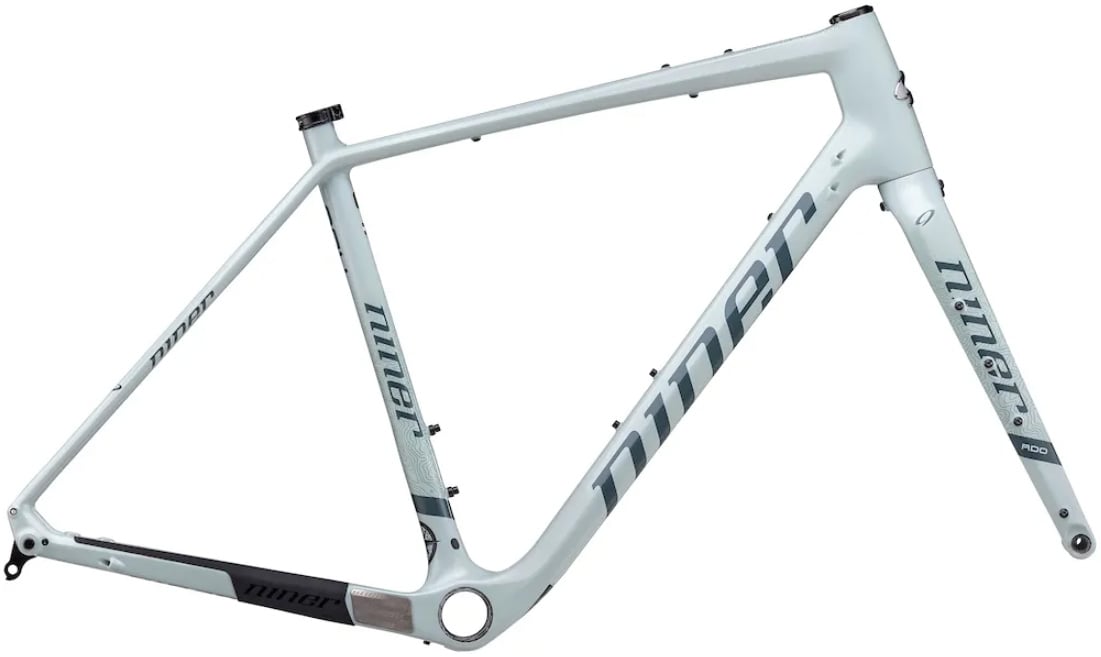

Niner RLT 9 RDO Frame 2021

Name: Niner RLT 9 RDO Frame 2021
Brand: Niner
Price: 1654.94 USD
Availability: LimitedAvailability

Be the first to write a review

(0)

0 Questions\\0 Answers

Item #: FR001387

$1,654.94 MSRP $2,699.00 SAVE 39 %

Choose Color

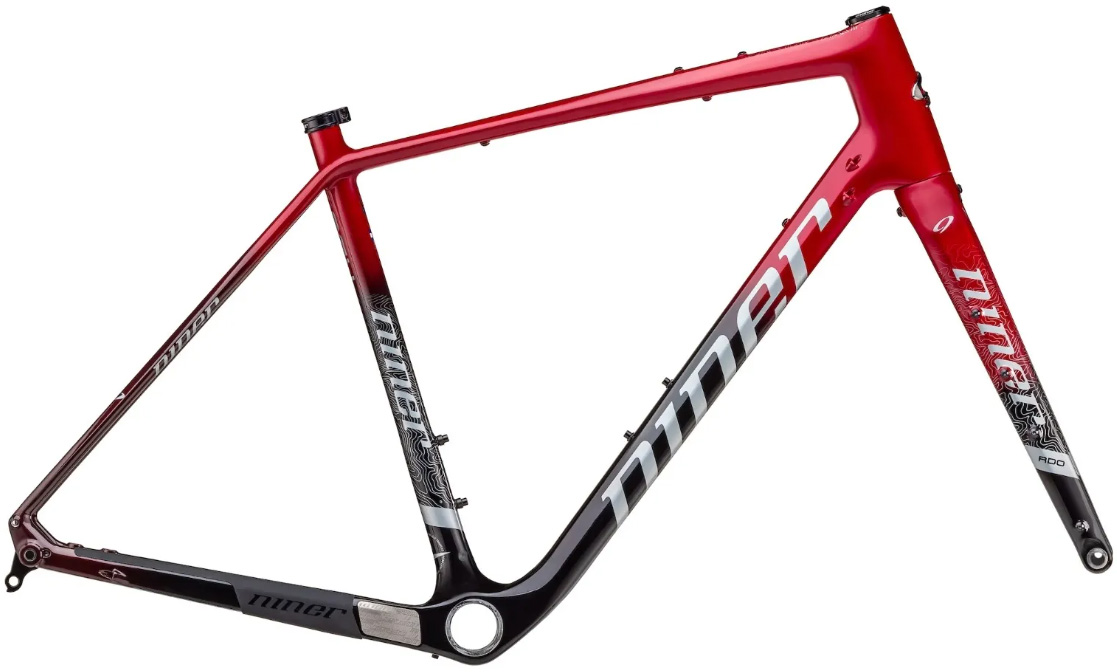

Blood Red

53cm

56cm

Est Bike Weight:

Qty

Only 2 Left

Learn More

+ Add Accident Protection from

Remove Protection Plan

90 Day
Returns

Found a Lower Price?
Request a Price Match

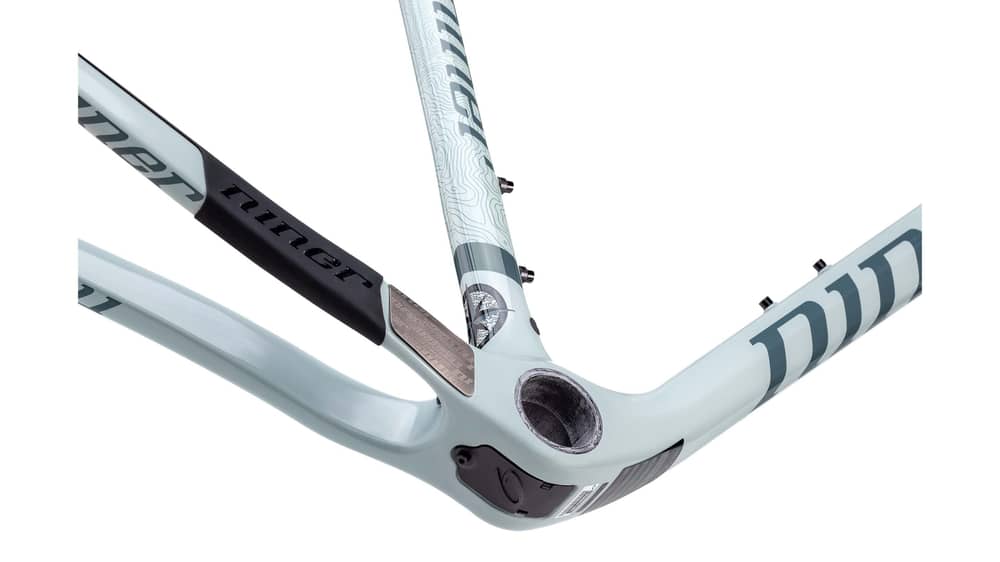

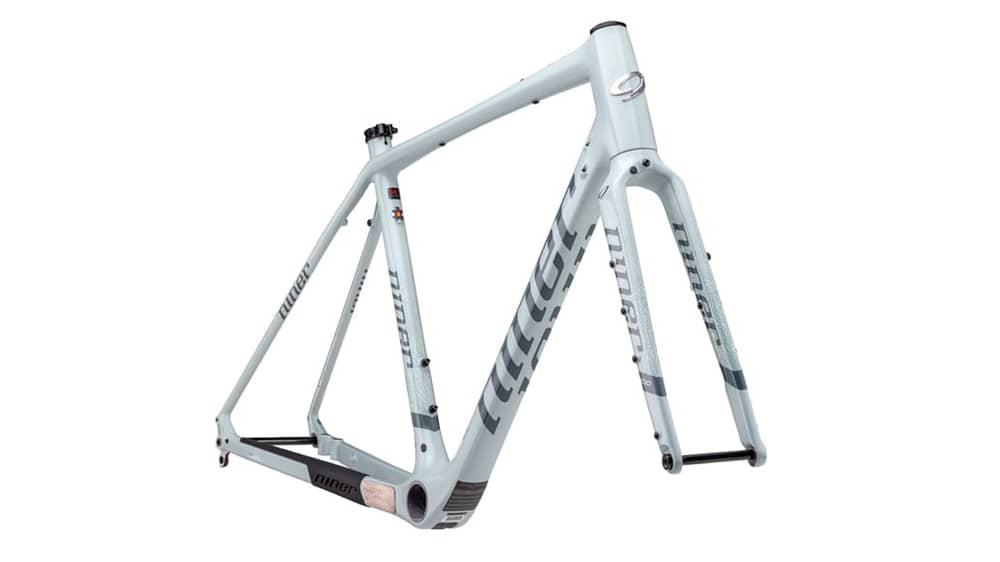

Niner RLT 9 RDO Frame 2021

Rugged and Versatile

Road bikes are only great for the pavement, but if you want to go beyond that, you'll want a gravel bike. Gravel bikes bridge the gap so you can ride on pavement and continue going when the dirt begins. If you're looking to upgrade your current gravel bike's frame or you want to build a fresh bike from the ground up, then you're in the right place. The Niner RLT 9 RDO Frame is designed for adventure and versatility. The RDO carbon frame and RDO carbon fork are lightweight and highly durable so you can ride rough roads with confidence. The frame is compatible with both 700 x 50c tires and 650b x 2.0" tires. The frame also features integrated frame mounts, internal cable routing, and rack and fender mounts so you can easily transform this bike into a daily commuter or touring bike.

Features

Carbon fiber frame and fork that are lightweight and durable
Compatible with both 700 x 50c tires and 650b x 2.0" tires
Integrated frame mounts and internal cable routing
Rack and fender mounts so you can easily transform this into your daily commuter or touring bike

SPECIFICATIONS
Frame	RDO Carbon
Wheel Size	650b, 700c
Fork	Carbon Fiber
Headset Included	No
Headtube Diameter	1.125" X 1.5", IS42/28.6 \| IS52/40
Front Derailleur Type	Braze-On
Bottom Bracket Type	PF30
Seatpost	27.2mm
Seat Clamp	31.8mm
Dropout Style	12x142mm Maxle
Accessory Mounts	2 Inner Triangle Bottle Mounts, Rack and Fender, Fork Mounts
Cable routing	Internal
Intended Use	Gravel, Touring, Commuter
Weight	N/A

Note: Components are subject to change without notice.

METRIC
INCH

Size	47	50	53	56	59	62
A: Seat Tube Length	430	460	490	520	550	580
B: Effective Top Tube	510	525	545	565	585	605
C: Stack	535	556	577	592	613	634
D: Reach	362	366	374	384	398	405
E: BB Height	-	-	-	-	-	-
F: BB Drop	75	75	75	70	70	70
G: Head Tube Length	105	125	145	165	185	205
H: Head Tube Angle	70 °	70.5 °	71 °	71.5 °	72 °	72.5 °
I: Seat Tube Angle	74.5 °	74 °	73.5 °	73 °	73 °	72.5 °
J: Standover Height	693	731	754	780	804	827
K: Chainstay Length	425	425	425	425	425	425
L: Wheelbase	1000	1007	1017	1030	1045	1054

Suggested Rider Height
Frame Size	47	50	53	56	59	62
Rider Height	4'11" - 5'3" 150 - 160 cm	5'2" - 5'6" 157 - 168 cm	5'5" - 5'9" 165 - 175 cm	5'8" - 6'0" 173 - 183 cm	5'11" - 6'3" 180 - 191 cm	6'2" - 6'6" 188 - 198 cm

Size	47	50	53	56	59	62
A: Seat Tube Length	16.9	18.1	19.3	20.5	21.7	22.8
B: Effective Top Tube	20.1	20.7	21.5	22.2	23.0	23.8
C: Stack	21.1	22.0	22.8	23.4	24.2	25.0
D: Reach	14.2	14.4	14.7	15.1	15.6	16.0
E: BB Height	0.0	0.0	0.0	0.0	0.0	0.0
F: BB Drop	3.0	3.0	3.0	2.8	2.8	2.8
G: Head Tube Length	4.1	4.9	5.7	6.5	7.3	8.1
H: Head Tube Angle	70.0 °	70.5 °	71.0 °	71.5 °	72.0 °	72.5 °
I: Seat Tube Angle	74.5 °	74.0 °	73.5 °	73.0 °	73.0 °	72.5 °
J: Standover Height	27.8	28.7	29.6	30.7	31.7	32.7
K: Chainstay Length	17.1	17.1	17.1	17.1	17.1	17.1
L: Wheelbase	39.6	39.8	40.3	40.8	41.4	41.7

Suggested Rider Height
Frame Size	47	50	53	56	59	62
Rider Height	4'11" - 5'3" 150 - 160 cm	5'2" - 5'6" 157 - 168 cm	5'5" - 5'9" 165 - 175 cm	5'8" - 6'0" 173 - 183 cm	5'11" - 6'3" 180 - 191 cm	6'2" - 6'6" 188 - 198 cm
