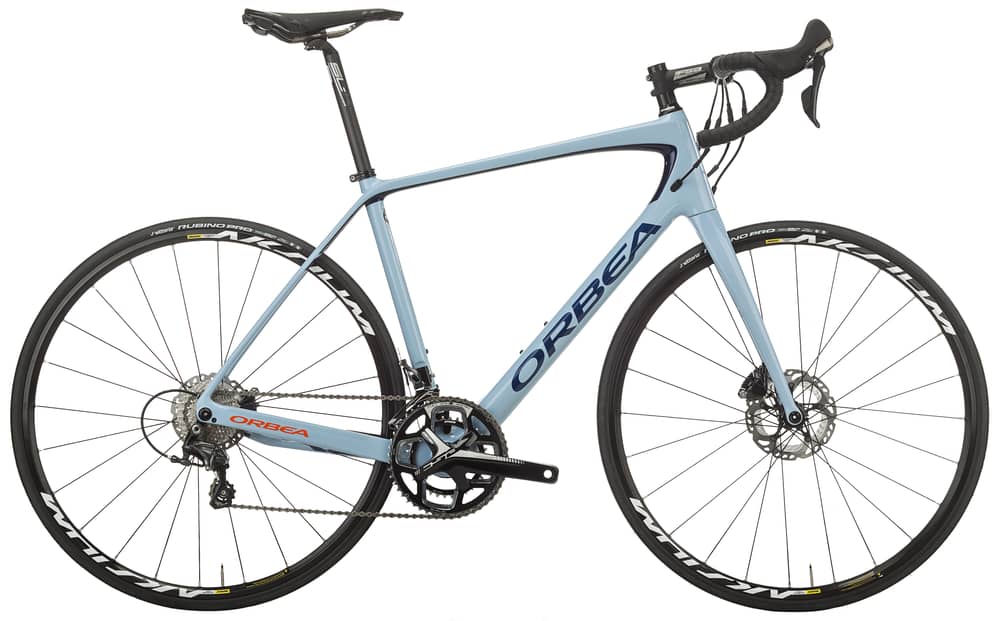

Orbea Avant M20 Team Bike 2017

CHALLENGE ACCEPTED

Plan out the route. Make it long, include some dirt, some gravel, and that old beat up highway. Make it memorable and challenging. Bring good friends, some coffee money, and your Jenson Custom Orbea Avant. The Avant is an extraordinary bike, versatile and capable of a wide range of uses. Ride it just as it comes and customize it to your hearts content in the future. The frames is both disc and rim brake capable, and offers standard or electronic internal cable routing.

Orbea doesn't slap a name on a generic frame and call it a day. They go through great lengths and pay close attention to every detail until they are 100% happy with a frames fit and performance. Orbea achieves this by scrutinizing the material and shaping of the tubesets and basing geometry/sizing on the stack and reach of a frame, two of the most important measurements to consider for bike fit. These will determine the relationship of two vital touch points - pedals and handlebars.

The Orbea Avant is supplied with a drivetrain dominated by Shimano Ultegra 11-speed components and is highlighted with a set of hydraulic disc brakes. Together they will take command of your Avant and provide smooth, shifting and controlled braking. The Mavic Aksium wheelset is wrapped in 25c Vittoria Rubino Pro rubber and FSA components provide a solid cockpit. Break out the maps and keep pedaling.

Features

  • Orbea Carbon OMP Disc frame for all day comfort with no compromise in performance.
  • Shimano Ultegra 11 speed drivetrain delivers the best in precision shifting.
  • Oversized tapered headtube for stiffness and steering precision.
  • Shimano Hydraulic disc brakes undeniably the most reliable stoppers for an "any" conditions ride
SPECIFICATIONS
Frame Orbea Avant carbon OMP disc. monocoque construction.tapered 1-1/8´´ - 1.5´´. BB 386mm. powermeter compatible. Thru Axle 12mm x 142mm rear. internal cable routing. EC/DC compatible. 27.2mm seat tube.
Fork Avant OMP carbon disc fork. full carbon steerer. tapered 1-1/8´´ - 1.5´´. carbon dropouts Thru axle 12mm x 100m.
Headset FSA 1-1/8 - 1-1/2´´ Integrated Carbon Cup ACB Bearings
Shifters Shimano RS805
Front Derailleur Shimano Ultegra 6800
Rear Derailleur Shimano Ultegra 6800
Crankset FSA Gossamer Pro 34x50t
Bottom Bracket Shimano
Pedals -
Chain Shimano HG701
Cassette Shimano Ultegra 6800 11-28t 11-Speed
Brakes Shimano R805 Hydraulic Disc
Wheelset Mavic Aksium Disc Clincher
Tires Vittoria Rubino Pro 700x25 120TPI G+
Handlebar FSA Gossamer Compact
Stem FSA Gossamer Pro
Bartape Black Anti-Slippery/Shock Proof Bar Tape
Seatpost FSA SL-K Di2 SB20 27.2x350mm
Seatclamp Orbea
Saddle Hard Black Scratch-2 Tirox size 143 mm
Intended Use Elite Road
Weight 18.0 lbs (53cm)

Note: Components are subject to change without notice.

GeometryChart
GEOMETRY (mm / inch)
Size 47cm 49cm 51cm 53cm 55cm 57cm 60cm
A: Seat Tube Length 410
16.1 		440
17.3 		470
18.5 		490
19.3 		510
20.1 		530
20.9 		560
22.0
B: Effective Top Tube 508
20.0 		520
20.5 		533
21.0 		547
21.5 		559
22.0 		578
22.8 		592
23.3
C: Stack 520
20.5 		535
21.1 		553
21.8 		572
22.5 		595
23.4 		614
24.2 		635
25.0
D: Reach 364
14.3 		368
14.5 		372
14.6 		378
14.9 		383
15.1 		390
15.4 		398
15.7
E: BB Height 270
10.6 		270
10.6 		270
10.6 		272
10.7 		272
10.7 		272
10.7 		272
10.7
F: BB Drop 75
3.0 		75
3.0 		75
3.0 		73
2.9 		73
2.9 		73
2.9 		73
2.9
G: Head Tube Length 108
4.3 		121
4.8 		138
5.4 		158
6.2 		180
7.1 		200
7.9 		221
8.7
H: Head Tube Angle 71.0 ° 71.5 ° 71.9 ° 72.4 ° 72.6 ° 72.8 ° 73.0 °
I: Seat Tube Angle 74.5 ° 74.0 ° 73.8 ° 73.5 ° 73.5 ° 73.0 ° 73.0 °
J: Standover Height 728
28.6 		750
29.5 		772
30.4 		793
31.2 		814
32.0 		832
32.8 		857
33.8
K: Chainstay Length 415
16.3 		415
16.3 		415
16.3 		415
16.3 		415
16.3 		415
16.3 		415
16.3
L: Wheelbase 978
38.5 		979
38.5 		989
38.9 		992
39.1 		1002
39.4 		1013
39.9 		1025
40.4
