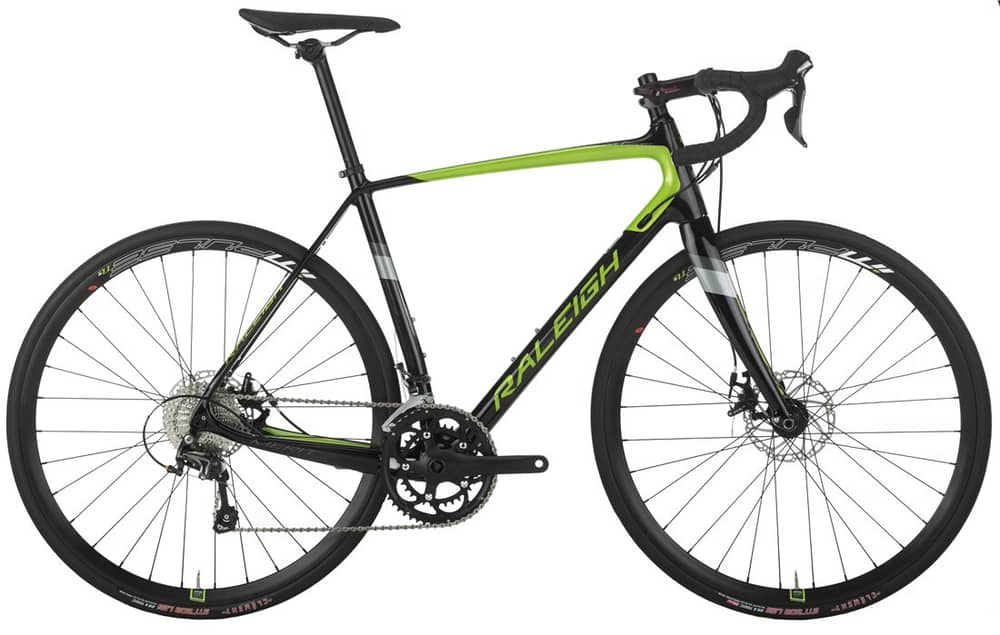

Raleigh Merit Sport Road Bike 2016

Versatile. Comfortable. Dependable.

Bikes in the Raleigh Merit series are a progression beyond the customary road bike. Not a racer, but not a comfort bike. The Merit is more of a personal wing-man that is there for you through the good times of smooth, fresh tarmac but also has your back on the rough and crumbly, old forgotten highway as well. It is agile enough to dart around in traffic yet plenty stable for fast mountain descents. With cleverly designed frame features such as clearance for up to 32c tires and spec'd out with durable and reliable components, a Raleigh Merit puts fun, comfort, and versatility first.

Raleigh Merit Sport Features

Shimano Tiagra drivetrain delivers pro-level inspired functionality.
High Modulus Carbon Disc Frame with all-day, smooth-riding comfort qualities and power transferring thru axles front and rear. Clearance for 32c tires.
Anti-Shock stem and seatpostuse elastomers to isolate and minimize road riding unpleasantness.
TRP Spyre-C mechanical disc brakes are smooth and predictable.

SPECIFICATIONS
Frame	Direct Connect High Modulus Carbon, Tapered Headtube, Thru-Axles and CDS Internal Cable Routing
Fork	Full Carbon Monocoque 1-1/8" to 1.5" Taper, Thru-Axle with Post Disc Mounts
Headset	Integrated Cartridge Bearings
Shifters	Shimano Tiagra 10spd STI, Jagwire housing w/Stainless Slick Cables
Front Derailleur	Shimano Tiagra
Rear Derailleur	Shimano Tiagra
Crankset	FSA Gossamer Compact MegaExo 34/50t crankset Length: 52= 70mm, 54=172.5mm , 56=172.5mm , 58=175mm, 60=175mm , 62=175mm
Bottom Bracket	External Bearing
Pedals	-
Chain	KMC X10
Cassette	Shimano 10spd (11-34t)
Brakes	TRP Spyre C dual actuated mechanical disc brakes, w/160mm rotors
Wheelset	Light weight 21mm wide Momentum rims with Formula smooth bearing hubs
Tires	Clement Strada LGG 700x32c
Handlebar	Raleigh 200 Series Aero Ergo Flat Top Road, 31.8 with 10 Degree Flare Width: 52=40mm, 54=42mm , 56=42mm , 58=44mm, 60=44mm , 62=44mm
Stem	3D Forged Anti-Shock, 31.8 Length: 52=90mm, 54=90mm , 56=100mm , 58=100mm, 60=110mm , 62=110mm
Bar Tape	Raleigh All Condition Tape
Seatpost	Anti-Shock 27.2x300mm
Seatclamp	Bolt-On
Saddle	Raleigh 200 series Saddle
Intended Use	Sport
Weight	21.1 lbs (Medium)

Note: Components are subject to change without notice.

GEOMETRY (mm / inch)
Size	52 cm	54 cm	56 cm	58 cm	60 cm	62 cm
A: Seat Tube Length	490 19.29	510 20.08	530 20.87	550 21.65	570 22.44	590 23.23
B: Effective Top Tube	535 21.06	545 21.46	560 22.05	575 22.64	590 23.23	605 23.82
C: Stack	542 21.34	562 22.13	578 22.76	594 23.39	609 23.98	624 24.57
D: Reach	370 14.57	373 14.69	383 15.08	391 15.39	398 15.67	408 16.06
E: BB Height	-	-	-	-	-	-
F: BB Drop	77.5 3.05	75.0 2.95	75.0 2.95	72.5 2.85	72.5 2.85	72.5 2.85
G: Head Tube Length	140 5.51	160 6.30	175 6.89	195 7.68	210 8.27	225 8.86
H: Head Tube Angle	71.0°	72.0°	72.0°	72.0°	72.5°	72.5°
I: Seat Tube Angle	73.0°	74.0°	73.5°	72.5°	72.5°	72.5°
J: Standover Height	760 29.90	780 30.71	800 31.50	820 32.28	835 32.87	855 33.66
K: Chainstay Length	412 16.22	412 16.22	412 16.22	412 16.22	412 16.22	412 16.22
L: Wheelbase	-	-	-	-	-	-
Suggested Rider Height	163-170cm 5'4"-5'7"	170-175cm 5'7"-5'9"	175-180cm 5'9"-5'11"	180-185cm 5'11"-6'1"	185-191cm 6'1"-6'3"	191-196cm 6'3"-6'5"
