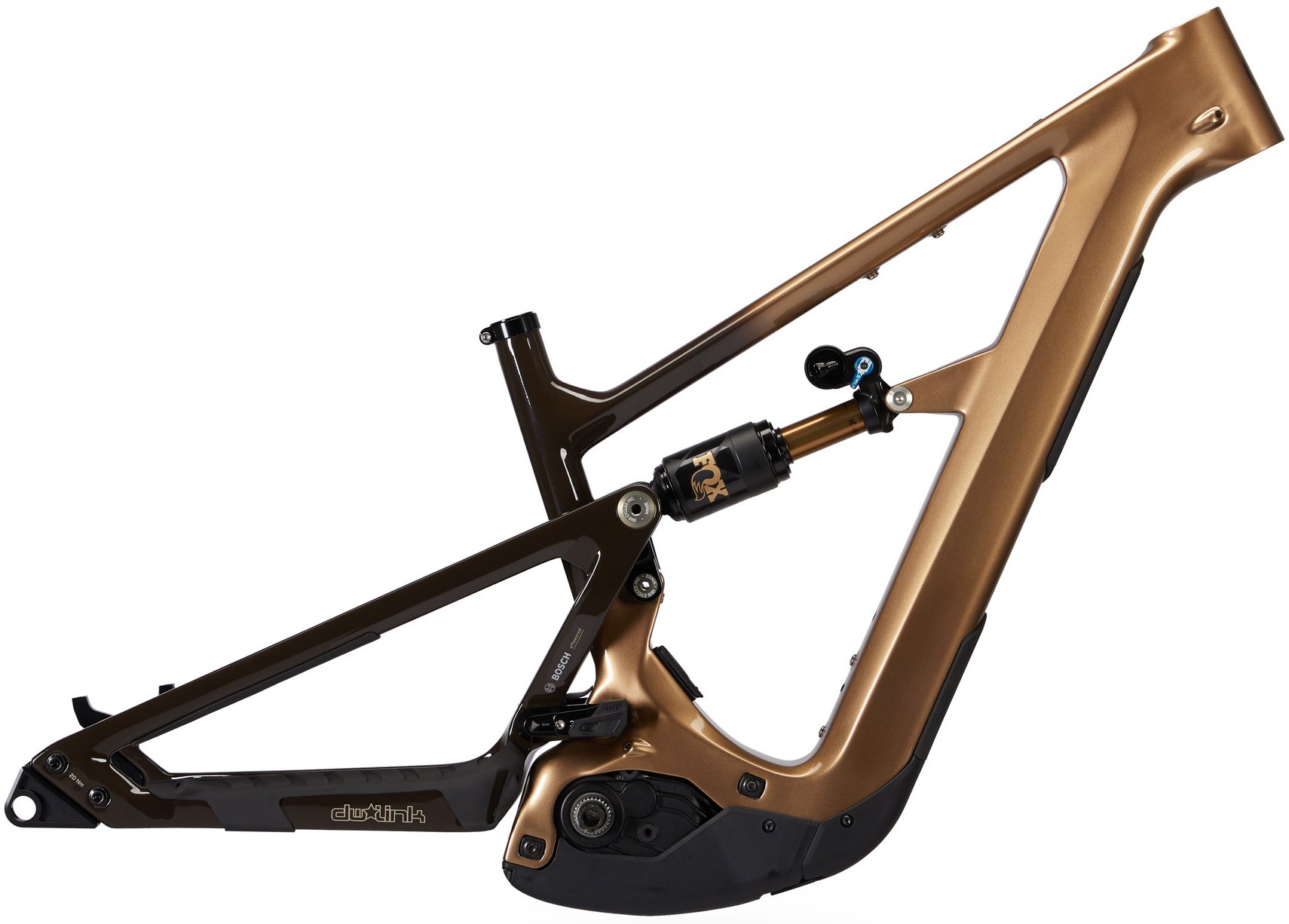

Ibis Oso HD Frameset 2026

Downhill Both Ways.

The Ibis Oso HD Frameset is the gravity-focused foundation of the Oso platform, ready to build up for shuttle laps and big mountain lines. With 165mm of rear travel and geometry tuned for fast, technical descents, it's the most capable personality in the Oso lineup. Bolt-on dropouts let you configure chainstay length and wheel size to match your terrain, with all dropout options available aftermarket. The frame ships with a Fox Factory Float X2 rear shock and is optimized for a 180mm fork. With a Bosch Performance Line CX Gen 5 motor that boasts a low and centered 600Wh battery position and compatibility with a clean PowerMore integration for up to 850Wh total when the day demands it.

Features

  • Modular dropout system with bolt-on dropouts to fine-tune chainstay length and wheel size configuration — all options available aftermarket
  • Bosch Performance Line CX Gen 5 motor with low and centered battery placement for improved balance and handling, and clean PowerMore integration for up to 850Wh total capacity
  • Fox Factory Float X2 rear shock included 230x65mm, optimized for 165mm of rear travel
  • Optimized for a 180mm fork (597.5mm axle to crown) with gravity-focused geometry built for fast, technical terrain
  • Long dropper post compatibility with generous seat tube insertion depths across all sizes (SM-MD: 140-170mm / XM-XL: 180-210mm)
  • Internal cable routing for a clean build, with Bosch motor and battery integration designed into the frame
SPECIFICATIONS
Frame Material Carbon
Rear Travel 165mm
Fork Compatibility Optimized for 180mm (597.5mm Axle to Crown)
Rear Shock Fox Factory Float X2, 230x65mm
Motor Bosch Performance Line CX, Generation 5
Battery Bosch PowerTube 600Wh (PowerMore 250Wh compatible, 850Wh total)
Bottom Bracket 73mm BSA Threaded
Seatpost Diameter 34.9mm
Rear Axle 148x12mm Thru-Axle (Boost)
Headset Not Included (ZS56/ZS56)
Intended Use Enduro, E-MTB

Note: Components are subject to change without notice.

Geo Chart Image



Ibis Oso HD (180mm Fork)
Size SM MD XM LG XL
A: Seat Tube Length 381 381 405 432 450
B: Top Tube Length 583 608 628 648 668
C: Stack 626 637 646 656 668
D: Reach 428 450 474 498 522
E: BB Height 346 349 352 355 358
F: BB Drop 27 24 21 18 15
G: Head Tube Length 99 109 121 136 152
H: Head Tube Angle 62.3 ° 63.1 ° 63.1 ° 63.2 ° 64 °
I: Seat Tube Angle 76.1 ° 76.6 ° 77.1 ° 77.6 ° 77.6 °
J: Standover 706 717 745 755 771
K: Chainstay Length 440 440 455 455 455
L: Wheelbase 1233 1251 1295 1325 1357
Suggested Rider Height
Frame Size SM MD XM LG XL
Dropper Post Length 140-170 mm 140-170 mm 180-210 mm 180-210 mm 180-210 mm
Ibis Oso HD (180mm Fork)
Size SM MD XM LG XL
A: Seat Tube Length 15.0 15.0 15.9 17.0 17.7
B: Top Tube Length 22.9 23.9 24.7 25.5 26.3
C: Stack 24.6 25.1 25.4 25.8 26.3
D: Reach 16.9 17.7 18.7 19.6 20.6
E: BB Height 13.6 13.7 13.9 14.0 14.1
F: BB Drop 1.1 0.9 0.8 0.7 0.6
G: Head Tube Length 3.9 4.3 4.8 5.4 6.0
H: Head Tube Angle 62.3 ° 63.1 ° 63.1 ° 63.2 ° 64.0 °
I: Seat Tube Angle 76.1 ° 76.6 ° 77.1 ° 77.6 ° 77.6 °
J: Standover 27.8 28.2 29.3 29.7 30.4
K: Chainstay Length 17.3 17.3 17.9 17.9 17.9
L: Wheelbase 48.5 49.3 51.0 52.2 53.4
