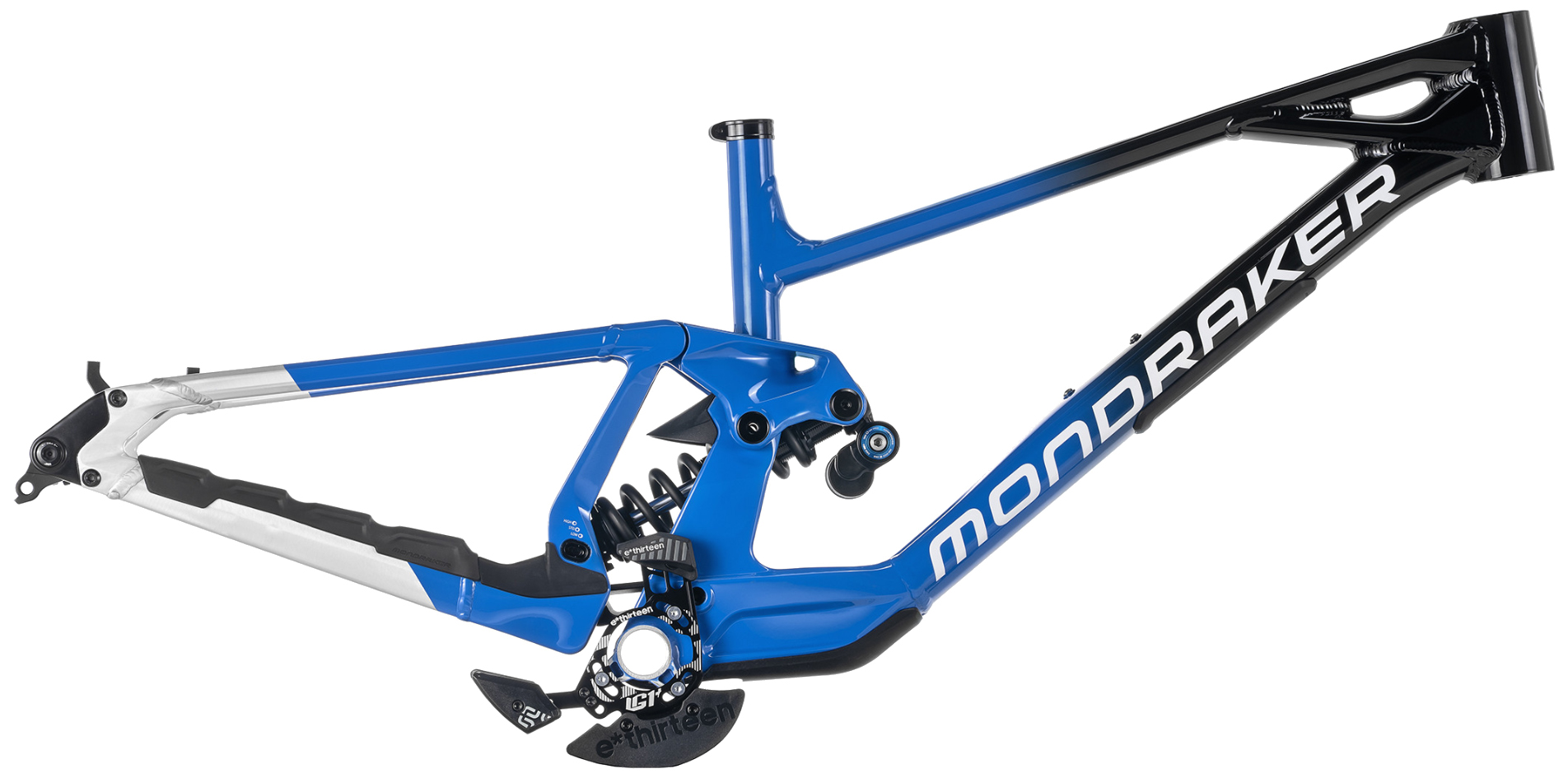

Mondraker Summum RR Mullet Frameset

The most successful race bike Mondraker has ever made.

The Summum RR Mullet Frameset is the top-level expression of Mondraker's most successful downhill race platform. The new Summum has been fully redesigned following development from Mondraker's Factory DH racing team, with updated Zero Suspension System kinematics that deliver better mid-stroke support for faster, more confident riding. The 6061 alloy Stealth Evo frame uses optimized hydroformed tube profiles for stiffness and compliance in the right places, while Forward Geometry gives you a longer, slacker setup directly inherited from World Cup racing. With 27 possible adjustment configurations via adjustable headset cups, a lower shock mount flip chip, and adjustable rear dropouts, there's a geometry setup in here for every course, every condition, and every preference. A FOX DHX2 Factory coil shock is included, along with the full geometry kit.

Features

  • Updated Zero Suspension System kinematics with better mid-stroke support for a faster, more controlled ride through the rough stuff
  • Forward Geometry with longer reach and slacker head tube angles directly inherited from Mondraker's World Cup race development program
  • 27 adjustment configurations via +/-5mm headset cups, lower shock mount flip chip (+/-5mm BB height, +/-0.35° angles), and adjustable rear dropouts (+/-5mm chainstay, 450-460mm options from 455mm standard)
  • FOX DHX2 Factory coil rear shock included with 2-position compression adjust — size-specific spring rates (M: 450lb, L: 500lb, XL: 550lb)
  • Onoff DH ARS Adjustable Reach System headset with reach geometry kit cups (±5mm) included
  • MAX capacity dual row Enduro sealed bearings with unified pivot sizing for improved durability and simplified maintenance
  • Mullet wheel platform — 29" front for rollover and traction, 27.5" rear for pop and maneuverability
  • HHG internal cable routing with ISCG 05 tabs and UDH-compatible rear end
  • Custom rubber frame protection on the chainstay, downtube, and bottom bracket area
SPECIFICATIONS
Frame Summum MX 6061 Alloy Stealth Evo, Mullet, Hydroformed Tubing, Updated Zero Suspension System, 200mm Travel, Forward Geometry, Alloy Upper Link, 12x157mm SuperBoost Rear Axle, UDH, 83mm BSA BB, MAX Capacity Dual Row Enduro Bearings, HHG Internal Cable Routing, ISCG 05
Rear Shock FOX DHX2 Factory K, 2-Position Compression, 225x75mm Trunnion, SLS Black — M: 450lb, L: 500lb, XL: 550lb Spring Rate
Headset Onoff DH ARS Adjustable Reach System, 1-1/8" Steerer, 41x30x7 45°x45° Sealed Bearings, Reach Geometry Kit Cups (±5mm) — Included
Derailleur Hanger SRAM UDH
Bottom Bracket BSA Threaded 83mm (Not Included)
Rear Axle Spacing 12x157mm SuperBoost
Fork Offset 52mm
Rear Suspension Travel 200mm
Geometry Kit Included — ±5mm Headset Cups, Lower Shock Mount Flip Chip, +5mm Dropout, -5mm Dropout
Intended Use Downhill, DH Racing

Note: Components are subject to change without notice.

Geo Chart Image



Mondraker Summum RR Mullet (Standard Reach / Standard Flip Chip / Standard Chainstay)
Size Medium Large Extra Large
A: Seat Tube Length 400 400 400
B: Top Tube Length 709.6 734.6 764.6
C: Stack 642.6 642.6 642.6
D: Reach 450 475 505
E: BB Height 350.5 350.5 350.5
F: BB Drop 5.0 5.0 5.0
G: Head Tube Length 120 120 120
H: Head Tube Angle 62.5 ° 62.5 ° 62.5 °
I: Seat Tube Angle 68.0 ° 68.0 ° 68.0 °
K: Chainstay Length 455 455 455
L: Wheelbase 1285.4 1305.4 1345.4
Mondraker Summum RR Mullet (Standard Reach / Standard Flip Chip / Standard Chainstay)
Size Medium Large Extra Large
A: Seat Tube Length 15.75 15.75 15.75
B: Top Tube Length 27.94 28.92 30.10
C: Stack 25.30 25.30 25.30
D: Reach 17.72 18.70 19.88
E: BB Height 13.80 13.80 13.80
F: BB Drop 0.20 0.20 0.20
G: Head Tube Length 4.72 4.72 4.72
H: Head Tube Angle 62.5 ° 62.5 ° 62.5 °
I: Seat Tube Angle 68.0 ° 68.0 ° 68.0 °
K: Chainstay Length 17.91 17.91 17.91
L: Wheelbase 50.61 51.39 52.97
