Orbea Avant H40 Bike

(0)
Item #: BI005558
$1,424.94 $1,899.00 SAVE 25 %

Close

Double-check!

Confirm your options before continuing

Bronze
Color:
Bronze
Size:53
Only 3 Left - Ready to Ship
More of these are on the way. Leave us your contact information and we'll let you know when they arrive.
There seems to be a problem with your name - Please Provide a name.
There seems to be a problem with your name - Please provide your first and last name.
There seems to be a problem with your phone number - please correct and submit again
There seems to be a problem with your email - please correct and submit again
There seems to be a problem with your email or phone number - Please provide your email or phone number.
Success! You're on our notification list. Thanks for your interest in this product.
Learn More
+ Add Accident Protection from
Remove Protection Plan
Gear Advisor

Questions about this bike?

Contact a Gear Advisor Pro.

* Information provided in this AI Shopping Assistant may not match all information on the website. Please refer to the website to confirm details.

*Free Shipping over $50
90 Day Returns

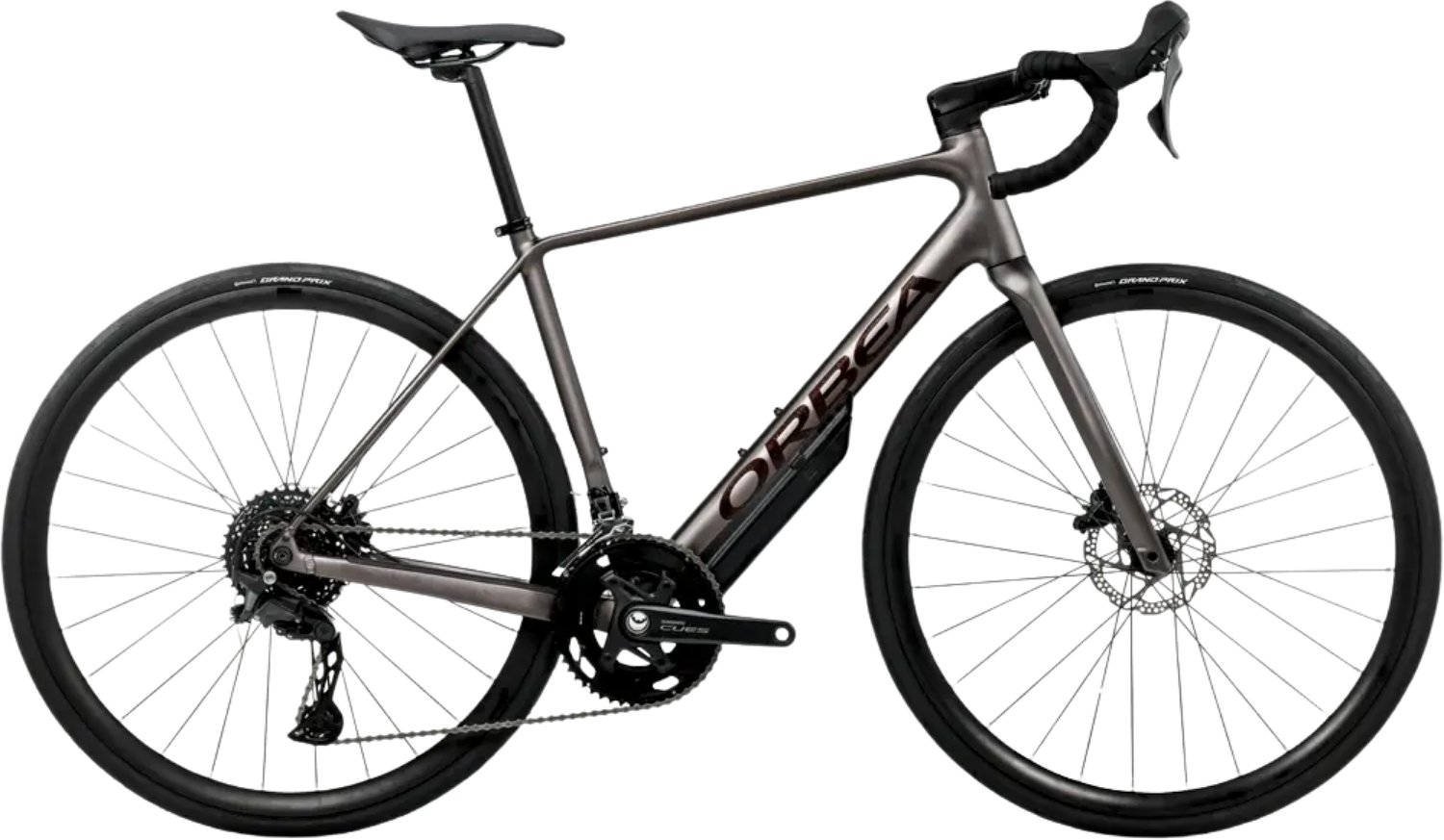

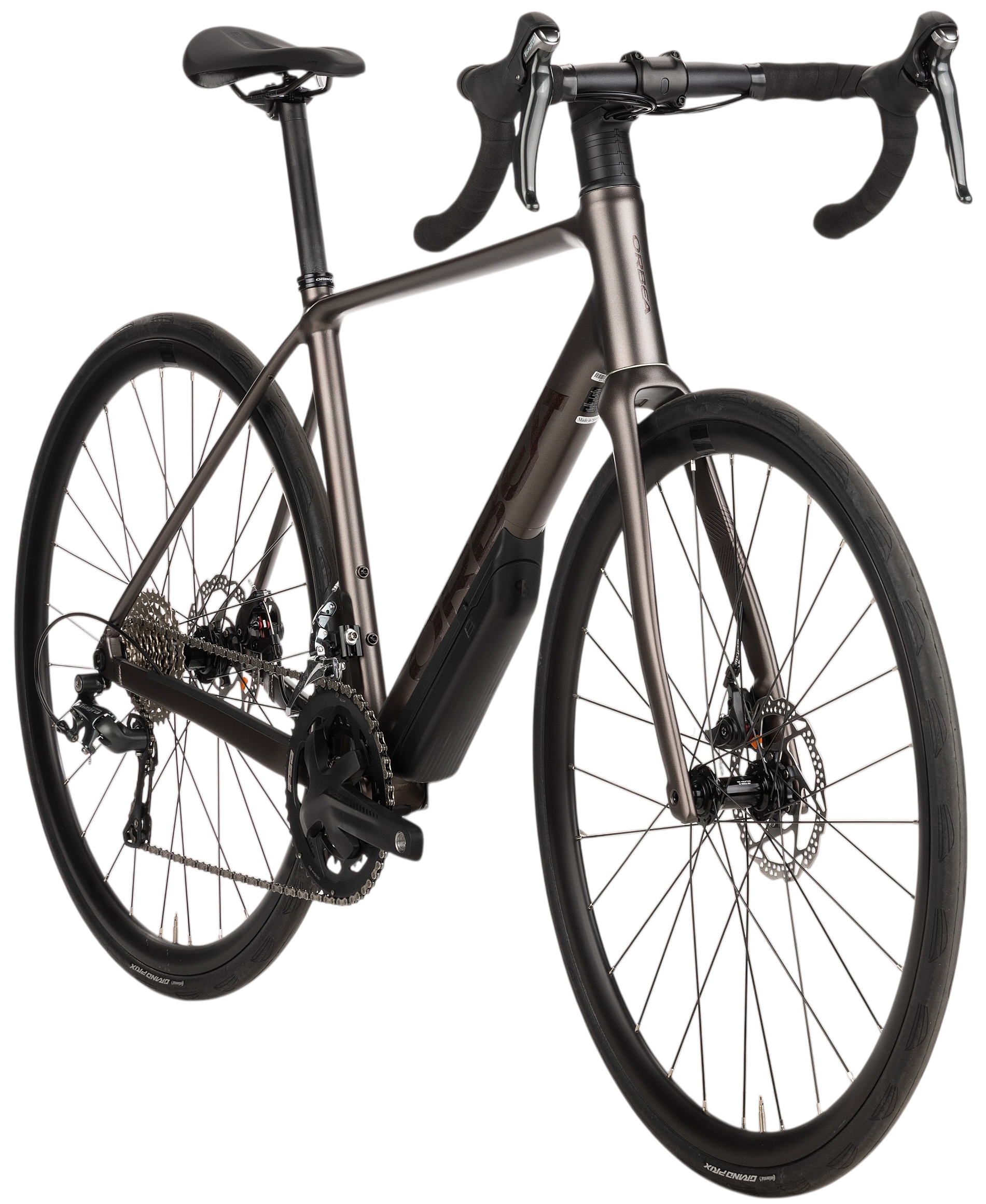

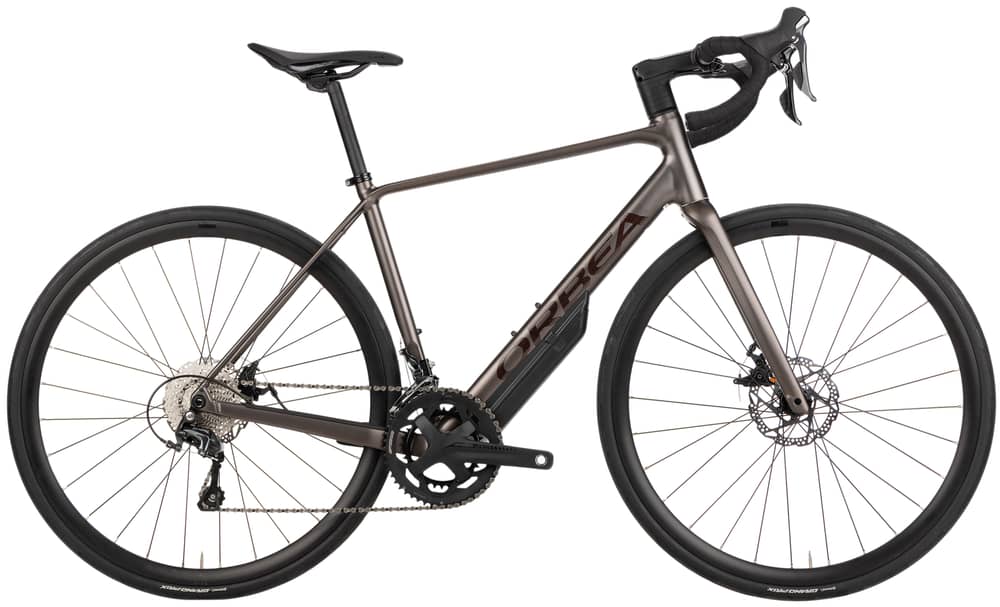

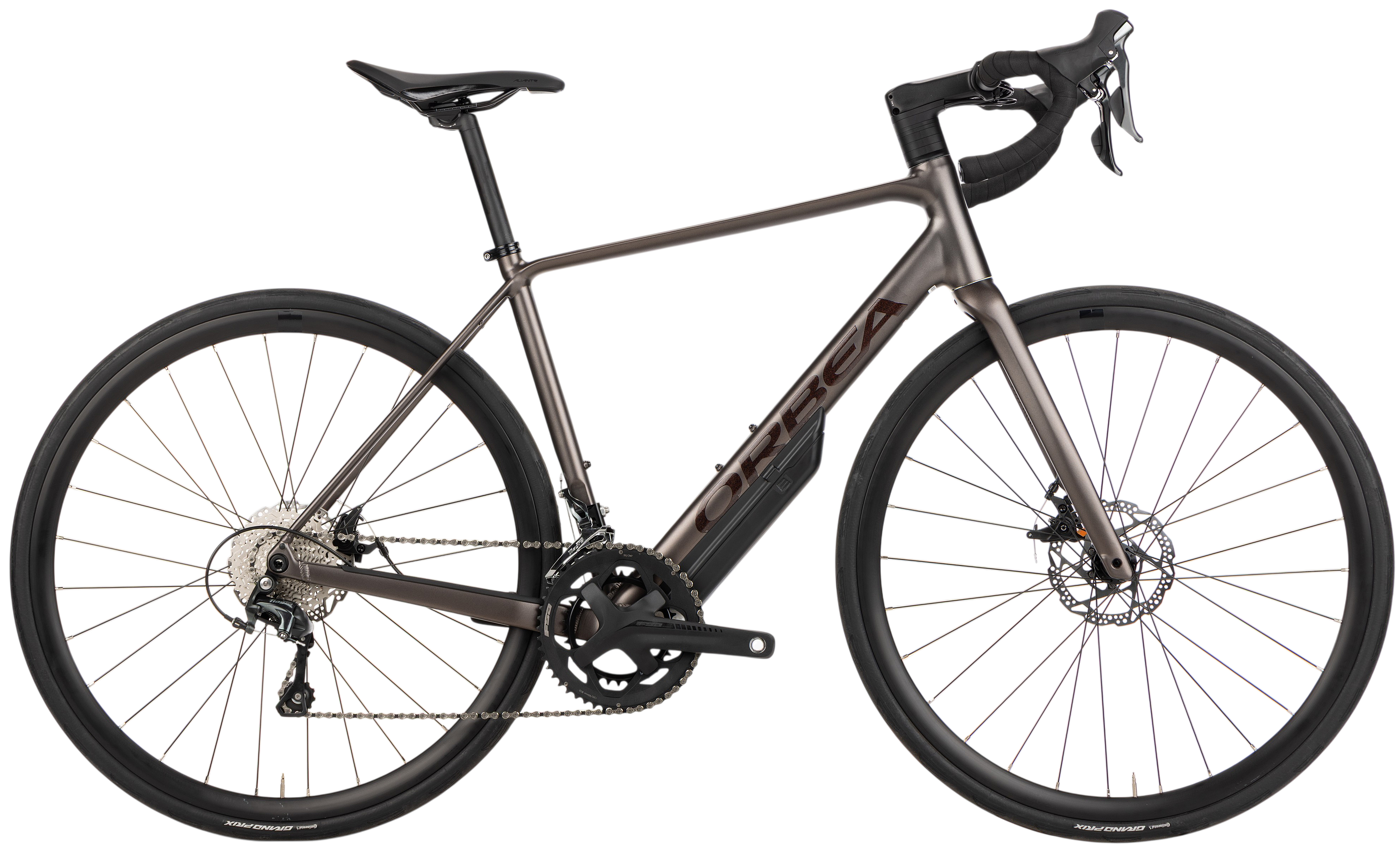

Orbea Avant H40 Bike

Advanced alloy for everyone.

The Orbea Avant H40 is a road bike built to go the distance. A hydroformed triple-butted aluminum frame uses advanced shaping and wall thickness control to cut weight and eliminate unwanted flex, while the full carbon OMR fork absorbs road vibration without going soft under braking or hard cornering. A Shimano Cues 2x10-speed drivetrain, hydraulic disc brakes, Continental Grand Prix 700x30c tires, and a built-in service box round out a complete, no-fuss package ready for long days in the saddle.

Features

  • Hydroformed Triple-Butted Aluminum Frame with advanced shaping and wall thickness control to reduce weight, increase strength, and limit unwanted flex
  • Full Carbon Orbea Avant Hydro OMR Fork for weight savings and vibration absorption without rigidity under braking or hard cornering

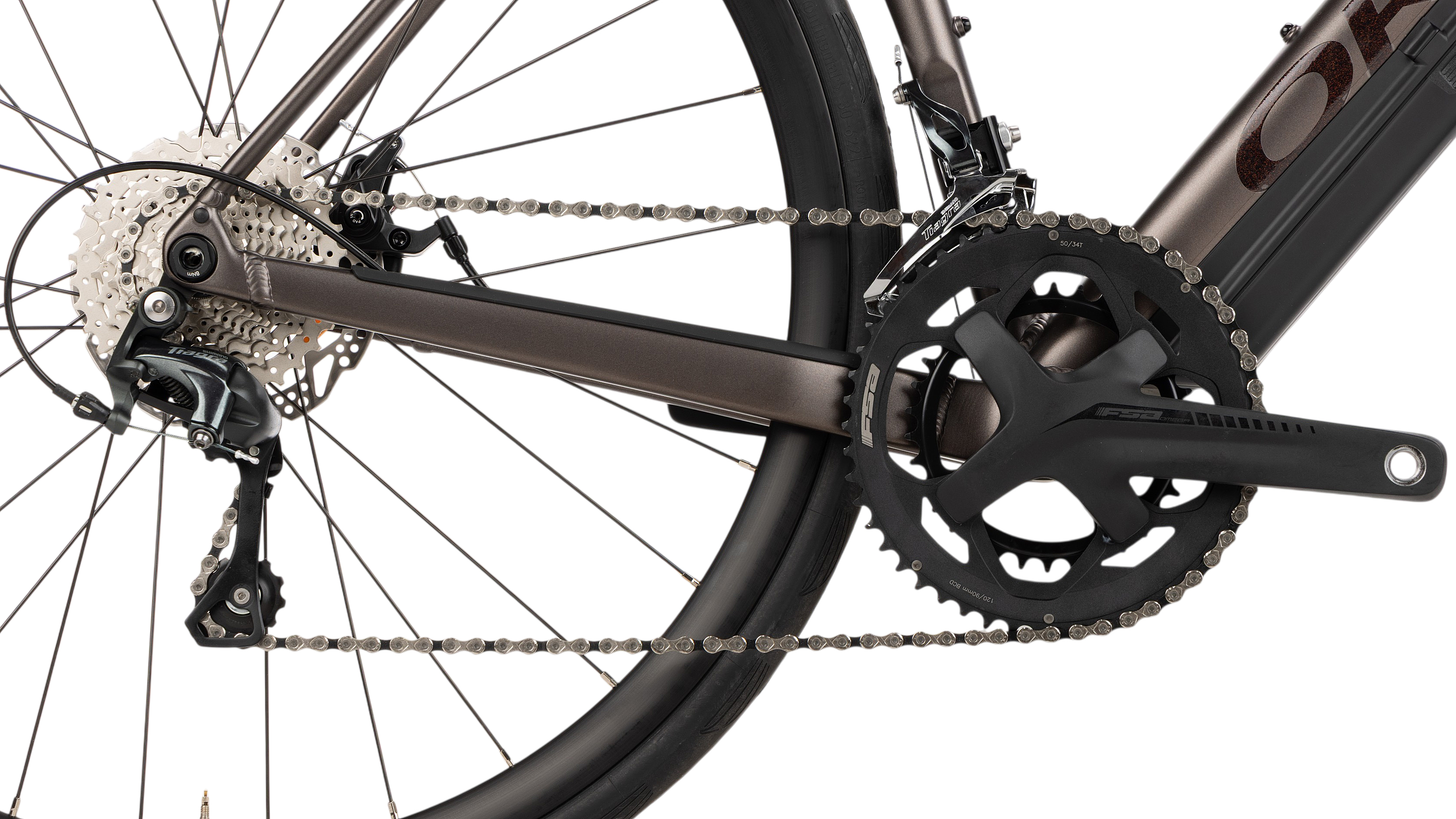

  • Shimano Cues 2x10-Speed Drivetrain for reliable, smooth shifting across a wide gear range
  • Shimano U6030 Hydraulic Disc Brakes for powerful, consistent stopping in any conditions
  • Built-In Service Box with space for tubes, CO2 cartridges, tire levers, and house keys — leave the saddle bag at home
  • Continental Grand Prix Foldable 700x30c Tires for fast, confident rolling on road and light mixed surfaces
  • MMS (Multiple Mounts System) for maximum cargo versatility on longer rides
SPECIFICATIONS
Frame Orbea Avant Hydro Disc, hydroformed triple-butted aluminium, HS 1.5" ICR, BB 68mm BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, internal cable routing, SP 27.2mm, MMS system
Fork Orbea Avant Hydro 2025, full carbon, 1-1/8" - 1.5" tapered head tube compatible, Thru Axle 12x100mm, thread M12x2 P1
Headset FSA 1-1/2" Integrated Aluminium Cup
Shifters Shimano Cues U6030, 10-Speed
Front Derailleur Shimano Cues U6030
Rear Derailleur Shimano Cues U6020 SGS Shadow, 10-Speed
Crankset Shimano Cues U6030, 34x50T
Chain Shimano LG500
Cassette Shimano CS-LG300, 11-39T, 10-Speed
Brakes Shimano U6030 Hydraulic Disc

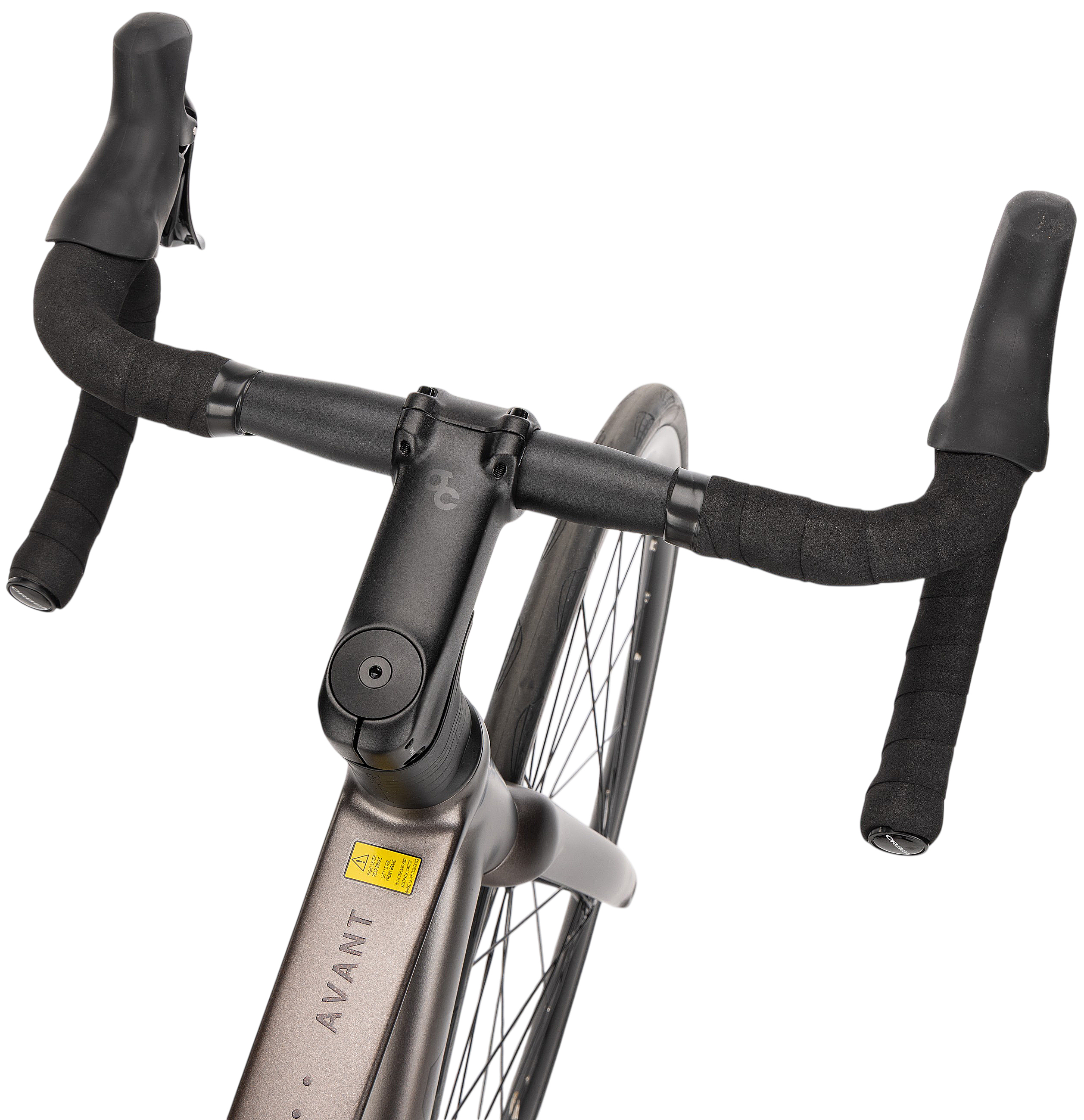

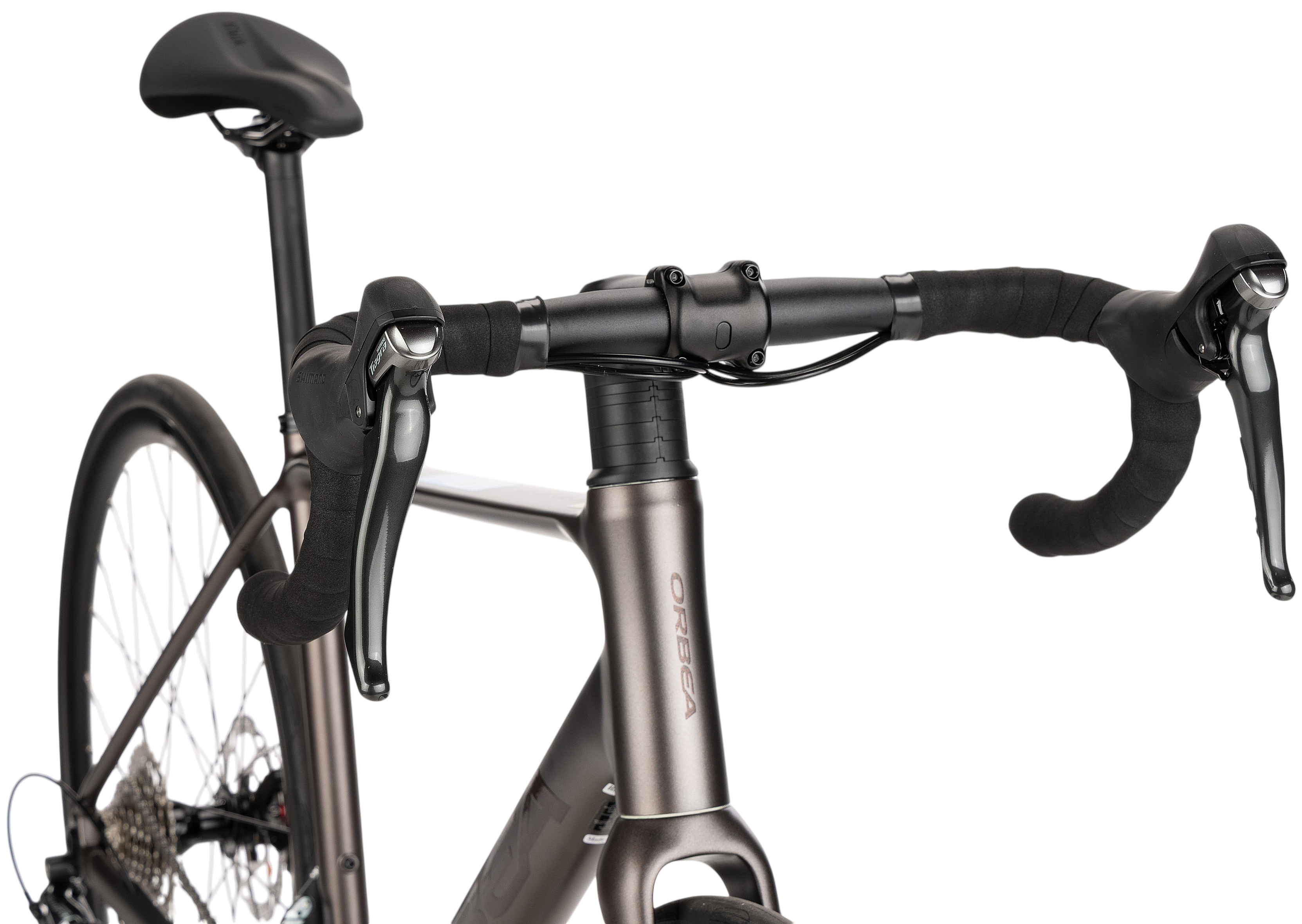

Handlebar OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125
Stem OC Road Performance RP23, -5°
Handlebar Tape Orbea Eva
Seatpost SP 0.6, Alloy, 27.2mm, Setback 20
Saddle SD 0.1, 145mm
Wheelset Alloy, Tubeless, 700c, 19c Inner Width, 28H
Tires Continental Grand Prix Foldable 700x30c
Accessories OC Toolbox TB03PP

Note: Components are subject to change without notice.

Geo Chart Image



Orbea Avant H40
Size 47 49 51 53 55 57 60
A: Seat Tube Length 420 445 470 495 520 545 575
B: Effective Top Tube 515 531 544 558 570 587 599
C: Stack 525 545 565 585 605 625 645
D: Reach 370 375 380 385 391 398 404
E: BB Height 263 263 263 263 265 265 265
F: BB Drop 78 78 78 78 76 76 76
G: Head Tube Length 111 130 149 169 191 211 231
H: Head Tube Angle 70.5 ° 71 ° 71.5 ° 71.8 ° 72 ° 72.2 ° 72.5 °
I: Seat Tube Angle 74.5 ° 74 ° 73.75 ° 73.75 ° 73.75 ° 73.2 ° 73.2 °
J: Standover Height 673 699 723 749 777 802 831
K: Chainstay Length 420 420 420 420 420 420 420
L: Wheelbase 996 1003 1010 1019 1030 1042 1051
Orbea Avant H40
Size 47 49 51 53 55 57 60
A: Seat Tube Length 16.5 17.5 18.5 19.5 20.5 21.5 22.6
B: Effective Top Tube 20.3 20.9 21.4 22.0 22.4 23.1 23.6
C: Stack 20.7 21.5 22.2 23.0 23.8 24.6 25.4
D: Reach 14.6 14.8 15.0 15.2 15.4 15.7 15.9
E: BB Height 10.4 10.4 10.4 10.4 10.4 10.4 10.4
F: BB Drop 3.1 3.1 3.1 3.1 3.0 3.0 3.0
G: Head Tube Length 4.4 5.1 5.9 6.7 7.5 8.3 9.1
H: Head Tube Angle 70.5 ° 71 ° 71.5 ° 71.8 ° 72 ° 72.2 ° 72.5 °
I: Seat Tube Angle 74.5 ° 74 ° 73.75 ° 73.75 ° 73.75 ° 73.2 ° 73.2 °
J: Standover Height 26.5 27.5 28.5 29.5 30.6 31.6 32.7
K: Chainstay Length 16.5 16.5 16.5 16.5 16.5 16.5 16.5
L: Wheelbase 39.2 39.5 39.8 40.1 40.6 41.0 41.4
