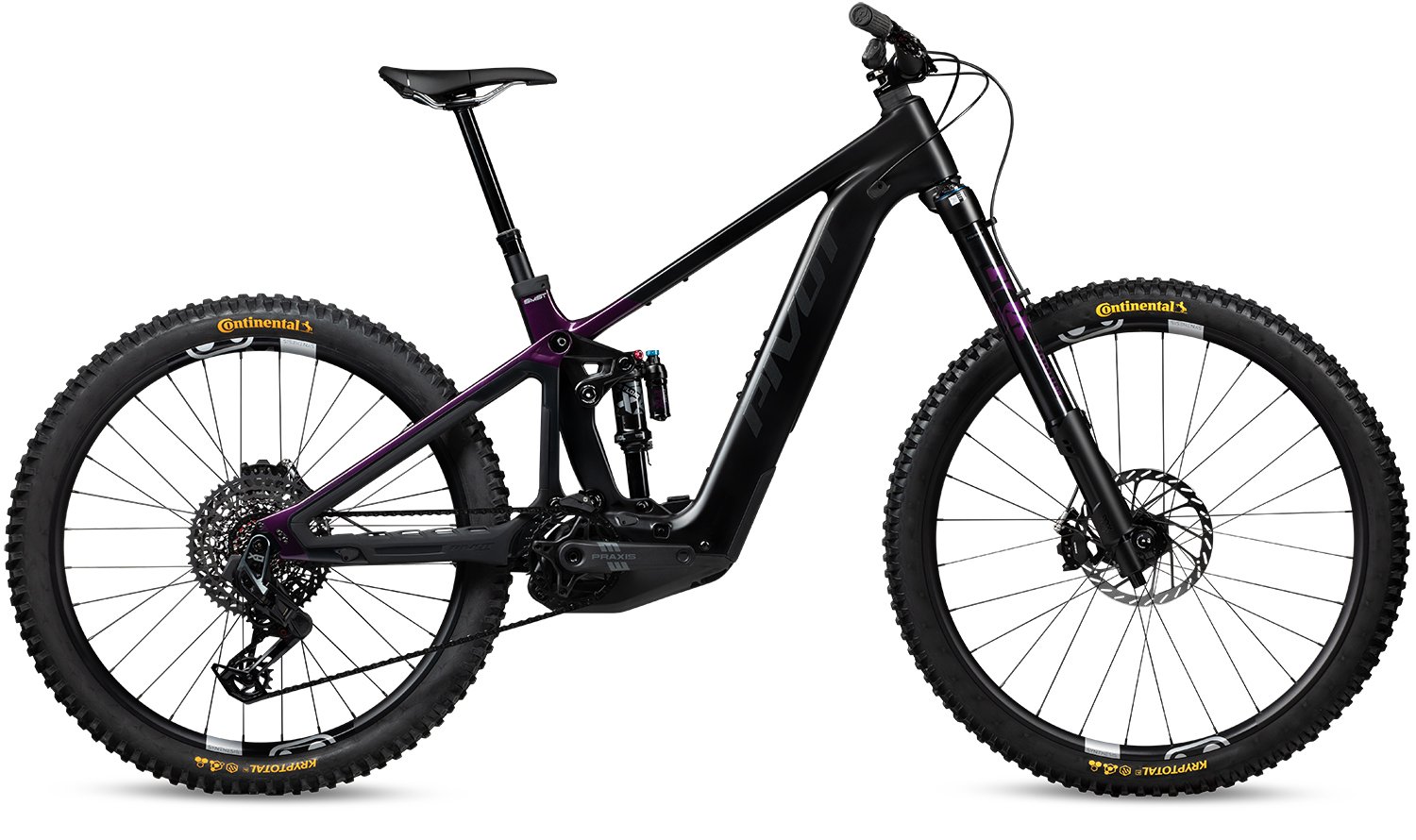

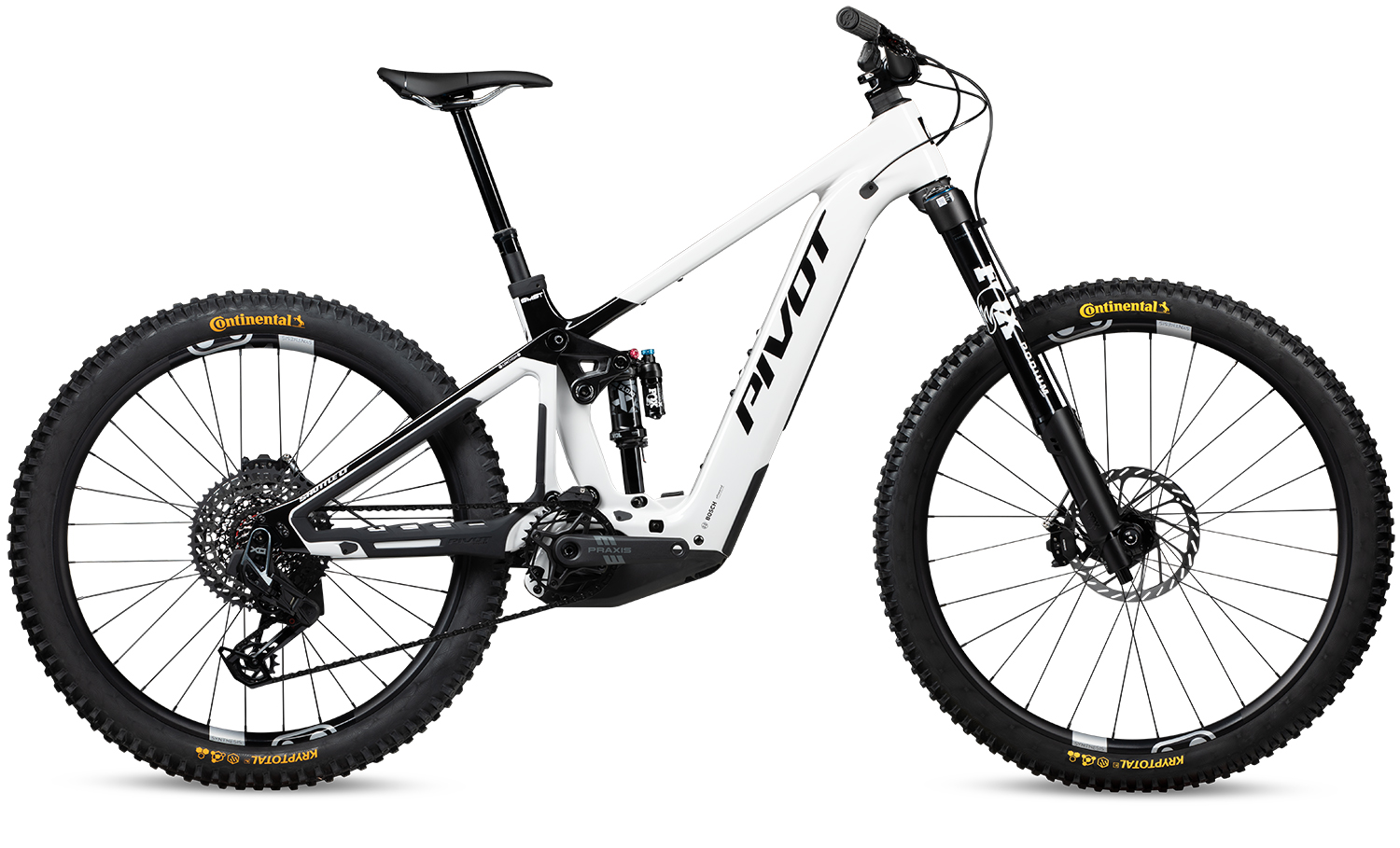

Pivot Shuttle LT V3 Pro X0 E-Bike

Electrified Enduro

With an e-enduro bike, not only will you be able to descend at fast speeds, but you'll also be able to climb back to the top for another round. Engineered for relentless terrain, the Shuttle LT delivers the kind of ride feel that defines Pivot's long-travel pedigree, stable at speed, planted on climbs, and incredibly composed when things get steep. The frame is made from carbon fiber and uses 162mm of rear travel and 170mm of front travel. The DW-Link suspension translates every watt of input into efficient forward momentum while maintaining unmatched traction and control across roots, rocks, and blown-out descents. The frame features MX wheels (29" front, 27.5" rear), internal cable routing, a flip-chip, and an adjustable seat angle. With the Bosch Performance Line CX Race drive unit and a PowerTube 800Wh battery, you'll be able to ride faster and farther.

The X0 version of the Pivot Shuttle LT V3 Pro comes with a SRAM X0 Eagle Transmission 12-speed drivetrain. With the 10-52T cassette on the rear, you'll be able to easily navigate technical terrain and difficult climbs. SRAM Maven Silver 4-piston hydraulic disc brakes provide exceptional stopping power so you can slow down and stop with confidence. Crank Brothers Synthesis DH rims are paired with Continental Kryptotal tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the OneUp Dropper V3, you'll be able to quickly lift and lower your saddle with the press of a lever.

Features

  • Carbon fiber frame with MX wheels (29" front, 27.5" rear), internal cable routing, a flip-chip, and an adjustable seat angle
  • Bosch Gen 5 Performance Line CX Race Edition drive unit and a Bosch PowerTube 800Wh
  • SRAM X0 AXS Eagle Transmission drivetrain performs exceptionally well in the most demanding terrain
  • SRAM Maven Silver 4-piston hydraulic disc brakes provide confidence-inspiring stopping power
  • Crank Brothers Synthesis DH wheels paired with Continental Kryptotal 29"/27.5" tires
  • OneUp Dropper V3 dropper post quickly lifts and lowers your saddle with the press of a lever
SPECIFICATIONS
Frame Carbon Fiber
Fork Fox Performance Elite Podium 29", 44mm Offset, Grip X2, 170mm Travel
Rear Shock Fox Performance Elite Float X
Headset Pivot Precision Sealed Cartridge
Shifters SRAM AXS Pod Controller
Front Derailleur -
Rear Derailleur SRAM X0 Eagle Transmission 12-Speed
Crankset Praxis Alloy eCranks Flattop 12-Speed
Bottom Bracket -
Chain SRAM X0 Eagle Flattop, 12-Speed
Cassette SRAM GX 1275 Eagle Transmission, 10-52T
Brakes SRAM Maven Silver 4-Piston, SRAM HS2 Centerlock 200/200mm Rotors
Wheelset Crank Brothers Synthesis DH 31mm, 29/27.5, 15x110/12x157mm Hubs
Tires Continental Kryptotal-F 29x2.4" Super Soft, Enduro Casing / Kryptotal-R 27.5x2.6" Soft, Enduro Casing
Handlebar Phoenix Team Carbon, 20mm Rise (S)/35mm Rise (M-XL), 780mm Width
Stem Phoenix Team Enduro V2, 40mm (S-L), 50mm (XL)
Grips/Bar Tape Phoenix Factory Lock-On
Seatpost OneUp Dropper V3, 150mm (S), 180mm (M), 210mm (L-XL)
Seatclamp Bolt-Type
Saddle Pivot Ride E-Bike
Intended Use Enduro
Motor Bosch Gen 5 Performance Line CX Race Edition
Battery Bosch PowerTube 800Wh
Display Bosch Kiox 400C w/ Mini Remote

Note: Components are subject to change without notice.

Geo Chart Image



Pivot Shuttle LT MX High
Size Small Medium Large Extra Large
A: Seat Tube Length 378 399 432 470
B: Effective Top Tube 605 632 649 671
C: Stack 639 648 657 666
D: Reach 443 468 483 503
E: BB Height 346 346 346 346
F: BB Drop 28 28 28 28
G: Head Tube Length 110 120 130 140
H: Head Tube Angle 64 ° 64 ° 64 ° 64 °
I: Seat Tube Angle 76.5 ° 76.5 ° 76.5 ° 76.5 °
J: Standover Height 689 689 704 720
K: Chainstay Length 443 443 443 443
L: Wheelbase 1232 1261 1281 1305
Crank Arm Length 160 mm 160 mm 160 mm 160 mm
Stem Length 40 mm 40 mm 40 mm 50 mm
Handlebar Width 780 mm 780 mm 780 mm 780 mm
Pivot Shuttle LT MX High
Size Small Medium Large Extra Large
A: Seat Tube Length 14.9 15.7 17.0 18.5
B: Effective Top Tube 23.8 24.9 25.6 26.4
C: Stack 25.2 25.5 25.9 26.2
D: Reach 17.4 18.4 19.0 19.8
E: BB Height 13.6 13.6 13.6 13.6
F: BB Drop 1.1 1.1 1.1 1.1
G: Head Tube Length 4.3 4.7 5.1 5.5
H: Head Tube Angle 64.0 ° 64.0 ° 64.0 ° 64.0 °
I: Seat Tube Angle 76.5 ° 76.5 ° 76.5 ° 76.5 °
J: Standover Height 27.1 27.1 27.7 28.3
K: Chainstay Length 17.4 17.4 17.4 17.4
L: Wheelbase 48.5 49.6 50.4 51.4
Crank Arm Length 160 mm 160 mm 160 mm 160 mm
Stem Length 40 mm 40 mm 40 mm 50 mm
Handlebar Width 780 mm 780 mm 780 mm 780 mm
