Ibis Ripmo GX Eagle Bike 2019

(0)
Item #: BI177B03
This item is unavailable.
Close

Double-check!

Confirm your options before continuing

*Free Shipping over $50

90-Day Returns

Insider - Exclusive Coupons and more.

Price Protection

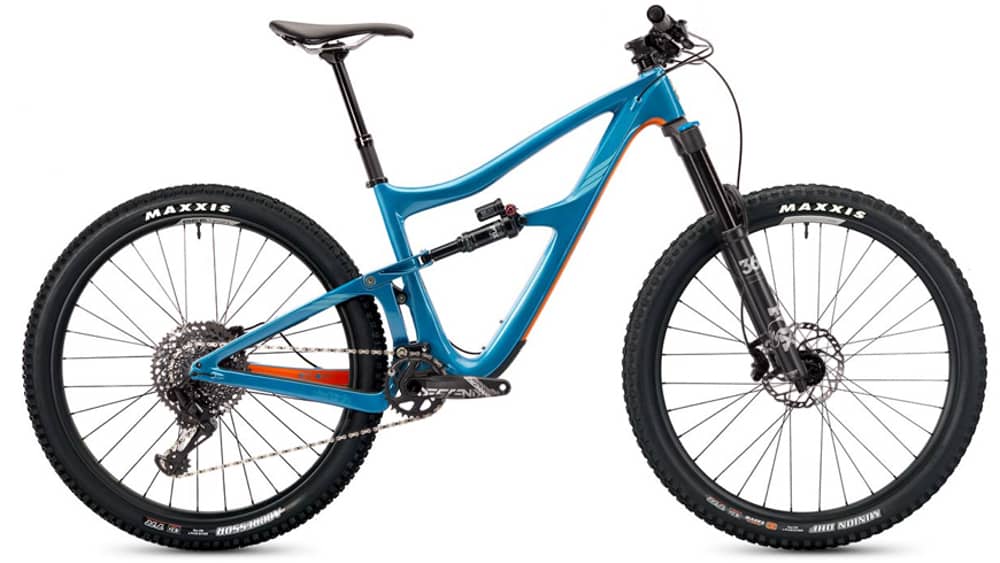

IBIS RIPMO GX EAGLE BIKE

DON'T RIPLESS, RIPMO!

The Ibis Ripley and the Mojo have had a child, and it is the Ripmo. The Ripmo is a big wheeled, long travel bike that is always ready for a big climb or big descent. It has a sub six-pound carbon frame with 145mm of rear travel, 160mm of front travel, and uses a highly versatile DW-link. The frame's geometry is nearly an inch longer than the HD4 and has clearance for a 175mm dropper post. The frame has clearance for up to a 2.6" tire, short chainstays, a threaded bottom bracket, in-frame molded internal cable routing, and the ability to run both a rear shock and large water bottle.

The geometry of the frame features a 76° seat tube angle that puts more weight over the front tire. This keeps the front end from wandering or washing out. The Ripmo also uses a fork offset that is shorter than what is traditionally used on a 29er. This makes a 65.9° head angle feel like 64.5° without increasing the wheelbase. You get the stability of a slack head angle and still have the ability to go around tight corners. The Ripmo geometry opens up new levels of confidence-inspiring riding. The frame geometry is designed around a 175mm post or 150mm on the small frame size.

The GX Eagle version features a Fox Float 36 Performance fork with 160mm of travel on the front and a Fox Float DPX2 rear shock with 145mm of travel. It comes with Ibis 938 aluminum rims with Ibis Logo hubs that offer a tubeless-ready, smooth-rolling ride. These are paired with a Maxxis Minion DHF 29" x 2.5" Wide Trail on the front and a Maxxis Aggressor 29" x 2.5" Wide Trail on the rear.

The drive train features SRAM GX Eagle which provides a 12-speed drive train with a 10-50 tooth cassette on the rear. It has a SRAM GX Eagle shifter with a GX Eagle rear derailleur. The SRAM XG-1275 cassette and SRAM Descendant crankset, with a 32-tooth chainring, will provide all the gears you need you climb any hill and ride on any terrain. When you get to the top of the hill, the Shimano Deore hydraulic disc brakes, with 180mm rotors on the front and rear, will provide the stopping power on the way down. The cockpit is comprised of Ibis Lo-Fi aluminum handlebars and an Ibis stem, and the seatpost is a Bike Yoke Revive Dropper Seatpost. If you're looking for the ultimate 29" bike, then you'll love the Ripmo.

Reiviews

Jenson Journal - "It is going to devour technical descents, but you aren’t going to pay the price by having to arm-wrestle the bike to keep it in a straight line on the next climb." - Matt Long

Features

  • Fox Float 36 Performance fork provides 160mm of travel
  • Internal cable tunnels offer the easiest cable routing ever
  • 2.6" tire clearance so you can have extra traction and higher-volume
  • Dropper post clearance up to 175mm or 150mm on the small frame
  • Threaded bottom bracket with ISCG 05 compatibility
SPECIFICATIONS
Frame Ibis Carbon Fiber
Fork Fox 36 Performance, 160mm Travel, 44mm Offset
Rear Shock Fox Float DPX2, 145mm Travel, 210mm x 55mm
Headset Cane Creek 40, ZS44 / EC49
Shifters SRAM GX Eagle, 12-Speed
Front Derailleur -
Rear Derailleur SRAM GX 12-Speed
Crankset SRAM Descendant, 32 Tooth
Crank Arm Lengths 175mm
Bottom Bracket Threaded
Pedals -
Chain SRAM GX Eagle
Cassette SRAM XG-1275, 10-50 tooth
Brakes Shimano Deore Hydraulic
Rotor Size Shimano XT 180mm Rotors
Wheelset Ibis 938 Rims, Ibis Logo Hubs
Tires Maxxis Minion DHF 29" x 2.5" WT 3C MaxxTerra, EXO, TR
Maxxis Aggressor 29" x 2.5" WT, EXO, TR
Handlebar Ibis Lo-Fi Aluminum
Handlebar Widths 780mm
Stem Ibis Stem
Stem Lengths -
Grips Lizard Skins Logo
Seatpost Bike Yoke Revive Dropper Seatpost
Seatclamp -
Saddle Ibis Saddle
Intended Use Trail, All-Mountain, Enduro
Weight -

Note: Components are subject to change without notice.

GEOMETRY (mm / inch)
Size Small Medium Large Extra Large
A: Seat Tube Length 14.0 14.5 16.5 18.5
B: Effective Top Tube 573
22.6		 602
23.7		 632
24.9		 655
25.8
C: Stack 613
24.1		 623
24.5		 632
24.9		 641
25.2
D: Reach 431
17.0		 447
17.6		 471
18.5		 495
19.5
E: BB Height 341
13.4		 341
13.4		 341
13.4		 341
13.4
F: BB Drop - - - -
G: Head Tube Length 90
3.5		 100
3.9		 110
4.3		 120
4.7
H: Head Tube Angle 65.9 ° 65.9 ° 65.9 ° 65.9 °
I: Seat Tube Angle 77.0 ° 76.0 ° 76.0 ° 76.0 °
J: Standover Height 705
27.8		 750
29.5		 750
29.5		 760
29.9
K: Chainstay Length 435
17.1		 435
17.1		 435
17.1		 435
17.1
L: Wheelbase 1177
46.3		 1197
47.1		 1228
48.3		 1256
49.4
Suggested Rider Height 5'0" - 5'5"
152cm - 165cm		 5'4" - 5'9"
163cm - 175cm		 5'9" - 6'2"
175cm - 188cm		 6'0" - 6'6"
183cm - 198cm
