Kona Cinder Cone Bike 2015

(5)
Item #: BI199A02
This item is unavailable.
Close

Double-check!

Confirm your options before continuing

*Free Shipping over $50

90-Day Returns

Insider - Exclusive Coupons and more.

Price Protection

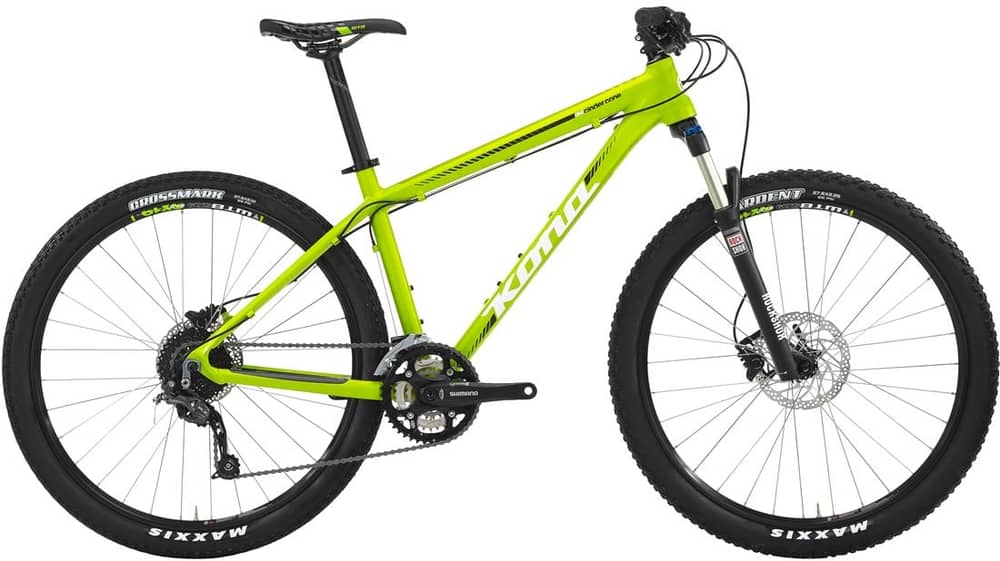

Kona Cinder Cone Bike 2015

The sky is blue, the sun sets in the West, and Kona will always have a Cinder Cone Bike. This version of it does what the previous 27 or 28 models have always done. It nails it. Consider the sweet handling Scandium 69 frameset, that's the same thing rolling on bikes across Kona's range. Notice the 27.5" wheelset, which is bigger than you might expect, but still not too big to manage. Look at the 2.25" tire on that front wheel, and realize how much grip you're going to have, right when you need it. And realize that from front to back this bike is holding a very smart collection of components.

Shifters are Shimano Acera, and the brakes Shimano hydraulic, with a big 180mm rotor in front and a 160mm rotor in the rear. The RockShox 30 Gold fork offers 100mm of travel, and there's 27 gears to choose from. FSA brings the headset, the rims come from WTB, and the derailleurs are a Shimano Alivio in front, and a Shimano Deore Shadow handling the back. You'll sit on the WTB Volt Sport SE saddle.

Features:

  • Scandium 69 tubing has one of the highest strength-to-weight ratios for any alloy
  • The internal headset protects against the elements
  • 27.5 inch wheels roll and track better, and are more maneuverable than 29 inch
SPECIFICATIONS
Frame Kona Race Light Scandium 69
Fork RockShox 30 Gold 100mm
Headset FSA No.57B
Shifters Shimano Acera
Front Derailleur Shimano Alivio
Rear Derailleur Shimano Deore/Shadow
Crankset Shimano M5
Bottom Bracket Shimano ES25
Pedals -
Chain KMC Z99
Cassette Shimano HG200 11-34t 9spd
Brakes Shimano M506 Hydraulic levers with Shimano M447 Hydraulic calipers (rotors are Shimano 160mm rear, Shimano 180mm front)
Wheelset WTB SX19 rims, Shimano RM33 hubs and Sandvik Stainless 15g fr / 14g rr spokes
Tires Maxxis Ardent 27.5x2.25" front and Maxxis Crossmark 27.5x2.1" rear
Handlebar Kona XC/BC Riser
Stem Kona XC/Road
Grips Kona Race Light
Seatpost Kona Thumb w/offset
Seatclamp Kona QR
Saddle WTB Volt Sport SE
Intended Use Mountain
Weight 12.56 kg
27.7 lbs, 17"

Note: Components are subject to change without notice.


GEOMETRY (mm / inch)
Size Small Medium Extra Large
A: Seat Tube Length 381
15 		432
17 		533
21
B: Effective Top Tube 572
22.5 		597
23.5 		647
25.5
C: Stack 591
23.3 		601
23.7 		638
25.1
D: Reach 391
15.4 		413
16.3 		452
17.8
E: BB Height 0
0 		0
0 		0
0
F: BB Drop 49
1.9 		49
1.9 		49
1.9
G: Head Tube Length 105
4.1 		115
4.5 		155
6.1
H: Head Tube Angle 69 ° 69 ° 69 °
I: Seat Tube Angle 73 ° 73 ° 73 °
J: Standover Height 725
28.5 		755
29.7 		825
32.5
K: Chainstay Length 425
16.7 		425
16.7 		425
16.7
L: Wheelbase 1067
42 		1092
43 		1145
45.1
Rider Height 147-160cm
4'10"-5'3" 		157-178cm
5'2"-5"10" 		180-196cm
5'11-6'5"
Weight (kg / lbs) 0
0 		0
0 		0
0
