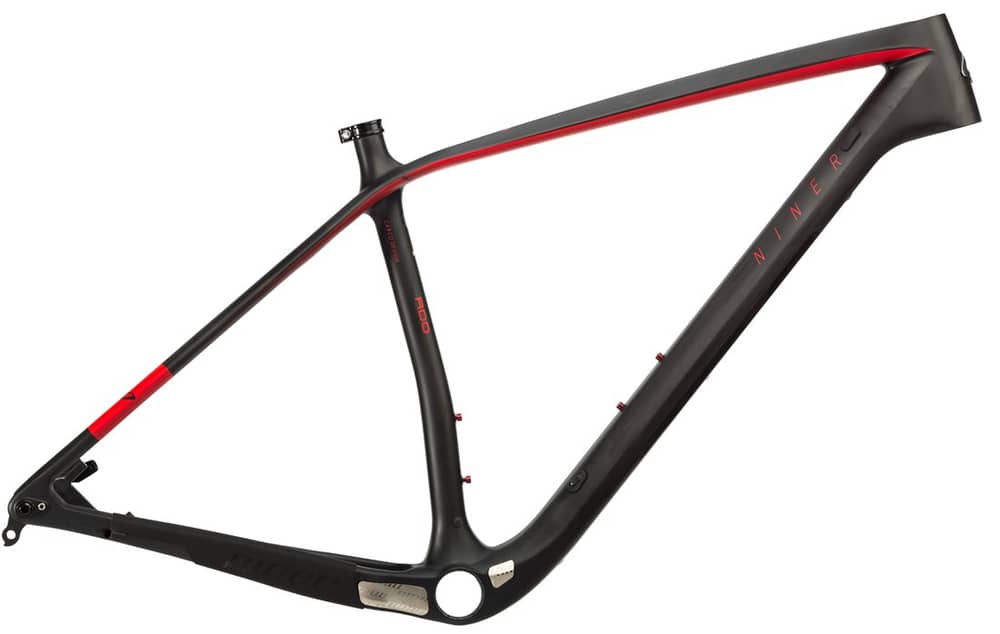

Niner Air 9 RDO Frame

A dedicated XC Racing animal

The Niner Air 9 RDO is a full-on XC race machine. There is no question that Niner has mastered the art of the 29er hardtail, yet they continue to evolve and refine their craft. The Air 9 RDO features fully-housed internal cable routing, new carbon layup, smaller junctions, tapered headtube, a PF30 carbon bottom bracket shell and 12x148mm rear spacing. Niner decided to go with a boost rear end because it reduces any twisting motion and allows for the use of wider/stronger built wheels.

The Air 9 RDO frame features Niner's Race Day Optimized carbon fiber frame production process known as Carbon Compaction System. Niner's Carbon Compaction System uses a pre-shaped Styrofoam mold encased by a bladder that the carbon is then laid around. The firm Styrofoam core provides the desired shape of the frame and a solid platform for the carbon lay. The bladder is then inflated to fully compress the carbon against the outer metal mold for accurate compaction and a smooth inside wall, producing a fruitful list of benefits. First, it sets the carbon in the exact position it should be in without any shifting from a bladder inflating after layup. Secondly, it reduces the amount of excess resin to pool inside the frame, meaning lighter weight and less wasting. Lastly, it enables the inside wall to be free of wrinkles and loose fibers, resulting in fewer potential weak spots. Bigger is still better. Keep pedaling damn it!

Features

  • Niner RDO Carbon Compaction System the ultimate in lightweight, strength and reliability
  • Niner's World Cup tested geometry updated for a modern race fit and improved handling characteristics
  • 27.2 seat post provides rider comfort while the frame maintains uncompromised efficiency
  • Internal cable routing for a clean setup that is Di2 ready
  • 5 year warranty on all Niner Carbon products
SPECIFICATIONS
Frame Niner Air 9 RDO,
Wheel Size 29"
Fork Optimized for 100mm forks
(also compatible with 120mm forks)
Rear Shock -
Headset Included No / Cane Creek IS42/28.6 IS52/40 recommended
Headtube Diameter 1.125x1.5 Tapered Integrated
Front Derailleur 34.9mm high clamp
Bottom Bracket 73mm PF30 BB (Biocentric 30 Compatible)
PF30 BB is adaptable to threaded BB via adapter (sold separately)
Seatpost 27.2mm (400mm length recommended)
Seat Clamp 31.8mm
Dropout Style 12X148mm
Accessory Mounts 2 bottle cage mounts
Cable routing Internal (Di2 compatible) Internal dropper post compatible
Intended Use XC
Weight 2 lbs 10 oz

Note: Components are subject to change without notice.

GEOMETRY (mm / inch)
Size Small Medium Large Extra Large
A: Seat Tube Length 394.0
15.50		 419.0
16.50		 483.0
19.00		 533.0
21.00
B: Effective Top Tube 590.0
23.23		 610.0
24.02		 630.0
24.80		 650.0
25.59
C: Stack 607.0
23.90		 617.0
24.29		 626.0
24.65		 635.0
25.00
D: Reach 406.0
15.98		 424.0
16.69		 441.0
17.36		 458.0
18.03
E: BB Height 0.0
0.00		 0.0
0.00		 0.0
0.00		 0.0
0.00
F: BB Drop 58.0
2.28		 58.0
2.28		 58.0
2.28		 58.0
2.28
G: Head Tube Length 100.0
3.94		 110.0
4.33		 120.0
4.72		 130.0
5.12
H: Head Tube Angle 70.0 ° 70.0 ° 70.0 ° 70.0 °
I: Seat Tube Angle 73.0 ° 73.0 ° 73.0 ° 73.0 °
J: Standover Height 724.0
28.50		 744.0
29.29		 796.0
31.34		 837.0
32.95
K: Chainstay Length 435.0
17.13		 435.0
17.13		 435.0
17.13		 435.0
17.13
L: Wheelbase 1090.0
42.91		 1110.0
43.70		 1131.0
44.53		 1151.0
45.31
Recommended Rider Height 1.6-1.75M
5'3"-5'9"		 1.73-1.83M
5'8"-6'0"		 1.8-1.9M
5'11"-6'3"		 1.91-2.01M
6'3"-6'7"
Weight (kg / lbs) 0.0
0.00		 0.0
0.00		 0.0
0.00		 0.0
0.00
