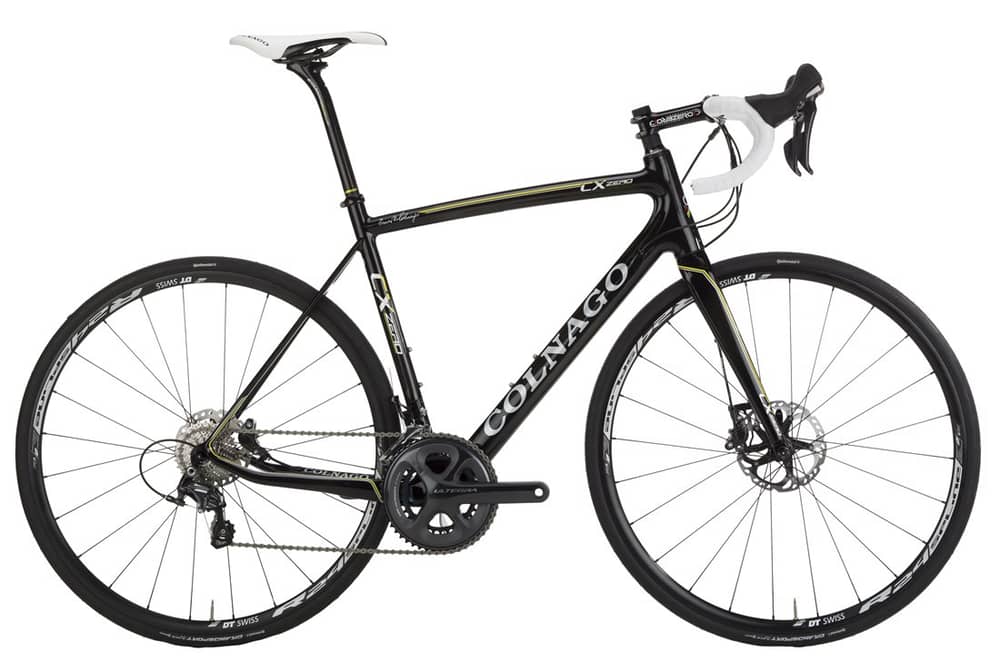

Colnago CX Zero Disc Ultegra Bike 2016

(0)
Item #: BI203C01
This item is unavailable.
Close

Double-check!

Confirm your options before continuing

*Free Shipping over $50

90-Day Returns

Insider - Exclusive Coupons and more.

Price Protection

Colnago CX Zero Disc Ultegra Bike 2016

Fast. Comfortable. Endurance Ready

As the most versatile bike in all of Colnago's collection, the CX Zero is stacked with the goods for going fast, going long, and hauling a grin from the first spin of the crank to that very last mile.

Design notes taken from the popular race oriented C-60, carry over to the CX Zero to keep it quick, stiff and capable. It gains some height in the headtube, loses length in the top tube and it's these minor tweaks which allow riders to pedal from a more upright, comfortable yet powerful pedaling position. A positon more suited for long hauls on rough roads. The all-day shop rides and spring centuries are calling, answer with the Colnago CX Zero.

Colnago Smartly dresses the CX Zero Disc Ultegra's monocoque carbon disc frame with a high performing Shimano Ultegra 11 speed drivetrain. Just one step away from the top of the line Dure-ace component group, Ultegra rates high on performance, value and quality. Shimano BR-R785 disc brakes deliver the superior control and braking power. DT Swiss R 24 Disc wheels are wrapped in Continental 25c rubber while the cockpit is finished in Colnago and Deda components.

Features

  • Colnago CX Zero, Monocoque Carbon disc frame with all day "Classic" geometry
  • Shimano Ultegra, 11 Speed drive train
  • Disc brake specific carbon fork
  • Internal cable routing compatible with mechanical or electronic systems
  • 27.2mm seatpost for a more compliant ride
  • Stiff and light BB86 bottom bracket shell
  • Clearance for wide and comfy 25c tires
SPECIFICATIONS
Frame Colnago CX Zero, Monocoque Carbon
Fork Colnago CX Zero Carbon, Disc Specific
Headset FSA No.63/51E
Shifters Shimano ST-R785
Front Derailleur Shimano 105 5800
Rear Derailleur Shimano Ultegra 6800 11spd
Crankset Shimano Ultegra 6800, 50/34
Bottom Bracket Shimano
Pedals -
Chain Shimano
Cassette Shimano 105 5800, 11-28, 11spd
Brakes Shimano BR-R785, 160mm (f) - 140mm (r)
Wheelset DT Swiss R 24 Disc
Tires Continental Grand Sport Race, 700x25c
Handlebar Deda RHM 02
Stem Deda Zero One
Bar Tape -
Seatpost Colnago CX Zero Carbon
Seatclamp Bolt-On
Saddle Selle Italia Q-Bik
Intended Use Race, Sport
Weight 8.64kg
19.05lbs (52cm)

Note: Components are subject to change without notice.


NOTE: Colnago bikes feature "Sloping" geometry. Please consider this when selecting a size. Riders will typically need to choose a frame 2 sizes smaller than a traditional frame. For personal help with sizing your new Colnago, give our Gear Advisors a call (888) 880-3811.

GEOMETRY (mm / inch)
Size 48 cm 50 cm 52 cm 54 cm 56 cm
A: Seat Tube Length 480
18.9		 500
19.69		 520
20.47		 540
21.26		 560
22.05
B: Effective Top Tube 527
20.75		 538
21.18		 550
21.65		 565
22.24		 580
22.83
C: Stack 540
21.26		 558
21.97		 577
22.72		 595
23.43		 609
23.98
D: Reach 378
14.88		 378
14.88		 380
14.96		 382
15.0		 392
15.43
E: BB Height - - - - -
F: BB Drop - - - - -
G: Head Tube Length 140
5.51		 158
6.22		 176
6.93		 193
7.6		 206
8.11
H: Head Tube Angle - - - - -
I: Seat Tube Angle 74.58° 74° 73.57° 72.83° 72.77°
J: Standover Height - - - - -
K: Chainstay Length 407
16.02		 410
16.14		 413
16.26		 415
16.39		 417
16.41
L: Wheelbase - - - - -
