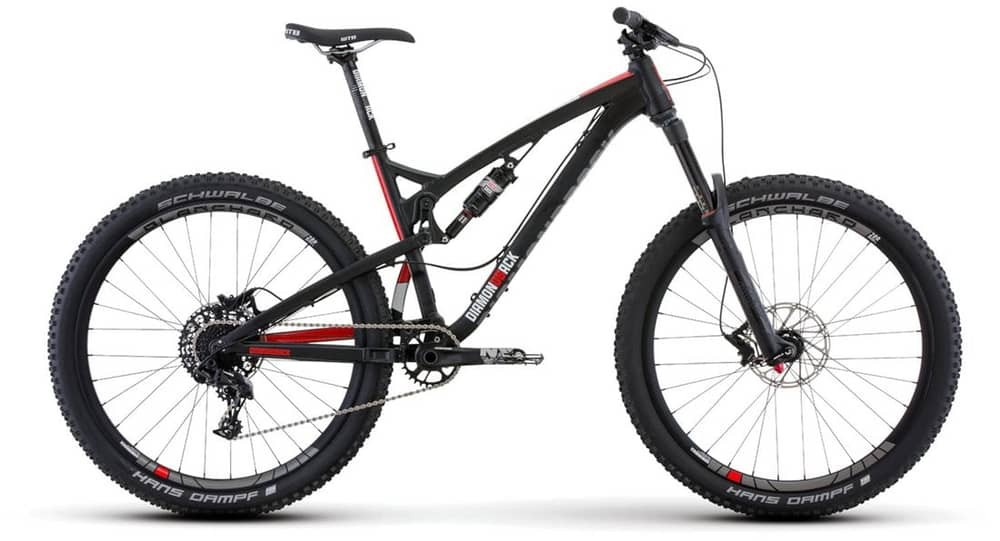

Diamondback Release 1 Bike 2017

Release the Beast

To make a modern trail bike means you must have a bike that excels in a variety of conditions. A bike with mid travel, and slackened geometry that is fast over climbs, tech sections, and heavy descents. Diamondback's Release series applies all these traits and wrapped them into a sexy package that will have other riders doing a double take.

The Diamondback Release 1 utilizes Diamondback's Level Link suspension system to provide 130mm of controlled, useable suspension that is both plush and pedals like a dream. The Hydroformed aluminum frame helps to keep the Release feeling light and nimble while providing superior durability. Up front, the Rock Shox 150mm travel Yari fork will gobble up rough sections like you're on a much bigger bike. SRAM's 11-speed NX drivetrain remains extremely efficient with snappy, precise shifts, and a gear range that will allow you to blaze up the climbs. SRAM's Level hydraulic brakes with 180mm rotors are powerful stoppers with remarkable control that will give you the confidence to descend like the pros.

The Release is the best trail bike Dimondback has ever made. For riders who look for speed at every possible moment, the Release Three is the bike for you.

REVIEWS

Freehub maggazine - " Confidence on descents, climbing prowess and a solid build spec make the Release a real contender for your next bike" - John Canfield

Pinkbike - " this is a bike that can handle being thrown sideways into corners and launched deep into the landing of a drop without even a hint of unwanted flex" - Mike Kazimer

Features

  • Level Link rear suspension is plush and efficient
  • Hydroformed aluminum frame is sexy, light and strong
  • Boost 148x12mm spacing for added precision and rigidity
  • SRAM Level hydraulic disc brakes are powerful and controlled
  • SRAM 1X11 drivetrain has snappy shifts and huge gear range
SPECIFICATIONS
Frame Release 27.5, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube
Fork Rockshox Yari RC, 150mm Travel, w/ Rebound and Compression Damping, 35mm Stanction, 1.5" Alloy Taper Steerer, w/ 110x15mm Boost Thru-axle
Rear Shock Rockshox Monarch R DebonAir, 200x57mm
Headset FSA No-57E Taper 1.5 /1-1/8" Standard Cups, Sealed Cartridge
Shifters SRAM NX 11 Speed X-Actuation Trigger
Front Derailleur What is that
Rear Derailleur SRAM NX X-Horizon, 11 Speed
Crankset SRAM NX 1x, w/ X-Sync 30T Chain Ring
Bottom Bracket SRAM GXP
Pedals DB4L Alloy Platform w/ Replaceable Pins
Chain KMC X11EL, 11 Speed
Cassette SRAM PG1130, 11 Speed, 11-42T
Brakes SRAM Level Hydraulic Disc, w/ 180mm Front / 180mm Rear Centerline Rotors
Wheelset Diamondback Blanchard 28R, Tubeless Compatible, 32h, 32h Alloy,110x15mm BoostThru-axle, Sealed Cartridge Bearing, w/ CNC Disc Mount (front hub), 32h Alloy, Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, Cassette (rear hub)
Tires Schwalbe Hans Dampf, Performance, 27.5x2.35"
Handlebar DB35 Alloy, 780mm Wide, 15mm Rise, 35mm Bar Bore
Stem DB35 Alloy, 40mm Reach, 35mm Bar Bore
Grips DB4L "Lock on" 135mm Kraton
Seatpost DB Alloy Micro Adjust, 31.6mm
Seatclamp DB alloy quick release
Saddle WTB Volt Comp
Intended Use XC, Trail, All-Mountain
Weight TBD
TBD

Note: Components are subject to change without notice.

GeometryChart
GEOMETRY (mm / inch)
Size Small/15" Medium/17" Large/19" Extra Large/21"
A: Seat Tube Length 394
15.5 		432
17.0 		483
19.0 		533
21.0
B: Effective Top Tube 585
23.0 		610
24.0 		635
25.0 		660
26.0
C: Stack 0
0.0 		0
0.0 		0
0.0 		0
0.0
D: Reach 0
0.0 		0
0.0 		0
0.0 		0
0.0
E: BB Height 0
0.0 		0
0.0 		0
0.0 		0
0.0
F: BB Drop 0
0.0 		0
0.0 		0
0.0 		0
0.0
G: Head Tube Length 100
3.9 		110
4.3 		120
4.7 		130
5.1
H: Head Tube Angle 66.0 ° 66.0 ° 66.0 ° 66.0 °
I: Seat Tube Angle 73.0 ° 73.0 ° 73.0 ° 73.0 °
J: Standover Height 739
29.1 		740
29.1 		743
29.3 		749
29.5
K: Chainstay Length 425
16.7 		425
16.7 		425
16.7 		425
16.7
L: Wheelbase 1133
44.6 		1160
45.7 		1186
46.7 		1213
47.8
Suggested Rider Height -
- 		-
- 		-
- 		-
-
