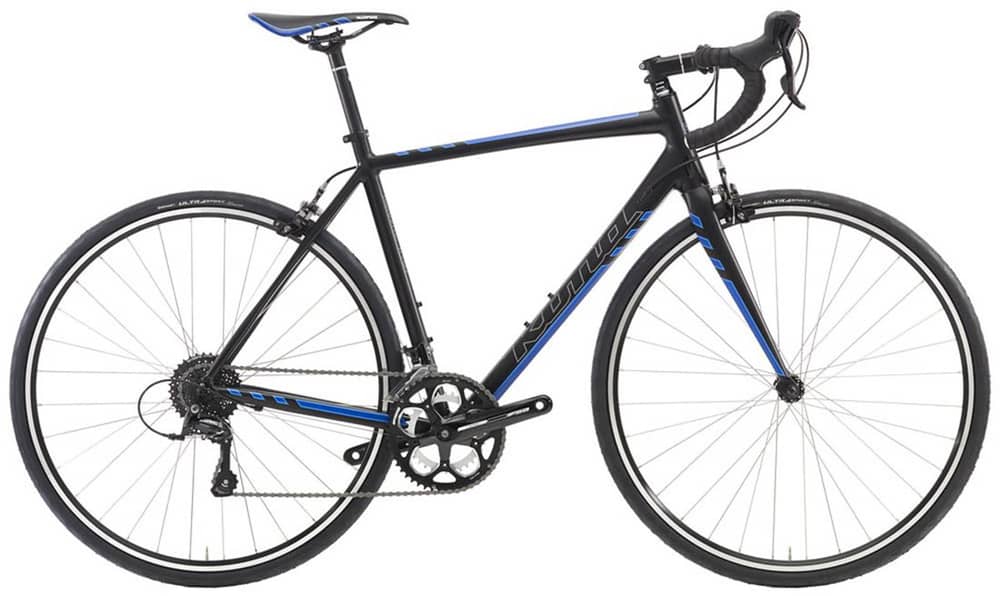

Kona Esatto Bike 2016

Destroy the competition, not your budget

Highlighted by Kona’s Endurance Geometry and designed for speed and comfort, the Esatto Bike by Kona is affordable and fast. The lightweight and lively geometry is comprised of 7046 Aluminum that’s butted to save weight. A low bottom bracket is paired with a slack headtube angle, with a shorter top tube makes the bike fast and agile. The tapered steer tube gives this ride the extra stable feel, and a carbon fork accents it with an extra light and rigid front end.

The Shimano drivetrain gives you 9-speeds in the rear, with an 11-32T range. The crank has two rings, letting you cover a wide range of grades. Alex rims are lightweight and fast rolling, and Continental UltraSport II Tires give you optimal grip and minimal rolling resistance. The Kona cockpit gives you great handling, and their Road seat offers hours of comfort in the saddle.

Features

  • Carbon fork is rigid and lightweight
  • Kona cockpit features light and agile bars, stem, and tape
  • Superlight Aluminum frame is butted to save weight
  • Race oriented geometry with low and stable center of gravity, and shorter top tube
SPECIFICATIONS
Frame Kona SuperLight Aluminum Butted 7046
Fork Kona Carbon Race
Headset FSA No.42/ACB
Shifters Shimano Sora
Front Derailleur Shimano Sora
Rear Derailleur Shimano Sora
Crankset FSA Vero
Bottom Bracket TH 7420
Pedals N/A
Chain KMC Z99
Cassette Shimano HG200 11-32t 9spd
Brakes Tektro R359
Wheelset Alex R500 Rims, Formula Hubs
Tires Continental UltraSport II 700x28c
Handlebar Kona Road
Stem Kona Road
Bar Tape Kona Cork Tape
Seatpost Kona Thumb w/Offset
Seatclamp Kona
Saddle Kona Road
Intended Use Road
Weight 21.5 lbs (56cm)

Note: Components are subject to change without notice.

GeometryChart

GEOMETRY (mm / inch)
Size 52 54 56 58
A: Seat Tube Length 520
20.5		 540
21.3		 560
22.0		 580
22.8
B: Effective Top Tube 535
21.1		 550
21.7		 565
22.2		 580
22.8
C: Stack 558
22.0		 575
22.6		 594
23.4		 613
24.1
D: Reach 375
14.8		 380
15.0		 383
15.1		 393
15.5
E: BB Height - - - -
F: BB Drop 76
3.0		 74
2.9		 74
2.9		 72
2.8
G: Head Tube Length 145
5.7		 165
6.5		 185
7.3		 205
8.1
H: Head Tube Angle 72.0 ° 72.0 ° 72.0 ° 72.5 °
I: Seat Tube Angle 74.0 ° 73.5 ° 73.0 ° 73.0 °
J: Standover Height 751
29.6		 772
30.4		 790
31.1		 812
32.0
K: Chainstay Length 422
16.6		 422
16.6		 422
16.6		 425
16.7
L: Wheelbase 993
39.1		 1005
39.6		 1014
39.9		 1028
40.5
Suggested Rider Height 157-170cm
5'2"-5'7"		 168-180cm
5'6"-5'11"		 178-190cm
5'8"-6'2"		 185-195cm
6'0"-6'4"
