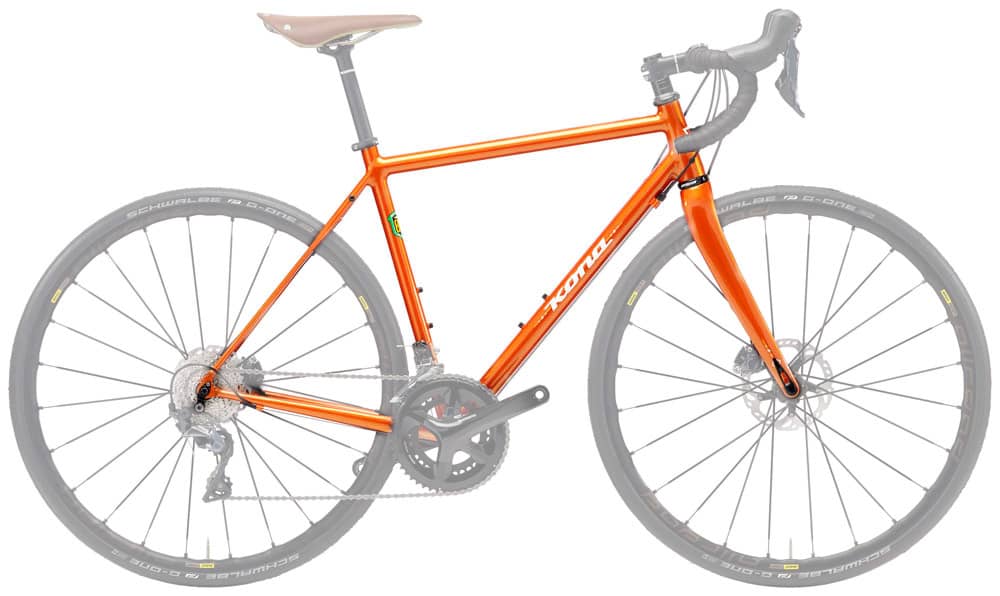

Kona roadhouse frame/fork 2018

Classic steel frame goodness combines with modern technologies to provide an unparalleled riding experience. The classic Reynolds 853 steel frame of the Kona Roadhouse delivers the smooth but lively ride that only a quality steel frame is capable of. Modern touches, like disc brakes, thru-axles, and a Kona Carbon fork, keep it contemporary. On closer look, you will see what makes this bike a Kona: tapered head tube, flattened seat stays and a beautiful fillet-brazed frame. A generous amount of tire clearance lets you prep this frame for gravel grinding and off pave adventures.

Features

  • Full Reynolds 853 Steel Frame is Reynold’s highest quality steel.
  • Kona Carbon Fork smooths out the ride and provides excellent handling
  • Disc Brakes Mounts is the future of road bikes
  • 12mm thru axles increase stiffness and improve handling
SPECIFICATIONS
Frame Reynolds 853 Butted Cromoly with Fillet Brazing
Wheel Size 700c
Fork Kona Carbon Road Disc
Headset Included N/A
Headtube Diameter Tapered 44/56mm
Front Derailleur 28.6 clamp mount
Bottom Bracket PF86
Seatpost 27.2mm
Seat Clamp 28.6mm (included)
Dropout Style 12 x 142mm (Axle included)
Accessory Mounts water bottle cage, fender, rack
Cable routing Internal / External
Intended Use Road, Adventure Road, Gravel
Weight
-

”GeometryChart”/



GEOMETRY (mm / inch)
Size (49cm) (52cm) (54cm) (56cm) (58cm) (61cm)
A: Seat Tube Length 490
19.3		 520
20.5		 540
21.3		 560
22.0		 580
22.8		 610
24.0
B: Effective Top Tube 520
20.5		 535
21.1		 550
21.7		 565
22.2		 580
22.8		 610
24.0
C: Stack 542
21.3		 564
22.2		 581
22.9		 601
23.7		 619
24.4		 640
25.2
D: Reach 370
14.6		 374
14.7		 378
14.9		 381
15.0		 391
15.4		 398
15.7
E: BB Height 269
10.6		 269
10.6		 271
10.7		 271
10.7		 273
10.7		 273
10.7
F: BB Drop 76
3.0		 76
3.0		 74
2.9		 74
2.9		 72
2.8		 72
2.8
G: Head Tube Length 115
4.5		 135
5.3		 155
6.1		 175
6.9		 195
7.7		 215
8.5
H: Head Tube Angle 71.0 ° 72.0 ° 72.0 ° 72.0 ° 72.5 ° 73.0 °
I: Seat Tube Angle 74.5 ° 74.0 ° 73.5 ° 73.0 ° 73.0 ° 72.5 °
J: Standover Height 740
29.1		 770
30.3		 790
31.1		 810
31.9		 830
32.7		 855
33.7
K: Chainstay Length 422
16.6		 422
16.6		 422
16.6		 422
16.6		 425
16.7		 425
16.7
L: Wheelbase 993
39.1		 994
39.1		 1005
39.6		 1015
40.0		 1029
40.5		 1038
40.9
