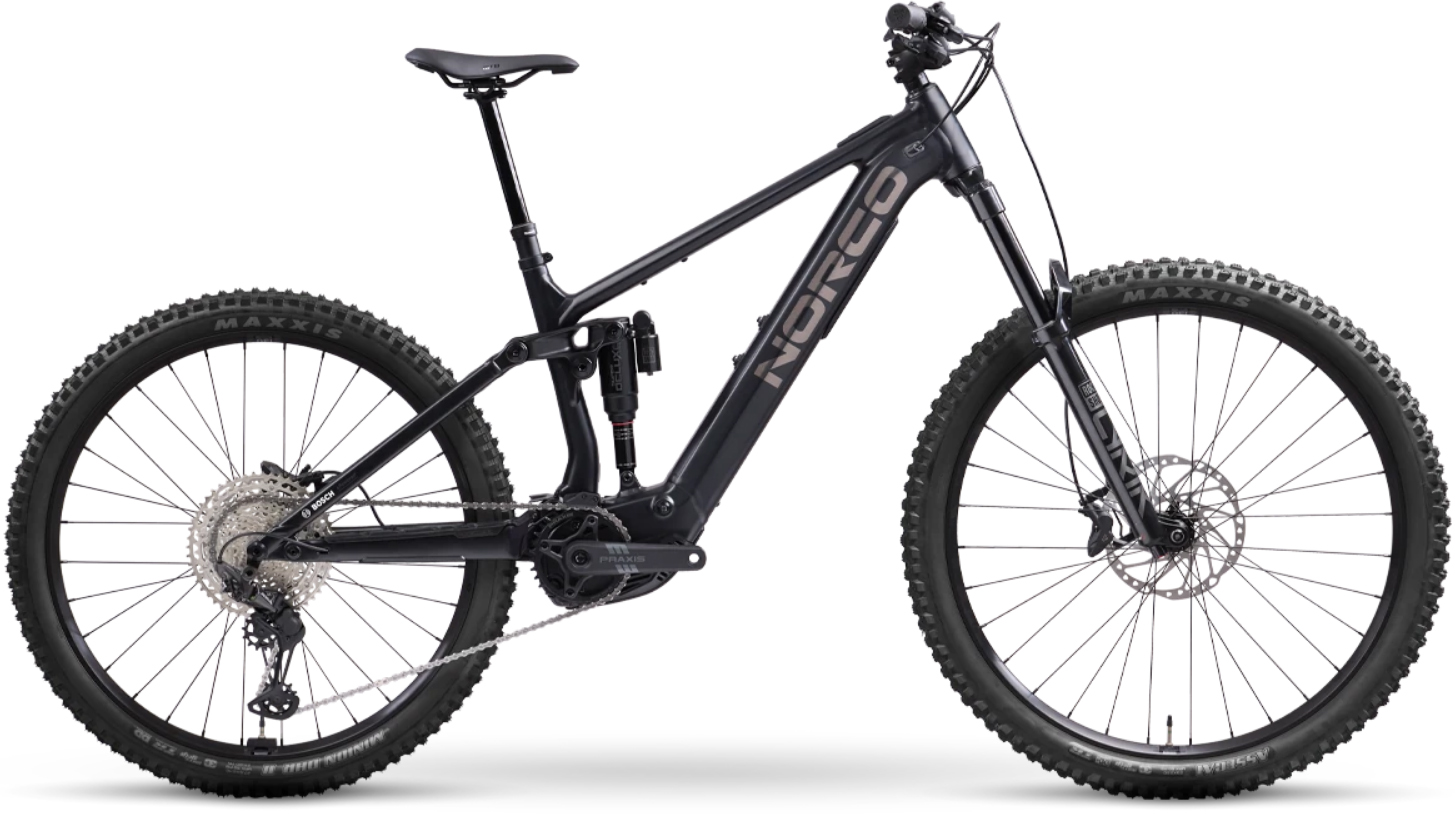

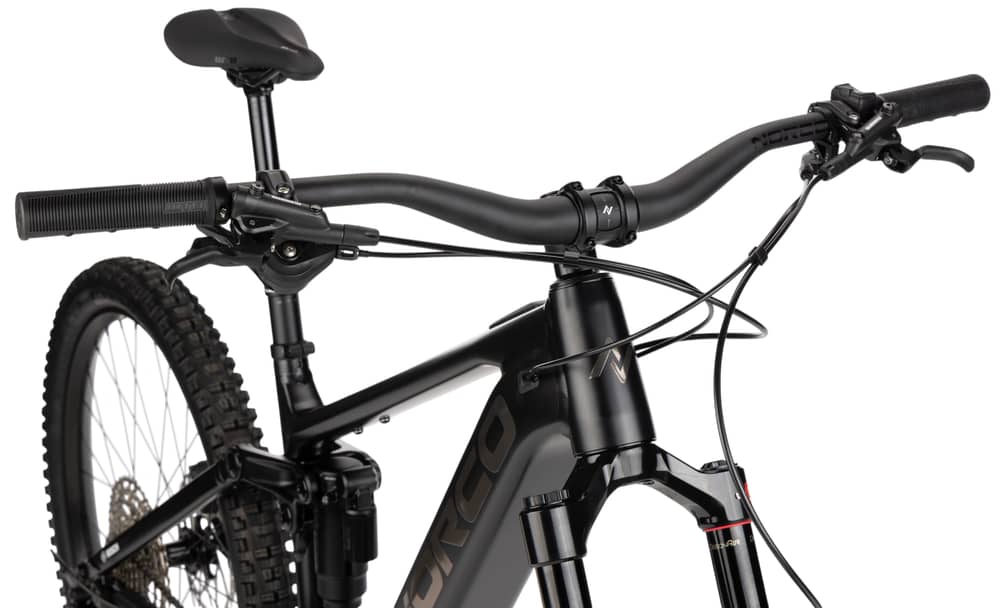

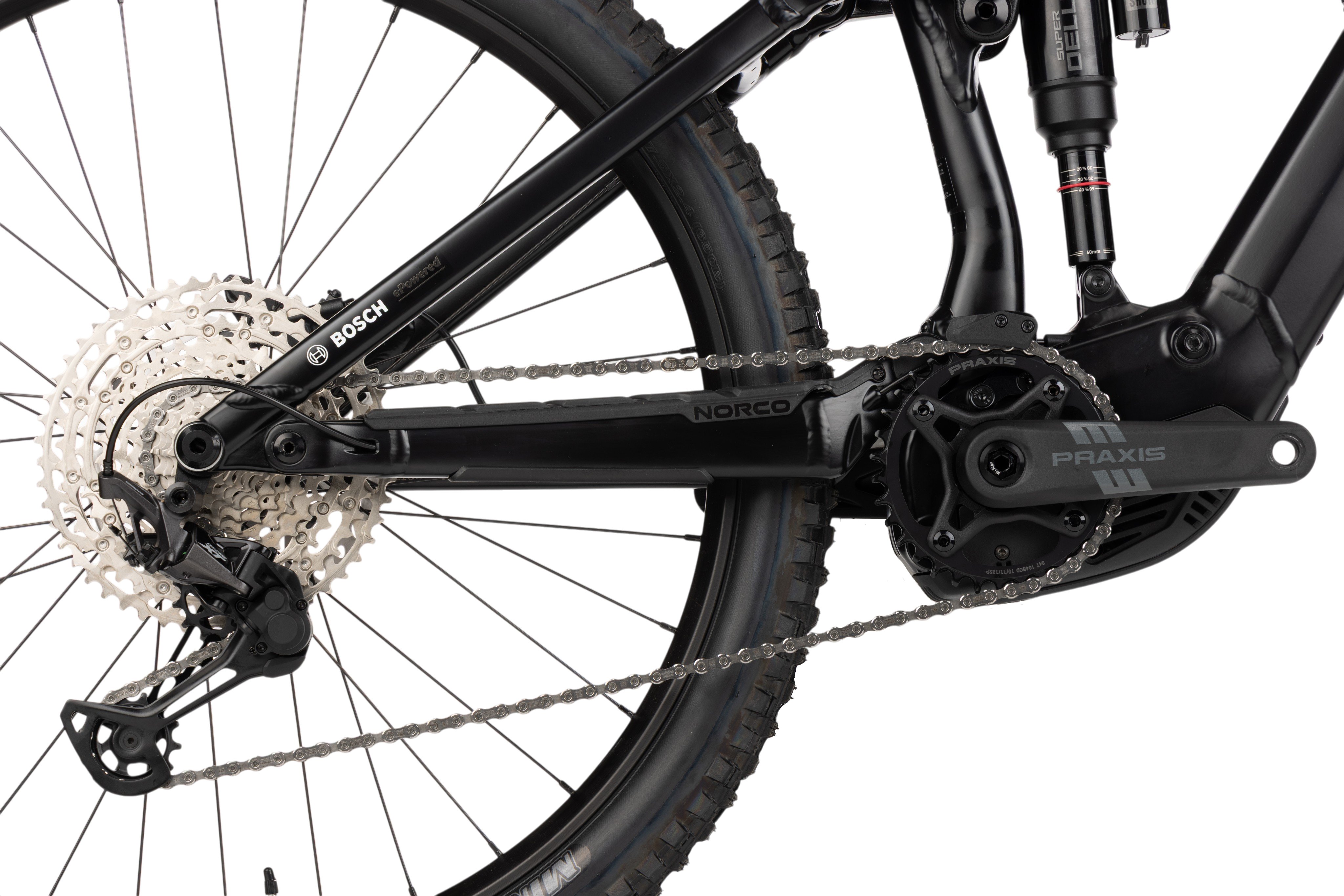

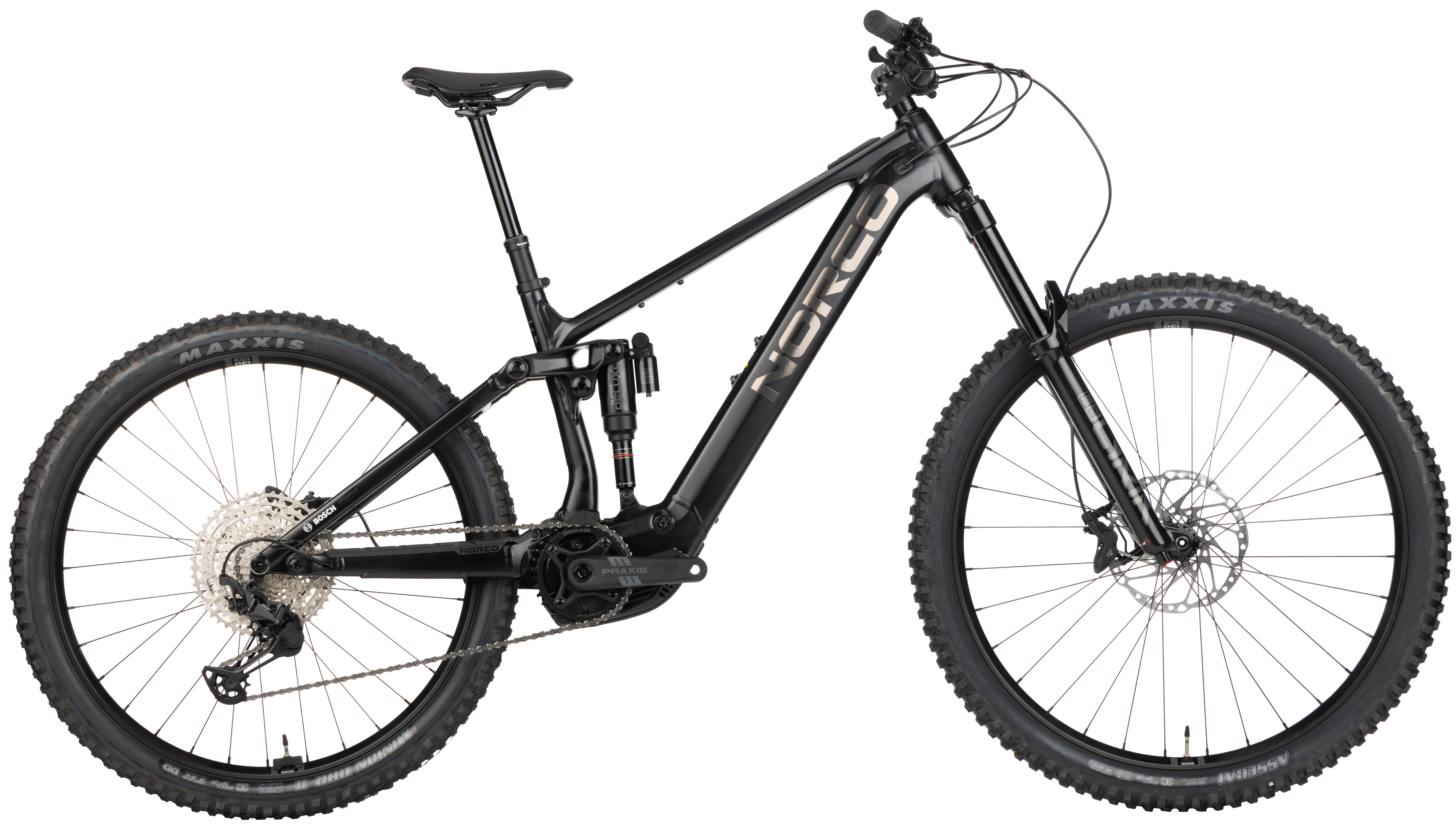

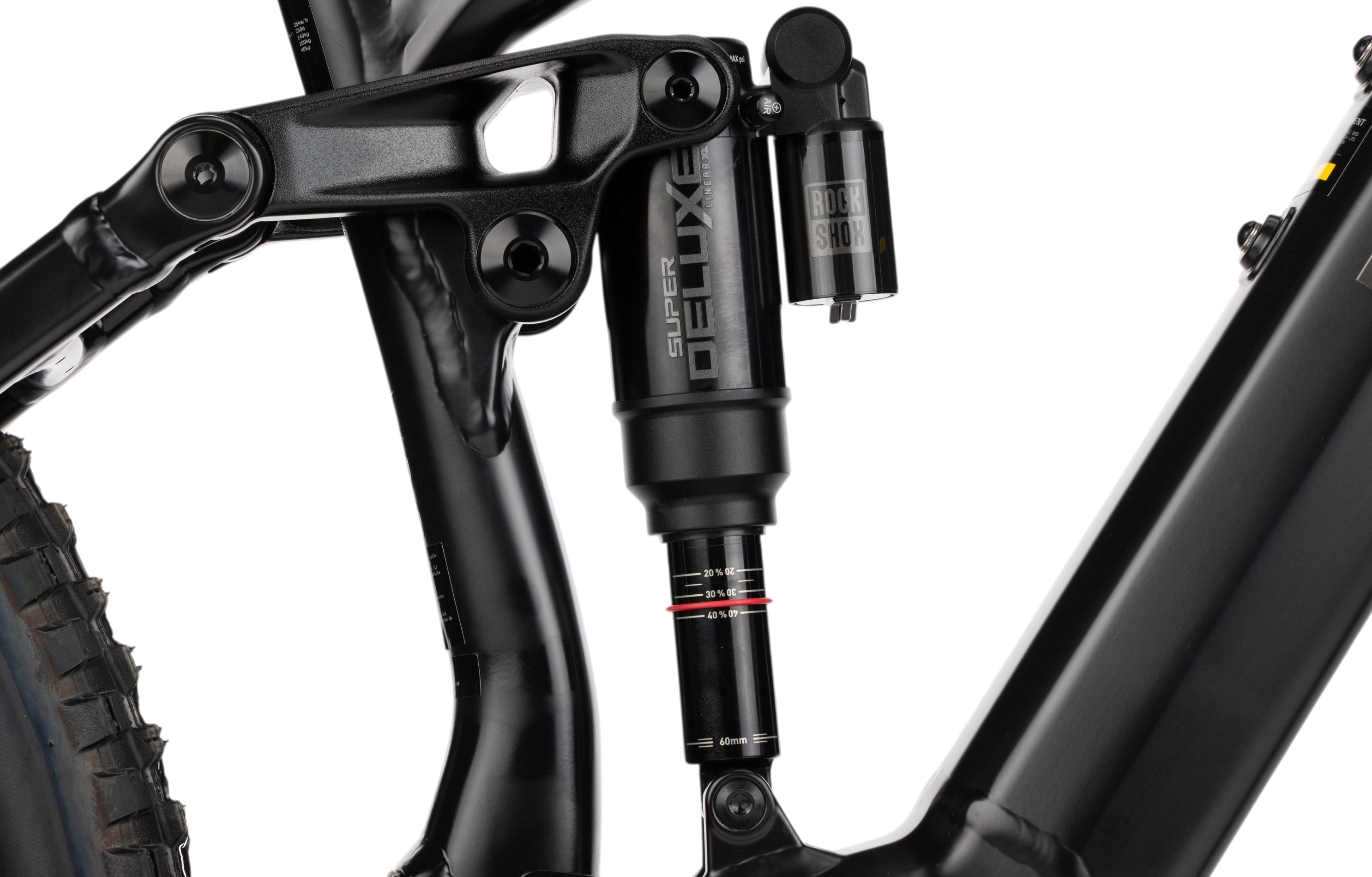

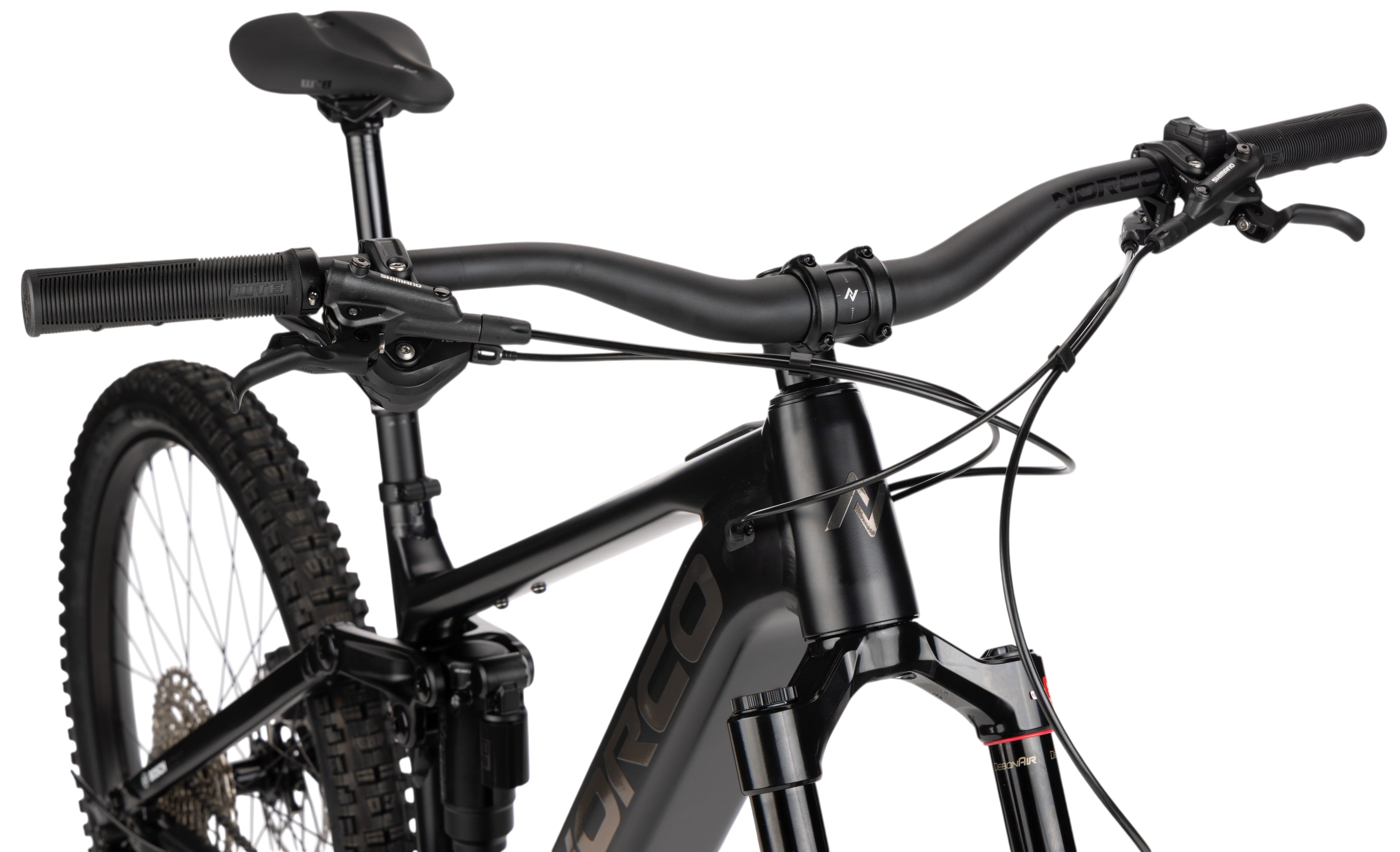

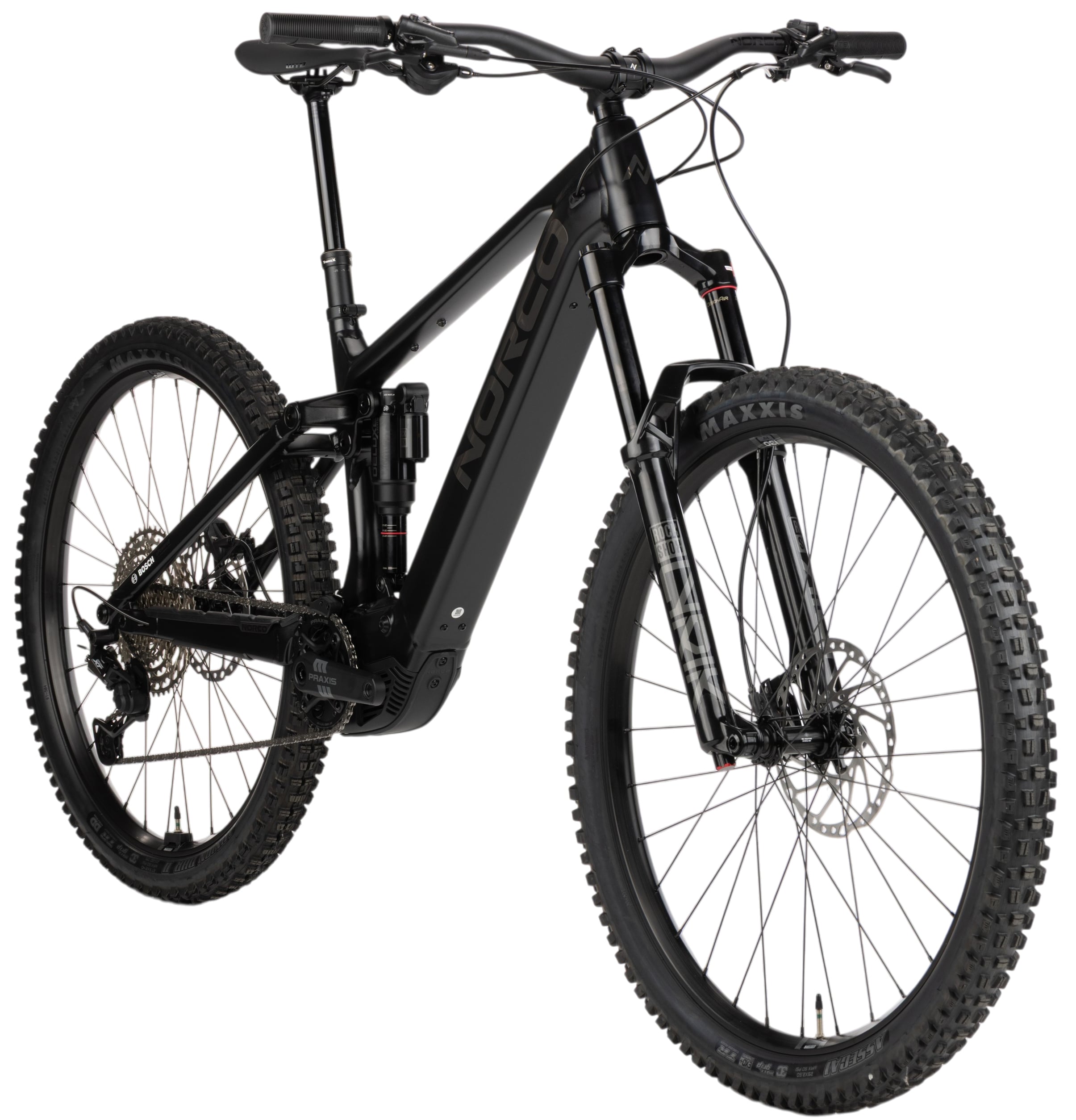

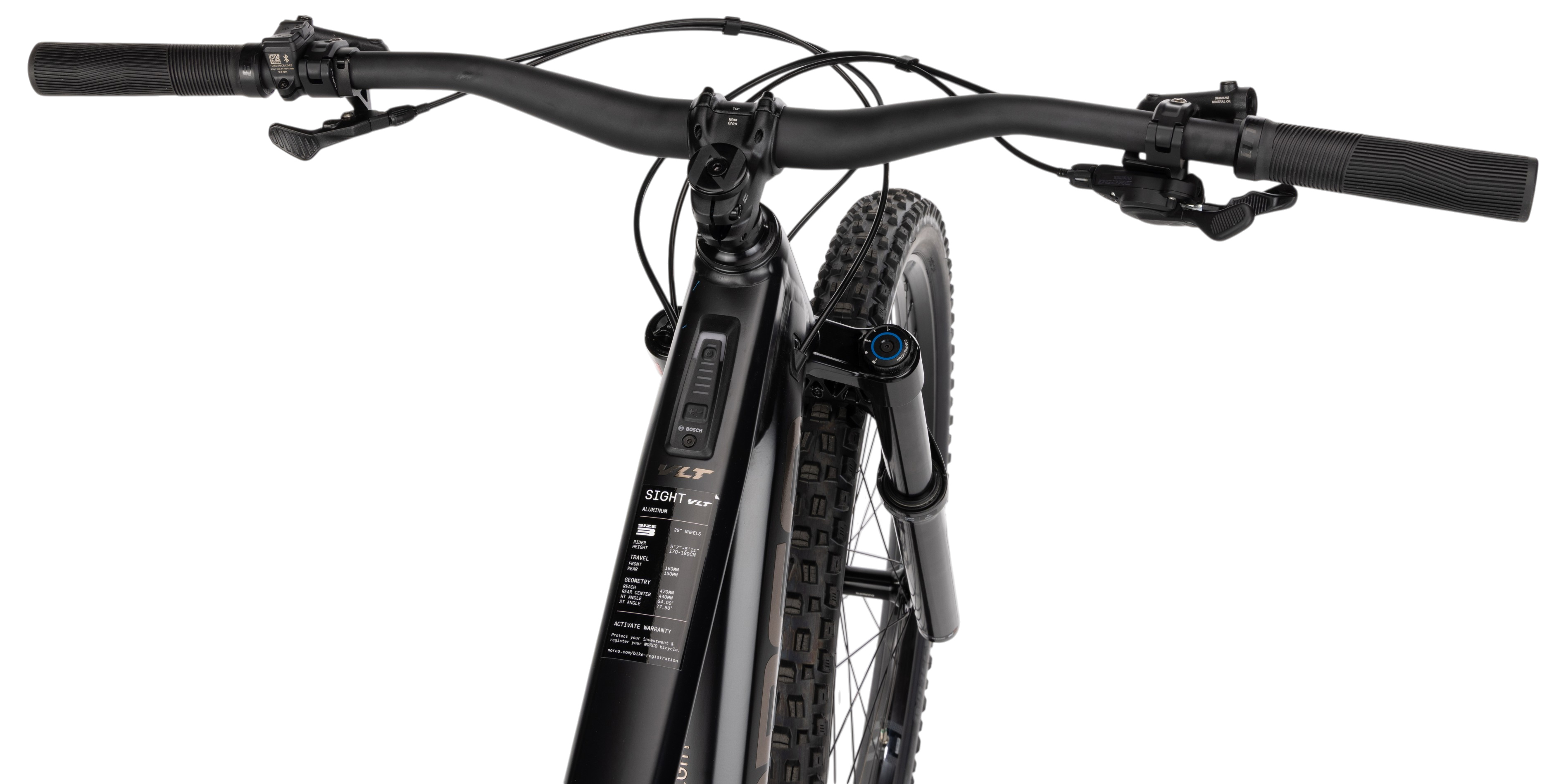

Norco Sight VLT PX A2 E-Bike

(0)
Item #: BI005215
$5,099.00

Most orders ship free over $50*

Authorized Norco Retailer

Insider - Exclusive Coupons and more.

Close

Double-check!

Confirm your options before continuing

Color: Black
MFG #: 286417156
Black
Size:3
Only 2 Left - Ready to Ship
More of these are on the way. Leave us your contact information and we'll let you know when they arrive.
There seems to be a problem with your name - Please Provide a name.
There seems to be a problem with your name - Please provide your first and last name.
There seems to be a problem with your phone number - please correct and submit again
There seems to be a problem with your email - please correct and submit again
There seems to be a problem with your email or phone number - Please provide your email or phone number.
Success! You're on our notification list. Thanks for your interest in this product.
Learn More
+ Add Accident Protection from
Remove Protection Plan
Gear Advisor

Questions about this bike?

Contact a Gear Advisor Pro.

*Free Shipping over $50

90-Day Returns

Insider - Exclusive Coupons and more.

Price Protection

Norco Sight VLT Bosch A3 E-Bike 2027

Full power where it matters most.

The Norco Sight VLT Bosch A3 delivers full-power eMTB performance without the fluff — just composure, confidence, and the capability to handle whatever the trail throws at you. Built on an aluminum frame with Norco's proven VPS suspension platform, 160mm up front and 150mm in the rear, the Sight VLT Bosch A3 is tuned for all-mountain riding with a mixed-wheel 29"/27.5" setup and progressive, size-specific geometry. The Bosch Performance Line PX motor puts out 90Nm of torque and up to 700W of power, paired with a 600Wh PowerTube battery — and it's 250Wh range extender compatible when the days get longer.

Features

  • Bosch Performance Line PX motor delivering 90Nm of torque and up to 700W of peak power, with up to 400% pedal assist — natural-feeling power delivery across all trail conditions
  • Bosch PowerTube 600Wh battery with 250Wh range extender compatibility, Bosch eBike Flow App integration for theft protection, navigation, and personalized ride settings
  • Aluminum VPS suspension platform with 160mm front / 150mm rear travel, UDH derailleur hanger, and Eagle Transmission compatibility
  • DVO Diamond 36 Core fork with High/Low Speed Compression and Rebound adjustment, 160mm travel, 44mm offset — serious front-end performance for the price point
  • Mixed-wheel geometry (29" front / 27.5" rear) with a 64° head tube angle and size-specific reach and seat tube angle for balanced handling and confident, progressive descending
  • Shimano CUES 11-speed drivetrain with SL-U6000 shifter, RD-U6000 rear derailleur, and CS-LG3400-11 11-50T cassette for a wide gear range on every kind of climb
  • TRP Slate EVO hydraulic disc brakes with 203mm front and 180mm rear Centerlock rotors for powerful, consistent stopping power
  • Maxxis Assegai 29x2.5" (front) and Maxxis Minion DHR II 27.5x2.4" (rear) — a proven aggressive tire combination for traction and control on technical terrain
  • Ride Aligned setup guide and Norco's No Other Way Limited Lifetime Warranty included
SPECIFICATIONS
Frame Aluminum, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
Fork DVO Diamond 36 Core, High/Low Speed Compression & Rebound, 160mm, 44mm Offset
Rear Shock DVO Topaz Core, 205x60mm TR
Rear Shifter Shimano CUES SL-U6000-11R, 11-Speed
Rear Derailleur Shimano CUES RD-U6000, 11-Speed, GS
Crankset Prowheel Aluminum Bosch Cranks, 34T, 155mm (S1, S2, S3) / 160mm (S4, S5)
Bottom Bracket Bosch PX
Cassette Shimano CUES CS-LG3400-11, 11-50T, 11-Speed
Chain Shimano CUES CN-LG500-Q, 11-Speed
Front Brake TRP Slate EVO, Organic Pads
Front Brake Rotor TRP, 203mm, 2.3mm Thickness, Centerlock
Rear Brake TRP Slate EVO, Organic Pads
Rear Brake Rotor TRP RS01E, 180mm, 2.3mm Thickness, Centerlock
Handlebar Norco 6061 DB Alloy, 800mm, 25mm Rise (S1, S2) / 35mm Rise (S3, S4, S5)
Stem Norco 6061, 40mm Length, 35mm Clamp
Seatpost TranzX YSI34QL, 31.6mm, 125mm (S1) / 150mm (S2) / 170mm (S3) / 200mm (S4, S5)
Headset FSA No.55 Sealed Bearing, 1-1/8" - 1.8" Tapered (ZS44/28.6 | ZS56/40)
Saddle WTB Solano Med, 142x240mm, Steel Rails
Grips WTB Wavelength, 140mm
Front Hub Shimano HB-MTC500-15-B, 15x110mm Boost, 32H, Centerlock
Rear Hub Shimano FH-TC500-MS-B, 12x148mm Boost, HG, 32H, Centerlock
Rims WTB ST Tough TCS 2.0, 30mm, 32H, 29"-27.5" F/R
Front Tire Maxxis Assegai, 3C MaxxGrip EXO+, 29x2.5", Folding
Rear Tire Maxxis Minion DHR II, 3C MaxxGrip DD, 27.5x2.4", Folding
Spokes Sapim Sprint DB, 2.0/1.8/2.0, Black Stainless Steel
Drive Unit Bosch Performance Line PX, 90Nm / 700W
Battery Bosch PowerTube 600Wh (+ 250Wh Range Extender Compatible)
Intended Use eMTB, All-Mountain

Note: Components are subject to change without notice.

Geo Chart Image



Norco Sight VLT Bosch A3
Size S1 S2 S3 S4 S5
A: Seat Tube Length 385 395 415 445 475
B: Effective Top Tube 571 587 604 621 638
C: Stack 616 625 634 643 652
D: Reach 430 450 470 490 510
F: BB Drop 8 8 8 8 8
G: Head Tube Length 100 110 120 130 140
H: Head Tube Angle 64 ° 64 ° 64 ° 64 ° 64 °
I: Seat Tube Angle 77.0 ° 77.25 ° 77.5 ° 77.75 ° 78.0 °
J: Standover Height 696 704 706 723 745
K: Chainstay Length 432 436 440 444 448
L: Wheelbase 1202 1226 1255 1283 1311
Crank Arm Length 155 mm 155 mm 155 mm 160 mm 160 mm
Stem Length 40 mm 40 mm 40 mm 40 mm 40 mm
Suggested Rider Height
Frame Size S1 S2 S3 S4 S5
Rider Height - - - - -
Norco Sight VLT Bosch A3
Size S1 S2 S3 S4 S5
A: Seat Tube Length 15.2 15.6 16.3 17.5 18.7
B: Effective Top Tube 22.5 23.1 23.8 24.4 25.1
C: Stack 24.3 24.6 25.0 25.3 25.7
D: Reach 16.9 17.7 18.5 19.3 20.1
F: BB Drop 0.3 0.3 0.3 0.3 0.3
G: Head Tube Length 3.9 4.3 4.7 5.1 5.5
H: Head Tube Angle 64 ° 64 ° 64 ° 64 ° 64 °
I: Seat Tube Angle 77.0 ° 77.25 ° 77.5 ° 77.75 ° 78.0 °
J: Standover Height 27.4 27.7 27.8 28.5 29.3
K: Chainstay Length 17.0 17.2 17.3 17.5 17.6
L: Wheelbase 47.3 48.3 49.4 50.5 51.6
Crank Arm Length 155 mm 155 mm 155 mm 160 mm 160 mm
Stem Length 40 mm 40 mm 40 mm 40 mm 40 mm
Suggested Rider Height
Frame Size S1 S2 S3 S4 S5
Rider Height - - - - -
