Orbea Laufey 27+ H20 Bike 2018

(1)
Item #: BI185A11
This item is unavailable.
Close

Double-check!

Confirm your options before continuing

* Information provided in this AI Shopping Assistant may not match all information on the website. Please refer to the website to confirm details.

*Free Shipping over $50
90 Day Returns

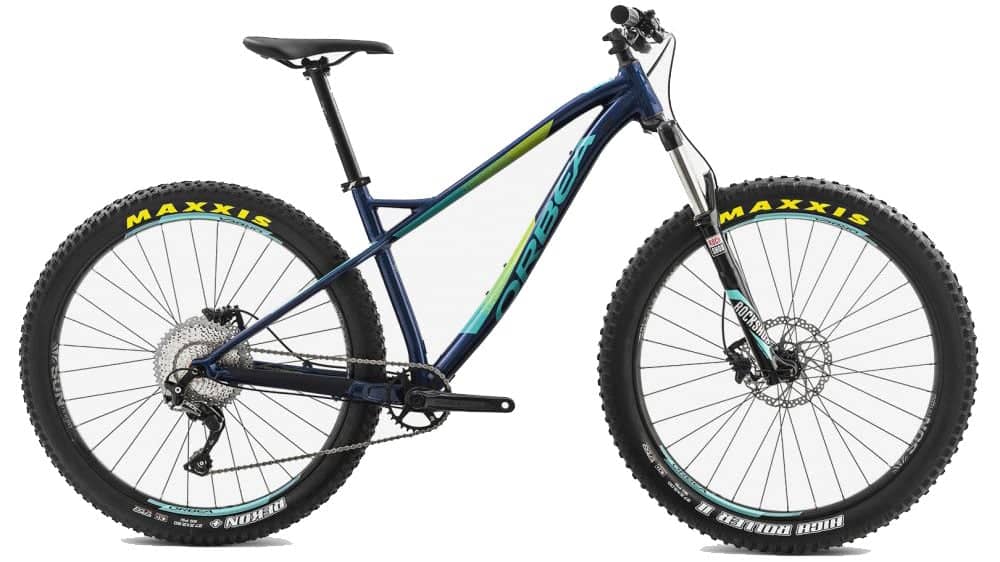

Orbea Laufey 27+ H20 Bike 2018

The Orbea Laufey triple butted aluminum frame is capable of fitting both 29” and 27+" wheels. The boost axle spacing on the front and rear is what allows this magic to happen as well as providing the Loki with stable and solid handling. Internal cable routing for the drive train and dropper posts, along with integrated rear brake mounts on seat stay keeps everything clean and tidy.

Onto the Triple butted aluminum frame, Orbea has spec’d the Laufey H20 with a Rock Shox Recon fork with 130mm travel. It's equipped with Shimano SLX M7000 Shifters and rear derailleur along with Shimano MT500 hydraulic disc brakes for reliable stopping power. SUN RINGLE DUROC 27.5 wheels are wrapped in Maxxis Rekon+ 2.80" tires. Rounding out the build is a Race Face ride stem, Orbea Digit seatpost and a 760mm wide Orbea OC-II bar.

Features:

  • ICR - Internal Cable Routing
  • ISCG05 mounting tabs
  • PM Direct - Rear brake caliper can be mounted directly to the chain stay. Rigid, clean setup.
  • Dropper Routing - Internal (stealth) or external dropper seatpost cable routing.
  • Direct-mount front derailleur interface. Compatible with traditional, side-swing, new XTR or electronic shifting options. The mount is removable if you choose a 1X crankset.
SPECIFICATIONS
Frame Orbea Laufey Hydro 2018 Triple Butted 29/27.5+ design. Boost 12x148 ISCG 05
Fork RockShox Recon RL 130 Air Q15x110 Boost
Rear Shock -
Headset FSA 1-1/8 - 1-1/2" Integrated
Shifters Shimano SLX M7000 I-Spec
Front Derailleur -
Rear Derailleur Shimano SLX M7000 GS Shadow Plus Direct Mount
Crankset Race Face Aeffect Cinch 32t
Bottom Bracket Shimano
Pedals -
Chain Shimano HG601-11
Cassette Sun Race 11-46t 11-Speed
Brakes Shimano MT500 Hydraulic Disc
Wheelset SUN RINGLE DUROC 27.5 TR40 TLR + MODUS SEALED BOOST HUBS
Tires Maxxis Rekon+ 2.80" 60 TPI Exo TLR
Handlebar Orbea OC-II Riser 760mm
Stem Race Face Ride
Grips -
Seatpost Orbea Digit 31.6x400mm
Seat Clamp Bolt-On Clamp Style
Saddle Selle Royal 2062 Trail Custom
Intended Use FUN, Trail
Weight tbd

Note: Components are subject to change without notice.



GEOMETRY (mm)
Size Small Medium Large Extra Large
A: Seat Tube Length 381 432 470 520
B: Effective Top Tube 570 599 621 647
C: Stack 620.9 625.5 634.7 648.5
D: Reach 383.6 410.2 430.0 452.6
E: BB Height 317.5 (29”)
307.5 (27.5+”)		 317.5 (29”)
307.5 (27.5+”)		 317.5 (29”)
307.5 (27.5+”)		 317.5 (29”)
307.5 (27.5+”)
F: BB Drop/Rise 60 60 60 60
G: Head Tube Length 100 105 115 130
H: Head Tube Angle 67° 67° 67° 67°
I: Seat Tube Angle 73° 73° 73° 73°
J: Standover Height 790.6 (29”)
785.3 (27+”)		 790.6 (29”)
785.3 (27+”)		 790.6 (29”)
785.3 (27+”)		 790.6 (29”)
785.3 (27+”)
K: Chainstay Length 429.9 429.9 429.9 429.9
L: Wheelbase 1103.0 1131.0 1155.0 1183.5
