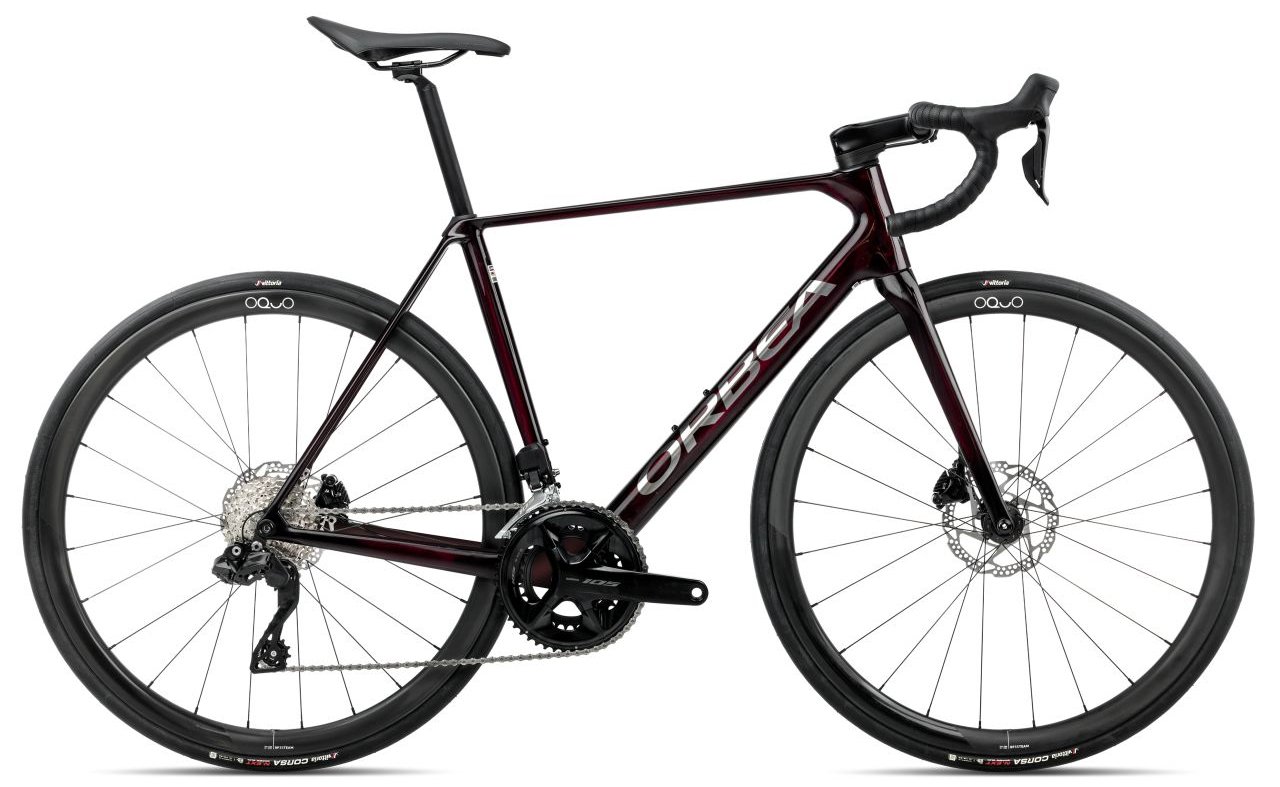

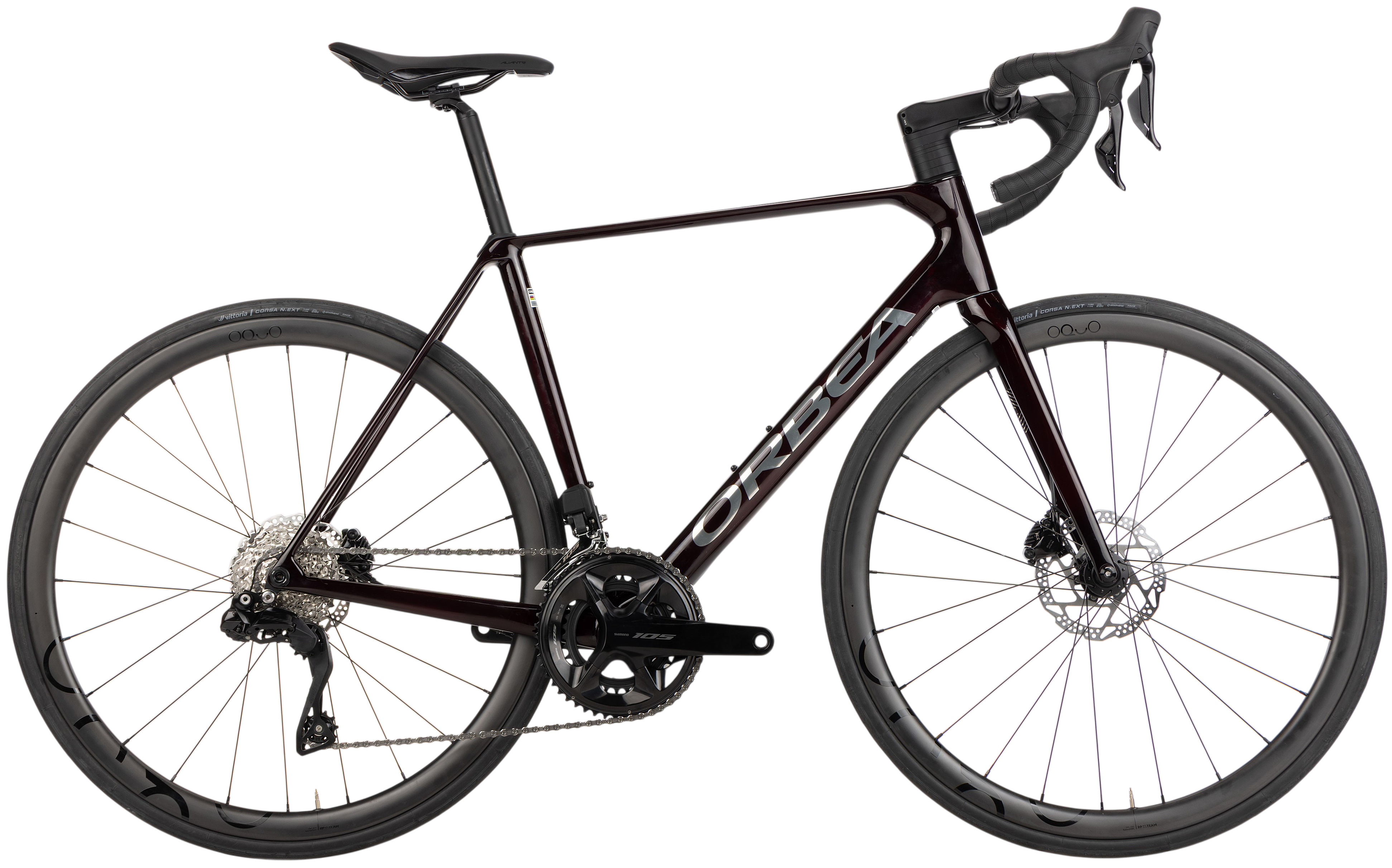

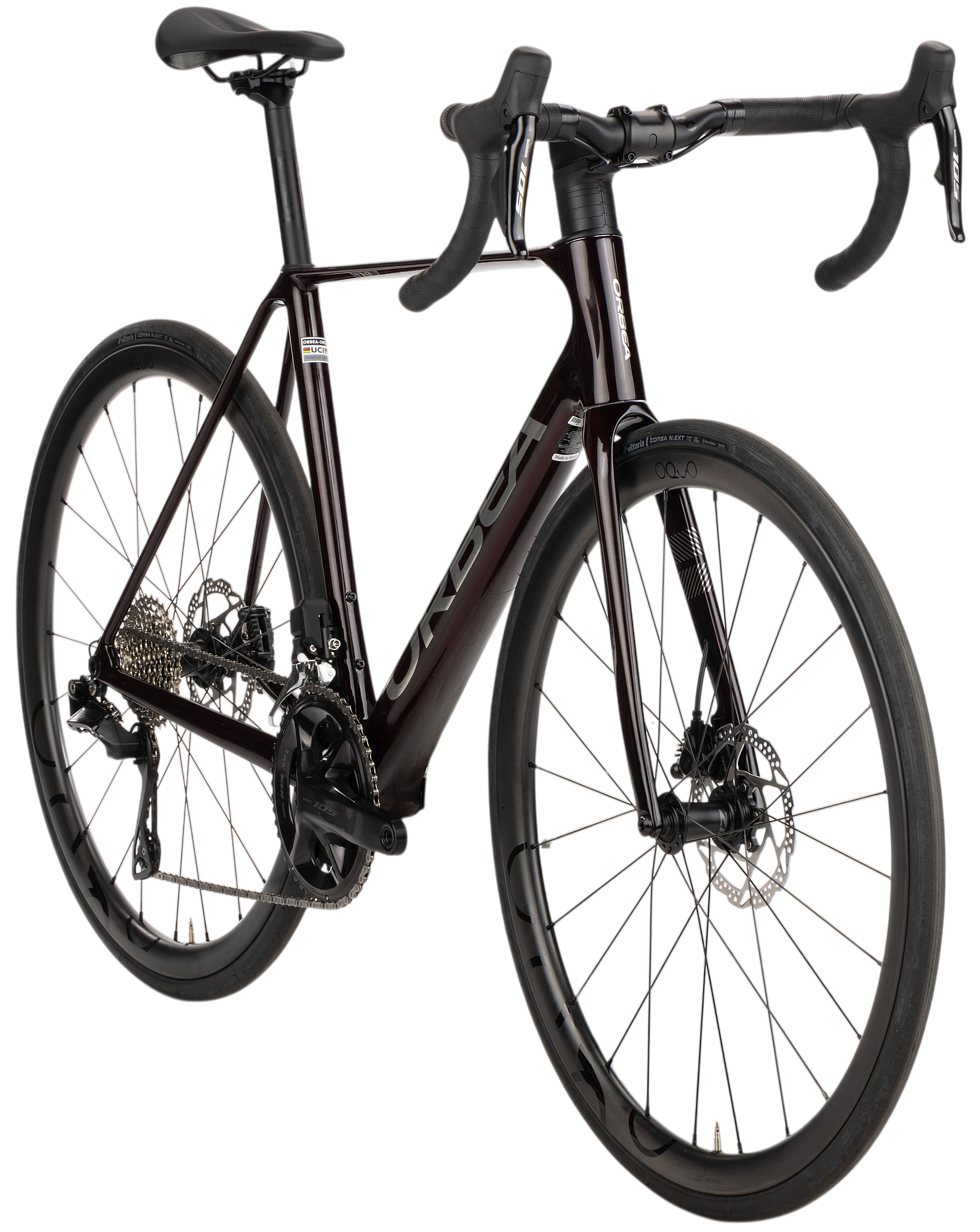

Orbea Orca M35i Bike

Praise the light.

The Orbea Orca M35i is 6.7kg of climbing technology designed to change how you reach the top. Built on Orbea's proven Orca carbon platform with ICR Plus internal cable routing and a Powerspine-reinforced frame, it balances stiffness exactly where it's needed and compliance where it counts. Paired with a Shimano 105 Di2 12-speed drivetrain and the Oquo Road Performance RP25TEAM wheelset, the M35i delivers an efficient, responsive ride that punches well above its price point.

Features

  • Powerspine Frame Design reinforces the lower spine of the frame to handle the large majority of torsional and lateral loads, for a stiff, efficient platform
  • ICR Plus Internal Cable Routing carefully guided under the stem and through the head tube, optimized for both traditional and electronic shifting systems with no rub or rattle

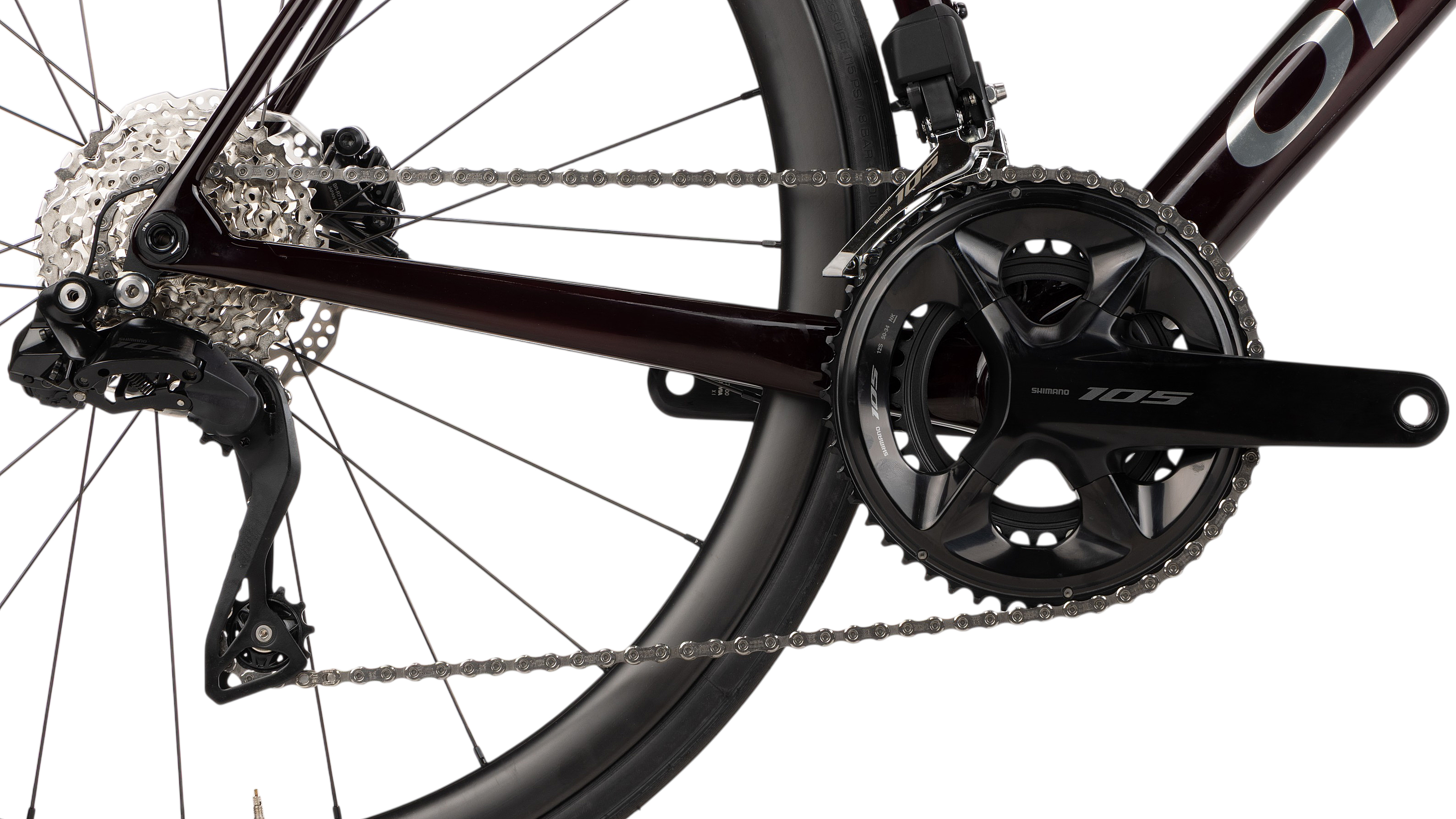

  • Shimano 105 Di2 12-Speed Drivetrain with electronic shifting precision and trickle-down technology from Shimano's top-level groupsets
  • 32mm Tire Clearance for added comfort and confidence on rougher road surfaces
  • Oquo Road Performance RP25TEAM Wheelset for a fast, race-ready roll
  • Vittoria Corsa N.Ext G2.0 700x28c Tires for speed and grip in all conditions
SPECIFICATIONS
Fork Orca OMR ICR, full carbon, 1-1/8" - 1.5" tapered head tube compatible, Thru Axle 12x100mm, thread M12x2 P1
Headset FSA 1-1/2" Integrated Aluminum Cup

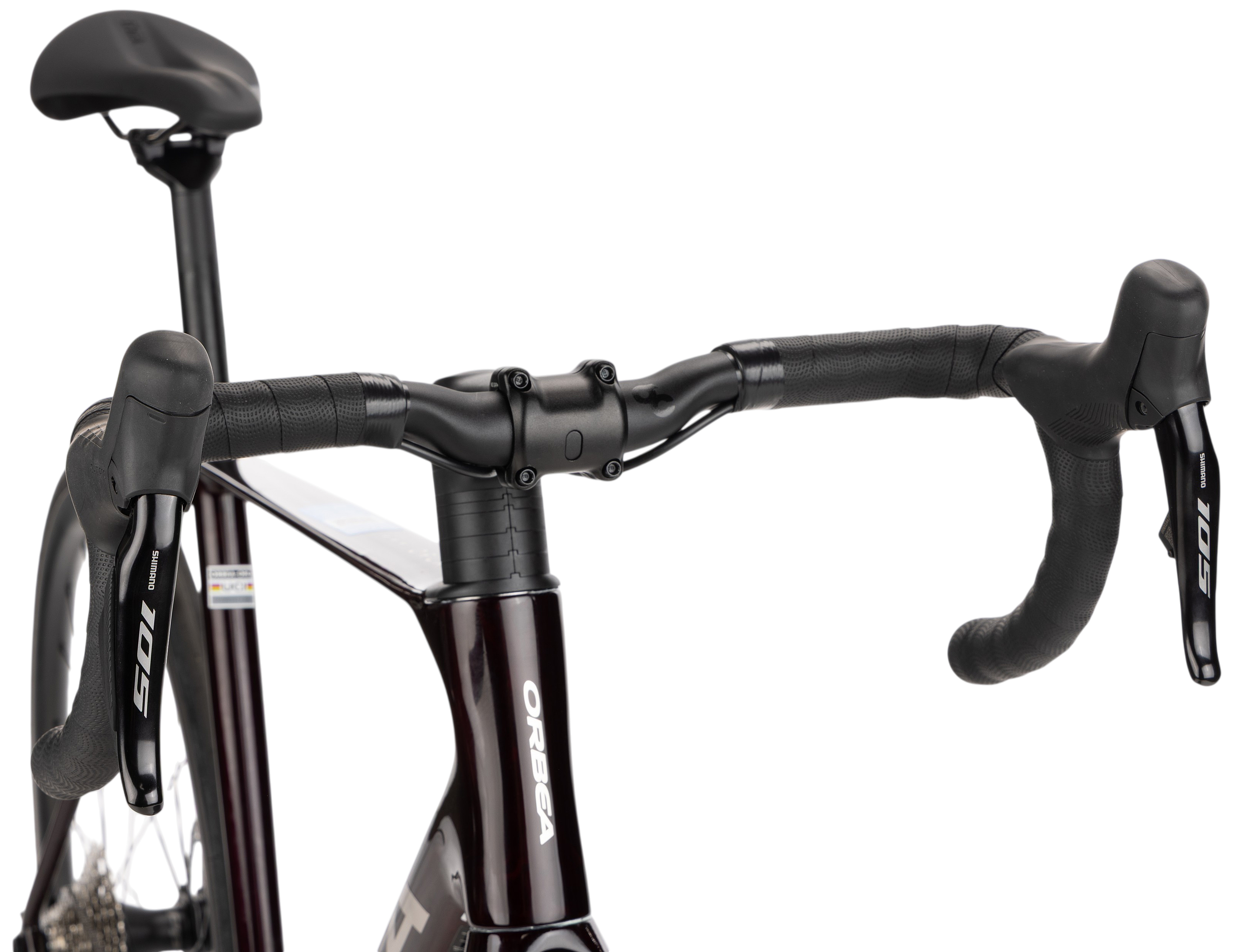

Shifters Shimano 105 Di2 R7170, 12-Speed
Front Derailleur Shimano 105 Di2 R7150
Rear Derailleur Shimano 105 Di2 R7150, 12-Speed
Crankset Shimano 105 R7100, 34x50T
Chain Shimano M6100
Cassette Shimano 105 R7100, 11-34T, 12-Speed
Brakes Shimano 105 R7170 Hydraulic Disc
Rotors 160mm Front / 140mm Rear

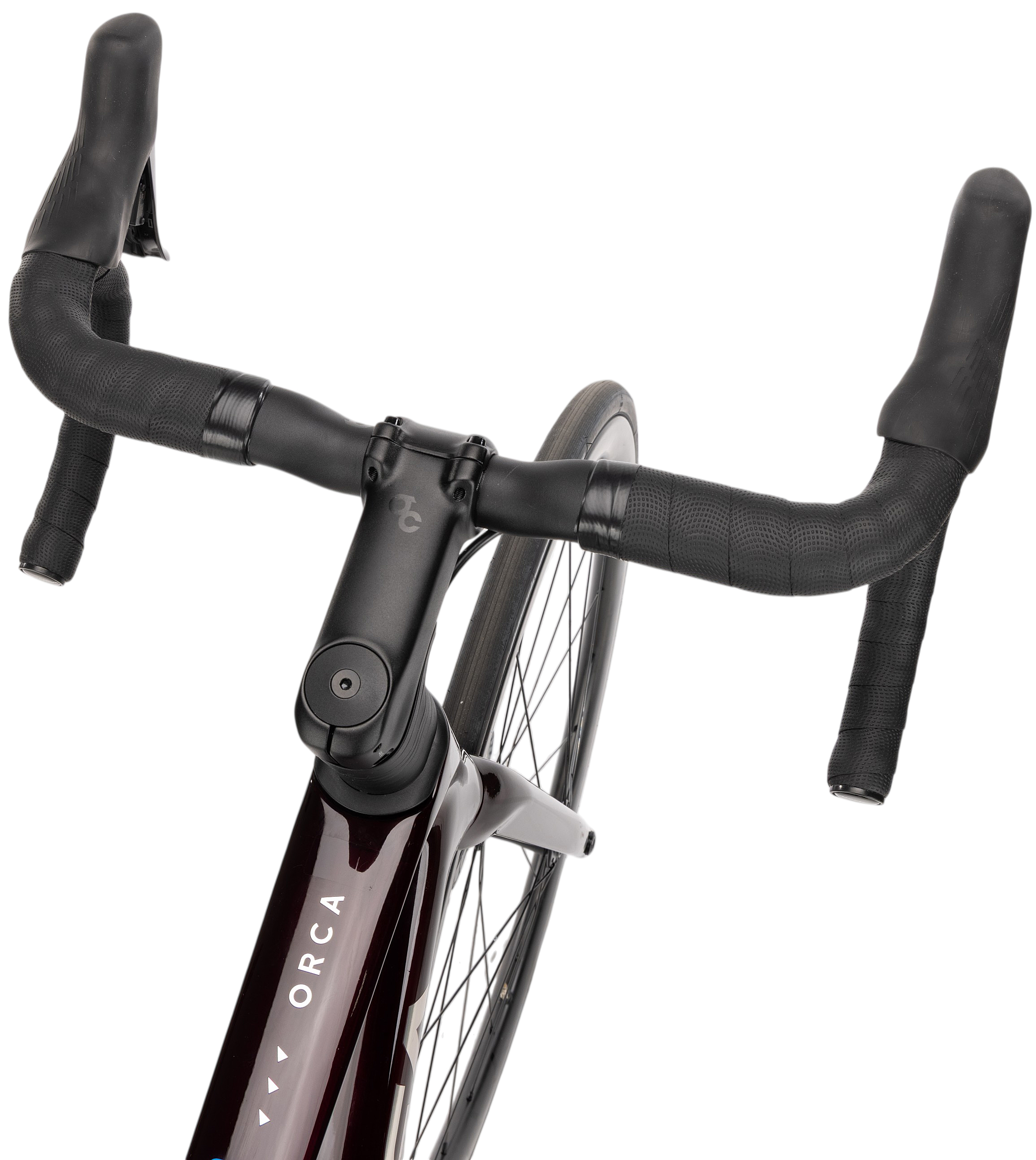

Handlebar OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125
Stem OC Road Performance RP22, -5°
Seatpost SP 0.2 Carbon, 27.2mm, Setback 20
Saddle Fizik Aliante R5
Wheelset Oquo Road Performance RP25TEAM
Tires Vittoria Corsa N.Ext G2.0 700x28c

Note: Components are subject to change without notice.

Geo Chart Image



Orbea Orca M35i
Size 47 49 51 53 55 57 60
A: Seat Tube Length 440 460 480 500 520 540 570
B: Effective Top Tube 510.3 522.7 535.9 548.5 560.4 576.1 590
C: Stack 506 515 533 552 572 590 616
D: Reach 370 375 380 385 391 398 404
E: BB Height 268.5 268.5 268.5 270.5 270.5 270.5 270.5
F: BB Drop 72 72 72 70 70 70 70
G: Head Tube Length 110.5 118.2 134.6 152.9 173.1 191.2 218.3
H: Head Tube Angle 71 ° 71.5 ° 72.2 ° 72.8 ° 73 ° 73.2 ° 73.2 °
I: Seat Tube Angle 74.5 ° 74 ° 73.7 ° 73.5 ° 73.5 ° 73.2 ° 73.2 °
J: Standover Height 736.5 748.5 767.5 788.5 808.5 826.5 852.5
K: Chainstay Length 408 408 408 408 408 408 408
L: Wheelbase 971.8 975.4 980 981.2 991.4 1001.9 1015.6
Orbea Orca M35i
Size 47 49 51 53 55 57 60
A: Seat Tube Length 17.3 18.1 18.9 19.7 20.5 21.3 22.4
B: Effective Top Tube 20.1 20.6 21.1 21.6 22.1 22.7 23.2
C: Stack 19.9 20.3 21.0 21.7 22.5 23.2 24.3
D: Reach 14.6 14.8 15.0 15.2 15.4 15.7 15.9
E: BB Height 10.6 10.6 10.6 10.7 10.7 10.7 10.7
F: BB Drop 2.8 2.8 2.8 2.8 2.8 2.8 2.8
G: Head Tube Length 4.4 4.7 5.3 6.0 6.8 7.5 8.6
H: Head Tube Angle 71 ° 71.5 ° 72.2 ° 72.8 ° 73 ° 73.2 ° 73.2 °
I: Seat Tube Angle 74.5 ° 74 ° 73.7 ° 73.5 ° 73.5 ° 73.2 ° 73.2 °
J: Standover Height 29.0 29.5 30.2 31.0 31.8 32.5 33.6
K: Chainstay Length 16.1 16.1 16.1 16.1 16.1 16.1 16.1
L: Wheelbase 38.3 38.4 38.6 38.6 39.0 39.4 40.0
