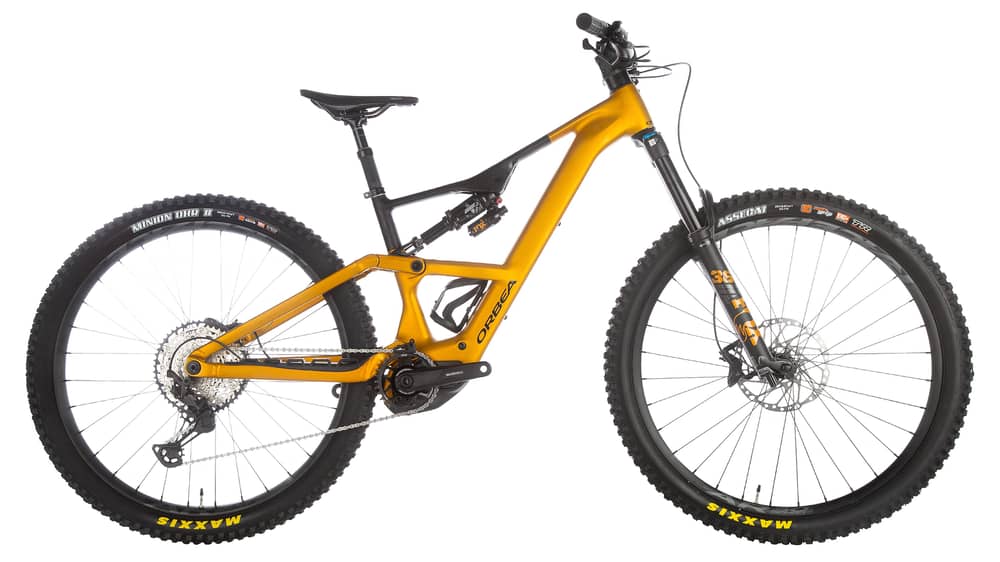

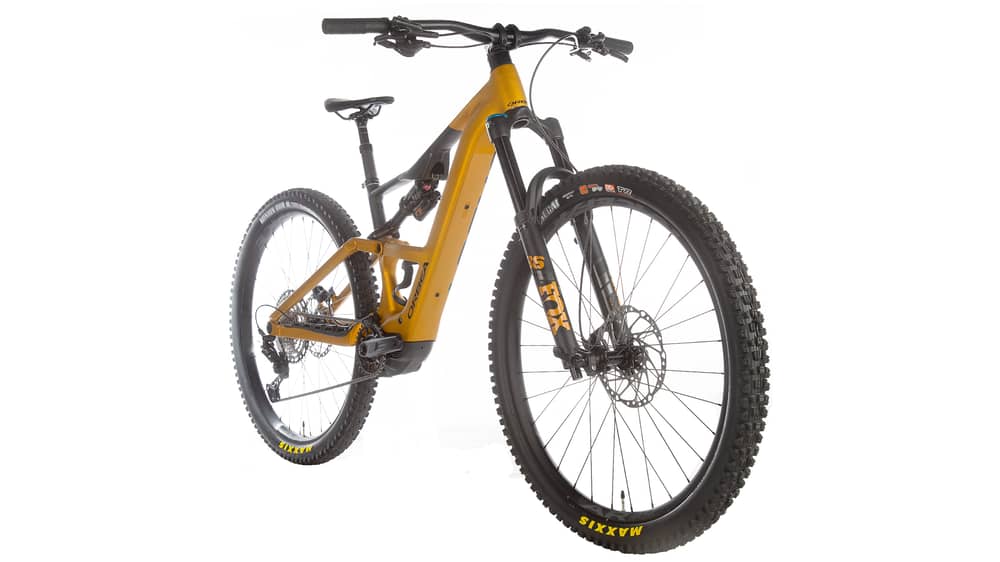

Orbea Rise LT H10 20MPH E-Bike 2025

Further, Faster, and More Fun

E-bikes are designed to give you an extra boost so you can conquer those tougher obstacles on your ride. With the pedal assist, you'll be able to climb faster, ride faster, and have more fun focusing on the ride ahead. The Orbea Rise LT H10 E-Bike is totally redesigned with a stiffer frame and updated geometry for better handling than ever. The LT version of the Orbea Rise has a 64.5° or 64° head angle, depending on the Attitude Adjust position. That means the new Rise is between 1° and 1.5° slacker than the previous one. The hydroformed aluminum frame uses 150mm of suspension travel on the rear and 160mm of travel on the front. The frame features integrated frame protection, fully sealed bearings, fully guided internal cable routing, vinyl frame skin, and an Attitude Adjust so you can adjust the frame geometry on the go. The Shimano EP801 motor provides up to 20mph of pedal assistance and the 600W motor will provide hours of fun out on the trails.

The H10 version of the Orbea Rise LT comes with a Shimano SLX/XT 12-speed drivetrain. With an ultra-wide 10-51T gear range on the cassette, you'll have no issues climbing or pedaling through demanding terrain. Shimano M6120 hydraulic disc brakes provide excellent stopping power so you can descend with confidence. Race Face AR 30c Wheels are paired with tubeless-ready Maxxis Assegai and Minion DHR II tires so you can ditch the inner tubes and add sealant for a smoother ride, better traction, and fewer flats. With the OC Mountain Control MC22 dropper post, you'll be able to quickly lift and lower your saddle with the press of a lever.

Features

  • Hydroformed aluminum frame that is lighter and has updated geometry for better handling
  • Numerous features including integrated frame protection, fully sealed bearings, fully guided internal cable routing, vinyl frame skin, and an Attitude Adjust

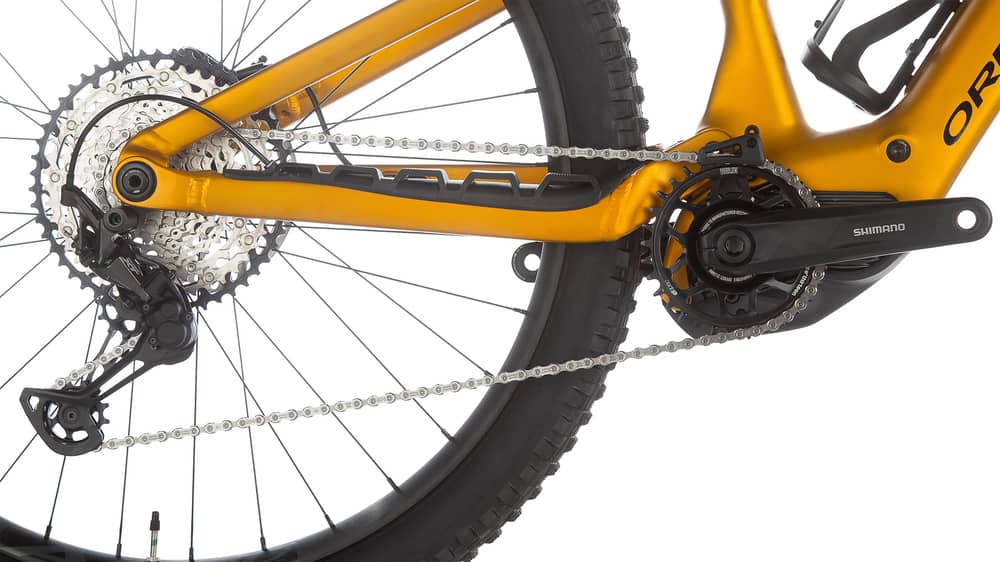

  • Shimano SLX/XT 12-speed drivetrain performs exceptionally well in all conditions
  • Shimano M6120 hydraulic disc brakes provide excellent stopping power
  • Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
  • OC Mountain Control MC22 dropper post quickly lifts and lowers your saddle with the press of a lever
  • Shimano EP801 motor with a 600W battery that provides hours of fun out on the trail
SPECIFICATIONS
Frame Hydroformed Aluminum
Fork Fox 36 Float Performance, Grip 3-Pos, 160mm Travel

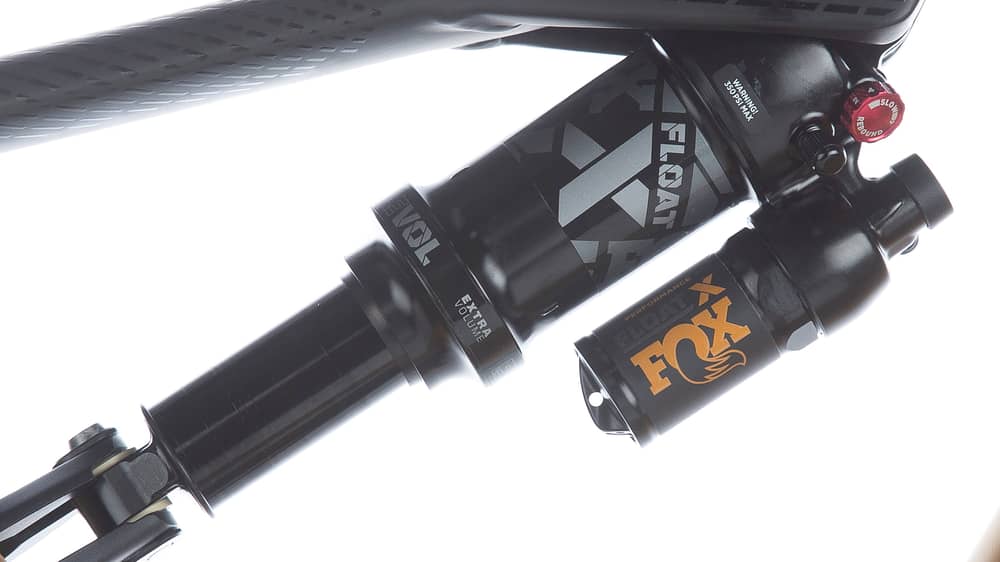

Rear Shock Fox Float X Performance, 2-Pos Adj EVOL LV, 210x55mm
Headset Alloy 1.5" Black Oxidated Bearing
Shifters Shimano SLX M7100 I-Spec EV, 12-Speed
Front Derailleur Nope
Rear Derailleur Shimano XT M8100 SGS Shadow Plus, 12-Speed
Crankset Shimano STEPS EM600
Bottom Bracket -
Chain Shimano M6100, 12-Speed
Cassette Shimano CS-M7100, 10-51T
Brakes Shimano M6120 Hydraulic Disc, 203/180mm Rotors
Wheelset Race Face AR 30c Tubeless Ready, Boost Hubs
Tires Maxxis Assegai 29x2.5" 3CG/EXO+/TR MaxxGrip, Minion DHR II 29x2.4" WT FB 3C/MaxxTerra/EXO+ TR

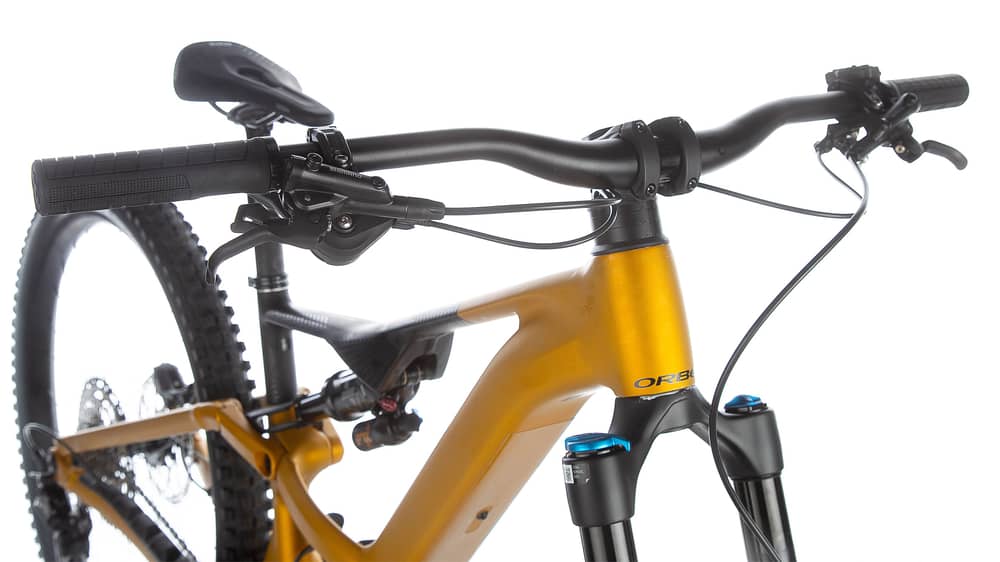

Handlebar OC Mountain Control MC31, 20mm Rise, 800mm Wide
Stem OC Mountain Control MC20, 0° Rise
Grips/Bar Tape Orbea Grips
Seatpost OC Mountain Control MC22, 31.6mm Dropper Post, S: 150, M/L/XL: 200mm
Seatclamp Bolt-Type
Saddle Fizik Terra Ridon X5 145mm
Intended Use Trail, All-Mountain
Motor Shimano EP801
Battery Orbea Internal 630Wh
Display Optional Shimano EN600 (Sold Separate)

Note: Components are subject to change without notice.

Geo Chart Image



Orbea Rise LT High Position
Size Small Medium Large Extra Large
A: Seat Tube Length 405 415 430 460
B: Effective Top Tube 569 595 622 637
C: Stack 614 617 623 637
D: Reach 435 460 485 510
E: BB Height - - - -
F: BB Drop 26 26 26 26
G: Head Tube Length 95 100 110 120
H: Head Tube Angle 64.5 ° 64.5 ° 64.5 ° 64.5 °
I: Seat Tube Angle 77.5 ° 77.5 ° 77.5 ° 77.5 °
J: Standover Height - - - -
K: Chainstay Length 440 440 440 440
L: Wheelbase 1201 1228 1258 1287
Crank Arm Length 165 mm 165 mm 165 mm 165 mm
Stem Length 35 mm 40 mm 40 mm 50 mm
Handlebar Width 800 mm 800 mm 800 mm 800 mm
Suggested Rider Height
Frame Size Small Medium Large Extra Large
Rider Height 59.1 - 66.9
150 - 170 cm		 63 - 70.9
160 - 180 cm		 66.9 - 74.8
170 - 190 cm		 70.9 - 78.7
180 - 200 cm
Orbea Rise LT High Position
Size Small Medium Large Extra Large
A: Seat Tube Length 15.9 16.3 16.9 18.1
B: Effective Top Tube 22.4 23.4 24.5 25.1
C: Stack 24.2 24.3 24.5 25.1
D: Reach 17.1 18.1 19.1 20.1
E: BB Height - - - -
F: BB Drop 1.0 1.0 1.0 1.0
G: Head Tube Length 3.7 3.9 4.3 4.7
H: Head Tube Angle 64.5 ° 64.5 ° 64.5 ° 64.5 °
I: Seat Tube Angle 77.5 ° 77.5 ° 77.5 ° 77.5 °
J: Standover Height - - - -
K: Chainstay Length 17.3 17.3 17.3 17.3
L: Wheelbase 47.3 48.3 49.5 50.7
Crank Arm Length 165 mm 165 mm 165 mm 165 mm
Stem Length 35 mm 40 mm 40 mm 50 mm
Handlebar Width 800 mm 800 mm 800 mm 800 mm
Suggested Rider Height
Frame Size Small Medium Large Extra Large
Rider Height 59.1 - 66.9
150 - 170 cm		 63 - 70.9
160 - 180 cm		 66.9 - 74.8
170 - 190 cm		 70.9 - 78.7
180 - 200 cm
