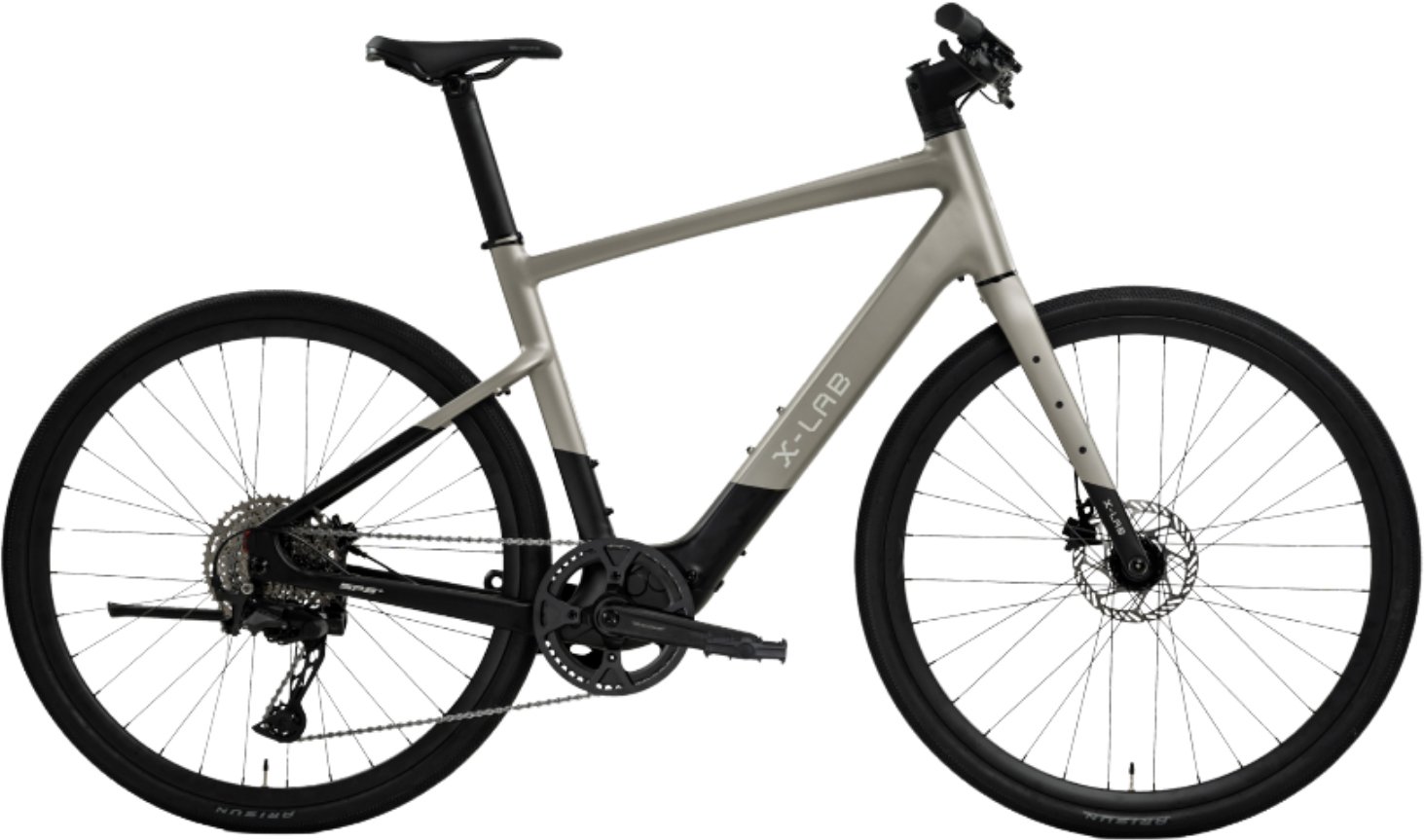

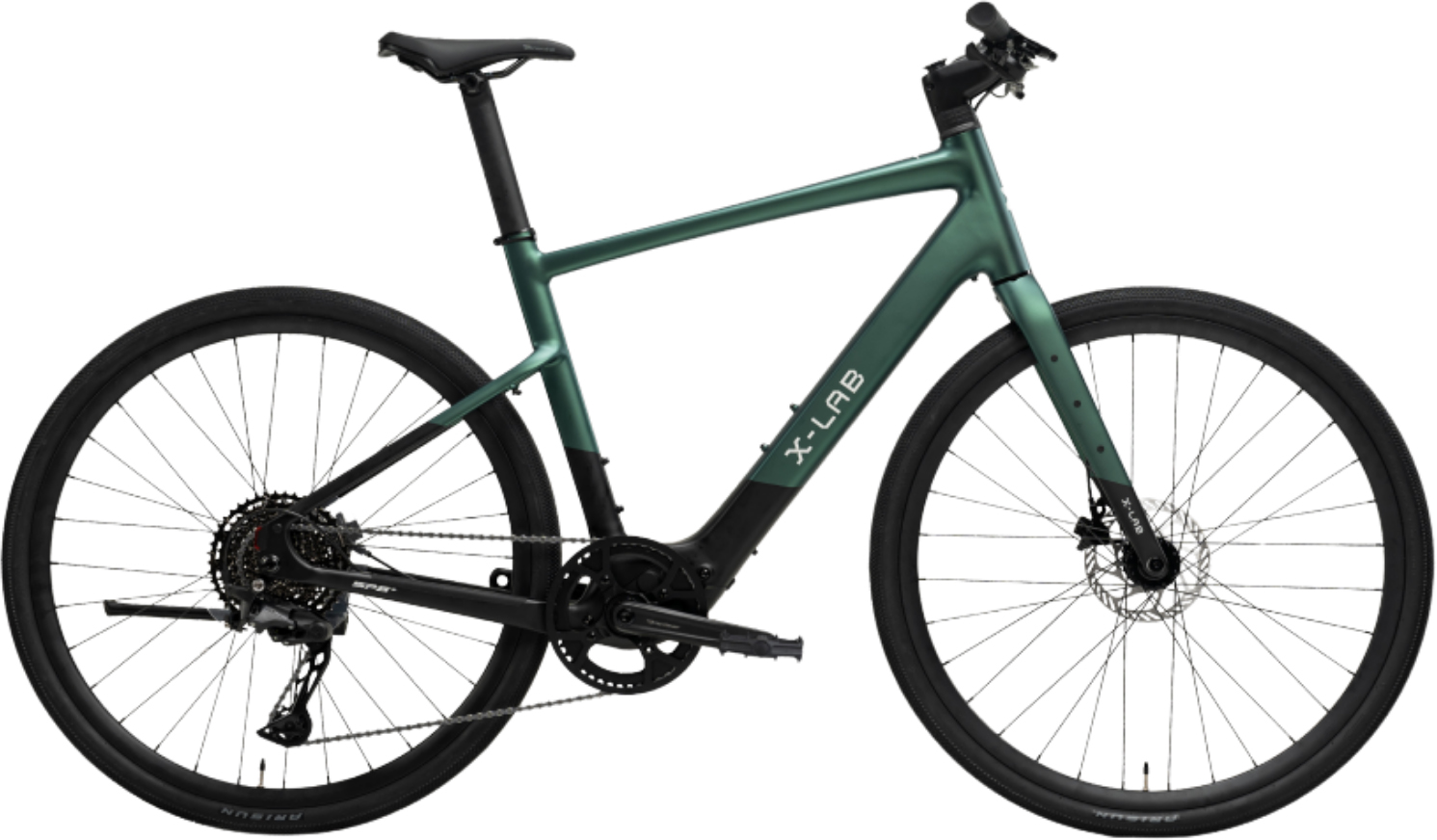

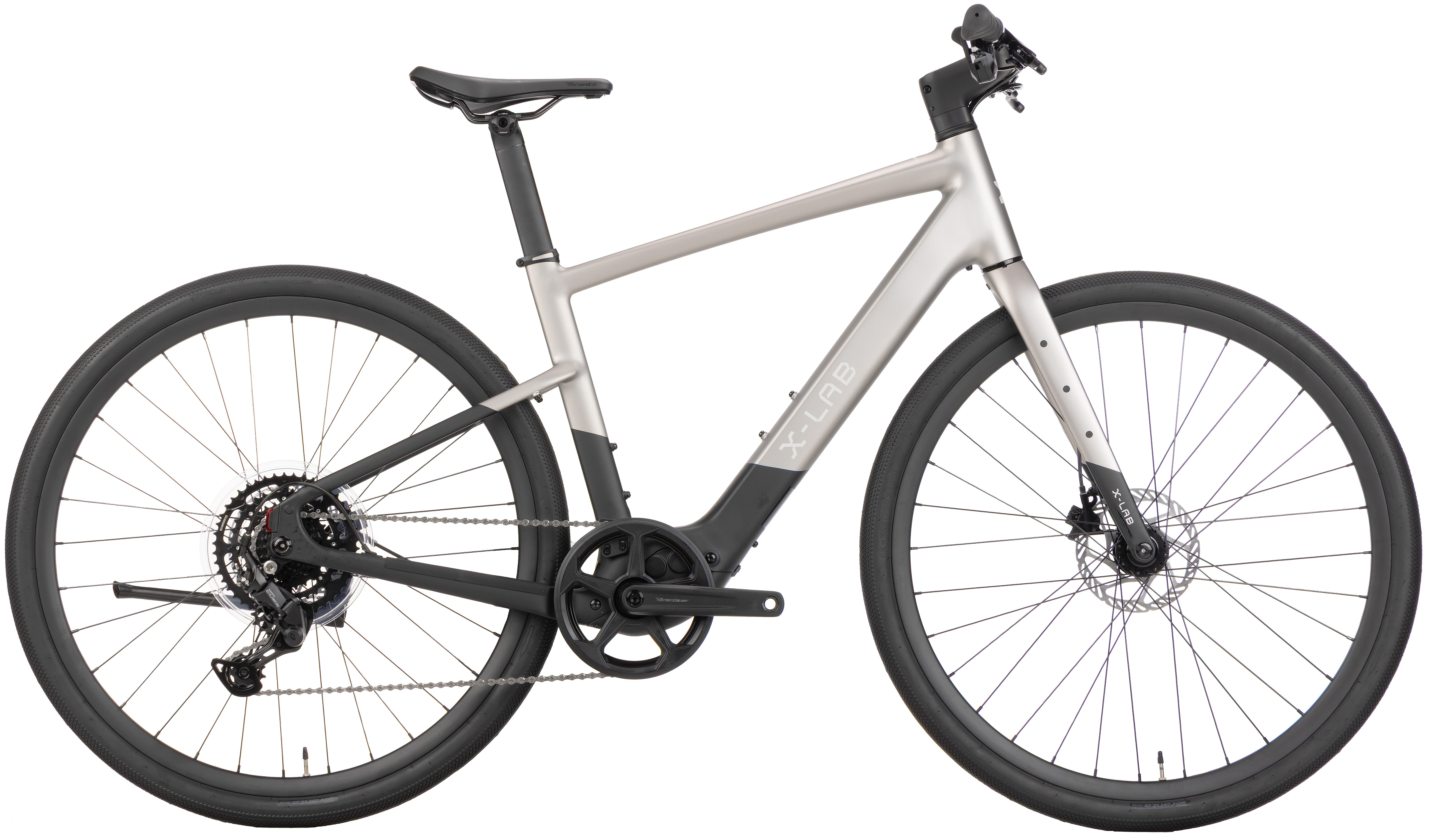

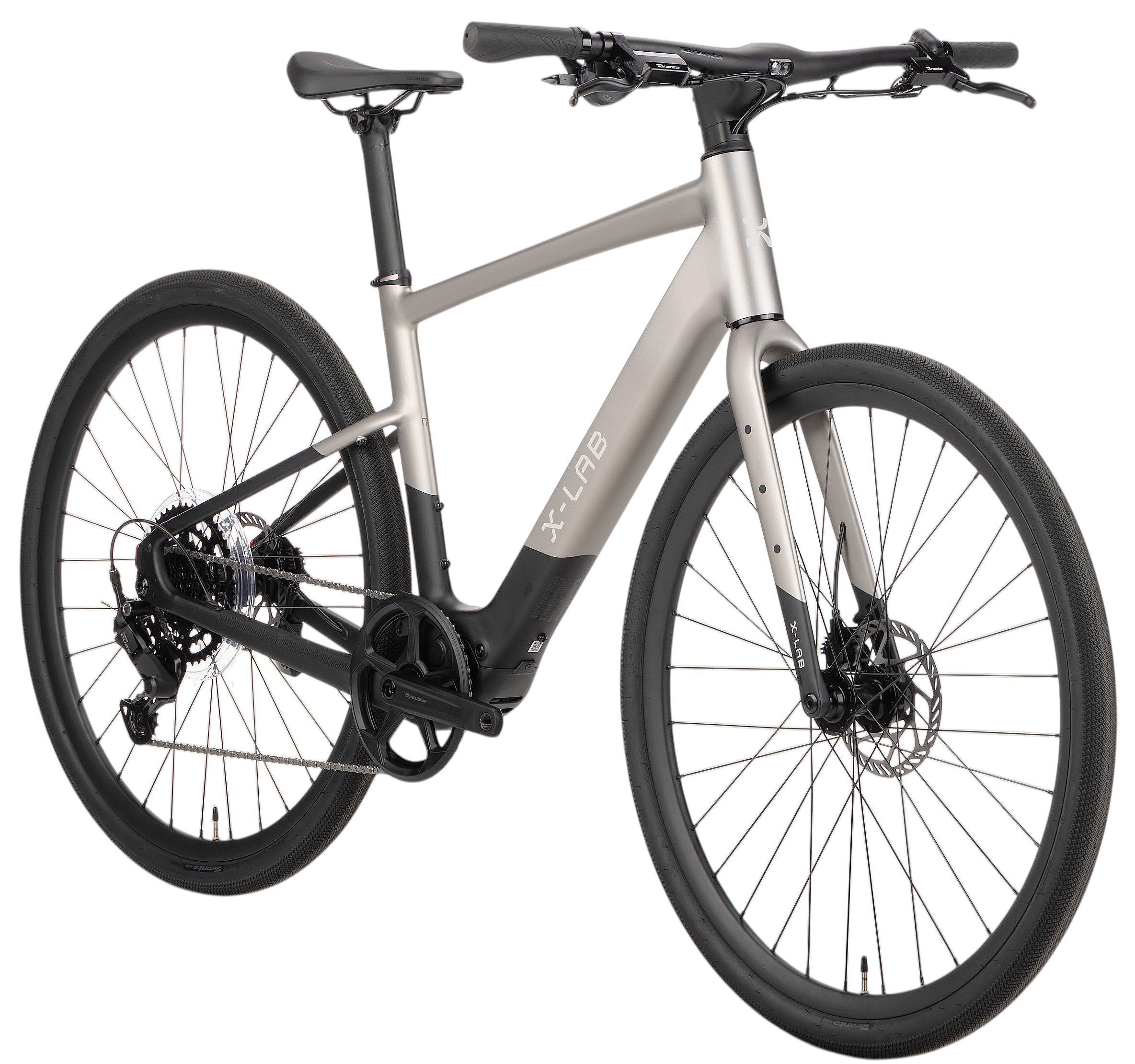

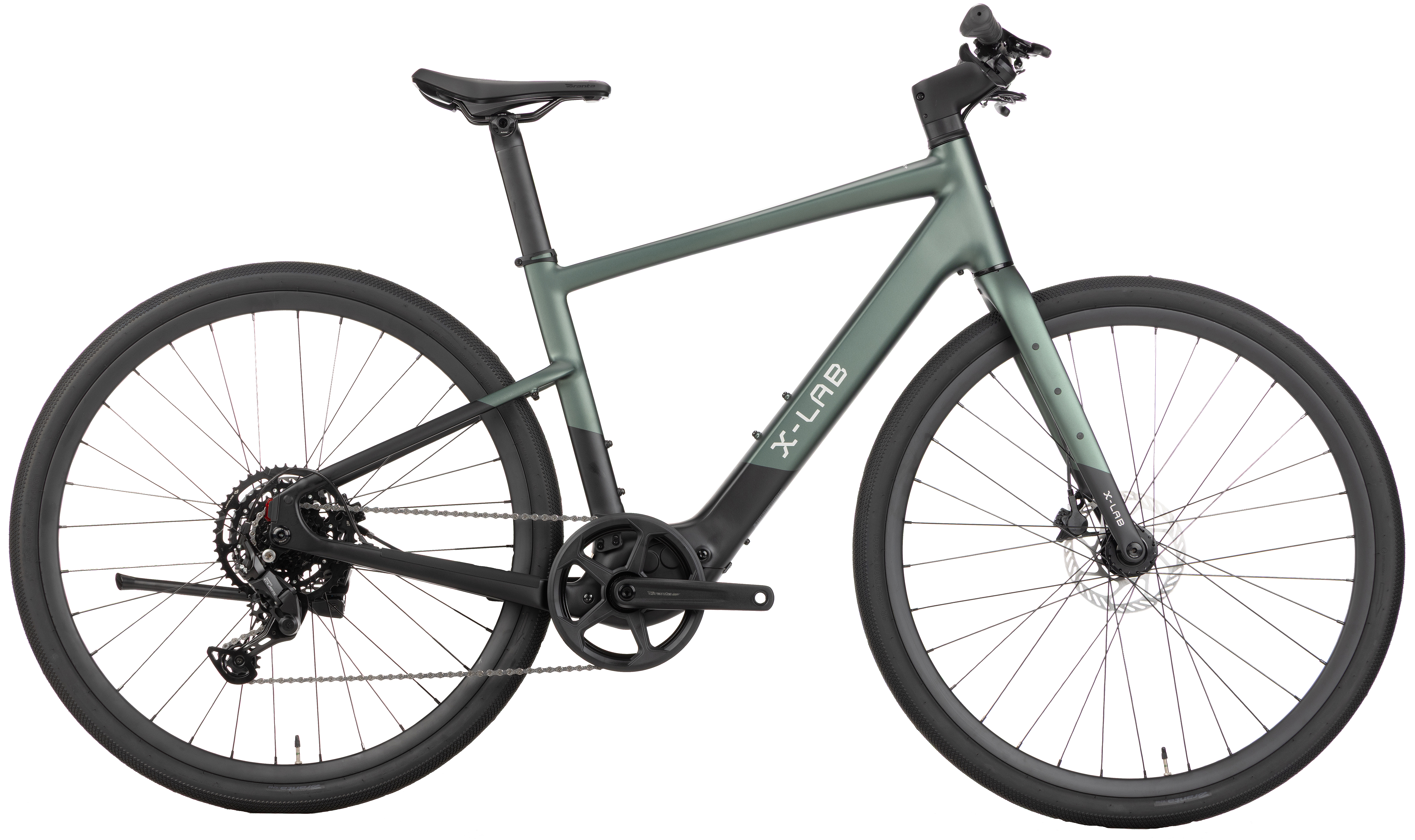

X-LAB SP5+ E-Bike 2026

More miles. More speed. Less effort.

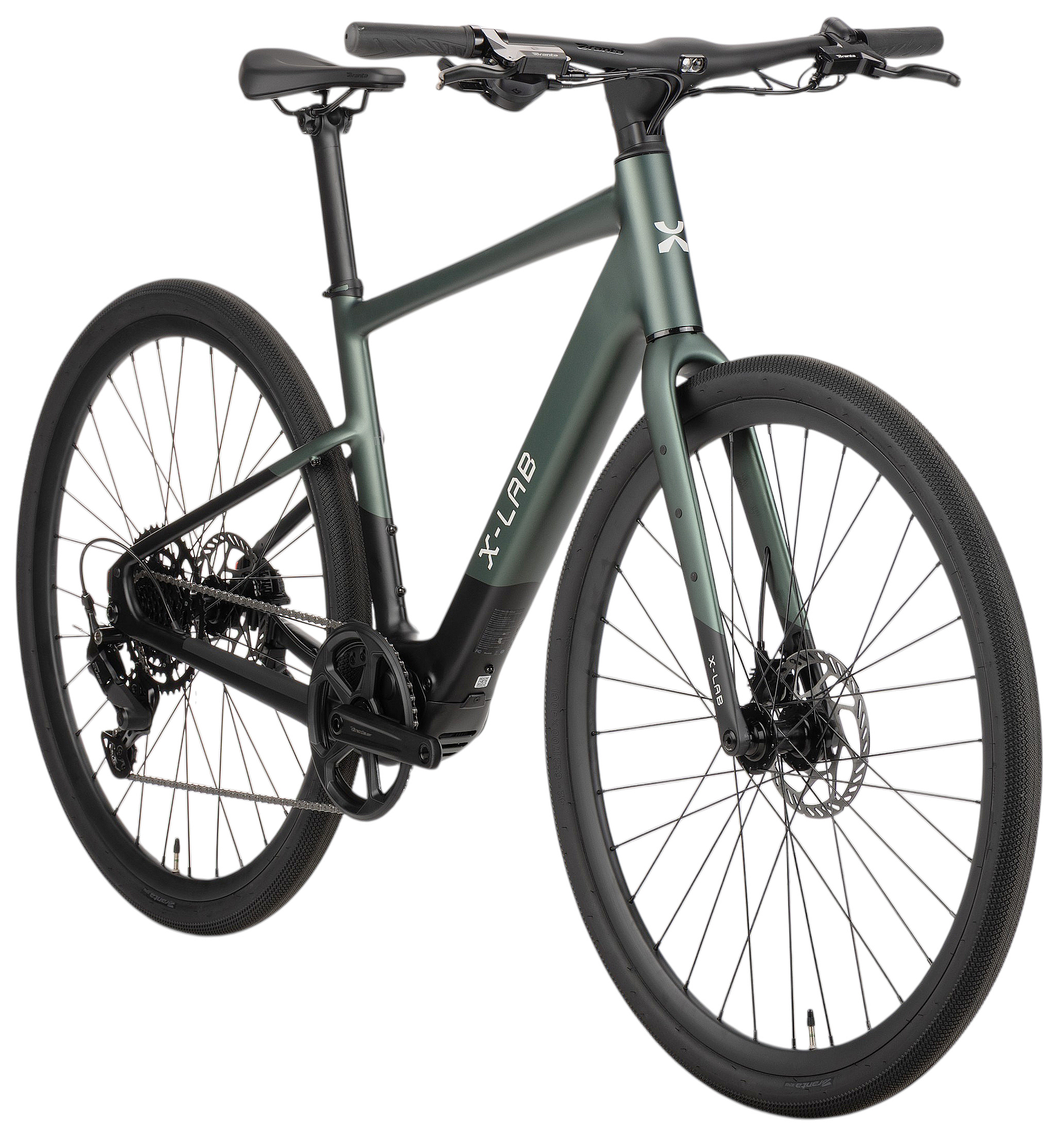

The X-LAB SP5+ is a fitness e-bike that amplifies effort rather than replacing it. The XDS X6 aluminum frame pairs with a carbon fork for a ride that's light, responsive, and quick-handling, while the XDS X800 mid-drive motor delivers up to 85 Nm of torque to keep you moving on the climbs. A Shimano CUES 9-speed drivetrain, fully integrated cockpit with display and headlight, and 700c all-terrain tires create an athletic, performance-forward ride that feels nothing like a typical e-bike. Class 2 throttle and Apple Find My anti-theft technology round out a build that's as smart as it is fast.

Features

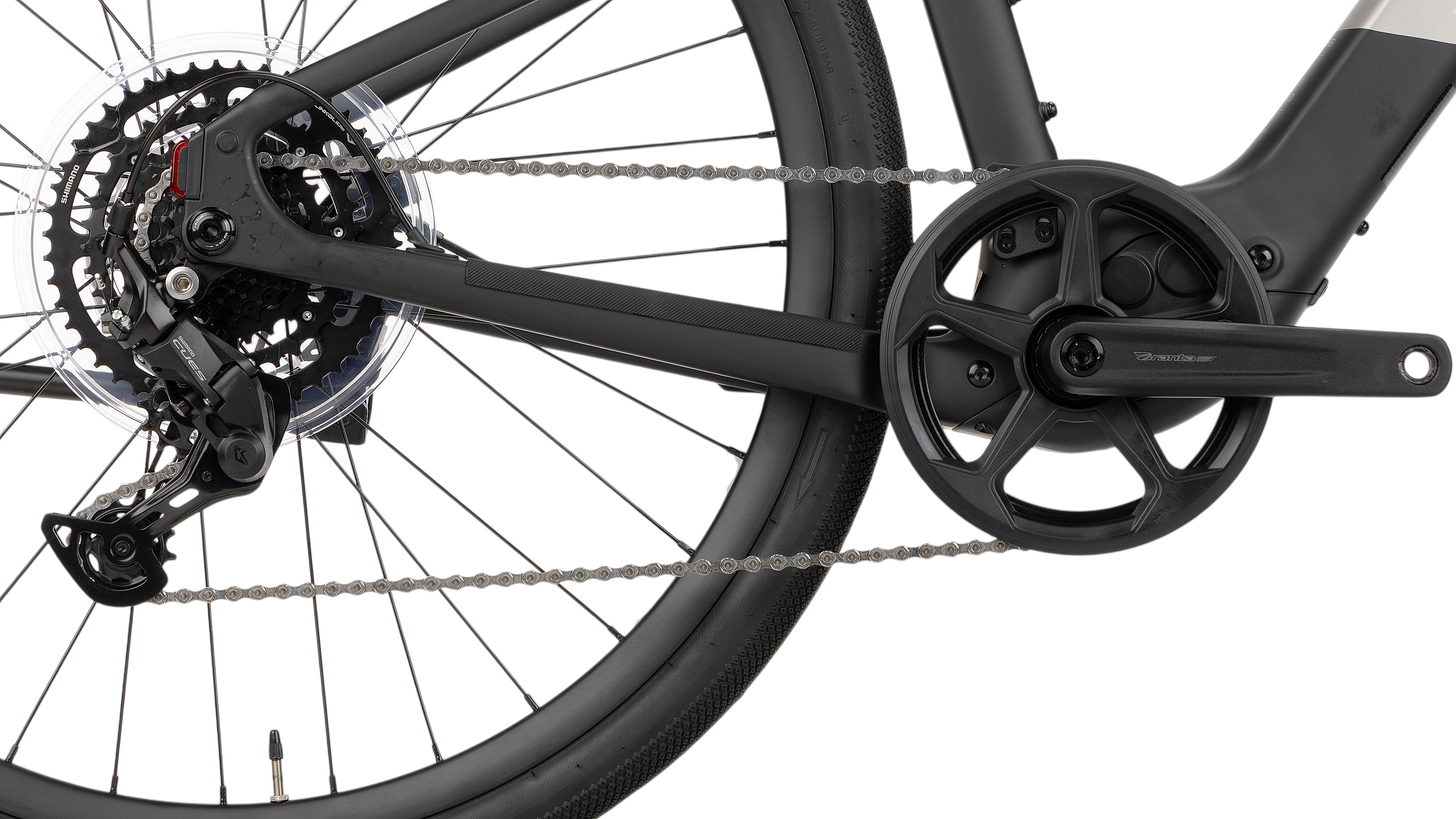

  • XDS X800 mid-drive motor with 85 Nm of torque UL 2849 and UL 2271 test compliant, tuned for a natural, sport-focused power delivery
  • XDS X6 aluminum frame with carbon fork for a lightweight, responsive platform that rewards an active riding style

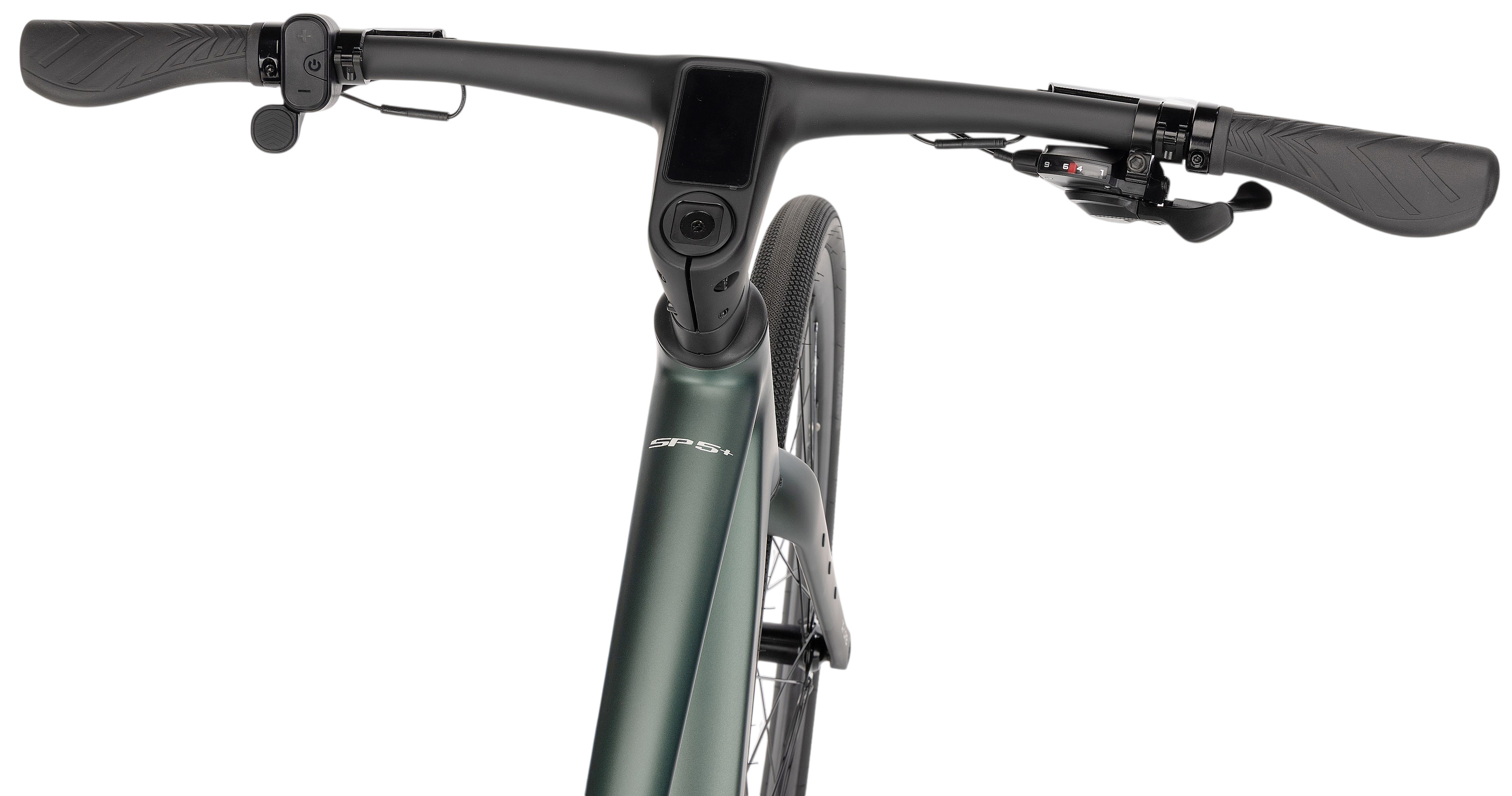

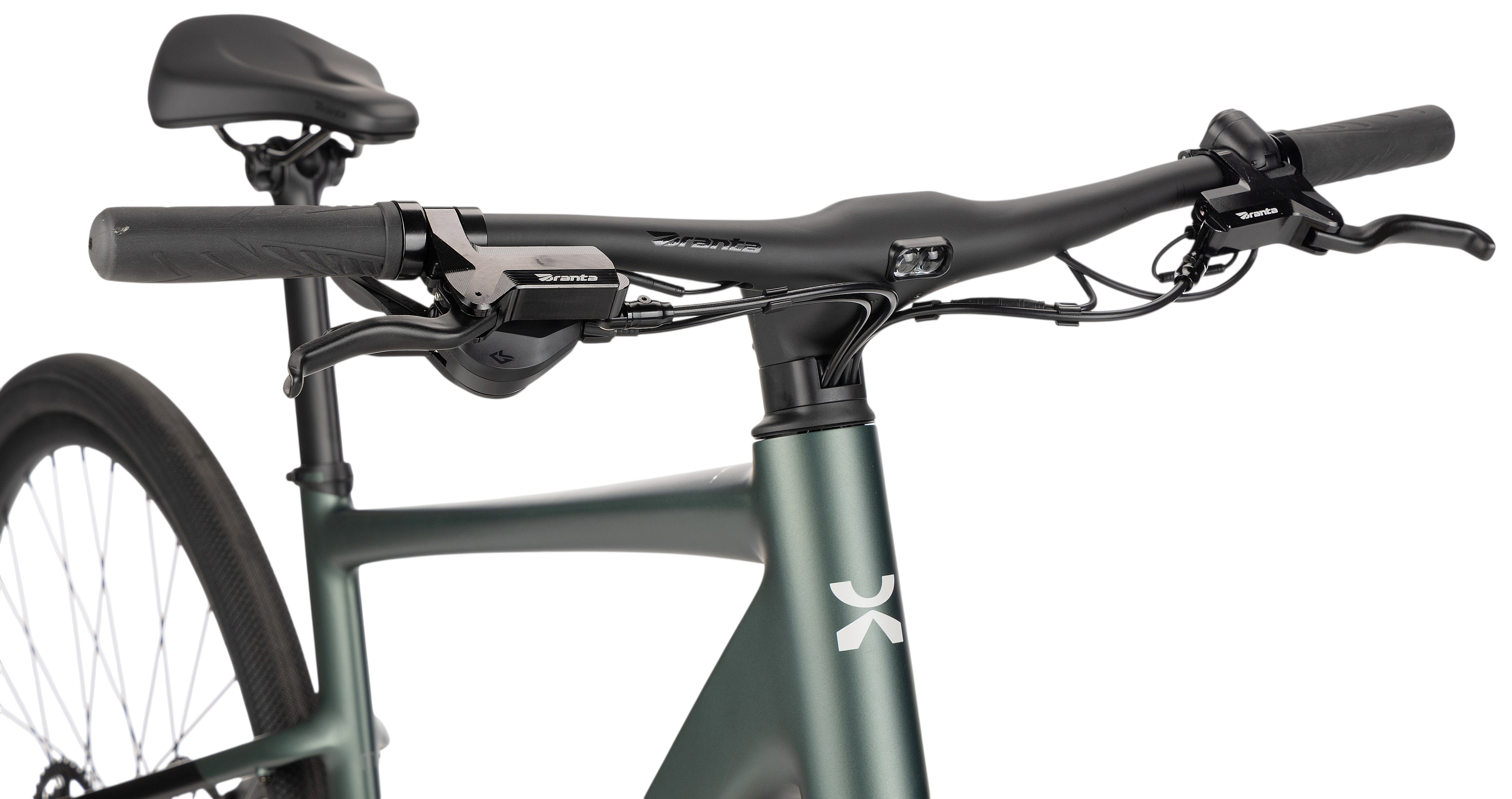

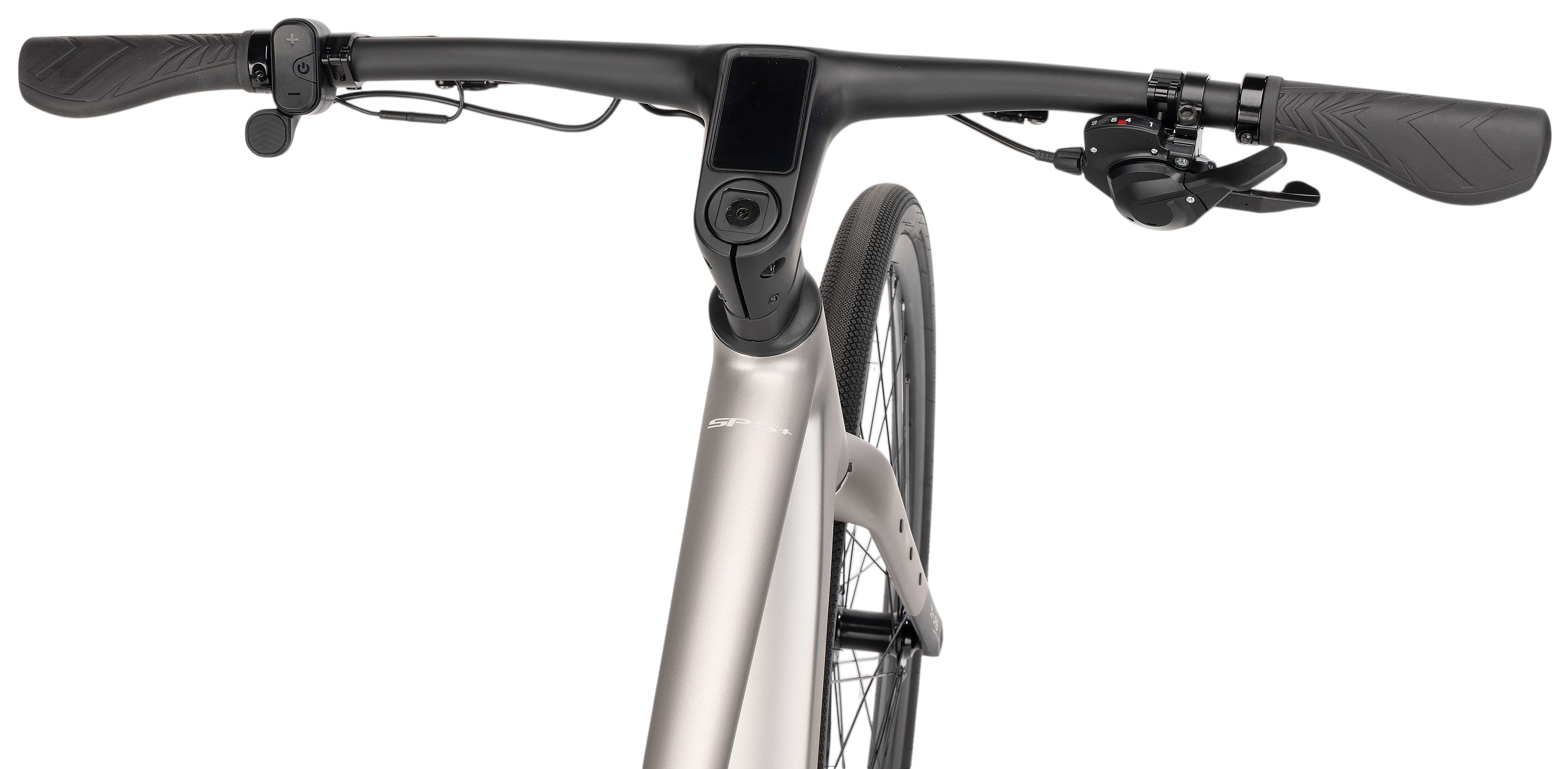

  • Fully integrated cockpit with display, headlight, and Quad Lock phone mount for a clean, connected front end
  • Sport setup with 700c gravel all-terrain tires and a fitness riding position optimized for speed and efficiency on road and light gravel
  • Class 2 throttle with Apple Find My anti-theft technology for added convenience and peace of mind wherever the ride takes you
  • Integrated rear taillight and brake light for visibility and safety on every ride, day or night
SPECIFICATIONS
Frame XDS X6 Aluminum Frame, UDH Hanger
Fork XDS Carbon Fork, 100x12mm Thru-axle

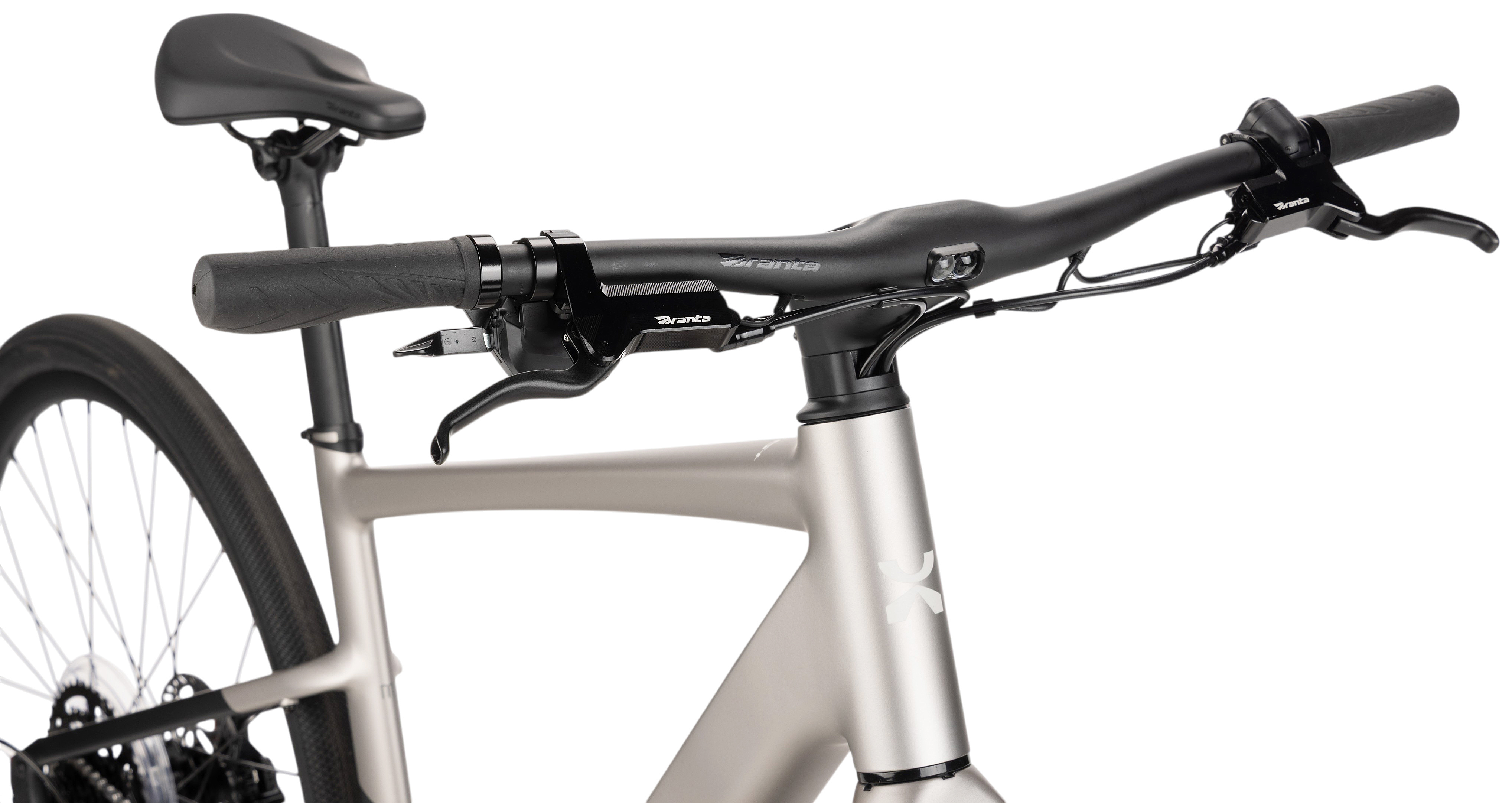

Handlebar / Stem Branta Aluminum Integrated, w/ Display & Front Light, 680mm Width, 90mm Length, 6 Degree Rise, 9 Degree Backsweep
Seatpost XDS Aluminum Seatpost, Aero Profile, 350mm Length
Rear Derailleur Shimano Cues RD-U4000, 9-Speed
Shifters Shimano Cues 9-Speed
Brakes Branta EC215D E-Bike Brake, w/ Cutoff Switch, 3 Finger Lever, 2 Piston Caliper
Cassette Sugek 13-46T, 9-Speed
Crankset Branta Aluminum Crankset, 46T, Narrow-wide

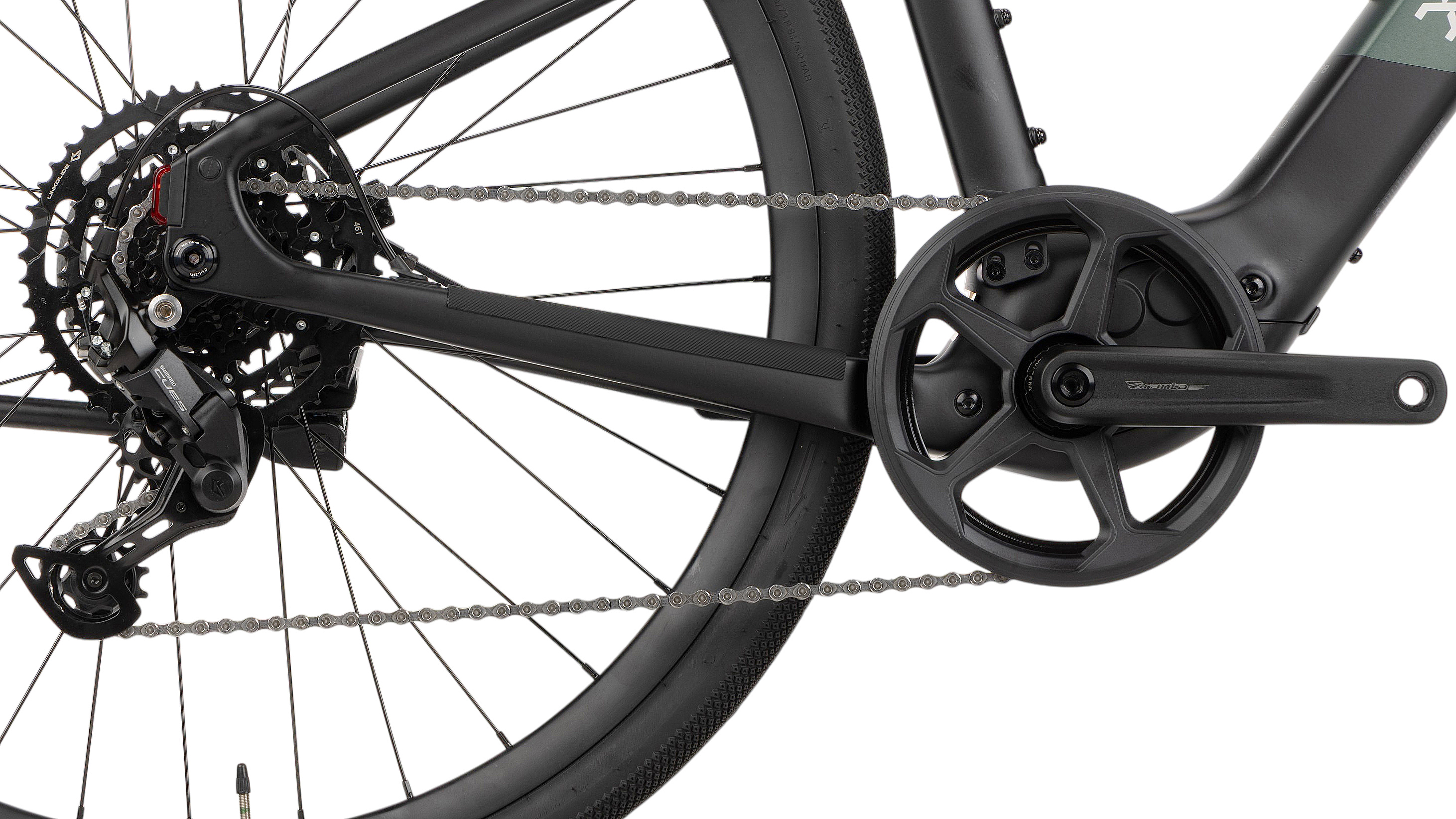

Motor XDS Mid-drive X800, 250W Maximum Continuous Rated Power, 400W Peak Power, 85 Nm Max Torque
Battery XDS Rechargeable Li-ion, 339Wh
Rotors Branta Z8, F:160mm R:160mm
Chain KMC E-Glide-S
Wheelset Branta Aluminum E-Bike Wheelset
Tires Branta R240, 700x40C, 30TPI
Saddle Branta SRX+
Phone Holder Quad Lock Adaptor
Weight 16.79 kg / 37.01 lbs (Size L)

Note: Components are subject to change without notice.

Geo Chart Image



X-LAB SP5+ 2026
Size S M L
A: Seat Tube Length (mm) 406 457 508
B: Top Tube Length (mm) 541 580 609
C: Stack (mm) 595 594 621
D: Reach (mm) 385 410 425
F: BB Drop (mm) 71 65 65
G: Head Tube Length (mm) 171 171 197
H: Head Tube Angle 69° 71° 72°
I: Seat Tube Angle 75° 74° 74°
J: Standover (mm) 774 787 823
K: Chainstay Length (mm) 445 445 445
L: Wheelbase (mm) 1080 1081 1100
Front Center (mm) 644 645 663
Fork Rake Offset (mm) 46 46 46
Trail (mm) 90 74 70
X-LAB SP5+ 2026
Size S M L
A: Seat Tube Length (in) 16.0 18.0 20.0
B: Top Tube Length (in) 21.3 22.8 24.0
C: Stack (in) 23.4 23.4 24.4
D: Reach (in) 15.2 16.1 16.7
F: BB Drop (in) 2.8 2.6 2.6
G: Head Tube Length (in) 6.7 6.7 7.8
H: Head Tube Angle 69° 71° 72°
I: Seat Tube Angle 75° 74° 74°
J: Standover (in) 30.5 31.0 32.4
K: Chainstay Length (in) 17.5 17.5 17.5
L: Wheelbase (in) 42.5 42.6 43.3
Front Center (in) 25.4 25.4 26.1
Fork Rake Offset (in) 1.8 1.8 1.8
Trail (in) 3.5 2.9 2.8
