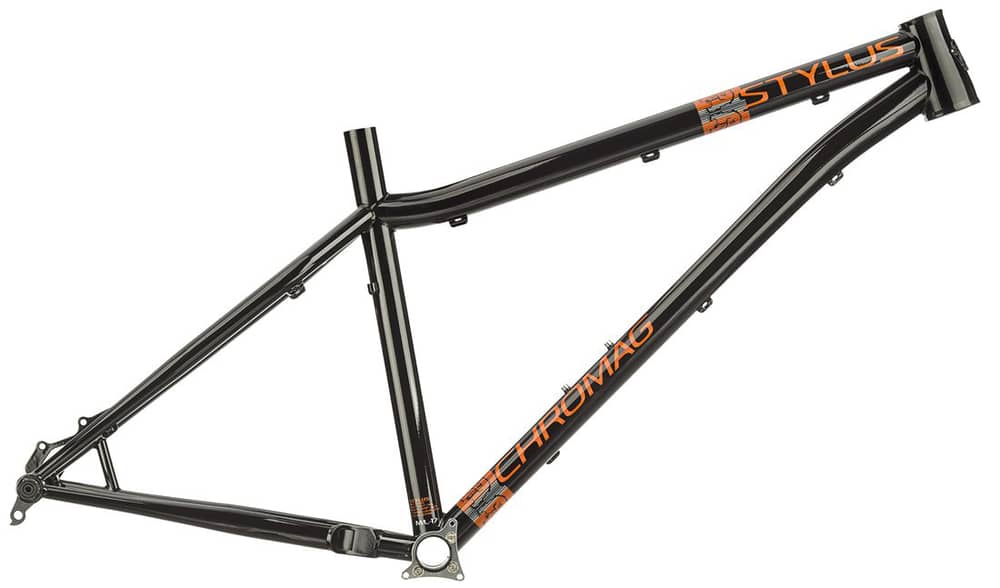

Chromag Stylus Frame 2017

(0)
Item #: FR185A00
This item is unavailable.
Close

Double-check!

Confirm your options before continuing

*Free Shipping over $50

90-Day Returns

Insider - Exclusive Coupons and more.

Price Protection

chromag stylus frame

Forged in steel and ready to rip

From local singletrack to hardcore shuttle runs and X-Game style jump trails, the Chromag Stylus is a true €˜do everything' bike. It is built as rugged as the trails it was made to ride, and will inspire you to tackle anything that lies in front of you.

The Stylus features a custom chromoly tubeset, new dropout system with 12 x 148mm spacing, long travel fork geometry with low stack height tapered steerer tube and 65 degree head angle. The Stylus' geometry is tuned to excel when trail riding, dirt jumping and just playing around. The tube set was made specifically for the Stylus and features butted and tapered tubing that makes it strong enough to accommodate long travel forks and DH weight tires. A custom-built chain stay yoke, dropouts and burly head tube offers ample tire clearance and stiffness. Overall, the design features of the Stylus make this Chromag's most progressive frame for rugged use.

Features

  • Chromag Custom chromoly tube set offers unsurpassed ride quality, and trail tuned geometry
  • Internal dropper post routing protects the cables from the elements while maintaining the bike's sleek appearance
  • Tapered head tube saves weight and increases stiffness
  • Boost dropouts gives a boost to strength and riding characteristics
  • Yokel chainstays provides more tire clearance (2.7" max), and increases strength
  • ISCG tabs mount your favorite chain guide
  • Accommodates long travel forks up to 170mm
SPECIFICATIONS
Frame Chromag Custom chromoly tube set, trail tuned geometry, 12 x 148mm spacing, tapered headtube
Wheel Size 27.5"
Fork 130 - 170mm, tapered steer recommended
Headset Included N/A
Headtube Diameter Tapered 44/56mm
Front Derailleur 34.9mm clamp
Bottom Bracket Threaded 73mm
Seatpost 31.6mm
Seat Clamp 35.0mm
Dropout Style 12 x 148mm (Axle included)
Accessory Mounts ISCG 05, water bottle cage
Cable routing External, Internal dropper
Intended Use Trail, All-mountain, Dirt Jump
Weight
-

GeometryChart



GEOMETRY (mm / inch)
Size SM MD MD/LG LG
A: Seat Tube Length 342
13.5		 393
15.5		 445
17.5		 482
19.0
B: Effective Top Tube 577
22.7		 603
23.7		 622
24.5		 648
25.5
C: Stack 611
24.1		 611
24.1		 611
24.1		 611
24.1
D: Reach 411
16.2		 443
17.4		 458
18.0		 482
19.0
E: BB Height 319
12.6		 319
12.6		 319
12.6		 319
12.6
F: BB Drop 0
0.0		 0
0.0		 0
0.0		 0
0.0
G: Head Tube Length 105
4.5		 105
4.5		 105
4.5		 105
4.5
H: Head Tube Angle 65 ° 65 ° 65 ° 65 °
I: Seat Tube Angle 75.0 ° 75.0 ° 75.0 ° 75.0 °
J: Standover Height 0
0.0		 0
0.0		 0
0.0		 0
0.0
K: Chainstay Length 419
16.5		 419
16.5		 419
16.5		 419
16.5
L: Wheelbase 0
0.0		 0
0.0		 0
0.0		 0
0.0
Suggested Rider Height 156-170cm
5'2-5'7		 165-178cm
5'5-5'10"		 171-187cm
5'8-6'2		 180-190cm
5'11-6'3
