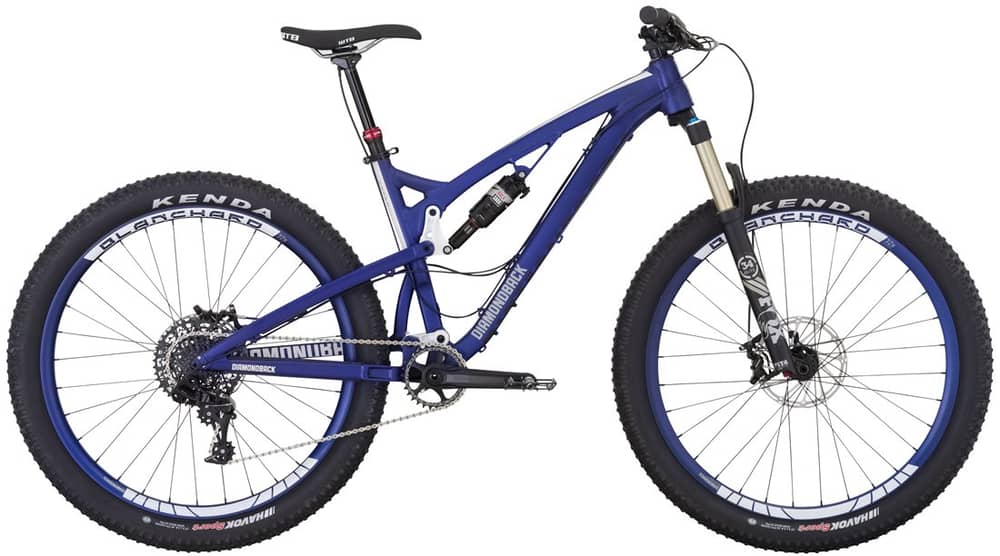

Diamondback Catch 2 Bike

A 27.5 Plus, trail oriented adventure rig. Featuring Level Link suspension for both unmatched climbing and descending capabilities like no other in its class.

Diamondbacks new Catch series utilizes their freshly developed short link, four bar suspension system Level Link. The Catch has a geometry and spec to complement the emerging 27.5 plus tire platform and the new suspension system. The long top tube, short chainstays, low center of gravity, and the added float of the oversized tires have delivered an efficient lightweight climber that will still undeniably murder the descents. Level Link takes that 130mm of travel and makes it feel like so much more. Spend all day exploring the unkown terrain and let Level Link and the Diamondback Catch provide you with the traction and efficiency needed to enjoy every part of the ride, and that my friend, is truly what matters.

The Catch 2 is the top level bike in the series and carries an intelligent set of components. It features a Fox Float 34 27.5 plus 130mm fork, SRAM GX 1X11 drivetrain, KS Supernatural dropper post, and Diamondback tubeless compatible wheels.

Reviews

    The Journal - "One of our testers remarked at the ease of the pedaling both in and out of the saddle" - Seth Kendall

    NSMB - "The stability and composure suggest that steep stuff won't phase this bike." - Jon Harris

    Singletracks - "I had to suppress those misconceptions I had that the wheels and handlebars were too wide to maneuver tight turns, as the Catch was really agile." - Leah Barber

Features

  • Diamondback Hydroformed 27.5 Alloy Frame with Level Link has a long low and slack geometry which is stable at speed, rails the turns, and descends with characteristics of a much larger travel bike.
  • Fox Float 34 27.5+ 130mm fork is designed for aggressive trail riders and provides confidence inspiring control.
  • SRAM GX 1x11 Drivetrain has a wide gear range, is reliable and delivers on the high on the performance scale.
  • Tubeless Compatible Diamondback Wheels allow for running low pressures that further traction and control ride qualities.
SPECIFICATIONS
Frame Release 27.5, 130mm, Level Link Suspension Platform. Hydroformed Tubing, ICG-05, Boost 148x12mm Maxle Drop Out, Tapered Headtube
Fork Fox Float 34 27.5+ 130mm, Performance, Open Cartirdge, 3 Position Compression Damping, 1.5 Taper, 15mm Thru Axle
Rear Shock Rock Shox Monarch Plus RT DebonAir, 200x57
Headset FSA No-57E Taper 1.5 /1-1/8" Standard Cups, Sealed Cartridge
Shifters SRAM GX 11 spd
Front Derailleur -
Rear Derailleur SRAM GX Type 2.1, 11 spd
Crankset Raceface Æfect SL, 30T Narrow Wide Single Ring, Boost Compatible
Length:
Bottom Bracket Raceface Outboard Bearing
Pedals DB Platform CNC,w/replaceable pins, sealed cartridge bearing
Chain KMC X11L
Cassette SRAM XG 1150 (10-42)
Brakes SRAM Guide R, w/ 180mm Front/ 180mm Rear Centerline Rotors
Wheelset Rims - Diamondback Blanchard 32R, Tubeless Compatible
Front Hub - 32h Sealed Alloy Disc w/15mm Thru Axle
Rear Hub - 32h, 148x12, Sealed Cartridge Bearing, XD Cassette Body w/ CNC Disc mount
Tires Kenda Havok 27.5x2.8"
Handlebar DB35, 15mm rise, 35mm bar bore
Width: 780mm
Stem DB35, 35mm barbore
Length: 50mm
Grips DB4L "Lock on" 135mm Kraton
Seatpost KS Supernatural w/SouthPaw Remote 31.6mm
Seatclamp DB
Saddle WTB Volt Race
Intended Use Trail, All-Mountain
Weight TBD

Note: Components are subject to change without notice.

GEOMETRY (mm / inch)
Size Small Medium Large Extra Large
A: Seat Tube Length 394
15.5		 432
17.0		 483
19.0		 533
21.0
B: Effective Top Tube 585
23.03		 610
24.02		 635
25.00		 660
25.98
C: Stack 599
23.58		 599
23.58		 608
23.93		 617
24.29
D: Reach 402
15.83		 427
16.81		 449
17.68		 472
18.58
E: BB Height - - - -
F: BB Drop 25
0.98		 25
0.98		 25
0.98		 25
0.98
G: Head Tube Length 100
3.94		 100
3.94		 110
4.33		 120
4.72
H: Head Tube Angle 68° 68° 68° 68°
I: Seat Tube Angle 73° 73° 73° 73°
J: Standover Height 744
29.29		 744
29.29		 748
29.45		 748
29.45
K: Chainstay Length 446
17.56		 446
17.56		 446
17.56		 446
17.56
L: Wheelbase 1134
44.65		 1159
45.63		 1185
46.65		 1211
47.68
Suggested Rider Height 5'0" - 5'4"
(152 - 162 cm)		 5'5" - 5'9"
(165 - 175 cm)		 5'9" - 5'11"
(165 - 180 cm)		 6'0" - 6'4
(183 - 193 cm)
