Diamondback Recoil Comp 29 Bike 2017

(0)
Item #: BI195B18
This item is unavailable.
Close

Double-check!

Confirm your options before continuing

*Free Shipping over $50

90-Day Returns

Insider - Exclusive Coupons and more.

Price Protection

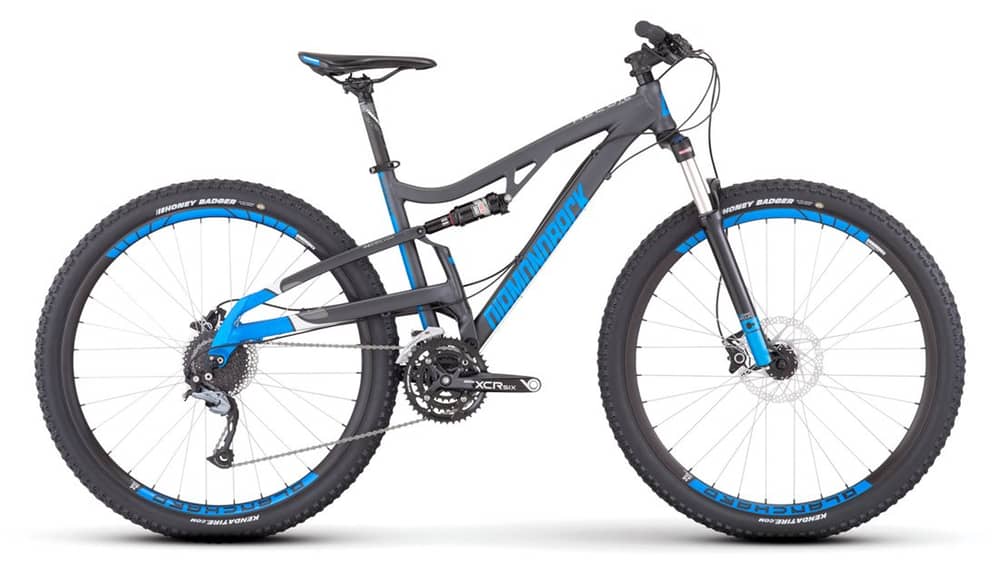

Diamondback Recoil Comp 29 2017

Break the competition, not your piggy bank

Maybe you're an entry level rider looking for a mountain bike that has all the trail worthy features needed to tackle demanding singletrack, or maybe you are seasoned rider looking to make the move from a hardtail to a full suspension bike. The Diamondback Recoil Comp harnesses the power of full suspension that leaves others in the dust. The 6061-T6 aluminum frame uses a tried and true single pivot design, paired with the Suntour XCR-LO fork and you have 100mm of travel that gobbles up terrain like Pac-Man gobbles power pellets. The big 29" inch wheels with Kenda Honey Badger tires will keep you rolling with authority. 27 speeds of Shimano precision allow you to keep spinning no matter how steep the climb, and hydraulic disc brakes will keep everything under control when it's time to point downhill. The Recoil Comp is a great choice for riders who want a dependable full-suspension bike that can rip any trail, but won't break the bank.

Features

  • 6061-T6 Aluminum Full Suspension frame
  • 27 Speed Shimano Drivetrain
  • 100mm travel Suntour fork with lock out
  • Fast rolling 29" Wheels
SPECIFICATIONS
Frame DB Recoil 6061 T-6 Aluminum Trail w/ 4" travel, Optimized Single Pivot, Machine Formed Top Tube, Butted / Formed Down Tube, Sealed Cartridge Bearing Pivot, w/ Replaceable Hanger
Fork SR Suntour XCR-LO Coil 29", 100mm Travel, 32mm Stanchions, Magnesium Lower, Alloy Crown w/ Hydraulic Speed Lock
Rear Shock RockShox Monarch R, Air Spring, 190x51mm w/ External Rebound Adjust
Headset Zero Stack Ahead 1 1/8"
Shifters Shimano Altus M370 3x9 Speed Rapidfire
Front Derailleur Shimano Altus M370, Top Swing, Dual Pull, 34.9mm Clamp Diameter
Rear Derailleur Shimano Acera M3000, 9 Speed
Crankset SR Suntour XCR, 44/32/22T
Length:
Bottom Bracket Sealed Cartridge
Pedals DB4L Alloy Platform
Chain KMC Z99, 9 Speed
Cassette Shimano HG200, 9 Speed Cassette, 11-34T
Brakes Shimano BR-M355 Hydraulic Disc, w/ 180mm Front /160mm Rear Rotors
Wheelset DB SL7 29" 32h, Doublewall, Tubless Compatible
Front Hub - 32h SL-7 Alloy w/ CNC Disc Mount
Rear Hub - 32h SL-7 Alloy w/ CNC Disc Mount, Cassette
Tires Kenda Honey Badger 29x 2.2"
Handlebar DB SL318B, 15mm Rise, 31.8mm Bar Bore
Width: 685mm
Stem DB 3D Forged, 7° Rise, 31.8 Bar Bore
Length: -
Grips DB4L 135mm Kraton
Seatpost DB Alloy Micro Adjust 30.9mm
Seatclamp DB
Saddle DB Race saddle
Intended Use XC, Trail
Weight TBD

Note: Components are subject to change without notice.


GEOMETRY (mm / inch)
Size Small Medium Large
A: Seat Tube Length 400
15.7		 450
17.7		 500
19.7
B: Effective Top Tube 559
22		 584
23		 610
24
C: Stack -
-		 -
-		 -
-
D: Reach -
-		 -
-		 -
-
E: BB Height 330
13		 330
13		 330
13
F: BB Drop -
-		 -
-		 -
-
G: Head Tube Length 89
3.5		 99
3.9		 119
4.7
H: Head Tube Angle 70° 70° 70°
I: Seat Tube Angle 74° 74° 74°
J: Standover Height 749
29.5		 775
30.5		 800
31.5
K: Chainstay Length 465
18.3		 465
18.3		 465
18.3
L: Wheelbase 1105
43.5		 1128
44.4		 1156
45.5
Suggested Rider Height 5'4"- 5'7" 5'7" - 5'10" 5'10" - 6'1"
