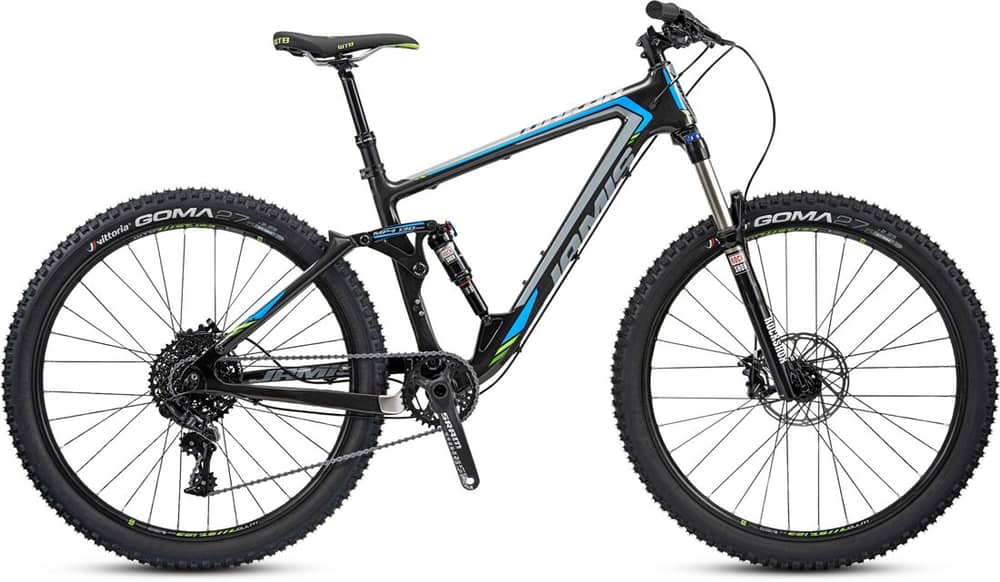

Dakar XCT Race Bike 2016

a high performance carbon frame with affordable components

The new Dakar XCT Race by Jamis is a 27.5" cross country machine that features a great mix of performance technology and affordable, yet reliable, components. A 69 degree headtube angle is the perfect balance between slack and steep, getting you up hills and down them with ease. All sizes also feature a 450mm chainstay, and a 341mm bottom bracket height, putting you in an excellent position for riding all over the mountain. This bike holds excellent control over the trails with 130mm of plush travel delivered by Rockshox. The fork and shock both offer adjustable compression and lockout options. A tapered steer tube keeps things feeling solid up front, and the 1x drivetrain has fantastic range. Vittoria Goma tires also roll fast, and provide excellent grip.

The Dakar XCT Race features Rockshox Monarch and Recon Series suspension that gives you prowess over a variety of terrain types. It also has an 11 speed SRAM kit, meeting the perfect point between performance and price. The Ritchey Trail cockpit is is short, low, and wide, giving you optimal control. The KS Crux Integra dropper seatpost lets you climb and descend with ease, while Jamis lock on grips and a WTB Volt Comp saddle offer premium comfort and handling.

Features

  • Rockshox suspension with adjustable compression and lockout features
  • SRAM 11 speed drivetrain gives terrific range
  • Vittoria's Goma is a great enduro tire. Stepped side knobs make this tire grip in every condition, while still rolling fast
  • Carbon fiber frame is stiff and light, with sealed bearings and an efficient linkage system
SPECIFICATIONS
Frame High Modulus Dyad Elite carbon fiber, 130mm travel mp4 suspension, Press Fit 30 bottom bracket, 12 x 142 rear dropouts, 1 1/8"- 1.5" tapered head tube, internal dropper post routing, high direct mount front derailleur, asymmetrical chainstays, stainless steel chain stay protector, Enduro® Max Black Oxide sealed bearing pivots, Rock Shox Monarch RL High Volume shock, 10mm hardware, replaceable derailleur hanger, Formula axle
Fork Rock Shox Recon Silver TK 27.5", Solo Air spring compression, lever actuated lockout, 15mm axle, tapered alloy steerer, external rebound adjust, 130mm travel
Rear Shock Rock Shox Monarch RL High Volume shock
Headset FSA Orbit C-40 Integrated for tapered head tube, 8mm cone spacer
Shifters SRAM GX, 1x11-speed
Front Derailleur N/A
Rear Derailleur

SRAM GX, 11-speed rear

Crankset

SRAM S1000 PressFit 30, 32T, 170mm (15"), 175mm (17-21")

Bottom Bracket Enduro Press Fit 30
Pedals N/A
Chain KMC X11 EPT anti-rust, 11-speed
Cassette SRAM XG-1150, 11-speed, 10-42T
Brakes SRAM DB5 hydraulic disc, 180mm front & 160mm rear Centerline rotors
Wheelset WTB ST i23 TCS 27.5" tubeless rims, 32H, eyeleted, with Formula sealed bearing 15mm front and 12 x 142mm, 39T drive, 6-bolt disc hubs, stainless spokes
Tires Vittoria Goma, 27.5 x 2.25", folding
Handlebar Ritchey Trail, 740mm x 20mm rise, 9° sweep
Stem Ritchey Trail, 70mm (15"), 80mm (17"), 90mm (19"), 100mm (21")
Grips Jamis Lock-On
Seatpost KS Crux Integra,100mm travel, handlebar remote, 385mm x 31.6
Seatclamp Jamis
Saddle WTB Volt Comp
Intended Use XC, Trail, All-Mountain
Weight -

Note: Components are subject to change without notice.

GeometryChart
0.0
GEOMETRY (mm / inch)
Size Small Medium Large Extra Large
A: Seat Tube Length 349
13.7 		387
15.2 		416
16.4 		465
18.3
B: Effective Top Tube 565
22.2 		585
23.0 		605
23.8 		625
24.6
C: Stack -
- 		-
- 		-
- 		-
-
D: Reach -
- 		-
- 		-
- 		-
-
E: BB Height 341
13.4 		341
13.4 		341
13.4 		341
13.4
F: BB Drop 13
.5 		13
.5 		13
.5 		13
.5
G: Head Tube Length 115
4.5 		120
4.7 		140
5.5 		150
5.9
H: Head Tube Angle 69.0 ° 69.0 ° 69.0 ° 69.0 °
I: Seat Tube Angle 73.0 ° 73.0 ° 73.0 ° 73.5 °
J: Standover Height 780
30.7 		806
31.7 		830
32.7 		863
34.0
K: Chainstay Length 450
17.7 		450
17.7 		450
17.7 		450
17.7
L: Wheelbase 1101
43.3 		1121
44.1 		1143
45.0 		1169
46.0
Suggested Rider Height Under 170 cm
Under 5'7" 		170-180 cm
5'7"-5'11" 		170-180 cm
5'11"-6'2" 		170-180 cm
5'11"-6'2"
Weight (kg / lbs) -
- 		-
- 		-
- 		-
-
