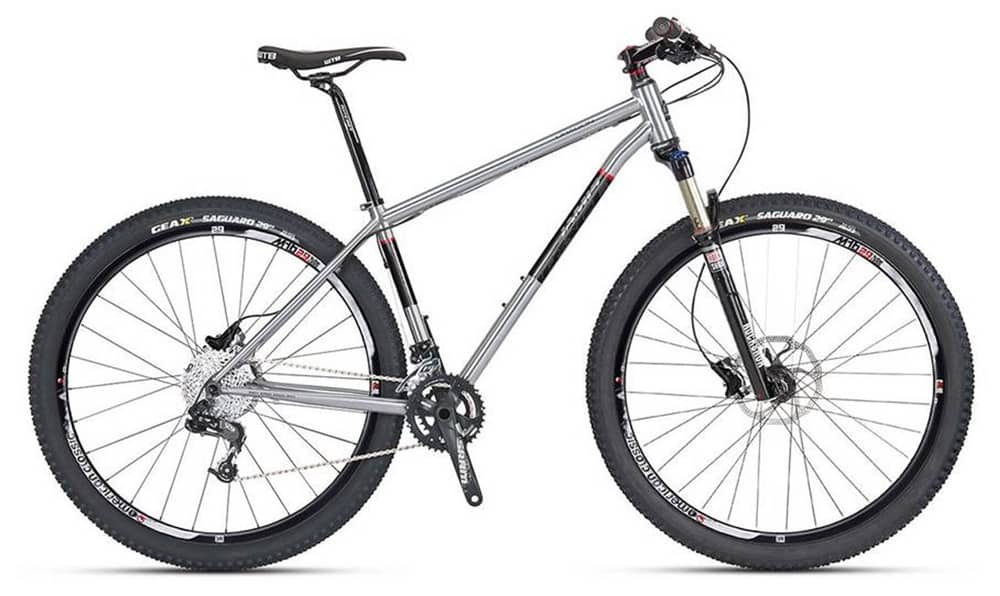

JAMIS DRAGON 29 RACE BIKE 2014

Dragons have long been portrayed as fire breathing mythical creatures in countless fairytales. Now is your chance to harness one. The Jamis Dragon 29 Race is crafted from Reynolds 853 air hardened steel, which provides an incredibly lively ride. The Jamis Dragon is the mountain bike that built Jamis' high-end reputation in their early years, and the legend is still going strong. If you're committed to big-wheeled steel hardtails, the Dragon 29 Race is a prodigious option.

The Jamis Dragon 29 Race is beautifully crafted from Reynolds 853 steel, which provides an incredibly resilient and sturdy ride. With the addition of oversized 44mm head tubes, the Dragon has adopted a tapered steerer fork to add more stiffness, reduce weight and improve tracking through bumpy terrain. Additionally, the Dragon now features a chainstay/seatstay disc brace that supports the thin-walled, non-driveside stays from the loads generated by the disc brakes. This brace is light, strong, clean looking, and provides vibration-free braking.

For the drivetrain, the Dragon 29 Race employs a SRAM component arrangement including X9 2x10 speed derailleurs and shifter set, which clearly communicate with each other for smooth, snappy gear changes. The 2x10 gear set-up provides a plethora of options for tackling undulating terrain. The Avid Elixer 5 hydraulic disc brakes are paired with large 180mm (f) and 160mm(r) rotors to bring you to a quick stop, once you've decided to pack it in for the day.

Handling the front end, a Rock Shox Reba RL fork with 32mm stanchions and a tapered aluminum steerer tube keeps things plush and tracking smoothly when things get rowdy. It's external rebound and leer actuated lockout, allows you to adapt to many conditions. The 120mm of travel bridges the gap between XC and Trail for more versatility and comfort.

The Ritchey Pro cockpit produces a rigid platform for exceptional control and response, while the American Classic Terrain wheels are ready for some tubeless action and come wrapped in Geax Saguaro 2.2 tires. The Dragon's proven geometry can gut out gritty climbs, yet it won't shy away from sketchy descents. Pair the Dragon's bomb-proof frame with its clever build-group, fast 29" wheels and 100mm of travel up front, and you've got yourself the smile-making-machine you've always wanted.

Features

  • Reynolds 853 Steel Frame 44mm Headtube, 12x142mm dropouts
  • Rock Shox Reba RL with 100mm travel, lever actuated lockout and external rebound adjust
  • SRAM X9 2x10 Drivetrain is a solid, and reliable component group.
  • Tubeless American Classic Terrain Wheels wrapped in Geax Saguaro tires.
SPECIFICATIONS
Frame Reynolds 853 Dzb seamless air-hardened chromoly main tubes 44mm head tube curved crown-clearing down tube double-butted cromo stays Jamis lost wax dropouts
Fork Rock Shox Reba RL lever actuated lockout tapered steerer 15mm axle Solo Air spring pressure adjust rebound adjust 100mm travel
Rear Shock -
Headset FSA Orbit, Alloy cups
Shifters SRAM X9 10-speed
Front Derailleur Sram X9
Rear Derailleur SRAM X9 10-speed
Crankset SRAM S1000 gXP 38/24 170mm (15") 175mm (17-21")
Bottom Bracket SRAM GXP
Pedals -
Chain SRAM PC 1031 10-speed
Cassette SRAM PG-1050 10-speed 11-36T
Brakes Avid Elixer 5 hydraulic disc brakes with 180mm front & 160mm rear HS1 rotors
Wheelset American Classic Terrain 29 tubeless disc wheels 15mm axle front and qR rear hubs
Tires Geax Saguaro 29 x 2.2" folding
Handlebar Ritchey Pro 2x bar 31.8 x 9 ? sweep x +/- 5mm rise x 720mm
Stem Ritchey Pro 4-Axis OS 90mm (15" 17") 100mm (19") 110mm (21")
Grips Jamis Lock-On
Seatpost Ritchey Pro 2 bolt OS 27.2 x 400mm
Seat Clamp Jamis
Saddle WTB Silverado Comp
Intended Use XC
Weight tbd

Note: Components are subject to change without notice.


GEOMETRY (mm / inch)
Size 15" 17" 19" 21"
A: Seat Tube Length 358
14.1 		410
16.1 		461
18.1 		511
20.1
B: Effective Top Tube 570
22.7 		590
23.6 		610
24.4 		625
25.2
C: Stack - - - -
D: Reach - - - -
E: BB Height 320
12.6 		320
12.6 		320
12.6 		320
12.6
F: BB Drop - - - -
G: Head Tube Length 110
4.3 		110
4.3 		110
4.3 		110
4.3
H: Head Tube Angle 71 ° 71 ° 71 ° 71 °
I: Seat Tube Angle 73.0 ° 72.5 ° 72.0 ° 72.0 °
J: Standover Height 759
29.9 		789
31.1 		818
32.2 		845
33.3
K: Chainstay Length 450
17.7 		450
17.7 		450
17.7 		450
17.7
L: Wheelbase 1057
41.6 		1070
42.1 		1086
42.8 		1101
43.3
