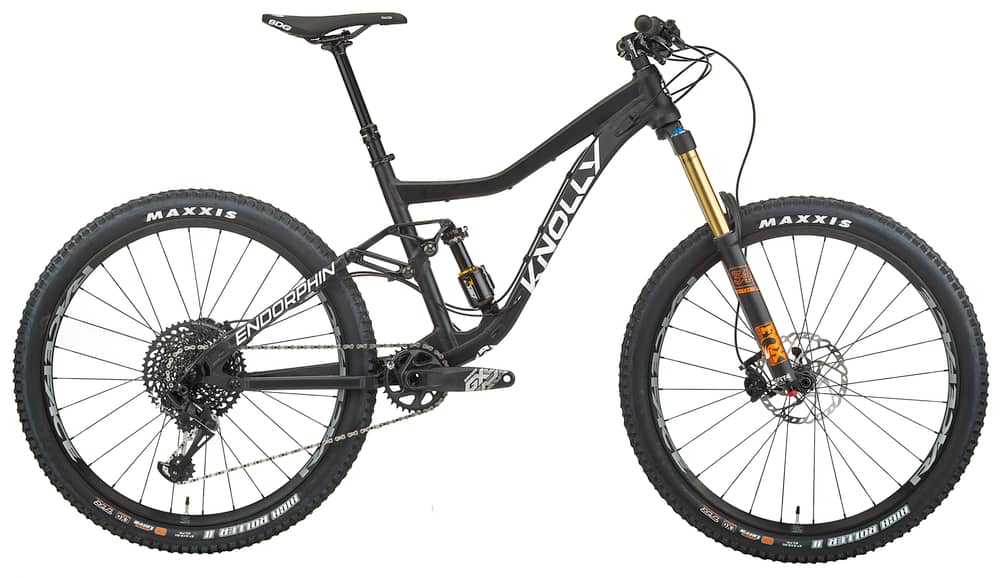

Knolly Endorphin GX Eagle Fox 34 2017

The latest version of the Knolly Endorphin has fully embraced the 27.5” wheel platform. Geometry was readjusted with priorities placed on keeping the fast, nimble and competence of previous models Knolly is known for. It is low, slack and capable of tearing up an enduro or dual slalom course one day, then providing the efficiency and all-day comfort for a high mileage weekend adventure the next. Patented Four by 4 Linkage is an extremely rigid design providing 130mm of travel with great pedaling dynamics, traction, and tracking capabilities. It also gifts the frame with clearance for large volume tires and access to the rear shock for easy set up and maintenance. Beautifully constructed with a highly hydroformed aluminum tube set.

The professionals here at Jenson have expertly outfitted the Endorphin with a host of capable components to take your riding to the next level. A SRAM GX Eagle 12-speed drivetrain delivers the gear range you’ve been looking for to tackle the climbs and mash downhills. Fox suspension provides a plush ride through the chop while soaking up the big hits with ease. Race Face Turbine wheels spin fast and smooth on sealed bearings while Schwalbe Han Dampf grip hard in a variety of conditions. A Race Face dropper post lets you get the saddle out of the way so you can attack technical terrain with confidence. When it comes time to slow things down, Shimano SLX disc brakes get the job done with authority.

REVIEWS

Pink Bike - ”Knolly's bikes are famously adept technical climbers. In fact, this is one of the few bikes that can rival a good 29er when it comes to sniffing out any and all available traction.” - Mike Levy

Features

  • Patented 4x linkage with 130mm of plush travel
  • Fox Float 34 Fork smooths out the trail chatter and eats up the big stuff
  • SRAM GX Eagle drivetrain SRAM 12 speed performance available for the masses
  • Race Face Aeffect Dropper gets the saddle out of the way so you can attack technical terrain with confidence
SPECIFICATIONS
Frame KNOLLY ENDORPHIN FRAME 130MM TRAVEL
Fork FOX 34 FLOAT FACTORY 27.5, 150MM, 15X100MM, TAPERED, FIT4
Rear Shock CANE CREEK DB INLINE
Headset Cane Creek 10 ZS44/ZS56/40
Shifters SRAM GX EAGLE SHIFTER, 12 SPEED
Front Derailleur They still make those?
Rear Derailleur SRAM GX EAGLE
Crankset SRAM GX EAGLE B148 24MM, 175, 32 TOOTH
Bottom Bracket SRAM GXP TEAM 68/73
Pedals -
Chain SRAM PC-GX EAGLE 12 SPEED
Cassette SRAM XG-1275 EAGLE, 10-50 TOOTH
Brakes SHIMANO SLX BR-M7000 DISC BRAKE
Wheelset RACE FACE TURBINE 30 27.5", 15/12X142MM, XD DRIVER
Tires SCHWALBE HANS DAMPF 27.5", 2.35", DUAL COMPOUND, PERFORMANCE
Handlebar RACE FACE AEFFECT 10MM RISE, BLACK, 35MM, 10MM RISE,
Stem RACE FACE ATLAS, BLACK, 50MM LENGTH, 35MM CLAMP
Grips Lizard Skins 494
Seatpost RACE FACE AFFECT DROPPER, 31.6, 425MM, 150MM W/REMOTE
Seatclamp Alloy
Saddle SDG FALCON BLACK
Intended Use Trail, AM
Weight kg
lbs

Note: Components are subject to change without notice.

”GeometryChart”/

Suggested Rider HeightUnder 5’7”5’7”-5’11”5’11”-6’2”6’3” and above

GEOMETRY (mm / inch) *based on 140mm fork
Size Small Medium Large Extra Large
A: Seat Tube Length 373 / 14.7 419 / 16.5 476 / 18.7 515 / 20.3
B: Effective Top Tube 582 / 22.9 610 / 24.0 637 / 25.1 654 / 25.7
C: Stack 587 / 23.1 591 / 23.3 591 / 23.3 605 / 23.8
D: Reach 411 / 16.2 438 / 17.2 465 / 18.3 478 / 18.8
E: BB Height 337 / 13.3 337 / 13.3 337 / 13.3 337 / 13.3
F: BB Drop - - - -
G: Head Tube Length 105 / 4.1 110 / 4.3 110 / 4.3 125 / 4.9
H: Head Tube Angle 67° 67° 67° 67°
I: Seat Tube Angle 74° 74° 74° 74°
J: Standover Height 677 / 26.7 707 / 27.8 745 / 29.3 769 / 30.3
K: Chainstay Length 427 / 16.8 427 / 16.8 427 / 16.8 427 / 16.8
L: Wheelbase 1130 / 44.5 1158 / 45.6 1185 / 46.7 1204 / 47.4
