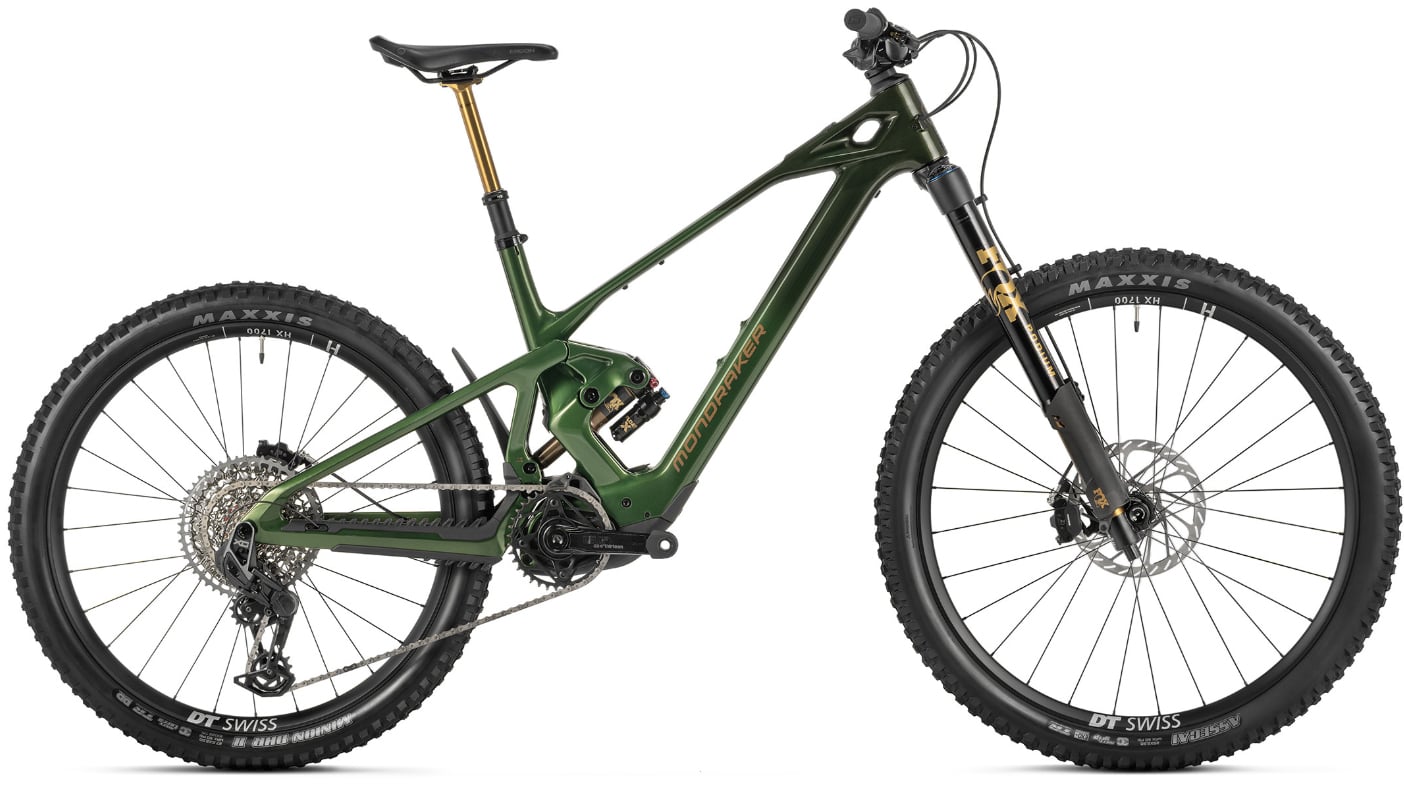

Green/Green
Size:Small
Back-Ordered

No confirmed availability
More of these are on the way. Leave us your contact information and we'll let you know when they arrive.
There seems to be a problem with your name - Please Provide a name.
There seems to be a problem with your name - Please provide your first and last name.
There seems to be a problem with your phone number - please correct and submit again
There seems to be a problem with your email - please correct and submit again
There seems to be a problem with your email or phone number - Please provide your email or phone number.
Success! You're on our notification list. Thanks for your interest in this product.
Learn More
+ Add Accident Protection from
Remove Protection Plan
Gear Advisor

Questions about this bike?

Contact a Gear Advisor Pro.

*Free Shipping over $50

90-Day Returns

Insider - Exclusive Coupons and more.

Price Protection

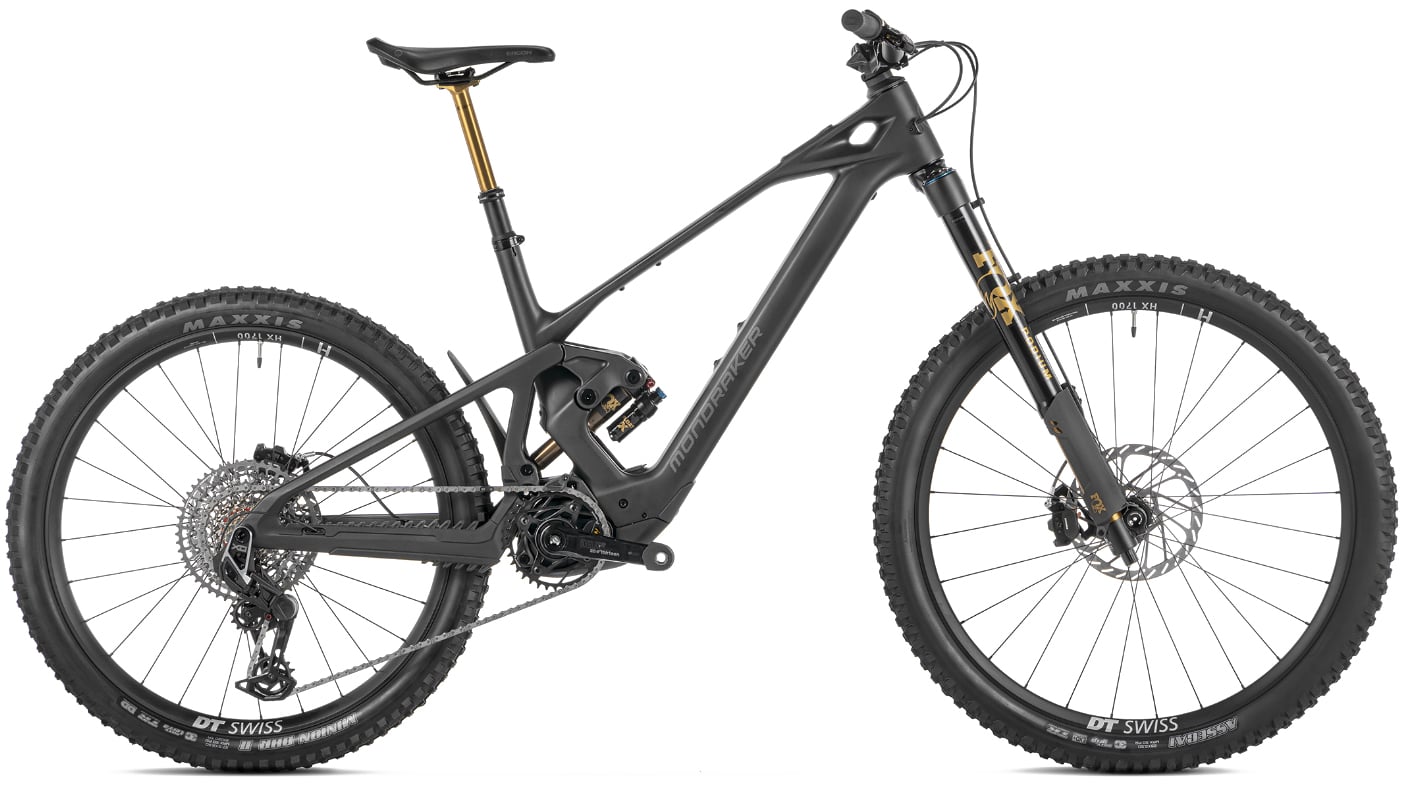

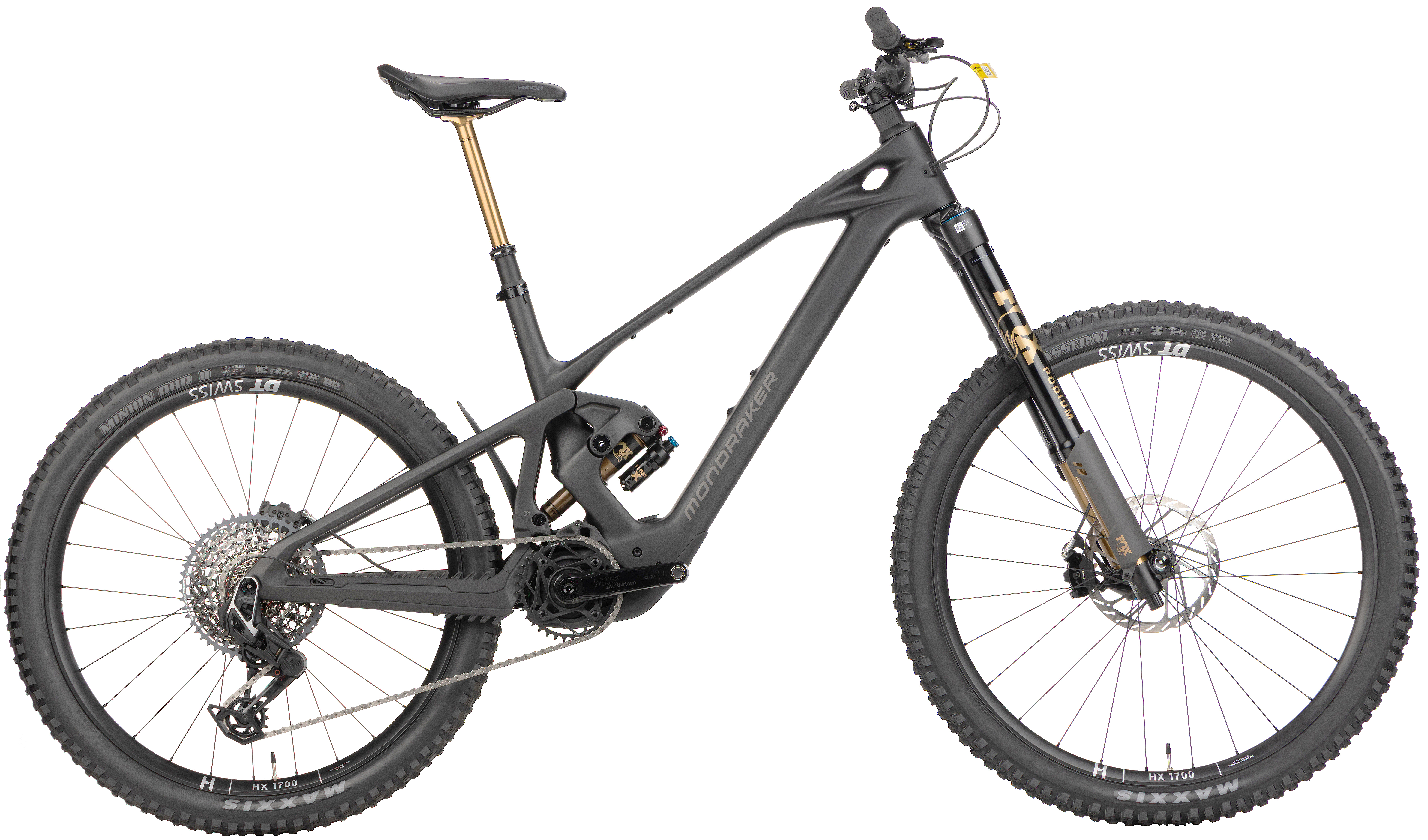

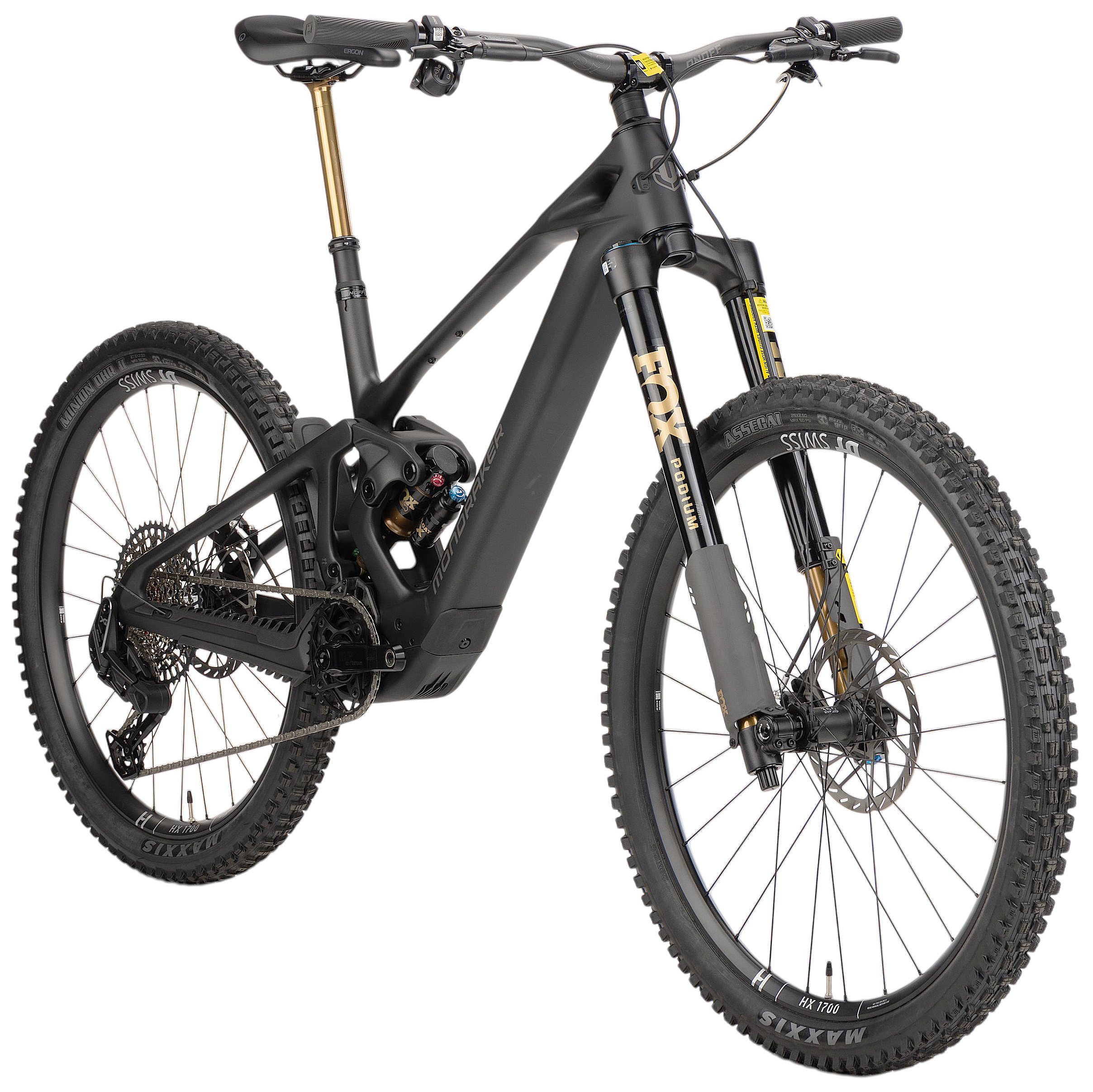

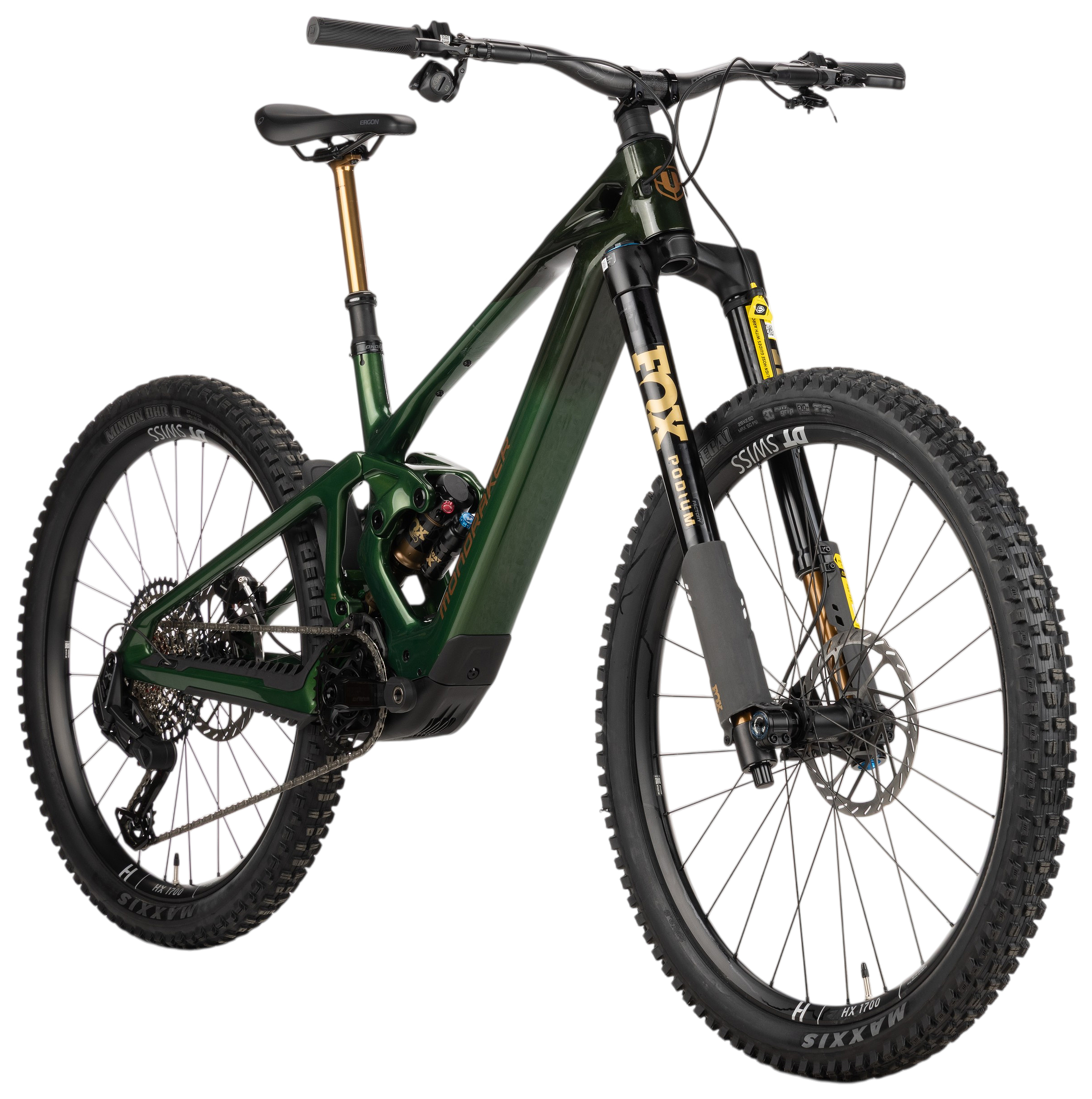

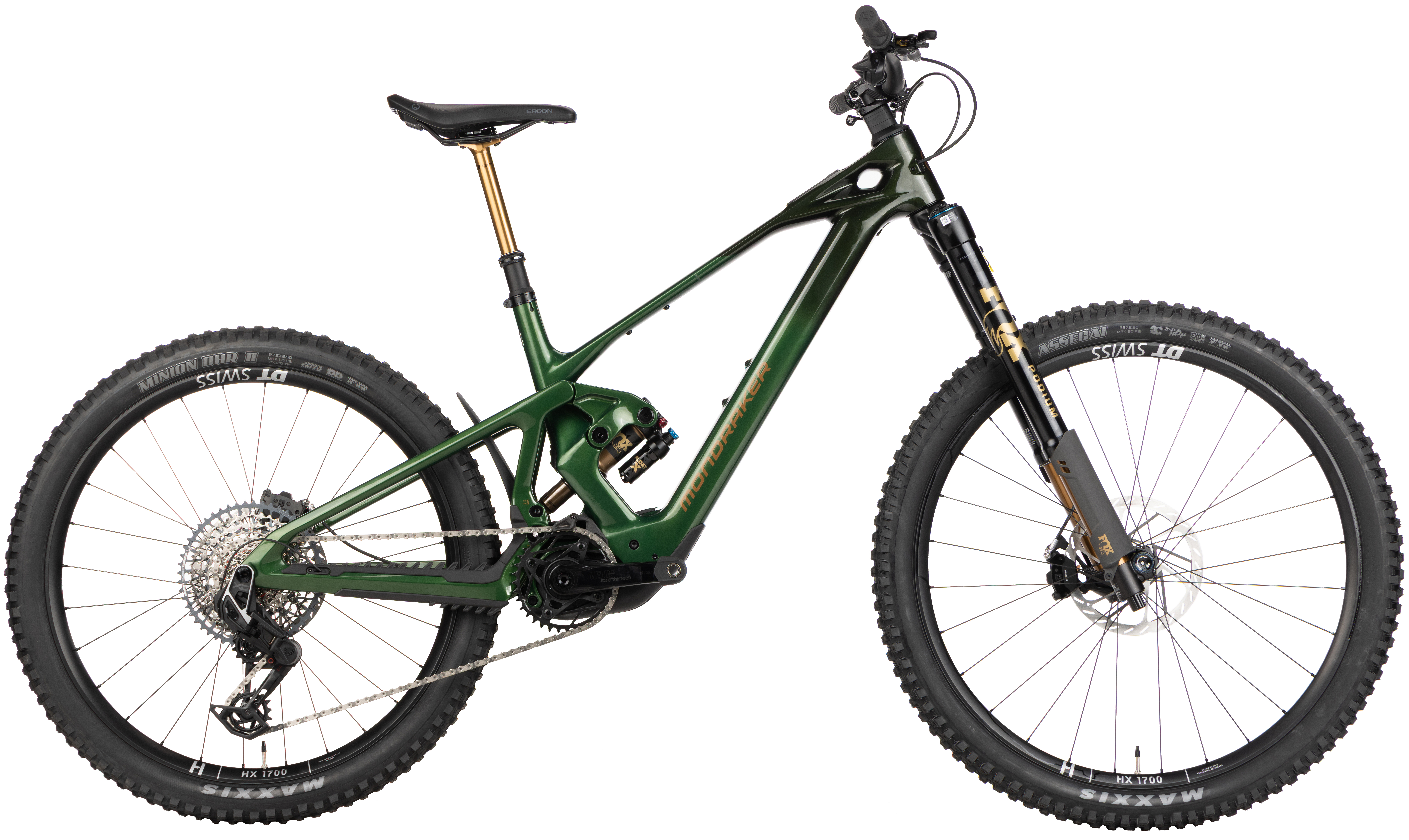

Mondraker Zendit RR E-Bike

Performance unleashed.

The Mondraker Zendit RR is the flagship enduro eMTB that Mondraker built from scratch around the all-new Avinox M2S drive system — 130Nm of torque, 1,300W peak power, and an 800Wh integrated battery built directly into the Stealth Air full carbon frame. Eleven years of eMTB development culminate in a completely revised ZERO suspension platform with 165mm of rear travel, a 170mm Fox 38 Grip X2 Factory Kashima fork, and proportional chainstay lengths by size for a balanced, consistent ride no matter what frame you're on. Mullet wheel setup as standard, 29" compatible via flip chip, and an SRAM S1000 Eagle AXS T-Type drivetrain round out a build that exists to go harder, higher, and faster.

Features

  • Avinox M2S drive system — 130Nm torque (150Nm in Boost), 1,300W peak power, 800Wh integrated battery built directly into the carbon frame; Avinox DP100 display and BC100 wireless controller
  • Stealth Air full carbon frame, 165mm ZERO suspension — completely redesigned around the M2S motor with a one-piece Monoblock upper link, MAX capacity sealed bearings, oversize 15mm axles, HHG internal cable routing, UDH, and Boost 12x148mm rear axle

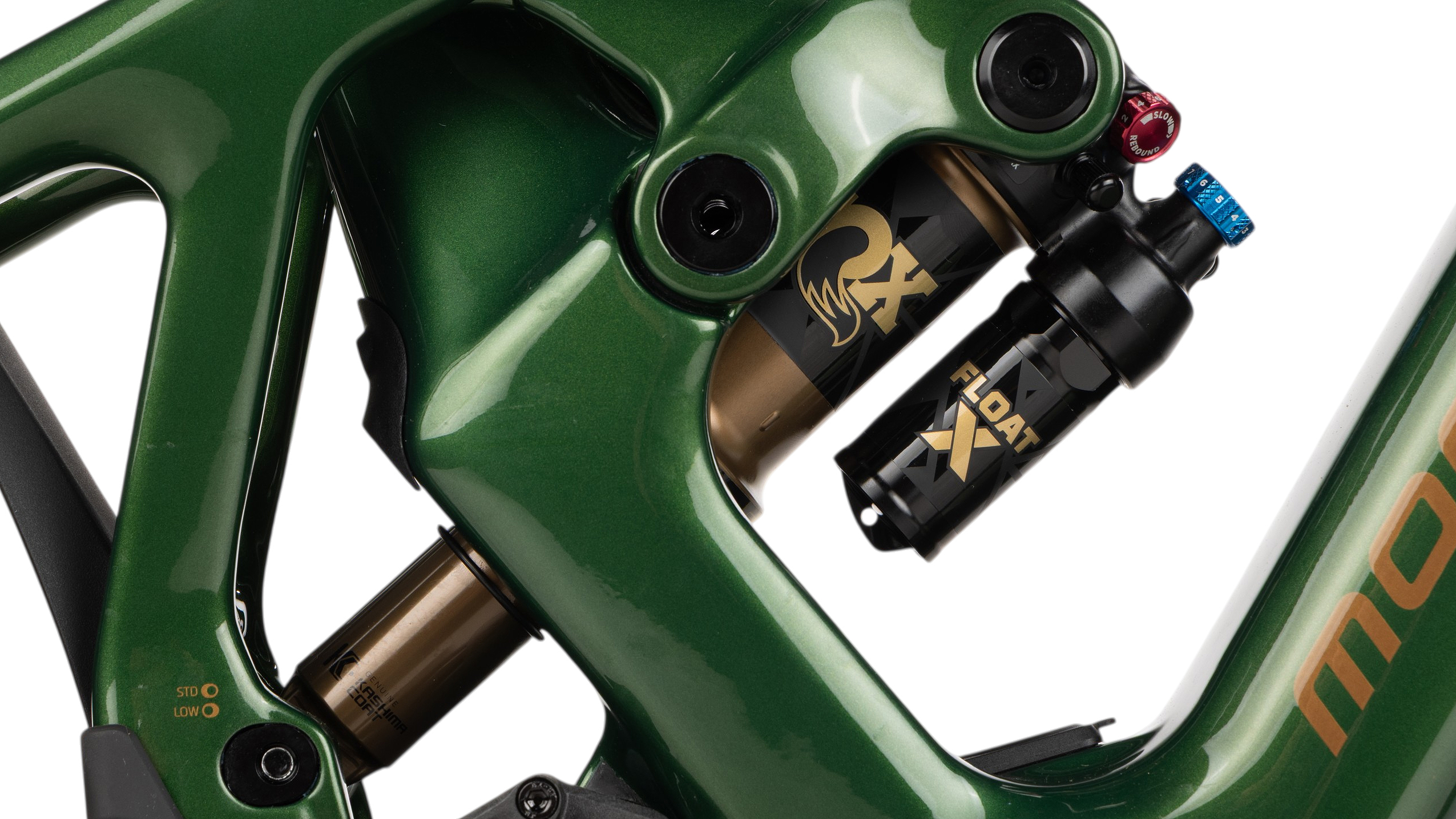

  • Fox 38 Float Grip X2 Factory Kashima fork, 170mm and Fox Float X Factory Kashima Evol LV rear shock — Factory-grade suspension tuned specifically for the Zendit's kinematics
  • Mullet wheel setup as standard with a flip chip for 29" compatibility — chainstay lengths are proportional by size (S/M/ML: 450mm, L/XL: 455mm) and the flip chip adds 7mm without affecting suspension kinematics, BB height, or key angles

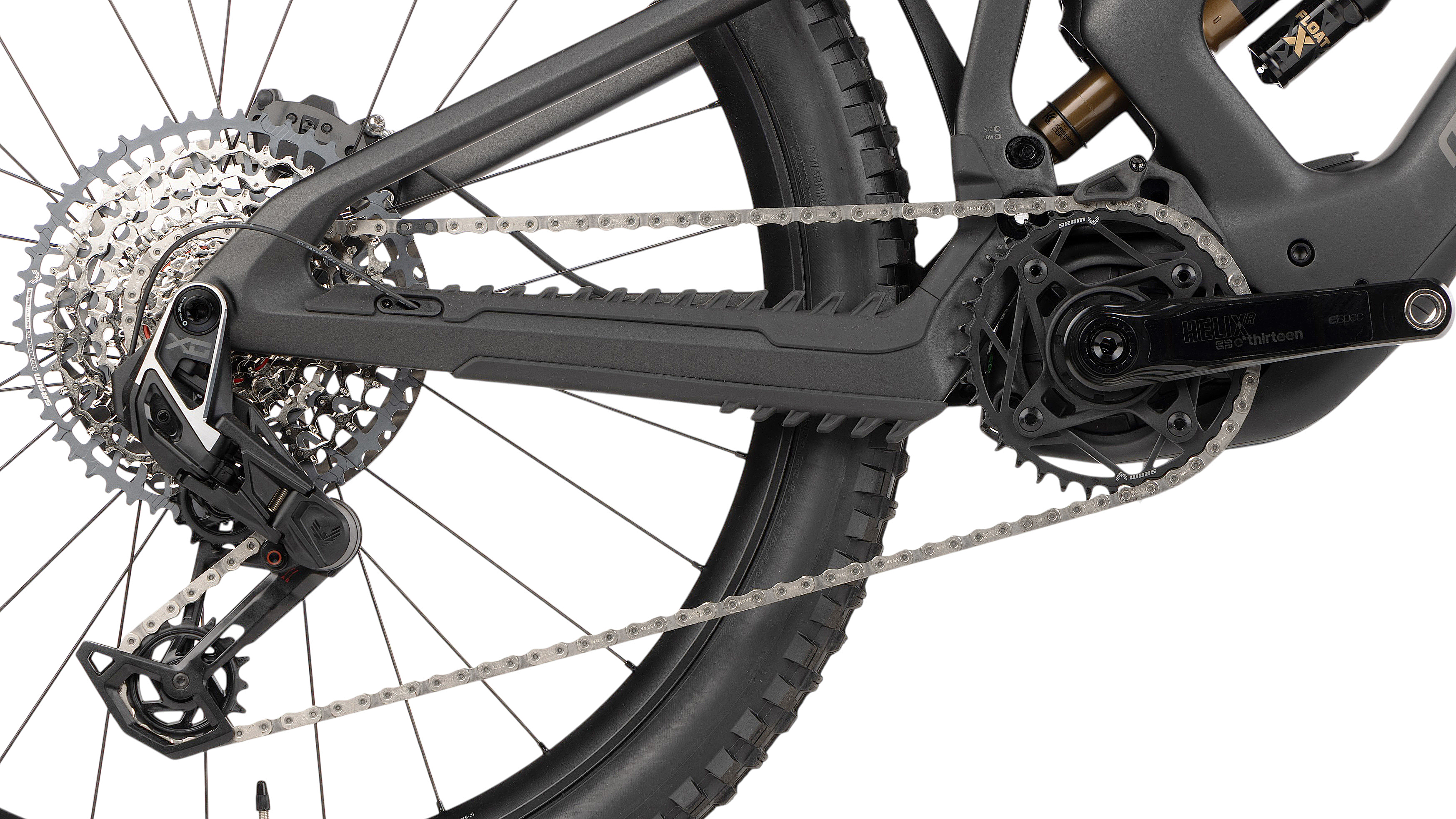

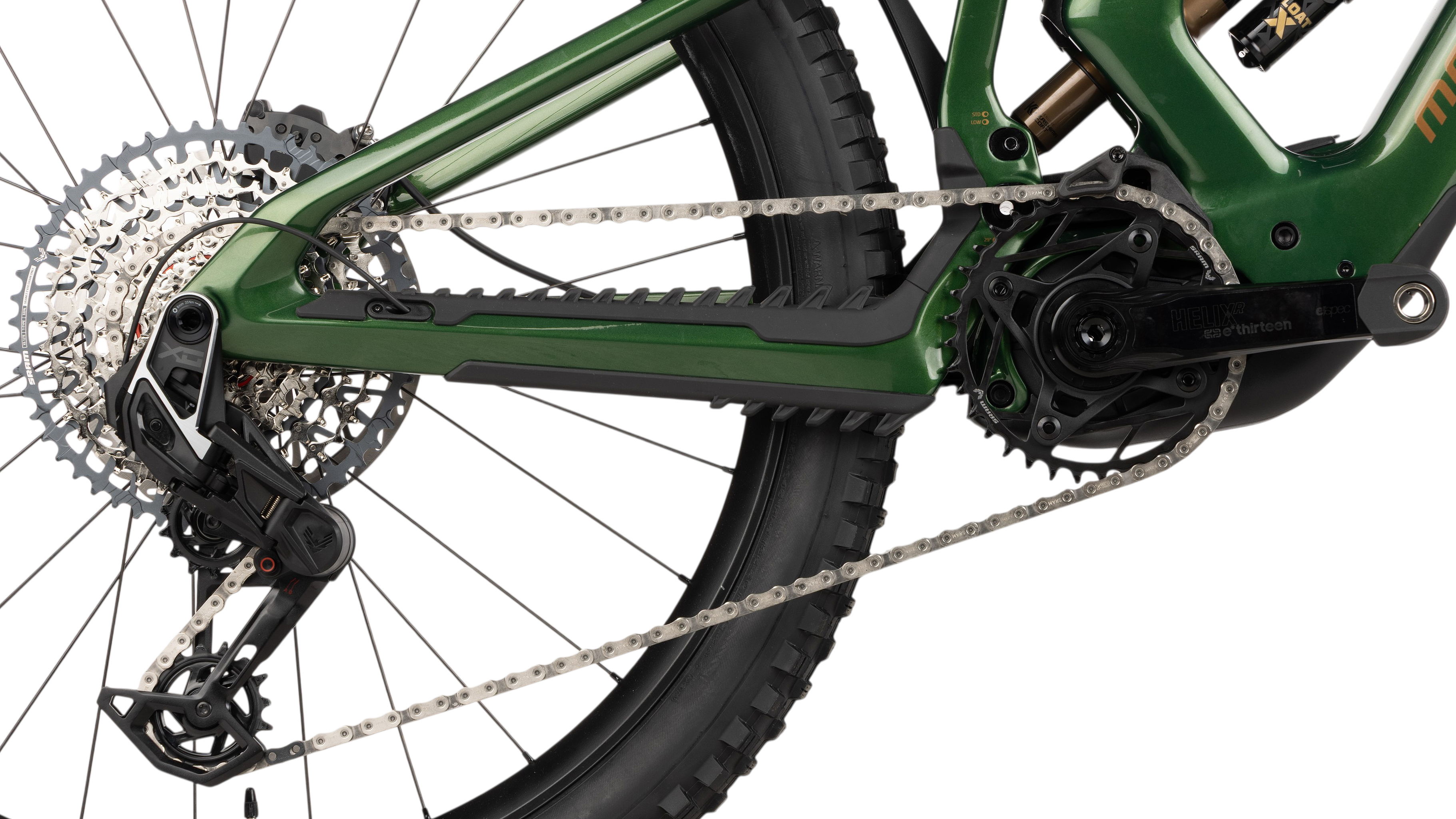

  • SRAM S1000 Eagle AXS T-Type wireless 12-speed drivetrain with SRAM GX Eagle T-Type chain, SRAM XS 1270 10-52T cassette, and e*thirteen Helix Race 155mm cranks with a 36T SRAM Eagle T-Type chainring
  • SRAM Maven Base 4-piston hydraulic disc brakes with 200mm Centerline rotors front and rear
SPECIFICATIONS
Frame Zendit Stealth Air Full Carbon, Updated ZERO Suspension System, 165mm Travel, Forward Geometry, Internal Battery, Boost 12x148mm Rear Axle, UDH, Tapered Head Tube, One-Piece Monoblock Upper Link, HHG Internal Cable Routing, MAX Capacity Sealed Bearings, Oversize 15mm Axles
Fork Fox 38 29 Float Grip X2 Factory Kashima, 170mm, 44mm Offset, Boost 15x110mm Kabolt Axle, Tapered Steerer, High/Low Speed Compression, High/Low Speed Rebound, Air Preload

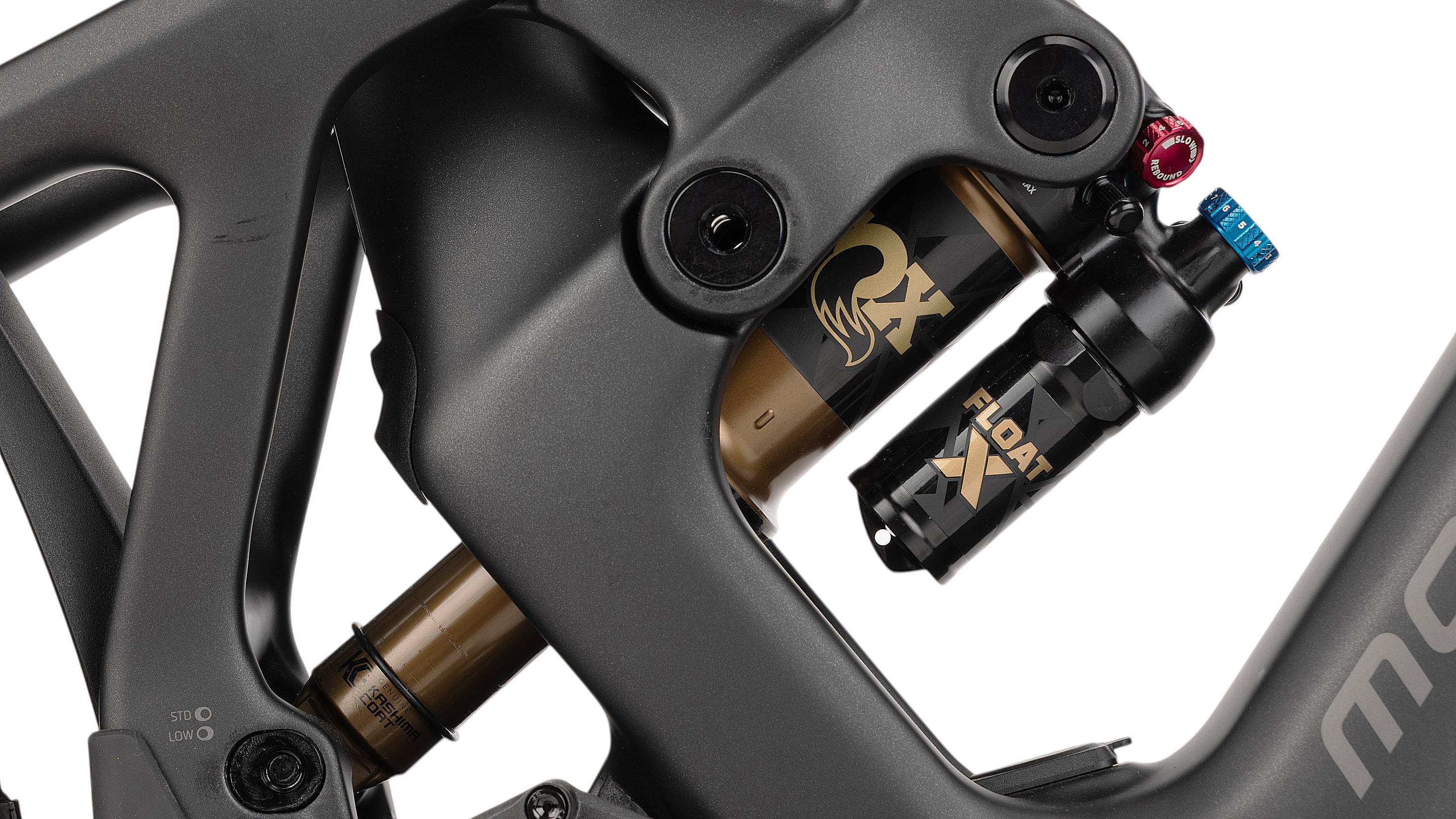

Rear Shock Fox Float X Factory Kashima Evol LV, 205x65mm, 2-Position Lever Compression (Open/Firm), Low-Speed Compression, Low-Speed Rebound, Air Preload, Trunnion Top Mount, 30x8mm Bottom Bushings
Headset Acros Custom ZS56/ZS56, 1-1/8" to 1.5" Head Tube, Internal Cable Routing
Front Derailleur N/A
Rear Derailleur SRAM S1000 Eagle AXS T-Type, 12-Speed
Shifters SRAM Eagle AXS Pod Controller w/ Discrete Clamp, 12-Speed
Crankset e*thirteen Helix Race e*spec Alloy, 155mm, All Sizes
Chainring SRAM Eagle 36T T-Type, 104BCD, Steel, CL55
Chain SRAM GX Eagle T-Type, 12-Speed Flattop, w/ Powerlock
Cassette SRAM XS 1270, 10-52T, T-Type, 12-Speed
Front Brake SRAM Maven Base, 4-Piston, Centerline 200mm IS 6-Bolt Rotor, Steel-Backed Organic Pads
Rear Brake SRAM Maven Base, 4-Piston, Centerline 200mm IS 6-Bolt Rotor, Steel-Backed Organic Pads
Wheelset DT Swiss Hybrid H 1900 Spline, Aluminum, 30mm Internal Width, Tubeless Ready, 28H
Front Hub DT Swiss 370, Boost 15x110mm, IS 6-Bolt
Rear Hub DT Swiss 370, 18T Ratchet LN System, Boost 12x148mm, IS 6-Bolt, HG Freehub
Spokes DT Swiss Straightpull, DT Hybrid I, Black
Front Tire Maxxis Assegai, 29x2.5WT, 3C MaxxGrip, EXO+, 60TPI, Tubeless Ready, Folding Bead
Rear Tire Maxxis Minion DHR II, 27.5x2.5WT, 3C MaxxTerra, DD, 120TPI, Tubeless Ready, Folding Bead

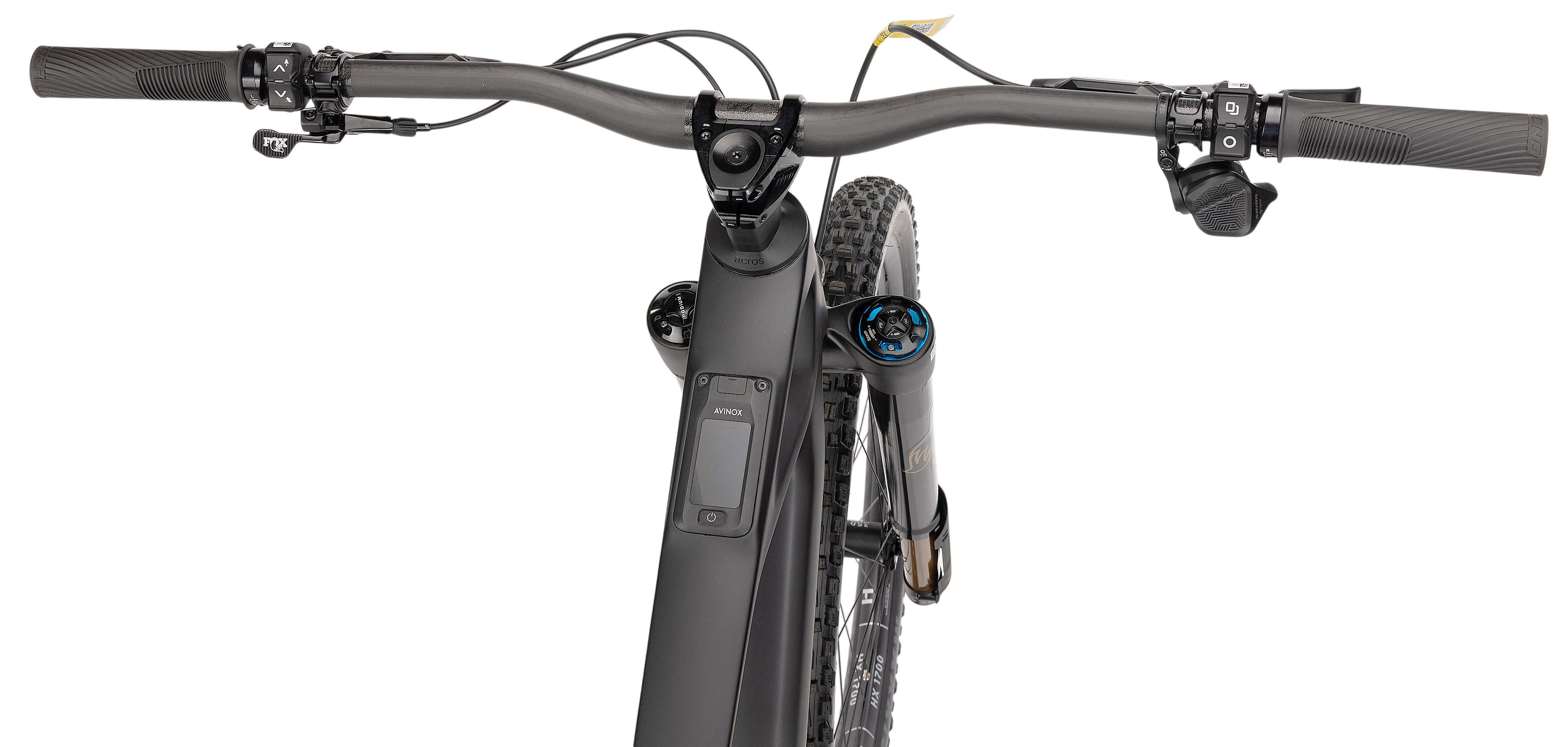

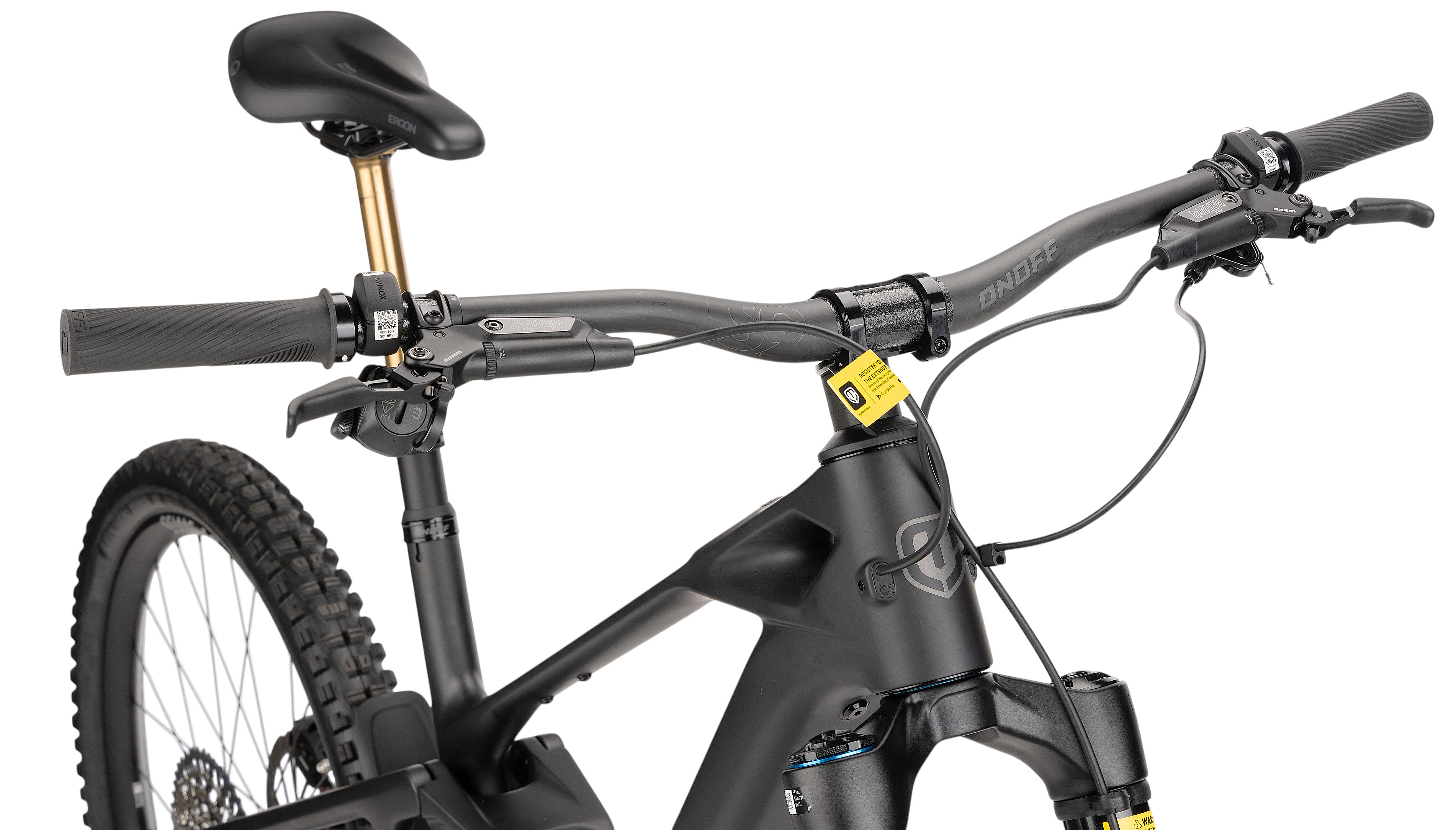

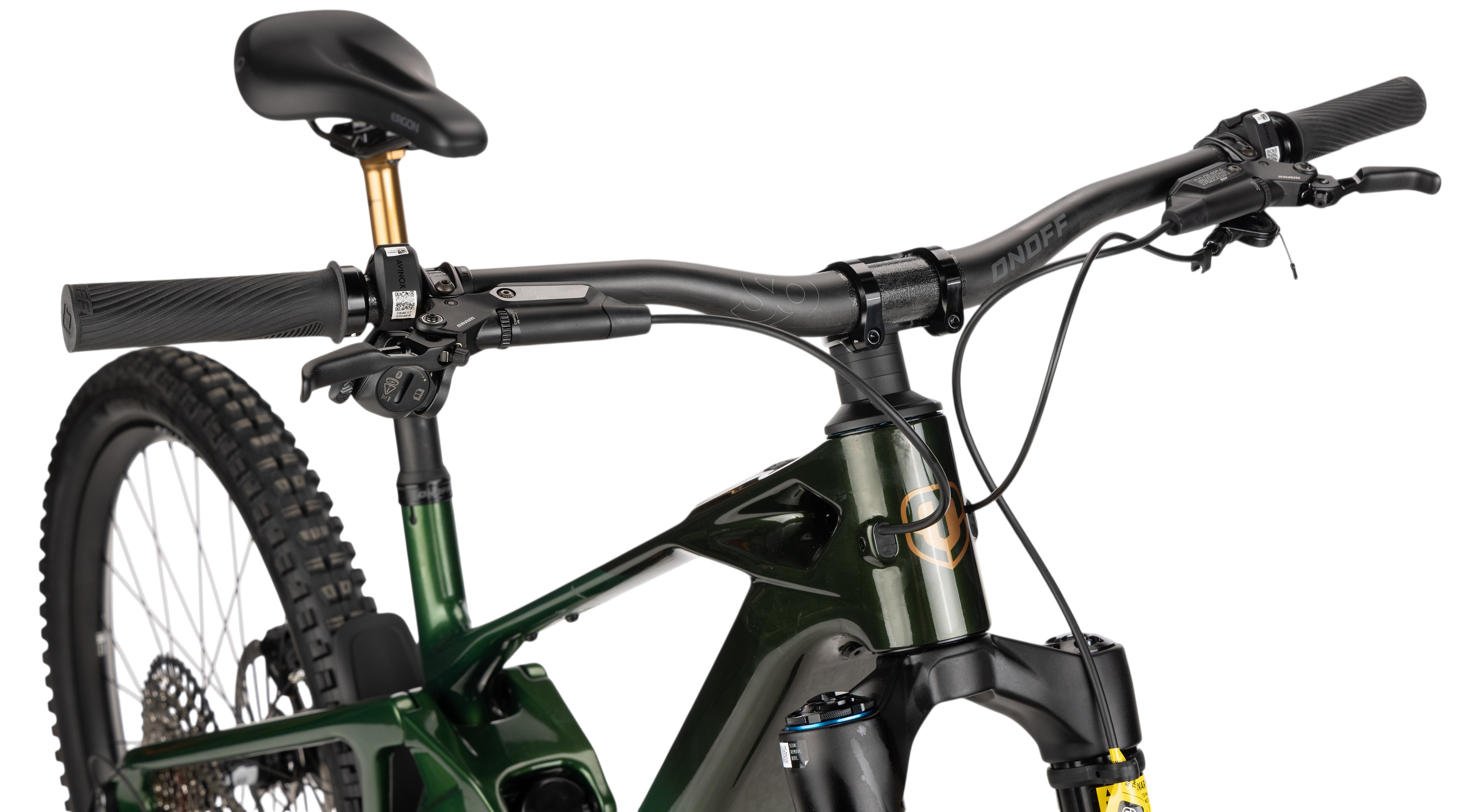

Handlebar Onoff S9 1.0 7050 Carbon, 800mm, 25mm Rise (S/M/ML) / 38mm Rise (L/XL), 8° Backsweep, 5° Upsweep, 31.8mm
Stem Onoff S6, 30mm, 0°, 6061 Forged Alloy + CNC, 31.8mm
Grips Onoff Desert Pro, CNC Lock-On, 135mm (Thicker for L/XL)
Seatpost Onoff Pija Dropper, 31.6mm, S: 140mm / M: 160mm / ML: 180mm / L: 210mm / XL: 210mm
Saddle Ergon SM10 E-Mountain
Motor Avinox M2S, 130Nm (150Nm Boost), 1,300W Peak Power
Battery Avinox 800Wh, Integrated
Display Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)
Wheel Size Mullet 29"/27.5" (Standard) / 29" (Flip Chip)
Approximate Weight 22.8 kg
Intended Use eMTB, Enduro

Note: Components are subject to change without notice.

Geo Chart Image



Mondraker Zendit RR — Standard (Mullet)
Size Small Medium ML Large X-Large
A: Seat Tube Length 380 410 435 460 490
B: Effective Top Tube 586 606 628 650 672
C: Stack 631 631 640 649 658
D: Reach 440 460 480 500 520
F: BB Drop 6 6 6 6 6
G: Head Tube Length 110 110 120 130 140
H: Head Tube Angle 63.5 ° 63.5 ° 63.5 ° 63.5 ° 63.5 °
I: Seat Tube Angle 77.0 ° 77.0 ° 77.0 ° 77.0 ° 77.0 °
K: Chainstay Length 450 450 450 455 455
L: Wheelbase 1241 1261 1286 1315 1339
Mondraker Zendit RR — Standard (Mullet)
Size Small Medium ML Large X-Large
A: Seat Tube Length 15.0 16.1 17.1 18.1 19.3
B: Effective Top Tube 23.1 23.9 24.7 25.6 26.5
C: Stack 24.8 24.8 25.2 25.6 25.9
D: Reach 17.3 18.1 18.9 19.7 20.5
F: BB Drop 0.2 0.2 0.2 0.2 0.2
G: Head Tube Length 4.3 4.3 4.7 5.1 5.5
H: Head Tube Angle 63.5 ° 63.5 ° 63.5 ° 63.5 ° 63.5 °
I: Seat Tube Angle 77.0 ° 77.0 ° 77.0 ° 77.0 ° 77.0 °
K: Chainstay Length 17.7 17.7 17.7 17.9 17.9
L: Wheelbase 48.9 49.6 50.6 51.8 52.7
