Norco Search A CUES Bike

Searching For Your Next Adventure

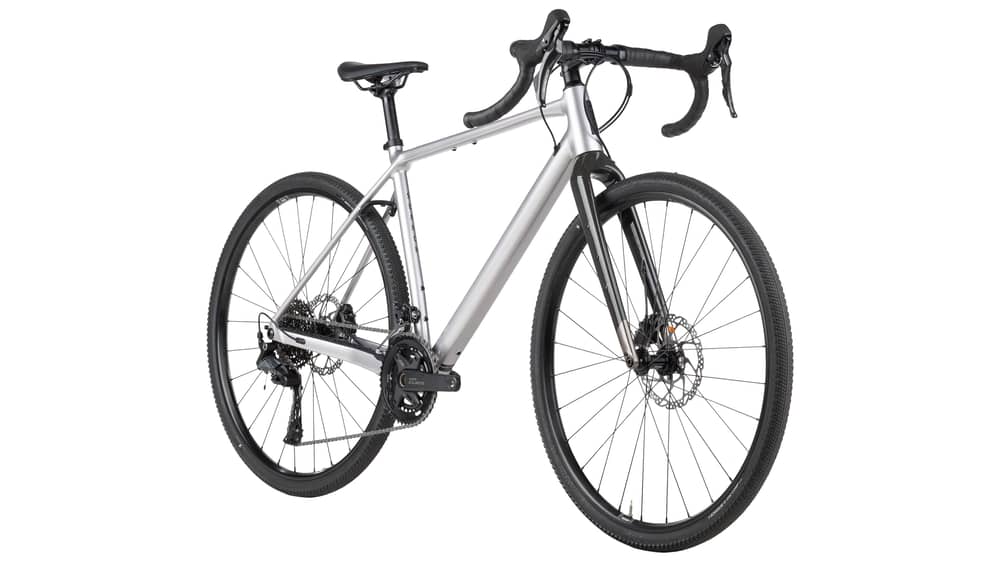

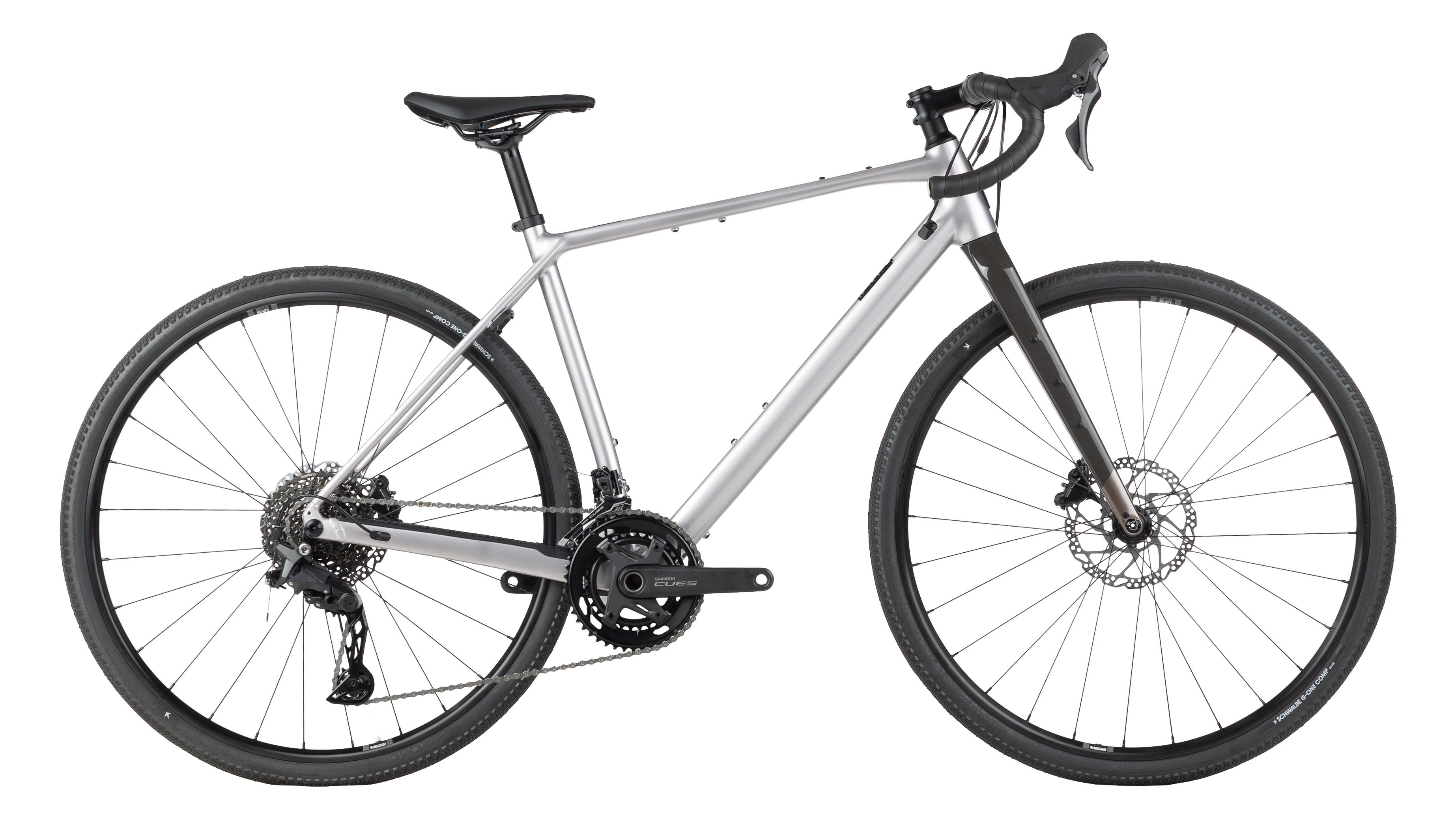

Gravel bikes are truly versatile and can go just about anywhere. Whether you're grinding the gravel roads, cruising the fire roads, or riding the paved bike paths, you'll have fun riding your gravel bike. The Norco Search A CUES Bike is ready for your next adventure. The lightweight aluminum frame comes with a carbon fiber fork and modern gravel frame geometry. The frame has clearance for up to 50mm tires and is compatible with fenders. The frame also features gravel suspension compatibility, internal cable routing, water bottle cage mounts, and a top tube bag mount.

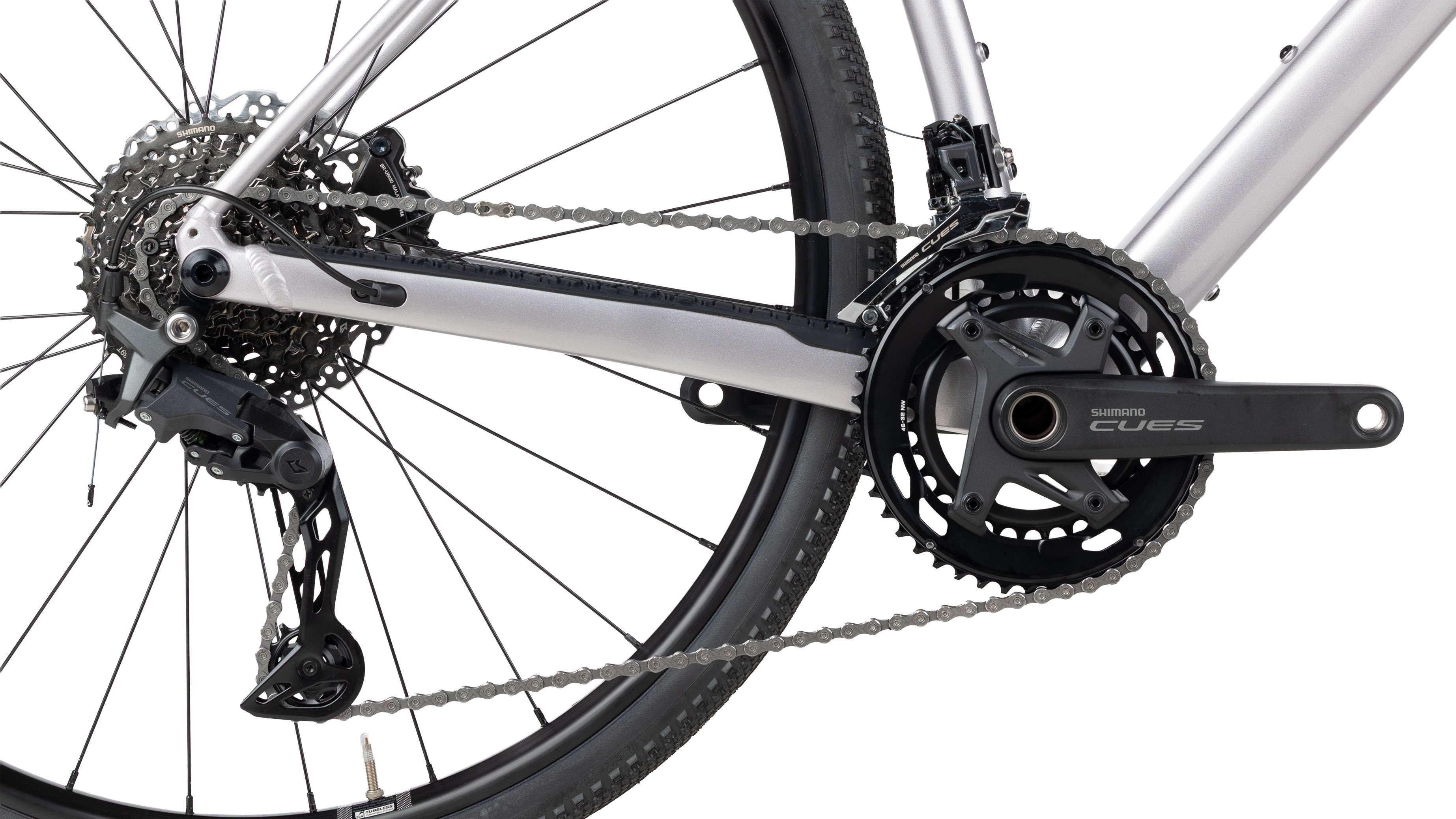

This version of the Norco Search A CUES Bike comes with a Shimano CUES 2x10-speed drivetrain. With a 46/32T chainring up front and a wide-range 11-39T cassette on the rear, you'll have no issues climbing, sprinting, or commuting to work. When it comes to descending steep hills, Shimano CUES hydraulic disc brakes provide highly reliable stopping power so you can slow down and stop under control. WTB ST i25 2.0 rims are paired with Schwalbe G-One Comp tires that have flat protection for maximum durability.

Features

  • Lightweight aluminum frame with clearance for up to 50mm tires, fender mounts, internal cable routing, water bottle cage mounts, and a top tube bag mount
  • Shimano CUES 2x10-speed drivetrain performs exceptionally well on and off road
  • Shimano CUES hydraulic disc brakes provide highly reliable stopping power
  • WTB ST i25 2.0 rims paired with Schwalbe G-One Comp 700x40c tires
SPECIFICATIONS
Frame Search Butted Aluminum w/Smooth Welds
Fork Search Carbon, 51mm Offset, 12x100mm TA
Headset FSA Integrated Sealed Bearings No.42, IS42/28.6 | IS52/40

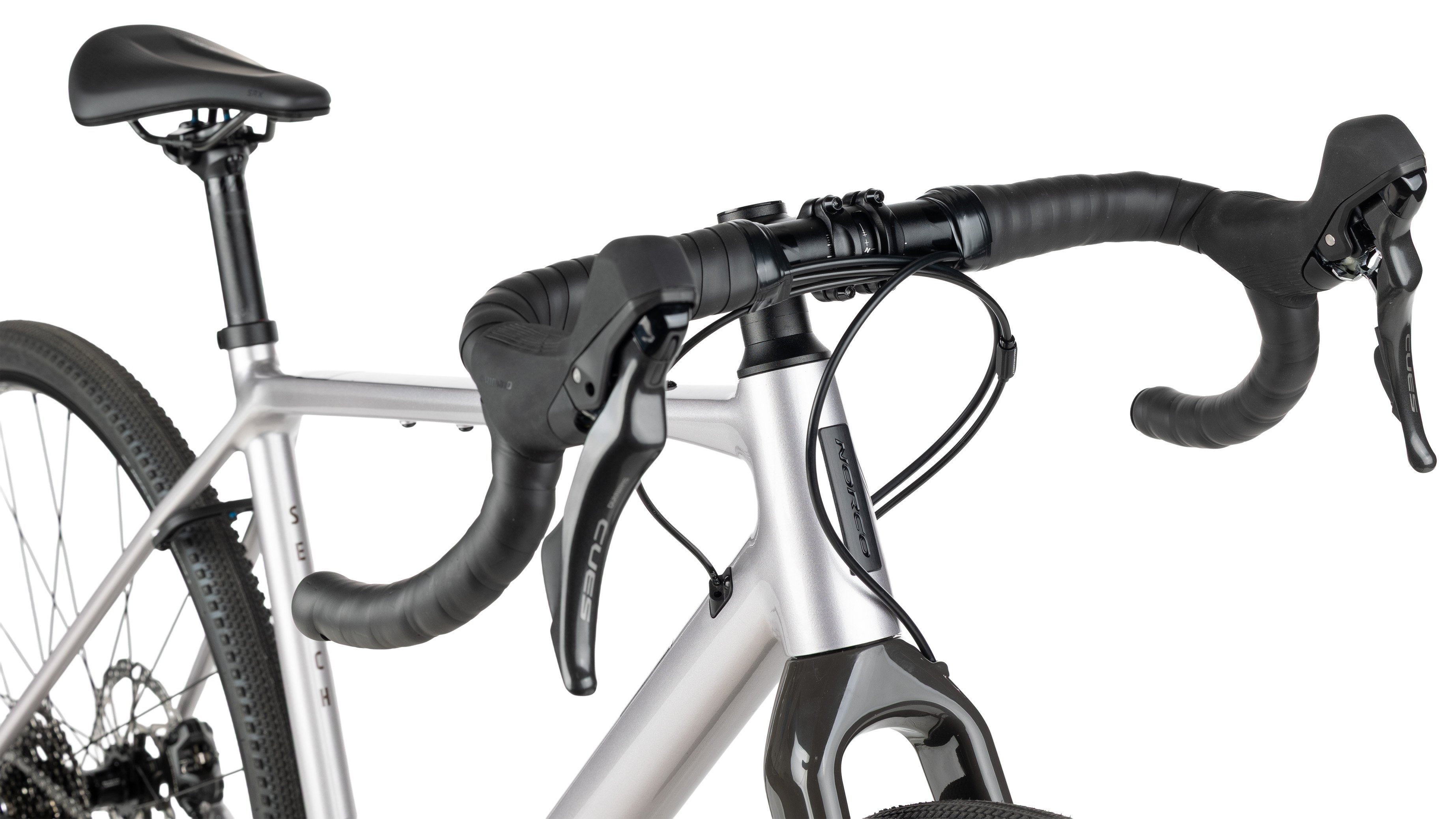

Shifters Shimano CUES ST-U6030, 2x10-Speed
Front Derailleur Shimano CUES FD-U6030, Down Swing
Rear Derailleur Shimano CUES RD-U6020, Shadow, 10-Speed
Crankset Shimano CUES FC-U6030, 46/32T, 170mm
Bottom Bracket Shimano Cartridge Bearing, 68mm BSA
Chain KMC XGlide
Cassette Shimano LG-400, 11-39T, 10-Speed
Brakes Shimano CUES BR-U6030 Hydraulic, Shimano SM-RT54 CL 160mm Rotors
Wheelset WTB ST i25 2.0 28H, 25mm ID, Shimano TC500 12x142/12x100mm Hubs
Tires Schwalbe G-One Comp, K-Guard Recyclable, 700x40c
Handlebar Norco Super Flare Aluminum Compact, 16° Flare
Stem Norco SL Alloy 70mm Length, 31.8mm Clamp
Grips/Bar Tape Griptacular Shockproof Tape 3mm
Seatpost Norco Alloy 27.2mm, 12° Offset, 300mm Length
Seatclamp Aluminum Bolted 31.8mm
Saddle Selle Royale SRX Gravel, 148mm
Intended Use Gravel, Commuter

Note: Components are subject to change without notice.

Geo Chart Image



Norco Search A
Size S1 S2 S3 S4 S5
A: Seat Tube Length 440 475 510 545 580
B: Effective Top Tube 539 559 583 608 633
C: Stack 554 564 587 611 634
D: Reach 385 400 415 430 445
E: BB Height 285 285 285 285 285
F: BB Drop 75 75 75 75 75
G: Head Tube Length 100 110 135 160 185
H: Head Tube Angle 69.5 ° 69.5 ° 69.5 ° 69.5 ° 69.5 °
I: Seat Tube Angle 74.5 ° 74.25 ° 74 ° 73.75 ° 73.5 °
J: Standover Height 682 715 748 781 814
K: Chainstay Length 425 425 427 430 430
L: Wheelbase 1037 1056 1082 1108 1132
Crank Arm Length 165 mm 170 mm 170 mm 172.5 mm 172.5 mm
Stem Length 70 mm 70 mm 70 mm 70 mm 70 mm
Handlebar Width 400 mm 400 mm 420 mm 440 mm 460 mm
Suggested Rider Height
Frame Size S1 S2 S3 S4 S5
Rider Height 5'1" - 5'5"
155 - 165 cm		 5'4" - 5'8"
162.5 - 172.5 cm		 5'7" - 5'11"
170 - 180 cm		 5'10" - 6'2"
177.5 - 187.5 cm		 6'1" - 6'5"
185 - 195 cm
Norco Search A
Size S1 S2 S3 S4 S5
A: Seat Tube Length 17.3 18.7 20.1 21.5 22.8
B: Effective Top Tube 21.2 22.0 23.0 23.9 24.9
C: Stack 21.8 22.2 23.1 24.1 25.0
D: Reach 15.2 15.7 16.3 16.9 17.5
E: BB Height 11.2 11.2 11.2 11.2 11.2
F: BB Drop 3.0 3.0 3.0 3.0 3.0
G: Head Tube Length 3.9 4.3 5.3 6.3 7.3
H: Head Tube Angle 69.5 ° 69.5 ° 69.5 ° 69.5 ° 69.5 °
I: Seat Tube Angle 74.5 ° 74.3 ° 74.0 ° 73.8 ° 73.5 °
J: Standover Height 26.9 28.1 29.4 30.7 32.0
K: Chainstay Length 16.7 16.7 16.8 16.9 16.9
L: Wheelbase 40.8 41.6 42.6 43.6 44.6
Crank Arm Length 165 mm 170 mm 170 mm 172.5 mm 172.5 mm
Stem Length 70 mm 70 mm 70 mm 70 mm 70 mm
Handlebar Width 400 mm 400 mm 420 mm 440 mm 460 mm
Suggested Rider Height
Frame Size S1 S2 S3 S4 S5
Rider Height 5'1" - 5'5"
155 - 165 cm		 5'4" - 5'8"
162.5 - 172.5 cm		 5'7" - 5'11"
170 - 180 cm		 5'10" - 6'2"
177.5 - 187.5 cm		 6'1" - 6'5"
185 - 195 cm
