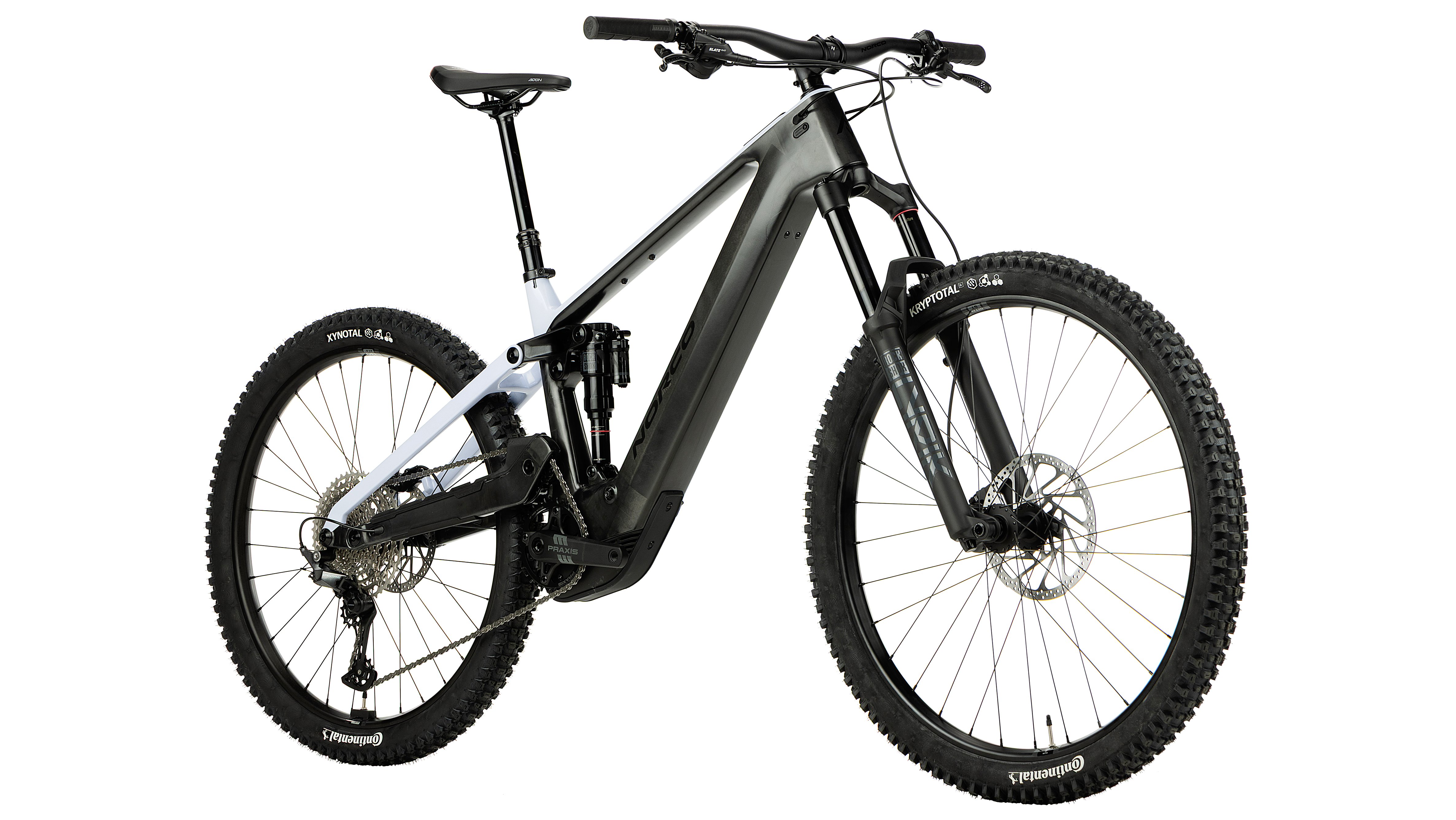

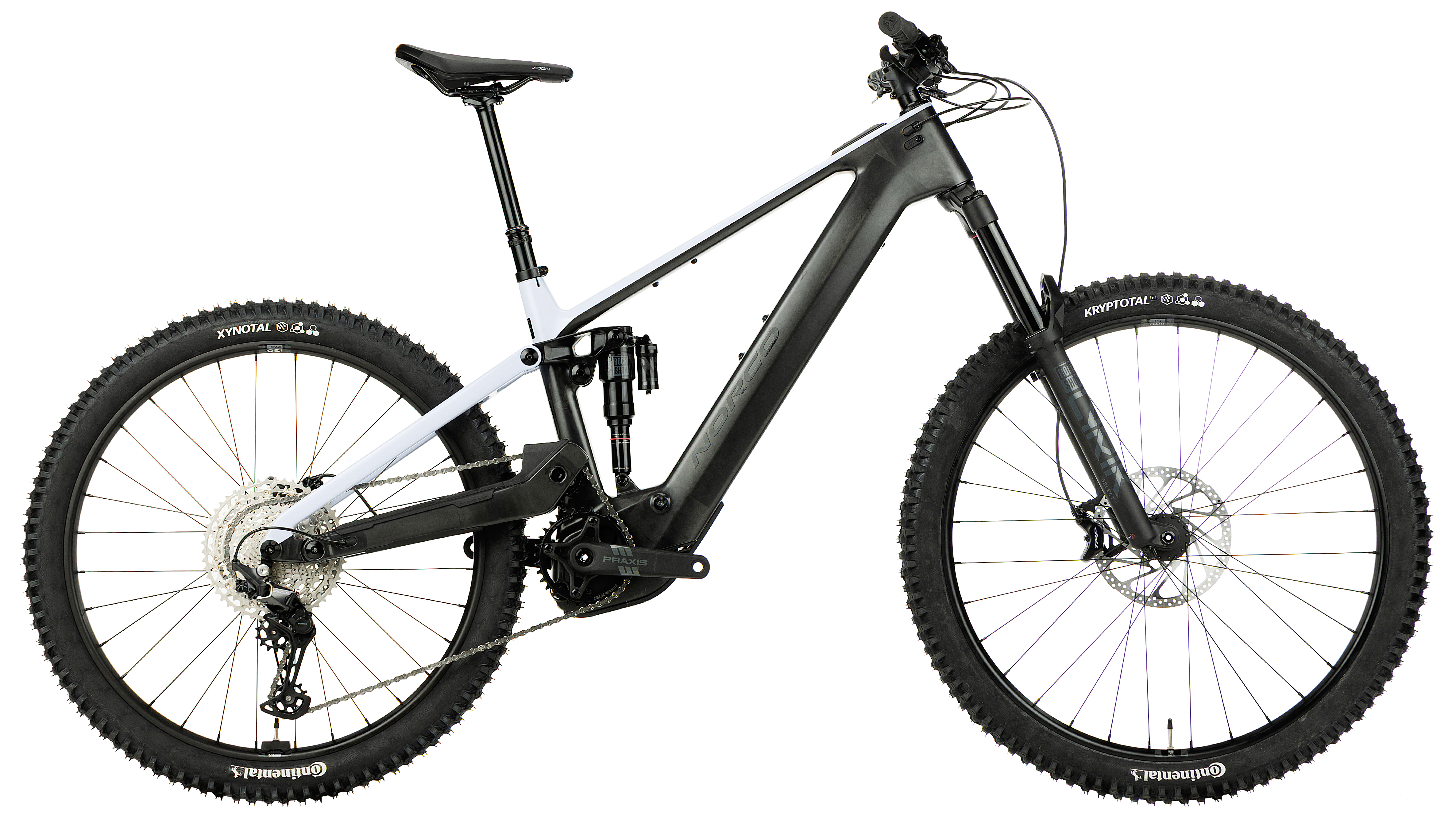

Norco Sight VLT CX C3 E-Bike

A Sight To Behold

All-mountain bikes are great at many things, and when you add a motor to one, these bikes become exceptionally capable. The Norco Sight VLT CX C3 E-Bike unshackles the constraints placed on any ride by letting you dig deeper, commit harder, and climb higher than ever with zero consequences. The frame is made from carbon fiber. 160mm of travel on the front and 150mm of travel on the rear means you'll be able to ride tougher trails and still climb back to the top again. The Sight VLT is engineered around a 29"/27.5" MX wheelset to take advantage of the inherent agility and confidence that e-MTB riders need. The frame features High Pivot Horst Suspension, Ride Aligned Design, internal cable routing, integrated frame protection, and a chainstay-mounted dynamic idler. With the power of Bosch underneath you, you'll get up to 20mph of pedal assistance so you can climb faster and ride farther.

The C3 edition of the Norco Sight VLT comes with a Shimano Deore 12-speed drivetrain. With a wide 10-51T gear range on the rear, you'll have no issues with hills or tough terrain. TRP Slate Evo 4-piston hydraulic disc brakes provide exceptional stopping power so you can descend with confidence. WTB ST i30 rims are paired with Continental tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the TranzX Dropper Post, you'll be able to quickly lift and lower your saddle with the press of a lever.

Features

  • Carbon frame with High Pivot Horst Suspension, Ride Aligned Design, internal cable routing, integrated frame protection, and a chainstay-mounted dynamic idler
  • Shimano Deore 12-speed drivetrain provides an excellent shifting performance experience
  • TRP Slate Evo 4-piston hydraulic disc brakes offer confidence-inspiring stopping power
  • Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
  • TranzX Dropper Post quickly lifts and lowers your saddle with the press of a lever
  • Bosch Performance Line CX provides pedal assistance so you can tackle tough obstacles
SPECIFICATIONS
Frame Carbon Front Triangle & Seatstay, Aluminum Chainstay, Ride Aligned
Fork RockShox Lyrik Select, 160mm Travel, 44mm Offset

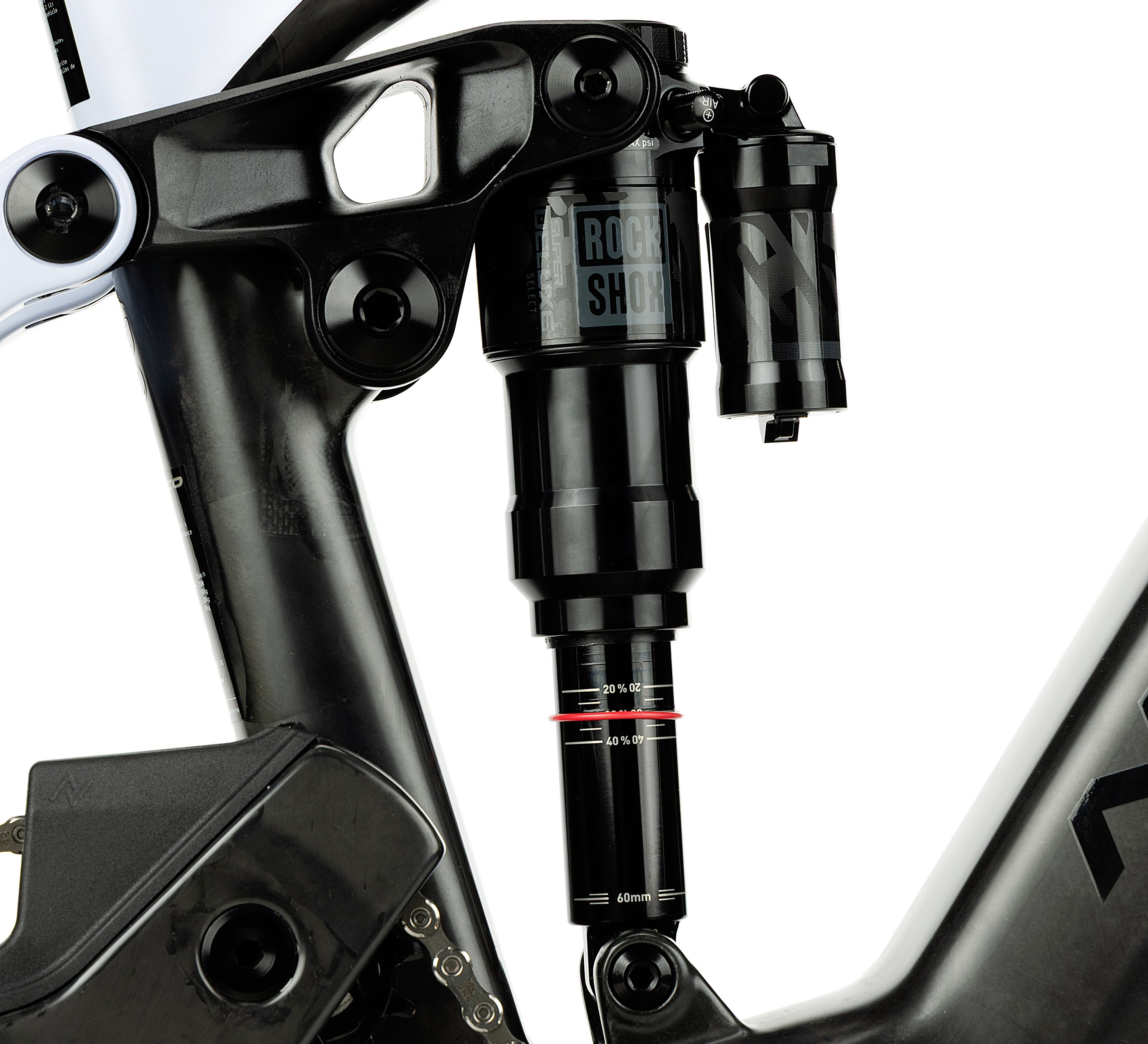

Rear Shock RockShox Super Deluxe Select, 205x60mm Trunnion
Headset FSA No.55 Sealed Bearing
Shifters Shimano Deore SL-M6100-R, 12-Speed
Front Derailleur Absolutely Not

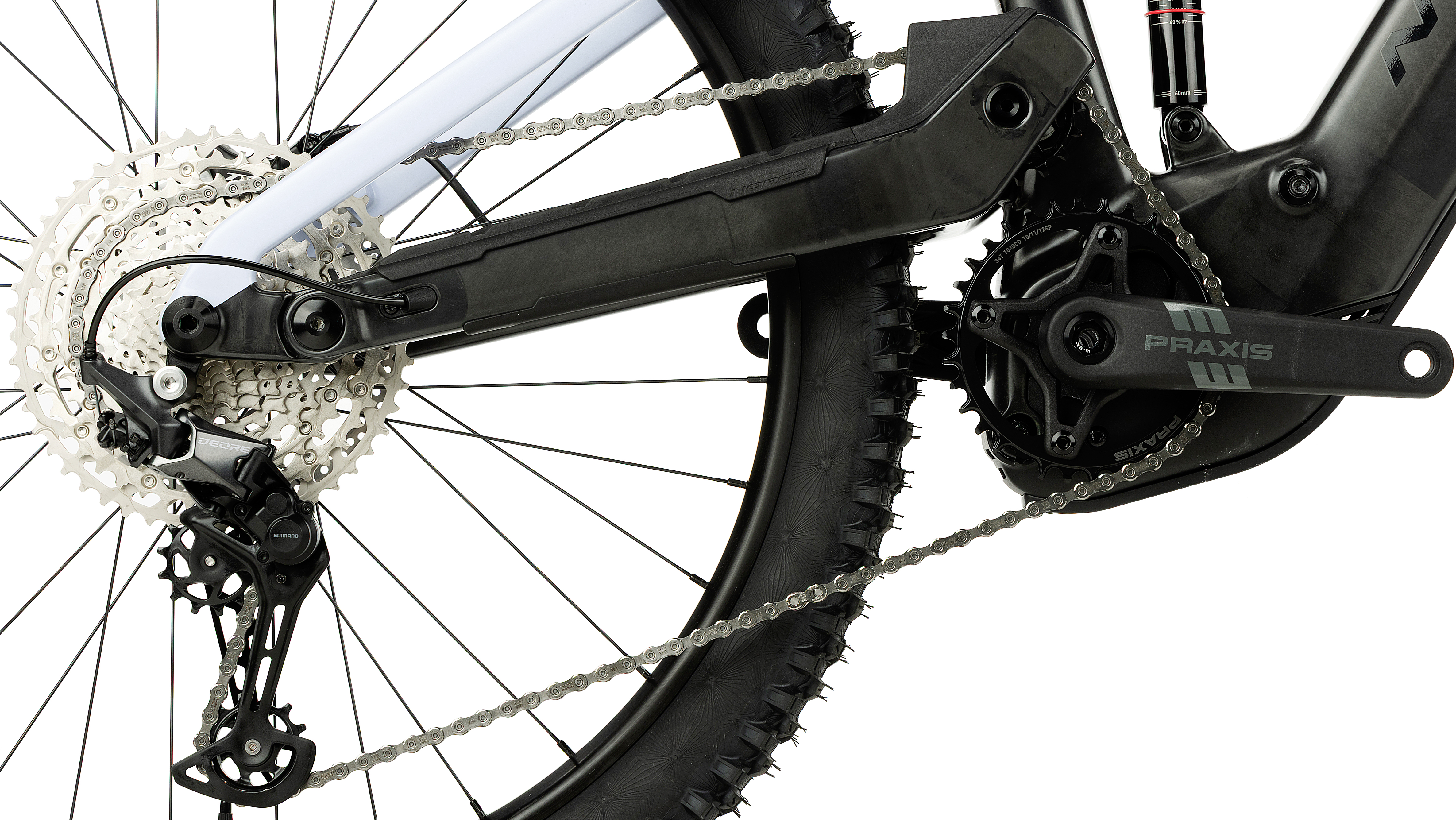

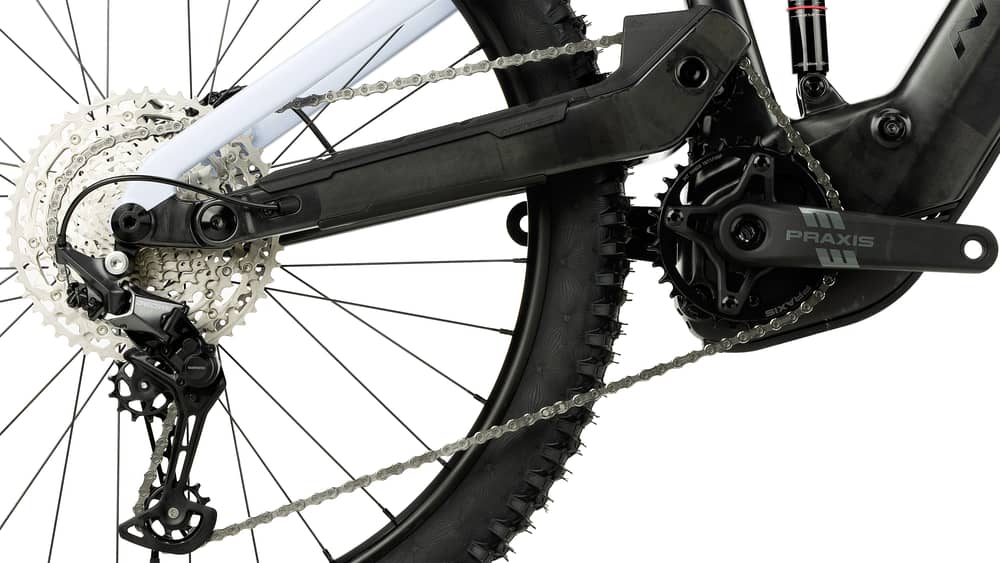

Rear Derailleur Shimano Deore RD-M6100, 12-Speed
Crankset Praxis HD Aluminum Bosch Cranks, 34T, 165mm
Bottom Bracket Bosch DBU38
Chain Shimano Deore CN-M6100, 12-Speed
Cassette Shimano Deore CS-M6100-12, 10-51T
Brakes TRP Slate Evo, TRP RS01E 203/180mm Rotors
Wheelset WTB ST i30 Rims 29"/27.5", Bear Pawls Boost Hubs
Tires Continental Kryptotal-F Enduro Soft 29x2.4" / Continental Xynotal Enduro Soft 27.5x2.4"

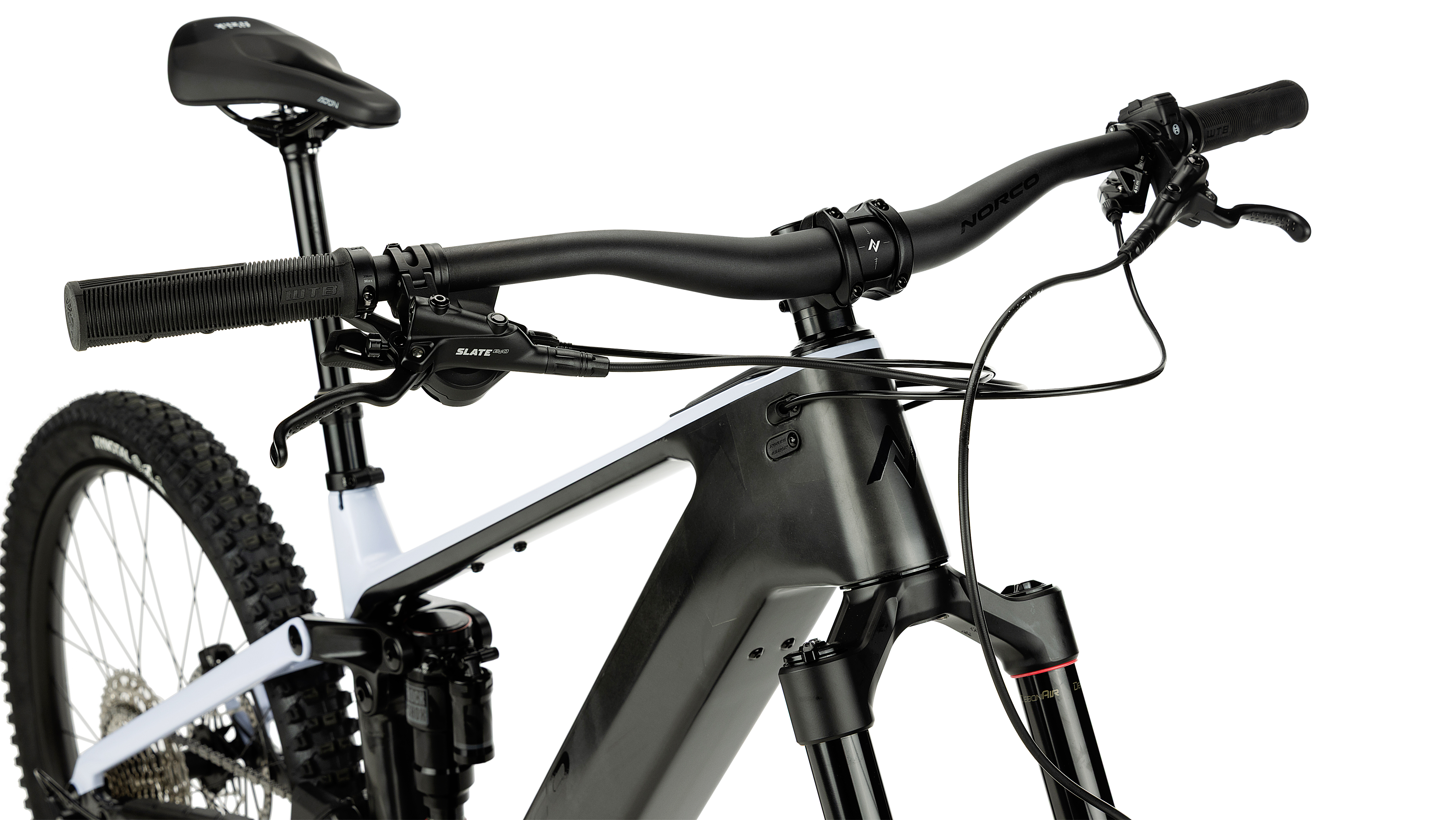

Handlebar Norco 6061 DB Alloy, 800mm Wide, 25mm Rise
Stem 6061 Alloy, 40mm Length, 35mm Clamp
Grips/Bar Tape WTB Wavelength, 130mm Length
Seatpost TranzX YSP23 Adjustable Dropper, 31.9mm, S1:125, S2:150, S3:170, S4/5:200mm
Seatclamp Bolt-Type
Saddle Fizik Terra Aidon X5
Intended Use All-Mountain
Motor Bosch Performance Line CX BDU38
Battery Bosch PowerTube 800 Wh
Display Bosch

Note: Components are subject to change without notice.

Geo Chart Image



Norco Sight VLT
Size S1 S2 S3 S4 S5
A: Seat Tube Length 385 395 415 445 475
B: Effective Top Tube 565 589 613 637 661
C: Stack 618 627 636 645 654
D: Reach 422 447 472 497 522
E: BB Height 349 349 349 349 349
F: BB Drop 25 25 25 25 25
G: Head Tube Length 105 115 125 135 145
H: Head Tube Angle 64 ° 64 ° 64 ° 64 ° 64 °
I: Seat Tube Angle 77 ° 77.25 ° 77.5 ° 77.75 ° 78 °
J: Standover Height 727 701 711 714 729
K: Chainstay Length 428 432 436 440 444
L: Wheelbase 1189 1222 1255 1289 1322
Crank Arm Length 165 mm 165 mm 165 mm 165 mm 165 mm
Stem Length 40 mm 40 mm 40 mm 40 mm 40 mm
Handlebar Width 800 mm 800 mm 800 mm 800 mm 800 mm
Suggested Rider Height
Frame Size S1 S2 S3 S4 S5
Rider Height 5'1" - 5'5"
155 - 165 cm		 5'4" - 5'8"
162.5 - 172.5 cm		 5'7" - 5'11"
170 - 180 cm		 5'10" - 6'2"
178 - 188 cm		 6'1" - 6'5"
185.5 - 195.5 cm
Norco Sight VLT
Size S1 S2 S3 S4 S5
A: Seat Tube Length 15.2 15.6 16.3 17.5 18.7
B: Effective Top Tube 22.2 23.2 24.1 25.1 26.0
C: Stack 24.3 24.7 25.0 25.4 25.7
D: Reach 16.6 17.6 18.6 19.6 20.6
E: BB Height 13.9 13.9 13.9 13.9 13.9
F: BB Drop 1.0 1.0 1.0 1.0 1.0
G: Head Tube Length 4.1 4.5 4.9 5.3 5.7
H: Head Tube Angle 64.0 ° 64.0 ° 64.0 ° 64.0 ° 64.0 °
I: Seat Tube Angle 77.0 ° 77.3 ° 77.5 ° 77.8 ° 78.0 °
J: Standover Height 28.6 28.3 28.6 29.1 29.6
K: Chainstay Length 16.9 16.9 17.0 17.2 17.3
L: Wheelbase 46.8 48.0 49.3 50.6 51.9
Crank Arm Length 165 mm 165 mm 165 mm 165 mm 165 mm
Stem Length 40 mm 40 mm 40 mm 40 mm 40 mm
Handlebar Width 800 mm 800 mm 800 mm 800 mm 800 mm
Suggested Rider Height
Frame Size S1 S2 S3 S4 S5
Rider Height 5'1" - 5'5"
155 - 165 cm		 5'4" - 5'8"
162.5 - 172.5 cm		 5'7" - 5'11"
170 - 180 cm		 5'10" - 6'2"
178 - 188 cm		 6'1" - 6'5"
185.5 - 195.5 cm
