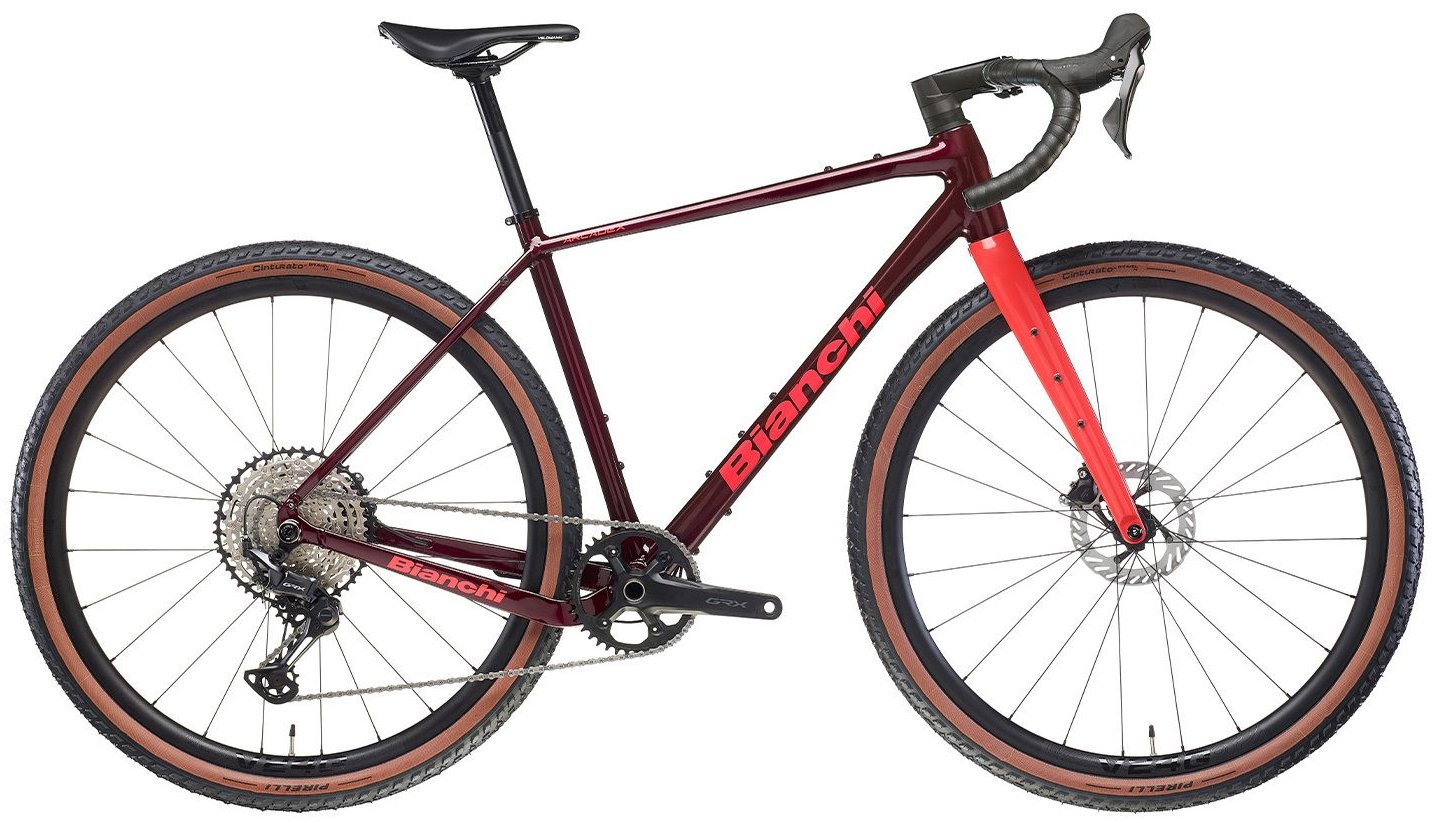

Burgundy/Coral Red

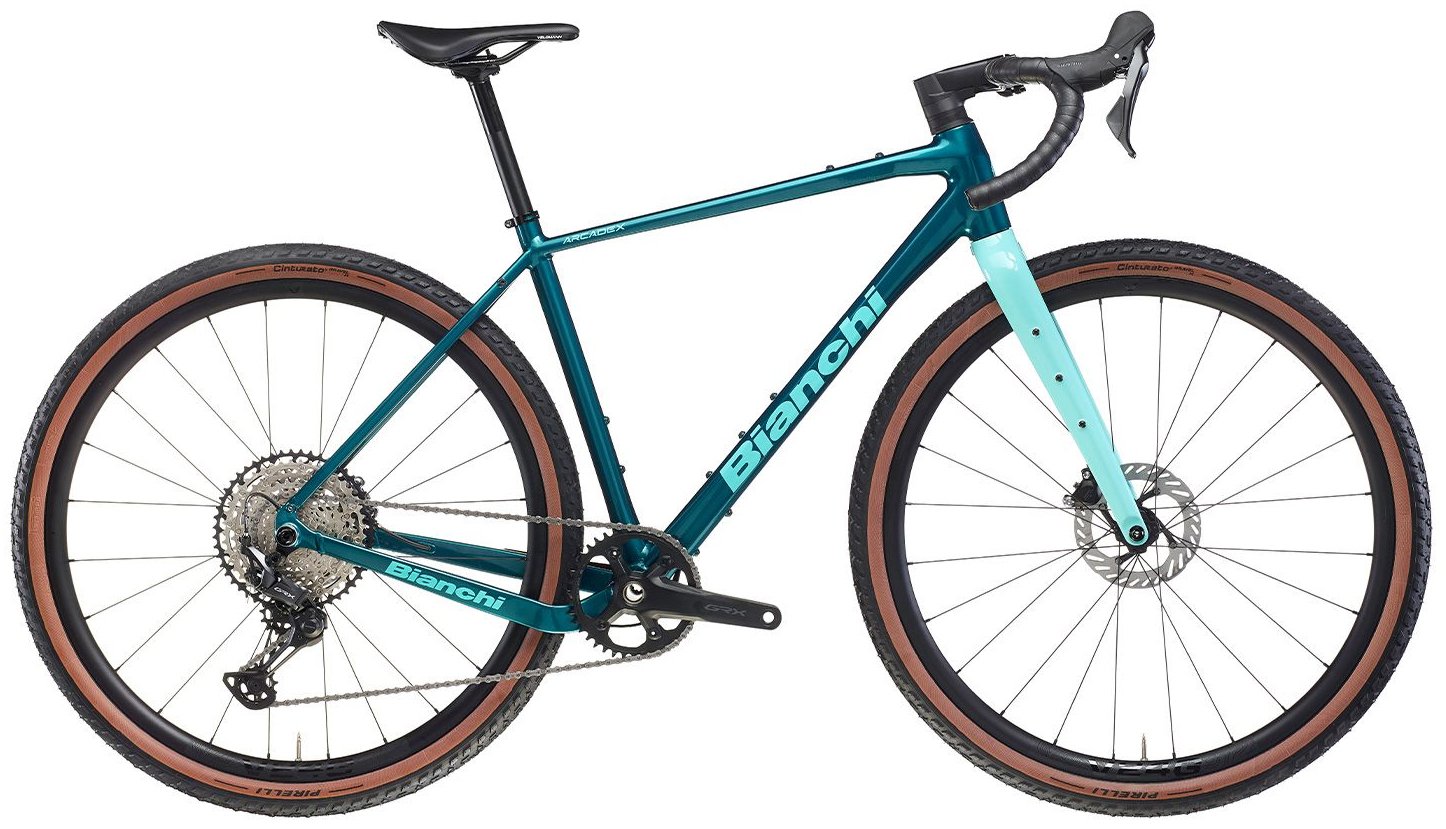

Turquoise/Celeste
Color:
Burgundy/Coral Red
Size:Large
Only 1 Left - Ready to Ship
More of these are on the way. Leave us your contact information and we'll let you know when they arrive.
There seems to be a problem with your name - Please Provide a name.
There seems to be a problem with your name - Please provide your first and last name.
There seems to be a problem with your phone number - please correct and submit again
There seems to be a problem with your email - please correct and submit again
There seems to be a problem with your email or phone number - Please provide your email or phone number.
Success! You're on our notification list. Thanks for your interest in this product.
Learn More
+ Add Accident Protection from
Remove Protection Plan
Gear Advisor

Questions about this bike?

Contact a Gear Advisor Pro.

* Information provided in this AI Shopping Assistant may not match all information on the website. Please refer to the website to confirm details.

*Free Shipping over $50
90 Day Returns

Bianchi Arcadex Aluminum GRX 610/822 Bike

Exceptional Performance

Gravel bikes are truly versatile bikes that can glide efficiently on the pavement and conquer the dirt trails when there's no more pavement. These bikes are perfect for those who love exploring. The Bianchi Arcadex Aluminum GRX 610/822 Bike creates an instant connection to the simple pleasure of riding and will help you to perform to the best of your ability, no matter the terrain. It has an aluminum frame and fork that use 12mm thru-axles on the front and rear. The frame features internal cable routing, flat mount disc brake mounts, a T47 bottom bracket, and is compatible with up to 700x50mm tires.

The GRX610/822 version of the Bianchi Arcadex Aluminum comes with a 12-speed GRX 610/822 drivetrain. The gearing consists of a 40T chainring on the front and an ultra-wide 10-51T cassette on the rear. This makes climbing and pedaling through difficult trail sections much easier. Shimano BR-RX410 hydraulic disc brakes provide highly reliable stopping power so you can descend under control. Velomann V22G rims are paired with Pirelli Cinturato tires that roll smoothly on the pavement while also providing ample traction while riding on the dirt.

Features

  • Hydroformed aluminum frame with internal cable routing, flat mount disc brake mounts, a T47 bottom bracket, and is compatible with up to 700x50mm tires
  • Shimano GRX 12-speed drivetrain performs exceptionally well in all riding conditions
  • Shimano RX410 hydraulic disc brakes provide highly reliable stopping power
  • Velomann V22G rims paired with Pirelli Cinturato 700x45mm tires
SPECIFICATIONS
Frame Hydroformed Aluminum
Fork Carbon, 12x100mm
Headset Acros For Internal Cable Routing
Shifters Shimano GRX ST-RX610, 12-Speed
Front Derailleur Not Today
Rear Derailleur Shimano GRX RD-RX822, 12-Speed
Crankset Shimano GRX FC-RX610, 40T
Bottom Bracket Token T47, 24mm Axle, 86.5mm Wide
Chain Shimano 105, CN-M7100
Cassette Shimano SLX, CS-M7100, 10-51T
Brakes Shimano BR-RX410 Hydraulic Disc Brake, CL700 160mm Rotors
Wheelset Velomann V22G Rims, 12x100/12x142mm Hubs
Tires Pirelli Cinturato Tanwall 700x45mm
Handlebar Velomann Gravel Aluminum, 31.8mm, 16° Flare
Stem Velomann AL6061, -7° Rise
Grips/Bar Tape Bianchi Hexagon Tape, 2.5mm
Seatpost Velomann Aluminum 27.2mm, 0mm Setback
Seatclamp Bolt-Type
Saddle Selle Royal SRX Open
Intended Use Gravel

Note: Components are subject to change without notice.

Geo Chart Image



Bianchi Arcadex AL
Size Extra Small Small Medium Large Extra Large
A: Seat Tube Length 410 450 490 520 550
B: Effective Top Tube 537 554 573 584 610
C: Stack 537 556 576 597 616
D: Reach 389 396 404 413 423
E: BB Height - - - - -
F: BB Drop 75 75 75 75 75
G: Head Tube Length 100 120 140 160 180
H: Head Tube Angle 70.5 ° 70.5 ° 71 ° 71.5 ° 71.5 °
I: Seat Tube Angle 74.5 ° 75 ° 73.5 ° 73.5 ° 73 °
J: Standover Height - - - - -
K: Chainstay Length 430 430 430 430 430
L: Wheelbase 1027 1041 1056 1067 1083
Crank Arm Length 165 mm 165 mm 170 mm 170 mm 172.5 mm
Stem Length 70 mm 80 mm 90 mm 100 mm 110 mm
Handlebar Width 400 mm 400 mm 420 mm 420 mm 440 mm
Bianchi Arcadex AL
Size Extra Small Small Medium Large Extra Large
A: Seat Tube Length 16.1 17.7 19.3 20.5 21.7
B: Effective Top Tube 21.1 21.8 22.6 23.0 24.0
C: Stack 21.1 21.9 22.7 23.5 24.3
D: Reach 15.3 15.6 15.9 16.3 16.7
E: BB Height - - - - -
F: BB Drop 3.0 3.0 3.0 3.0 3.0
G: Head Tube Length 3.9 4.7 5.5 6.3 7.1
H: Head Tube Angle 70.5 ° 70.5 ° 71.0 ° 71.5 ° 71.5 °
I: Seat Tube Angle 74.5 ° 75.0 ° 73.5 ° 73.5 ° 73.0 °
J: Standover Height - - - - -
K: Chainstay Length 16.9 16.9 16.9 16.9 16.9
L: Wheelbase 40.4 41.0 41.6 42.0 42.6
Crank Arm Length 165 mm 165 mm 170 mm 170 mm 172.5 mm
Stem Length 70 mm 80 mm 90 mm 100 mm 110 mm
Handlebar Width 400 mm 400 mm 420 mm 420 mm 440 mm
