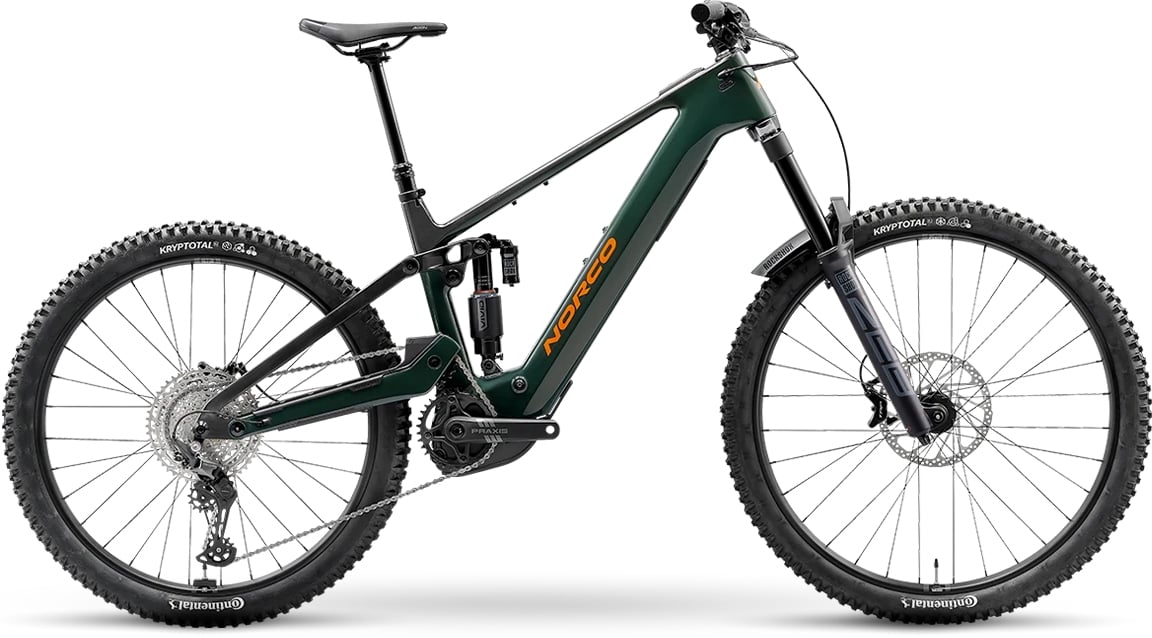

Norco Range VLT CX C2 Bike

The E-nduro Bike

Is it possible to make a nimble bike with long suspension travel that is capable of conquering tough enduro trails any better? Of course, it is; just add a motor to it. The Norco Range VLT CX C2 E-Bike climbs faster than a World Cup XC pro and tackles big mountain and enduro rides with confidence. The Range features a carbon fiber frame that utilizes 160mm of travel at the rear and 170mm of travel at the front, paired with a 29" front wheel and a 27.5" rear wheel. The frame uses a Ride Aligned Design System to create rider-first geometry and precision suspension kinematics. A custom fit and tuning with the Ride Aligned Setup Guide provides unparalleled, personalized performance from day one. The frame also features internal cable routing, integrated frame protection, water bottle cage mounts, and is UDH compatible. With the Bosch Performance Line CX motor, you'll get up to 20mph of pedal assistance so you can accelerate back up to the top of the mountain after you get done shredding on the descent.

The C2 version of the Norco Range VLT CX comes with a Shimano Deore 12-speed drivetrain. This includes an ultra-wide 10-51T cassette that makes climbing and pedaling through difficult terrain much easier. TRP Slate EVO hydraulic disc brakes provide excellent stopping power so you can descend with confidence. WTB ST i30 rims are paired with Continental Kryptotal tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the TranzX Dropper Post, you'll be able to quickly lift and lower your saddle with the press of a lever.

Features

Carbon fiber frame with internal cable routing, integrated frame protection, water bottle cage mounts, and is UDH compatible
Shimano Deore 12-speed drivetrain performs well in various conditions
TRP Slate EVO hydraulic disc brakes provide excellent stopping power
Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
TranzX Dropper Post quickly lifts and lowers your saddle with the press of a lever

SPECIFICATIONS
Frame	Carbon Fiber
Fork	RockShox Zeb Base, 170mm Travel, 44mm Offset
Rear Shock	RockShox Vivid Air Base, 205x65mm TR
Headset	FSA No.55 Sealed Bearing, ZS44/28.6 \| ZS56/40
Shifters	Shimano Deore SL-M6100-R, 12-Speed
Front Derailleur	Nope
Rear Derailleur	Shimano Deore RD-M6100, 12-Speed
Crankset	Praxis HD Aluminum Bosch Cranks, 34T
Bottom Bracket	Bosch BDU38
Chain	Shimano Deore XT CN-M8100, 12-Speed
Cassette	Shimano Deore CS-M6100, 10-51T
Brakes	TRP Slate EVO, TRP 203/180mm Rotors
Wheelset	WTB ST i30 30mm 29/27.5" Rims, Bear Pawls 15x110/12x148mm Hubs
Tires	Continental Kryptotal Enduro, Soft, 29x2.4"/27.5x2.4"
Handlebar	Norco 6061 DB Alloy, 800mm, 25mm Rise
Stem	Norco Alloy, 40mm Length, 35mm Clamp
Grips/Bar Tape	WTB Wavelength, 130mm Length
Seatpost	TranzX YSP23KL, 31.6mm, S2:160, S3:170, S4/5:200mm Travel
Seatclamp	Bolt-Type
Saddle	Fizik Terra Aidon X5
Intended Use	Enduro
Motor	Bosch Performance Line CX, 100 Nm/750W
Battery	Bosch PowerTube 800Wh
Display	-

Note: Components are subject to change without notice.

Geo Chart Image

METRIC
INCH

Norco Range VLT CX
Size	S2	S3	S4	S5
A: Seat Tube Length	395	415	445	475
B: Effective Top Tube	589	613	637	661
C: Stack	631	640	650	659
D: Reach	441	466	491	516
E: BB Height	353	353	353	353
F: BB Drop	20	20	20	20
G: Head Tube Length	115	125	135	145
H: Head Tube Angle	63.5 °	63.5 °	63.5 °	63.5 °
I: Seat Tube Angle	76.5 °	77 °	77.25 °	77.5 °
J: Standover Height	705	711	718	733
K: Chainstay Length	432	436	440	444
L: Wheelbase	1228	1261	1295	1328
Crank Arm Length	160 mm	160 mm	160 mm	160 mm
Stem Length	40 mm	40 mm	40 mm	40 mm
Handlebar Width	800 mm	800 mm	800 mm	800 mm

Suggested Rider Height
Frame Size	S2	S3	S4	S5
Rider Height	5'4" - 5'8"	5'7" - 5'11"	5'10" - 6'2"	6'1" - 6'5"

Norco Range VLT CX
Size	S2	S3	S4	S5
A: Seat Tube Length	15.6	16.3	17.5	18.7
B: Effective Top Tube	23.2	24.1	25.1	26.0
C: Stack	24.8	25.2	25.6	25.9
D: Reach	17.4	18.3	19.3	20.3
E: BB Height	13.9	13.9	13.9	13.9
F: BB Drop	0.8	0.8	0.8	0.8
G: Head Tube Length	4.5	4.9	5.3	5.7
H: Head Tube Angle	63.5 °	63.5 °	63.5 °	63.5 °
I: Seat Tube Angle	76.5 °	77.0 °	77.3 °	77.5 °
J: Standover Height	27.8	28.0	28.3	28.9
K: Chainstay Length	17.0	17.2	17.3	17.5
L: Wheelbase	48.3	49.6	51.0	52.3
Crank Arm Length	160 mm	160 mm	160 mm	160 mm
Stem Length	40 mm	40 mm	40 mm	40 mm
Handlebar Width	800 mm	800 mm	800 mm	800 mm

Suggested Rider Height
Frame Size	S2	S3	S4	S5
Rider Height	5'4" - 5'8"	5'7" - 5'11"	5'10" - 6'2"	6'1" - 6'5"
