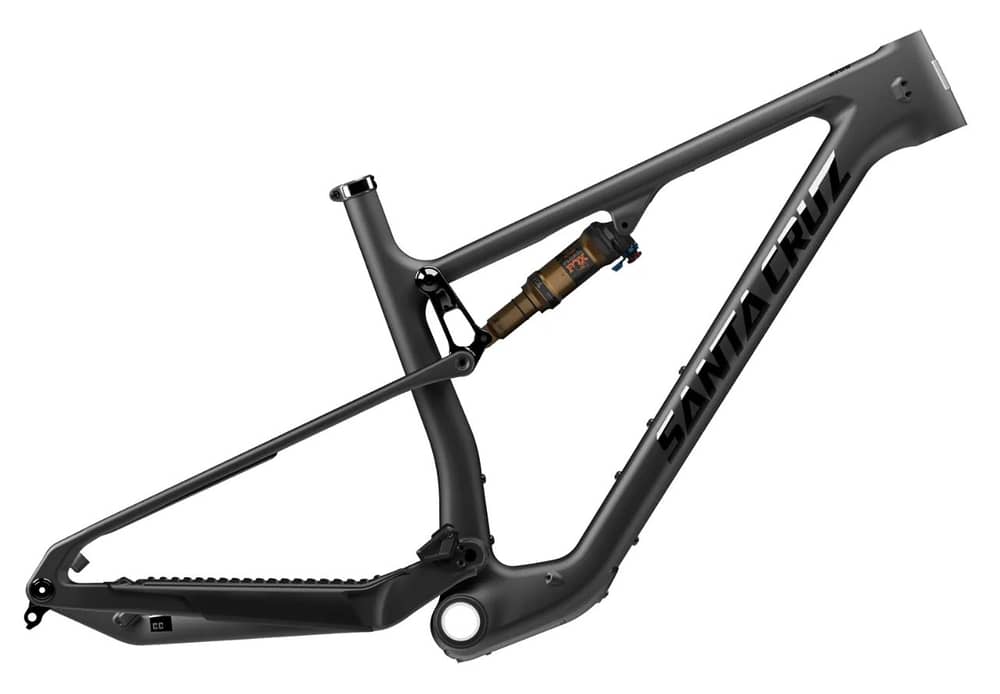

Santa Cruz Blur 4 CC 29" TR Frame

A Fair Advantage

XC bikes are made for efficient climbing, fast acceleration, and confident descending. These bikes are lightweight, have less suspension travel than trail bikes, and have a geometry that is ready to help you win the next race. The Santa Cruz Blur 4 CC 29" TR Frame is a super-efficient machine that awaits the next epic ride. It has a Carbon CC frame that uses 120mm of travel on the front and 115mm of travel on the rear. The frame uses Superlight suspension that ensures that every kilojoule of your energy is translated into forward thrust. The frame features internal cable routing, a chain guide, integrated frame protection, and clearance for up to 2.4" tires.

Features

  • Carbon CC Frame that is ultra-light and highly durable
  • Clearance for up to 2.4" wide tires
  • Integrated frame protection protects against rock strikes and other debris
  • Internal cable routing keeps the cables inside the frame for a clean look
SPECIFICATIONS
Frame Carbon CC
Wheel Size 29" (Max 2.4")
Fork 120mm
Rear Shock Fox Float Factory, 190x45
Headset Included No
Headtube Diameter Integrated (IS41/52)
Front Derailleur Type No
Bottom Bracket Type Threaded 73mm
Seatpost Diameter 31.6mm
Seat Clamp Bolt-Type 36.4mm
Dropout Style Boost 12x148mm Thru-Axle
Accessory Mounts 2 Bottle Cage Mounts Inside Main Triangle, 1 Under Downtube
Cable routing Internal
Intended Use Trail
Weight N/A

Note: Components are subject to change without notice.

Geo Chart Image



Santa Cruz Blur TR
Size Small Medium Large Extra Large
A: Seat Tube Length 405 430 470 520
B: Effective Top Tube 568 597 621 651
C: Stack 587 597 606 620
D: Reach 412 437 457 482
E: BB Height 339 339 339 339
F: BB Drop 32 32 32 33
G: Head Tube Length 90 100 110 125
H: Head Tube Angle 67.1 ° 67.1 ° 67.1 ° 67.1 °
I: Seat Tube Angle 75.1 ° 75 ° 74.9 ° 74.8 °
J: Standover Height 743 746 745 750
K: Chainstay Length 430 433 435 438
L: Wheelbase 1125 1157 1183 1216
Suggested Rider Height
Frame Size Small Medium Large Extra Large
Rider Height 5'1" - 5'5"
155 - 165 cm		 5'5" - 5'9"
165 - 175 cm		 5'9" - 6'1"
175 - 185 cm		 6'1" - 6'5"
185 - 196 cm
Santa Cruz Blur TR
Size Small Medium Large Extra Large
A: Seat Tube Length 15.9 16.9 18.5 20.5
B: Effective Top Tube 22.4 23.5 24.4 25.6
C: Stack 23.1 23.5 23.9 24.4
D: Reach 16.2 17.2 18.0 19.0
E: BB Height 13.3 13.3 13.3 13.3
F: BB Drop 1.3 1.3 1.3 1.3
G: Head Tube Length 3.5 3.9 4.3 4.9
H: Head Tube Angle 67.1 ° 67.1 ° 67.1 ° 67.1 °
I: Seat Tube Angle 75.1 ° 75.0 ° 74.9 ° 74.8 °
J: Standover Height 29.3 29.4 29.3 29.5
K: Chainstay Length 16.9 17.0 17.1 17.2
L: Wheelbase 44.3 45.6 46.6 47.9
Suggested Rider Height
Frame Size Small Medium Large Extra Large
Rider Height 5'1" - 5'5"
155 - 165 cm		 5'5" - 5'9"
165 - 175 cm		 5'9" - 6'1"
175 - 185 cm		 6'1" - 6'5"
185 - 196 cm
