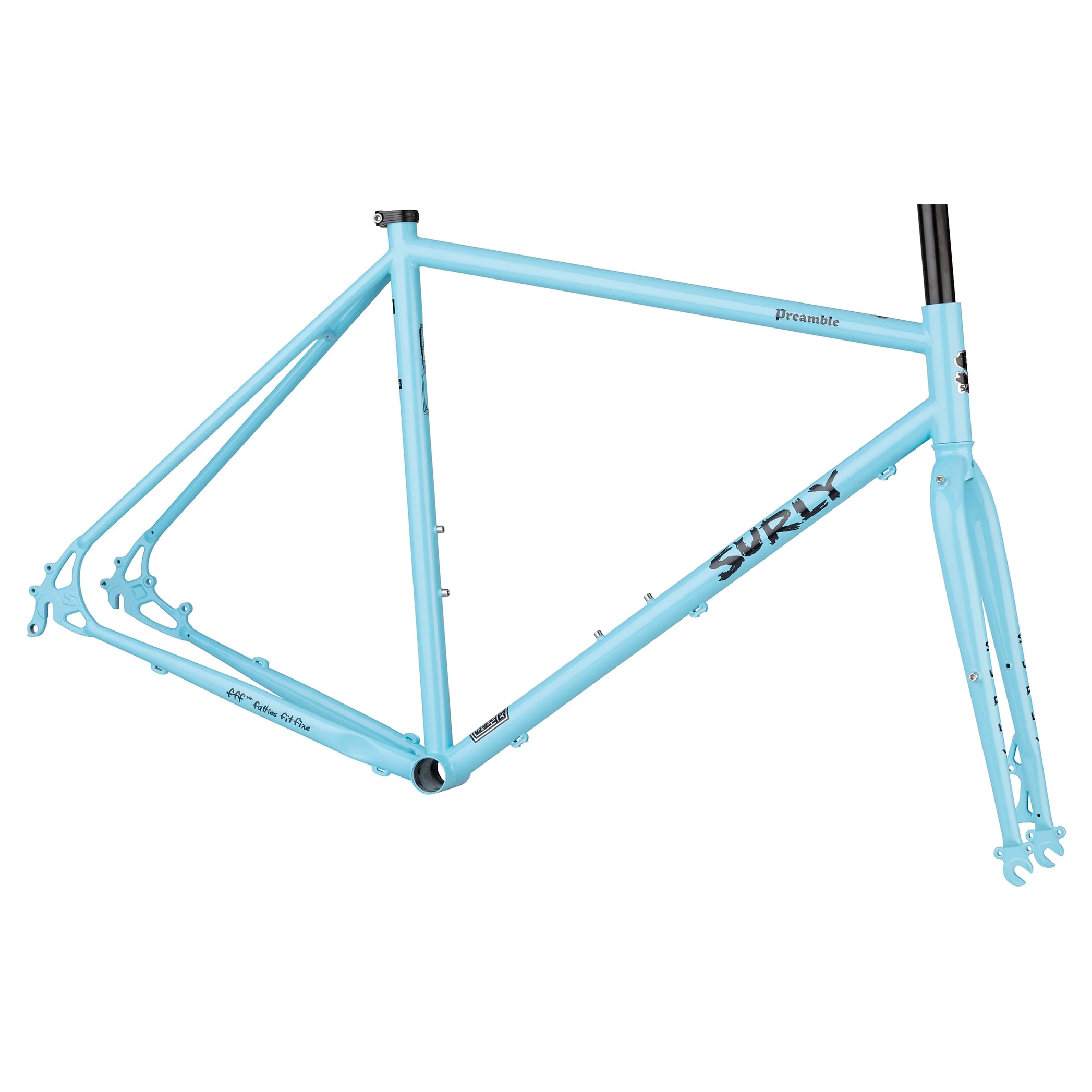

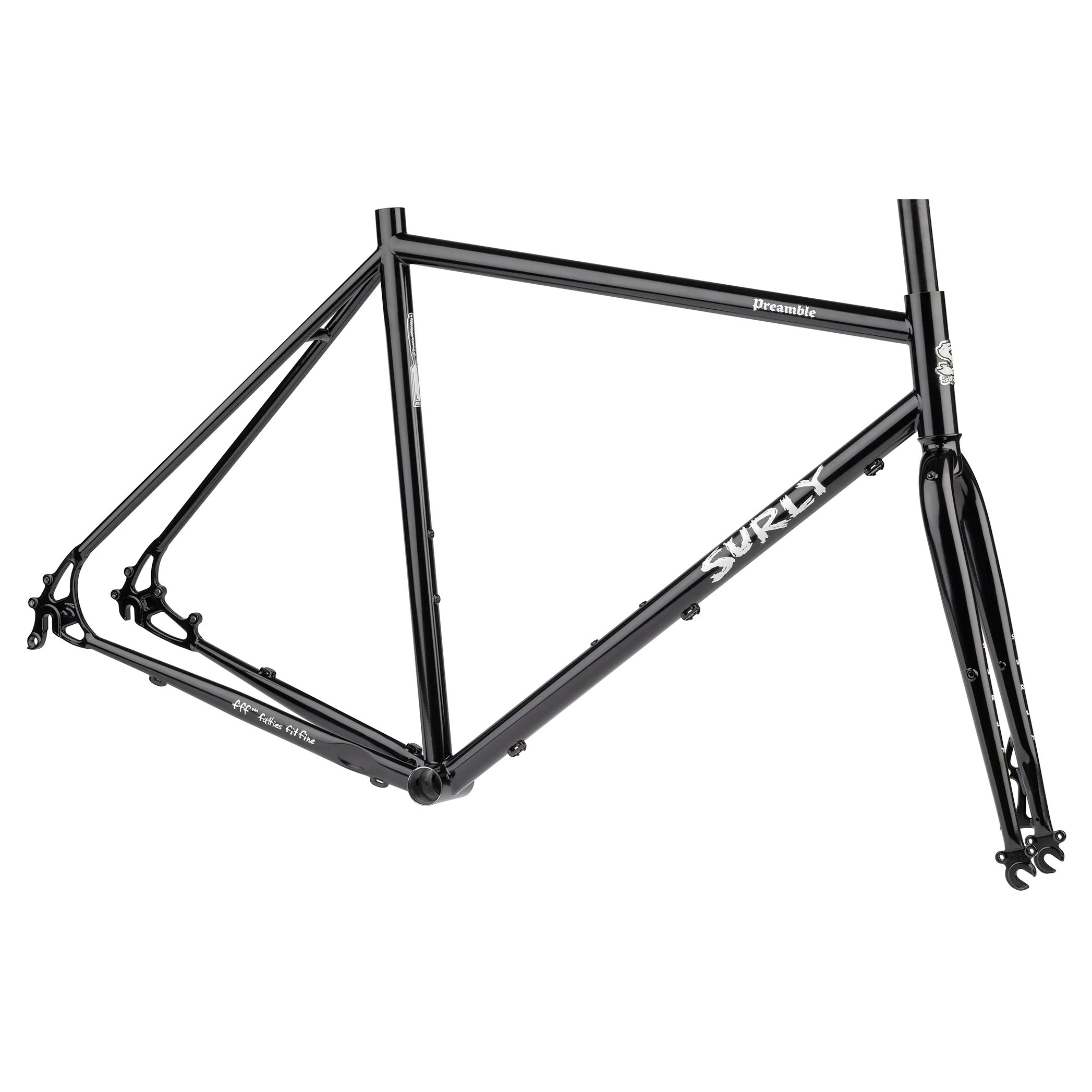

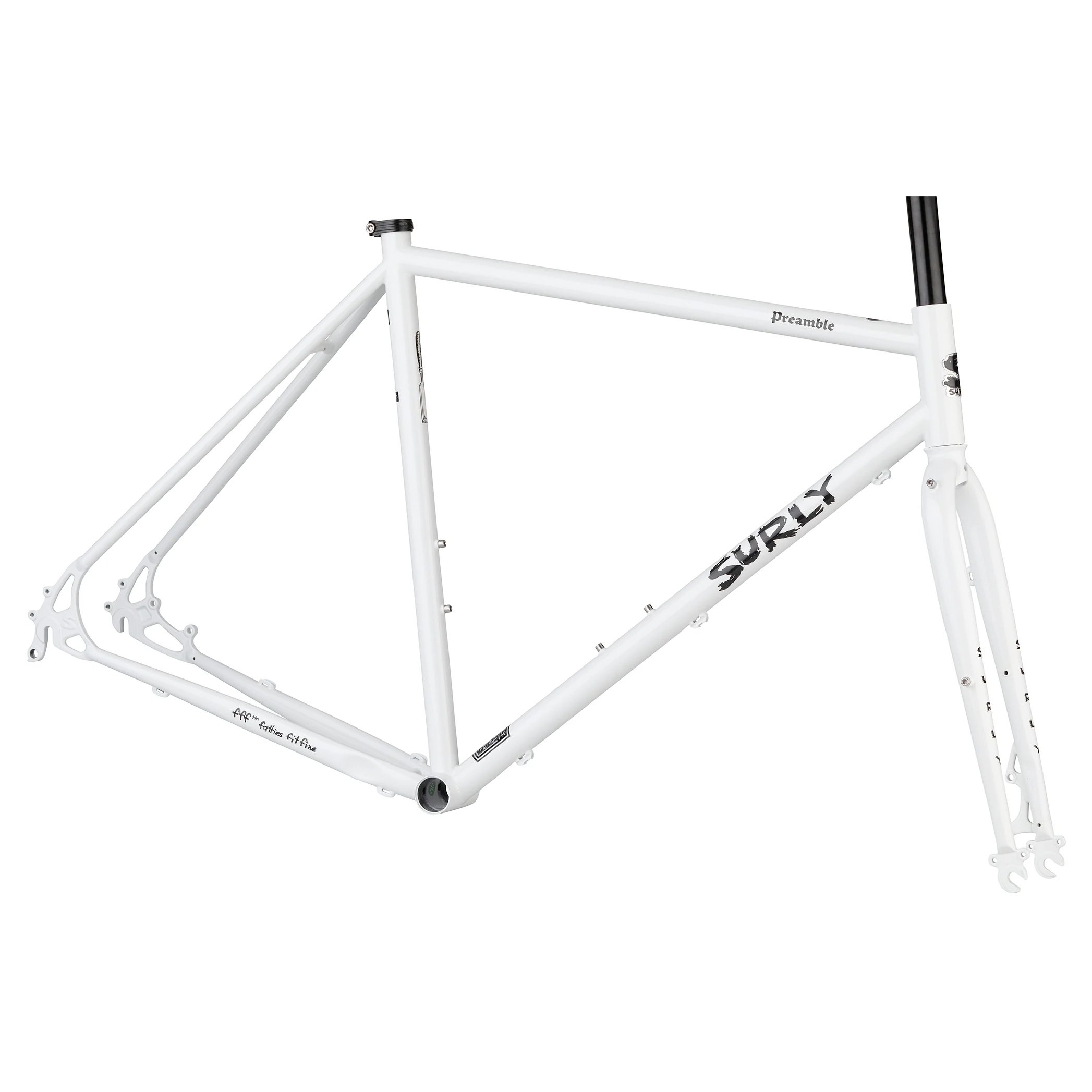

Surly Preamble Framset

Nothing More is Needed

Gravel bikes continue to grow in popularity as they are truly a one-bike-does-all type of bike. These bikes are perfect for riding on the pavement and tackling those fun gravel grinds. The Surly Preamble Framset is a pavement and gravel utility worker that proves you don't need to cut corners or clip coupons to make a more affordable steel bike. You just need to keep stuff simple. The Preamble can run racks and fenders and carry a couple of water bottles. Smooth and efficient on asphalt, the Preamble's double-butted main triangle provides a resplendent ride feel and withstands abuse from life's inevitable potholes.

Features

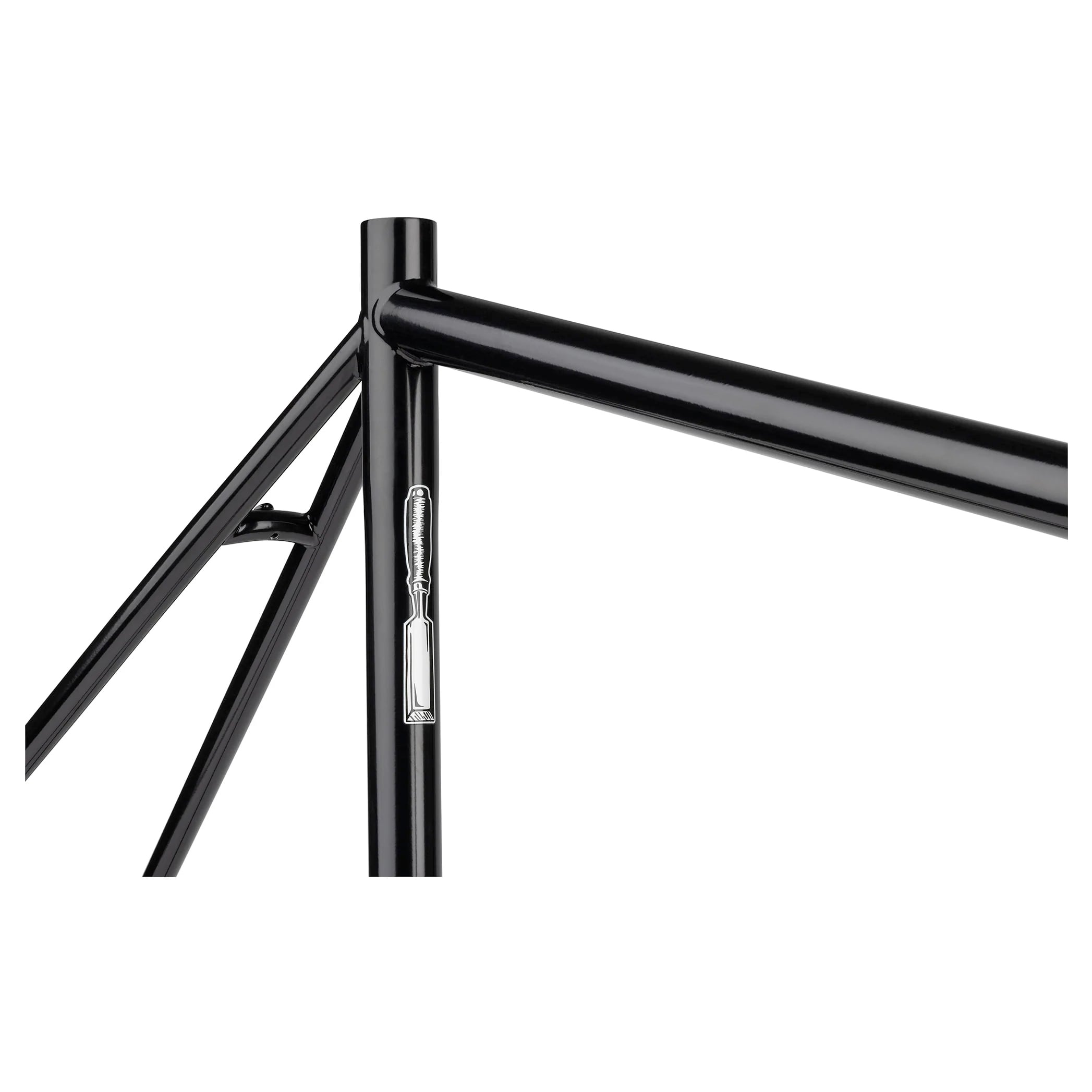

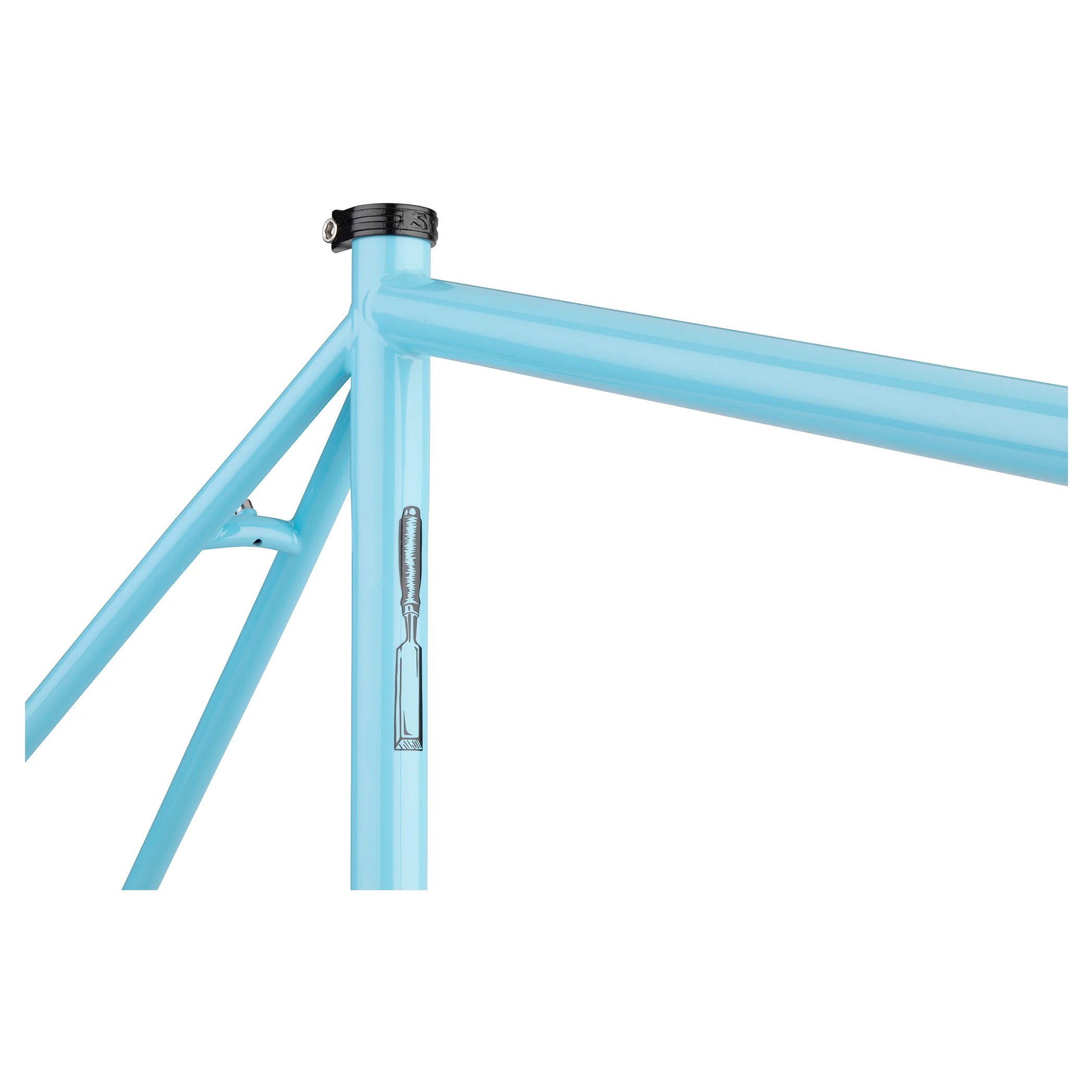

  • 100% Surly chromoly steel frame and fork with a double-butted main triangle
  • Mounts for racks, fenders, and two bottle cages
  • Clearance for up to 650b x 41mm on XS–S frame sizes (650b x 38mm with fenders); 700c x 41mm tires on M–XL frame sizes (700c x 38mm with fenders)
  • Friendly with 1x and 2x drivetrains
SPECIFICATIONS
Frame 100% Surly Chromoly Steel
Wheel Size 700c, 650b
Fork Chromoly Steel
Headset Included No
Headtube Diameter EC34/28.6 | EC34/30
Front Derailleur Type High direct mount top-pull (Ø28.6mm)

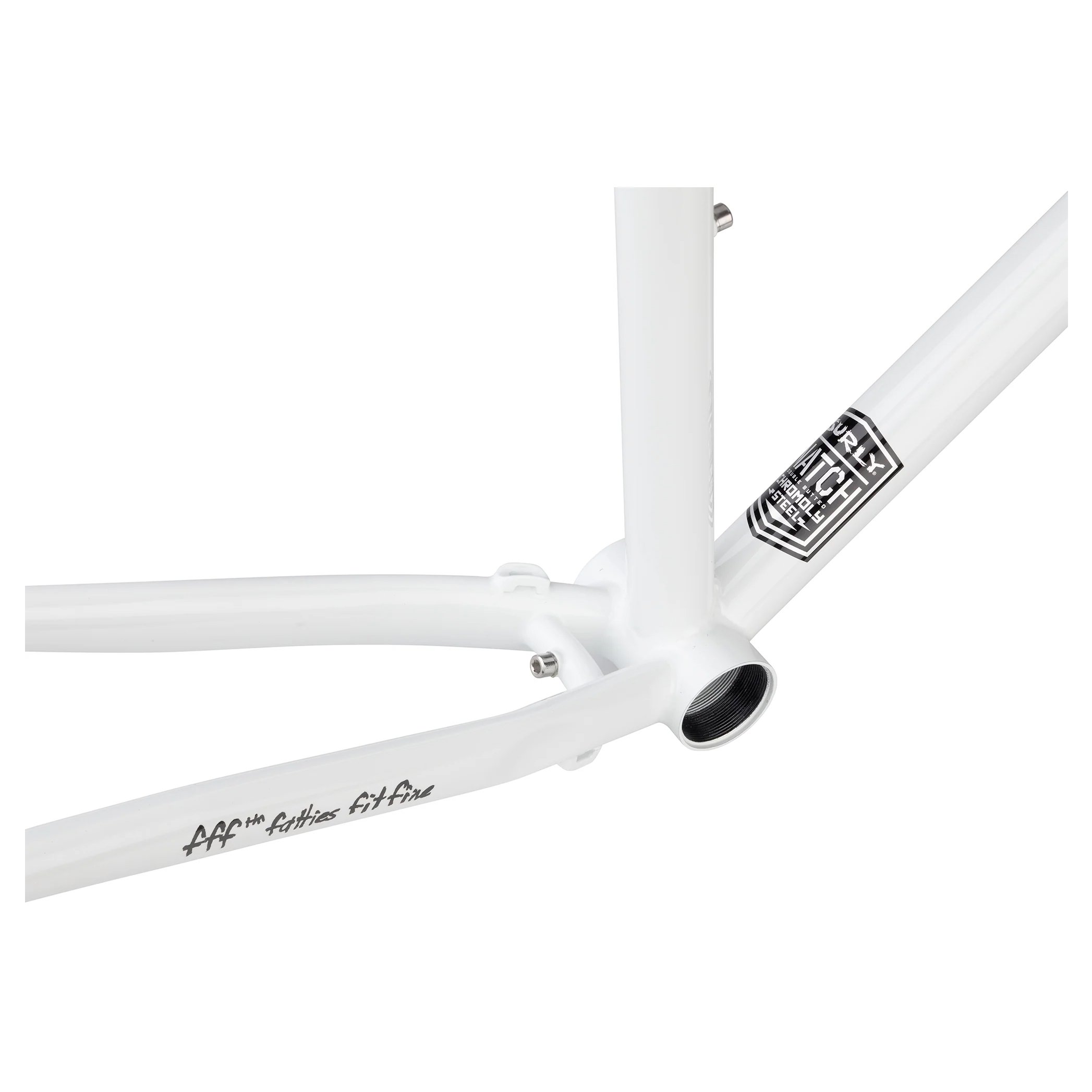

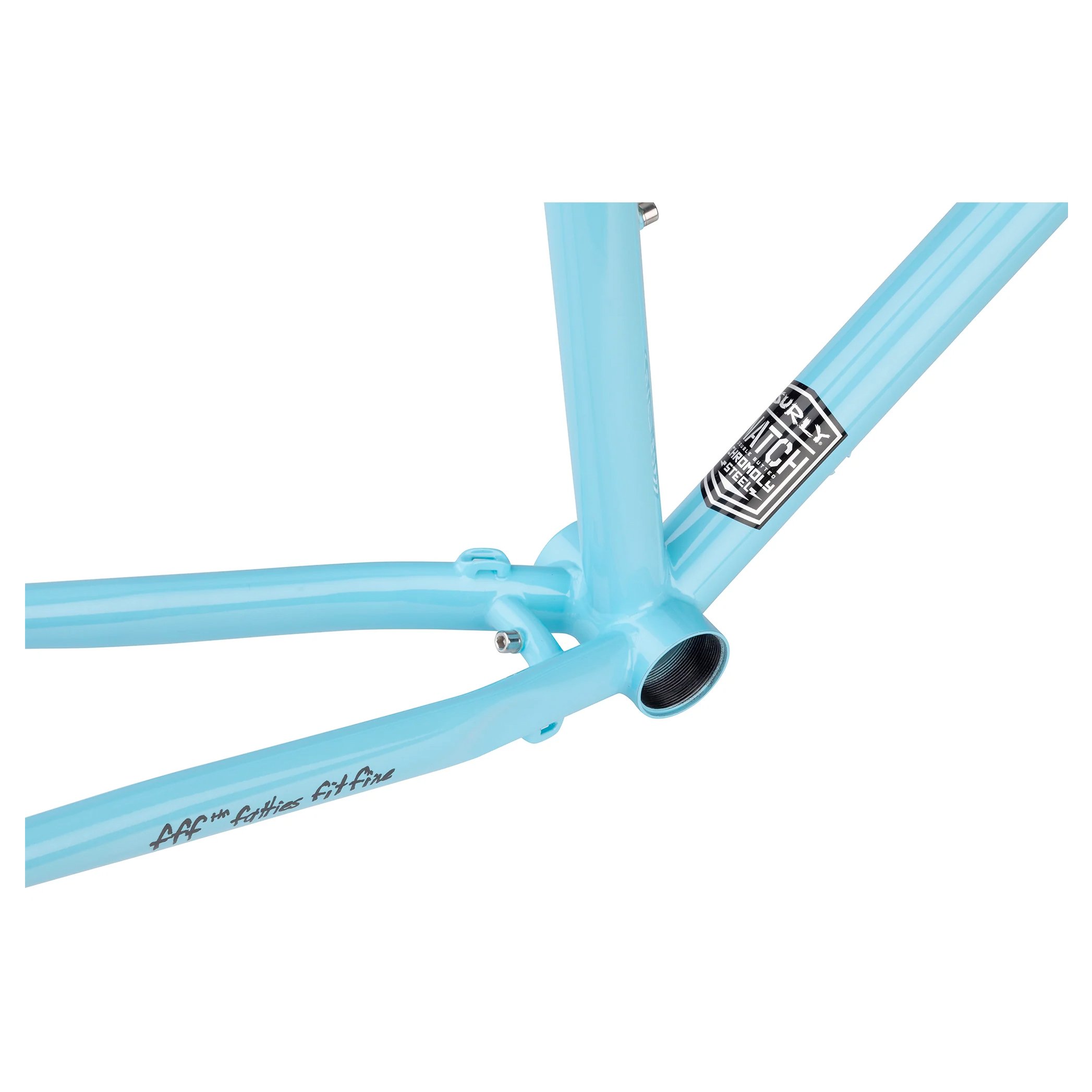

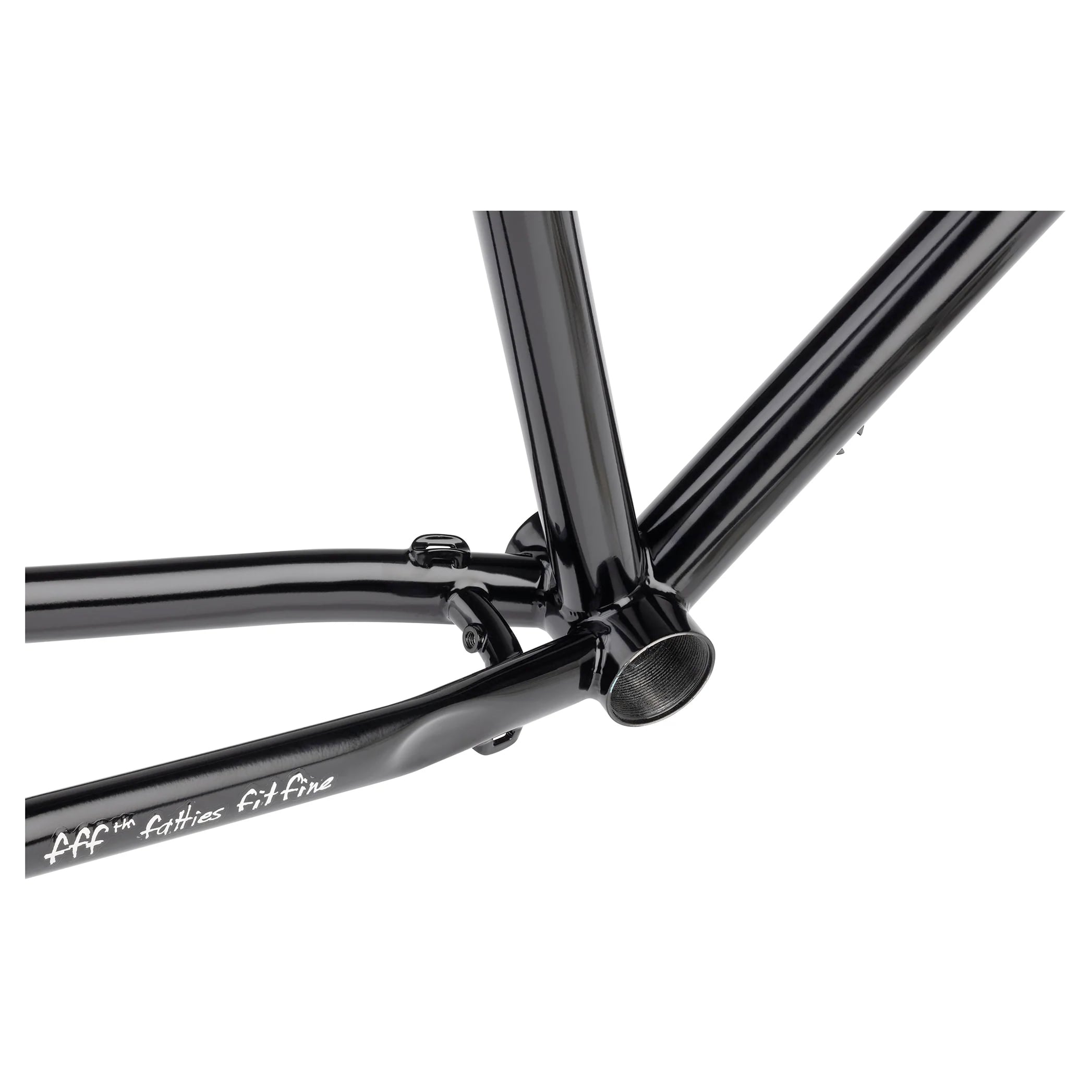

Bottom Bracket Type 68mm BSA Threaded
Seatpost 27.2mm

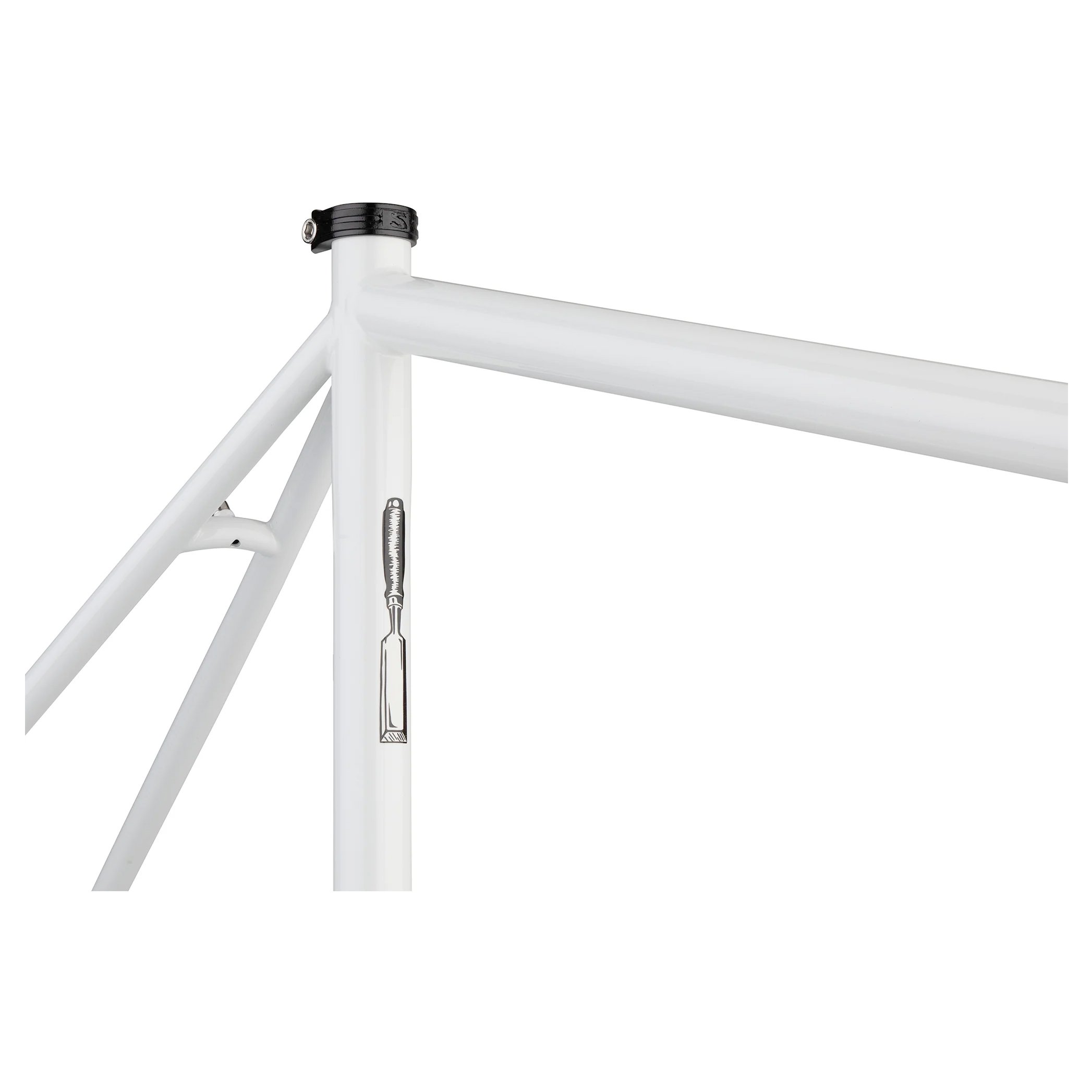

Seat Clamp 30.0mm

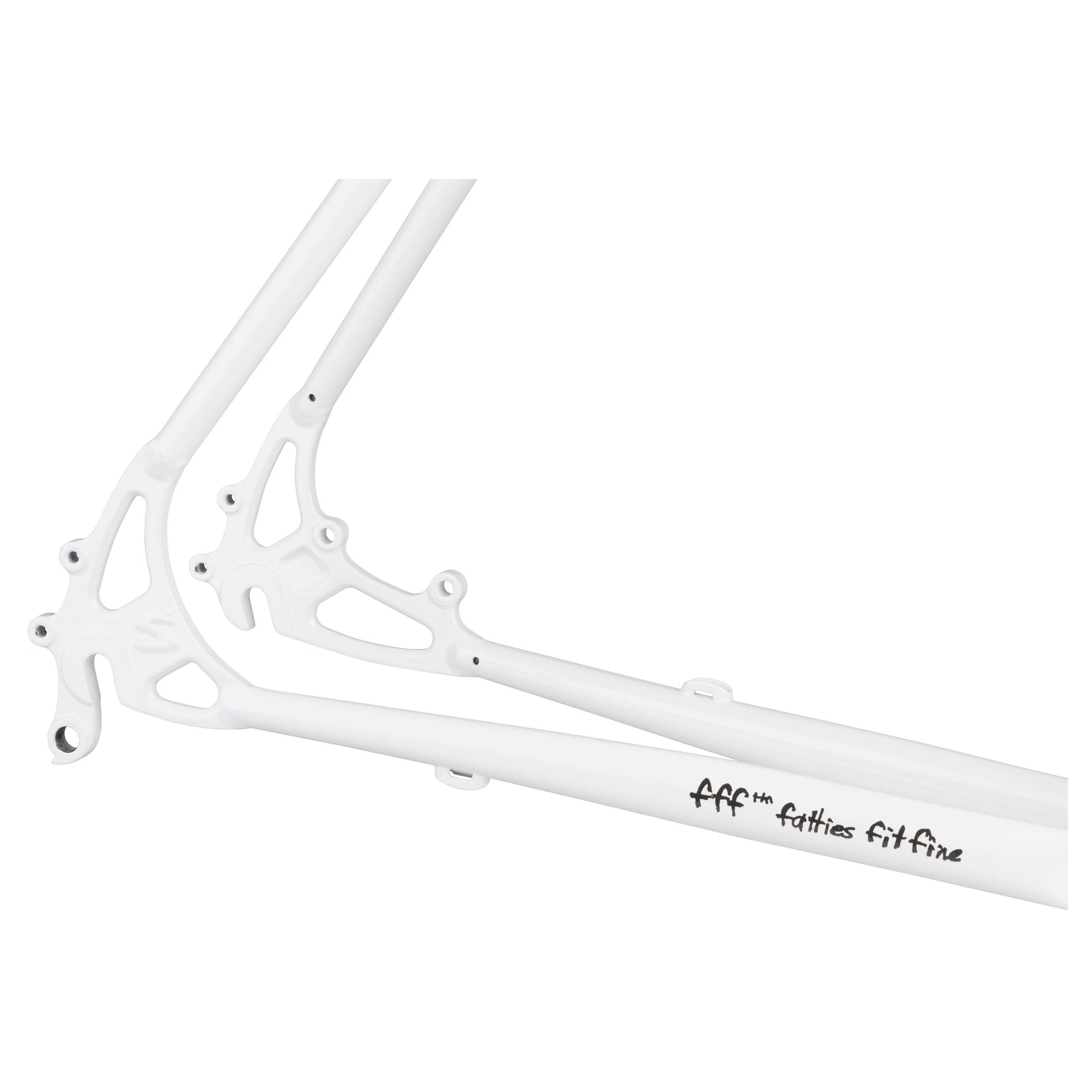

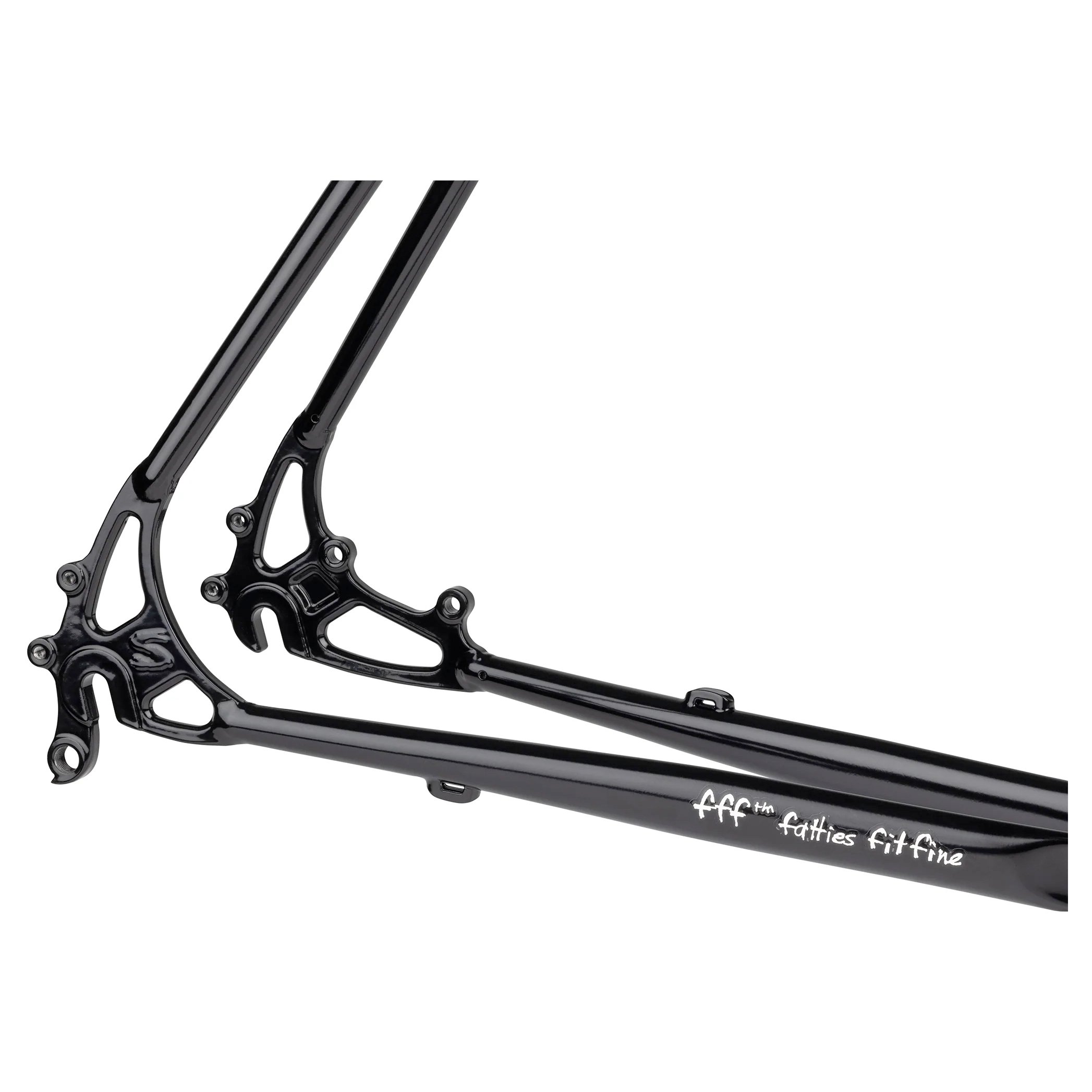

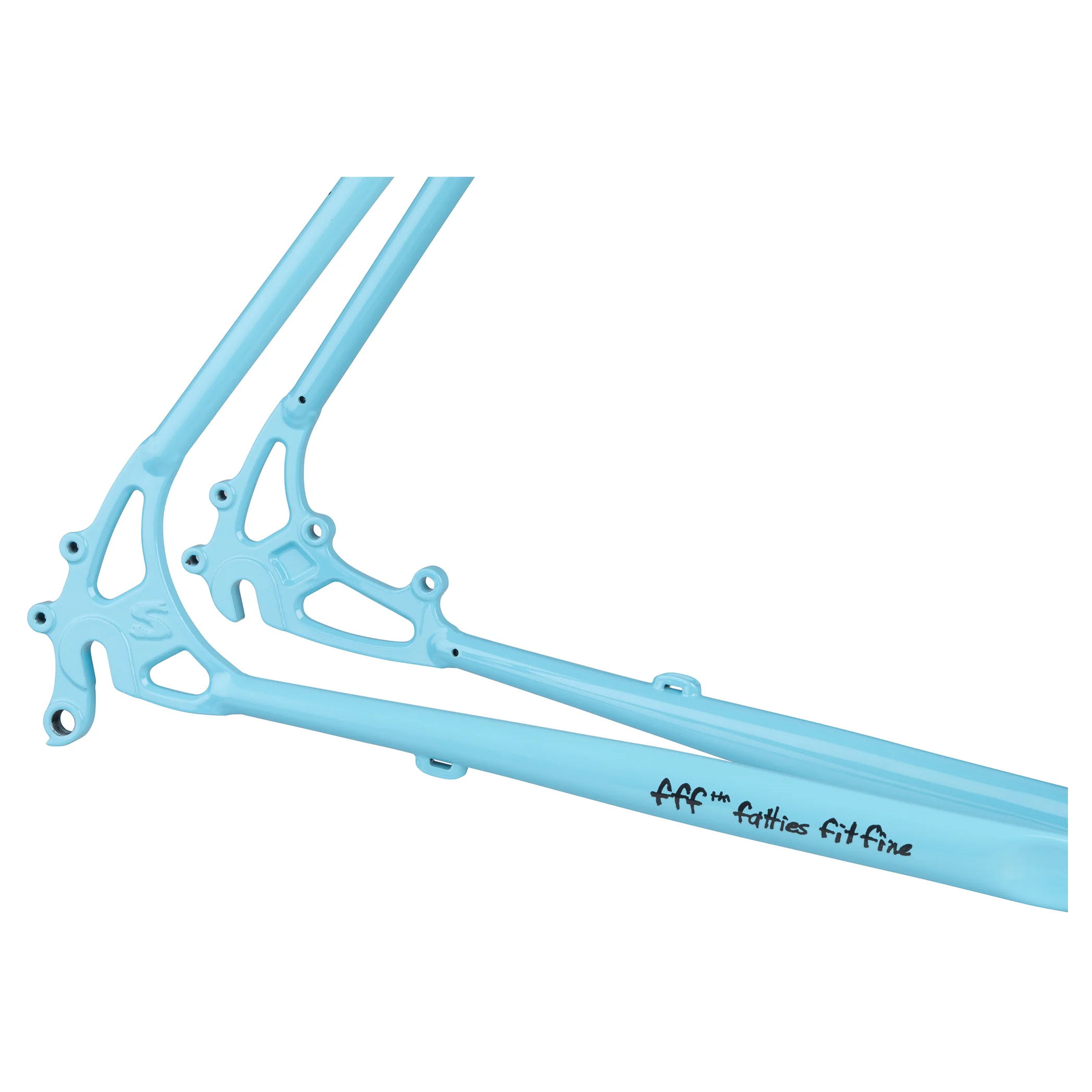

Dropout Style 10x135 or 10x141mm
Accessory Mounts Rack, Fenders, Bottle Cage Mounts
Cable routing External
Intended Use Gravel, All-Road
Weight N/A

Note: Components are subject to change without notice.



Surly Preamble
Size Extra Small Small Medium Large Extra Large
A: Seat Tube Length 410 505 565 605 645
B: Effective Top Tube 500 545 570 600 630
C: Stack 517 535 567 605 643
D: Reach 352 381 391 404 421
E: BB Height - - - - -
F: BB Drop 54 54 54 54 54
G: Head Tube Length 120 135 130 170 210
H: Head Tube Angle 70 ° 71 ° 72 ° 72 ° 72 °
I: Seat Tube Angle 74 ° 73 ° 72.5 ° 72 ° 72 °
J: Standover Height 722 776 826 863 901
K: Chainstay Length 420 420 435 435 435
L: Wheelbase 987 1013 1030 1055 1085
Suggested Rider Height
Frame Size Extra Small Small Medium Large Extra Large
Rider Height 5'0" - 5'5"
152 - 165 cm		 5'4" - 5'8"
162 - 172 cm		 5'7" - 6'0"
170 - 182 cm		 5'11" - 6'3"
180 - 190 cm		 6'2" - 6'7"
187 - 200 cm
Surly Preamble
Size Extra Small Small Medium Large Extra Large
A: Seat Tube Length 16.1 19.9 22.2 23.8 25.4
B: Effective Top Tube 19.7 21.5 22.4 23.6 24.8
C: Stack 20.4 21.1 22.3 23.8 25.3
D: Reach 13.9 15.0 15.4 15.9 16.6
E: BB Height - - - - -
F: BB Drop 2.1 2.1 2.1 2.1 2.1
G: Head Tube Length 4.7 5.3 5.1 6.7 8.3
H: Head Tube Angle 70.0 ° 71.0 ° 72.0 ° 72.0 ° 72.0 °
I: Seat Tube Angle 74.0 ° 73.0 ° 72.5 ° 72.0 ° 72.0 °
J: Standover Height 28.4 30.6 32.5 34.0 35.5
K: Chainstay Length 16.5 16.5 17.1 17.1 17.1
L: Wheelbase 38.9 39.9 40.6 41.5 42.7
Suggested Rider Height
Frame Size Extra Small Small Medium Large Extra Large
Rider Height 5'0" - 5'5"
152 - 165 cm		 5'4" - 5'8"
162 - 172 cm		 5'7" - 6'0"
170 - 182 cm		 5'11" - 6'3"
180 - 190 cm		 6'2" - 6'7"
187 - 200 cm
