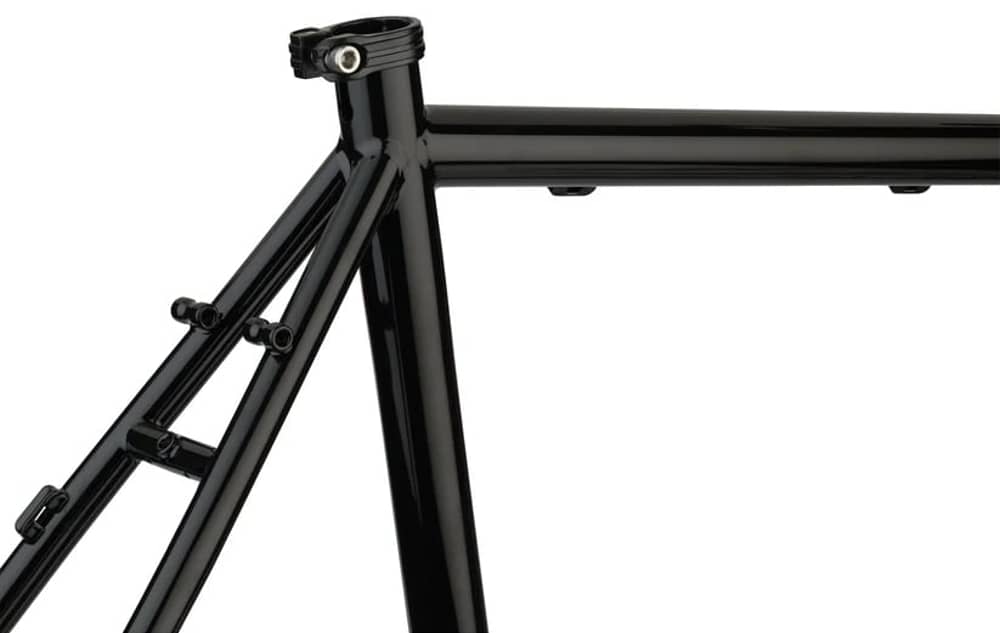

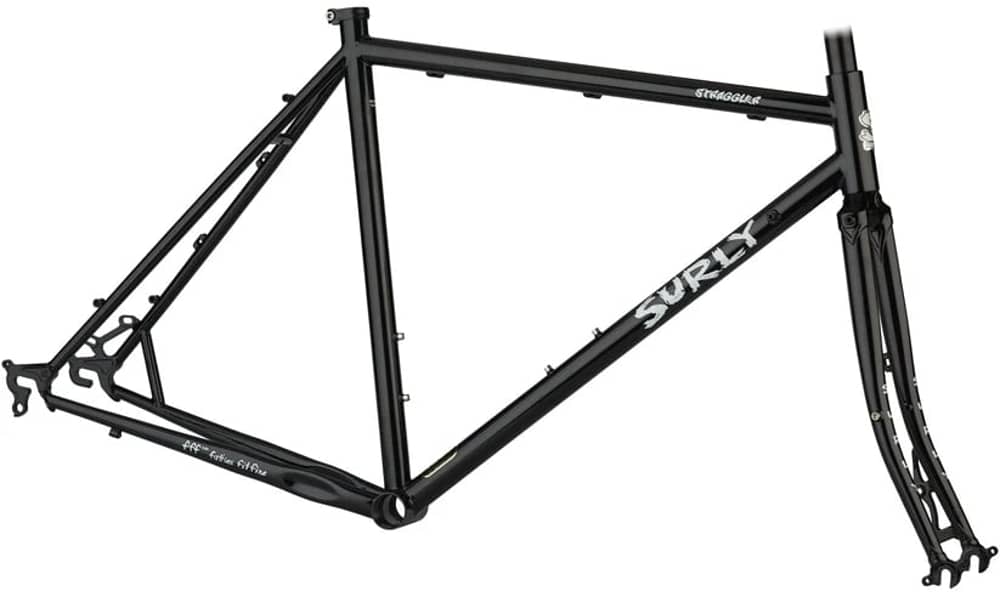

Surly Straggler 650b Frameset

(0)
Item #: FR001314
$699.00

Most orders ship free over $50*

Authorized Surly Retailer

Insider - Exclusive Coupons and more.

Close

Double-check!

Confirm your options before continuing

Color: Black
MFG #: FM1842
Black
Steel Blue
Size:42cm
In Stock
More of these are on the way. Leave us your contact information and we'll let you know when they arrive.
There seems to be a problem with your name - Please Provide a name.
There seems to be a problem with your name - Please provide your first and last name.
There seems to be a problem with your phone number - please correct and submit again
There seems to be a problem with your email - please correct and submit again
There seems to be a problem with your email or phone number - Please provide your email or phone number.
Success! You're on our notification list. Thanks for your interest in this product.
Learn More
+ Add Accident Protection from
Remove Protection Plan

*Free Shipping over $50

90-Day Returns

Insider - Exclusive Coupons and more.

Price Protection

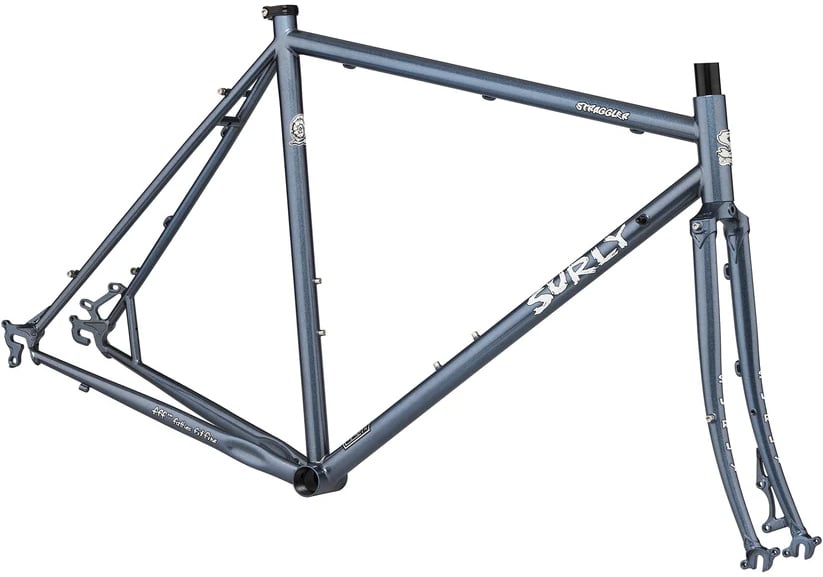

Surly Straggler 650b Frameset

The Mountain Biker’s Road Bike

Surly’s Straggler frameset is a fantastic option for anyone in search of a do-it-all gravel bike that excels on a variety of surfaces. Its 4130 CroMoly frame and fork are extremely robust and designed to handle anything while also offering an exceptional ride quality. ED coating on both the fork and frame helps to prevent any rust from accumulating. Wide tire clearance for up to 700x42c tires in the rear and 29x2.0” up front means you’ll be able to run your favorite monster cross or gravel tire combo. With full fender and rack mounts, you’ll be able to ride or commute year round and be able to take the Straggler out on bikepacking and light touring adventures. Horizontal dropouts let you experiment with running the Straggler in a single speed setup or adjust the wheelbase to alter the frame geometry. Full external housing and a threaded bottom bracket makes maintenance as simple as possible. So if you’re looking to build up a bombproof gravel bike, an all-road mile munching machine, your dream bikepacking setup, or reliable commuter, the Surly Straggler is for you.

Features

  • 4130 CroMoly frame and fork are extremely robust and built to last a lifetime
  • ED coating prevents rust from accumulating
  • Wide tire clearance for up to 700x42mm tire clearance in the frame and 29x2.0” tire clearance in the fork
  • Full fender and rack mounts make the Straggler a great year round bike choice
  • makle maintenance as simple as possible

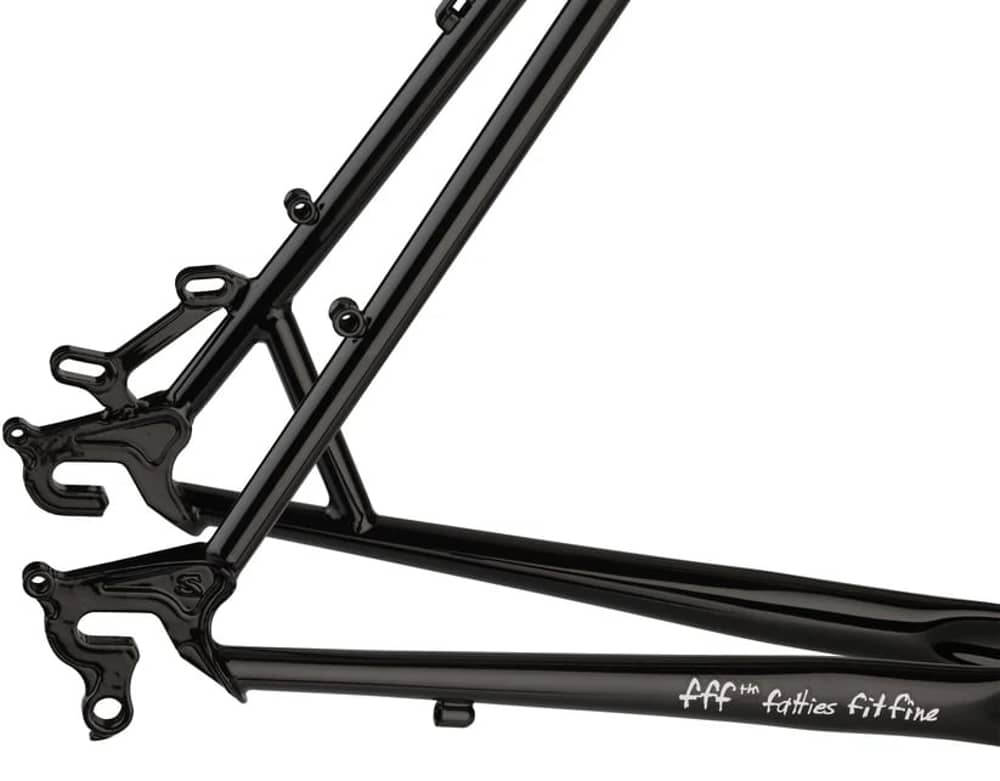

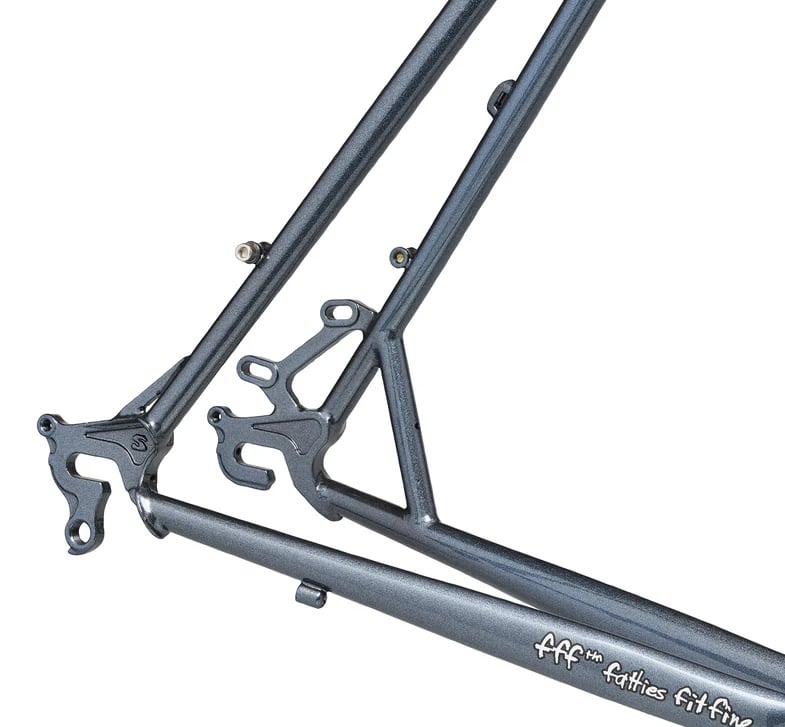

  • Horizontal dropouts let you run the Straggler as a single speed or adjust the wheelbase length
SPECIFICATIONS
Frame 4130 CroMoly Tubing, 100% Surly Proprietary
Wheel Size 700c
Fork 4130 CroMoly, Lugged And Brazed, Disc Only
Headset Included No, EC34 Upper, EC34 Lower
Headtube Diameter 1 â…›”
Front Derailleur Type Bottom Pull 28.6mm Clamp

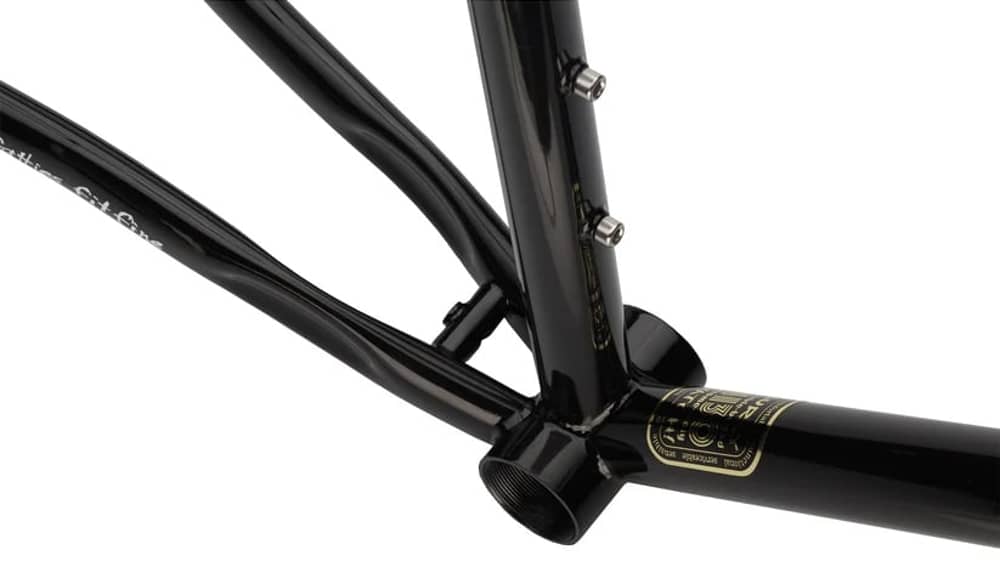

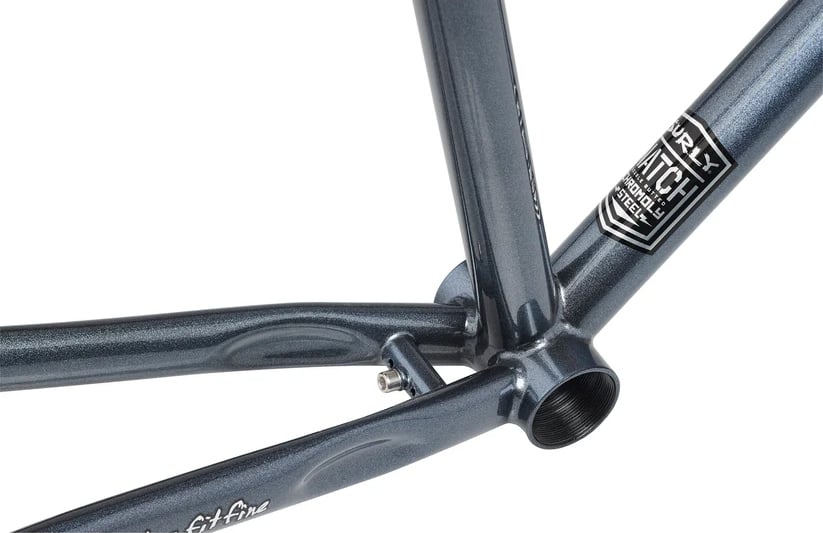

Bottom Bracket Type 68mm Threaded
Seatpost 27.2mm
Seat Clamp 30mm
Dropout Style 10x135mm QR
Accessory Mounts 2x Bottle Cage Mounts, Fender Mounts, Front And Rear Rack Mounts
Cable routing External
Intended Use Gravel, Adventure, Commuter
Weight

Note: Components are subject to change without notice.

Size 38 42 46 50 52 54 56 58
A: Seat Tube Length 380 420 460 500 520 540 560 580
B: Effective Top Tube 500 510 520 535 550 565 580 595
C: Stack 483 498 511 523 534 548 563 586
D: Reach 371 369 371 383 386 392 402 410
E: BB Height 0 0 0 0 0 0 0 0
F: BB Drop 54 54 54 54 54 54 54 54
G: Head Tube Length 85 100 110 120 130 145 160 185
H: Head Tube Angle 69.5 ° 70 ° 71 ° 71.5 ° 72 ° 72 ° 72 ° 72 °
I: Seat Tube Angle 75.5 ° 74.5 ° 74 ° 74 ° 74 ° 72.5 ° 72.5 ° 72.5 °
J: Standover Height 704 726 751 776 789 806 822 844
K: Chainstay Length 405 405 405 405 405 410 410 410
L: Wheelbase 980 978 977 988 990 1005 1020 1035
Crank Arm Length mm mm mm mm mm mm mm mm
Stem Length mm mm mm mm mm mm mm mm
Handlebar Width mm mm mm mm mm mm mm mm
Suggested Rider Height
Frame Size 38 42 46 50 52 54 56 58
Rider Height
cm
cm
cm
cm
cm
cm
cm
cm
Size 38 42 46 50 52 54 56 58
A: Seat Tube Length 15.0 16.5 18.1 19.7 20.5 21.3 22.0 22.8
B: Effective Top Tube 19.7 20.1 20.5 21.1 21.7 22.2 22.8 23.4
C: Stack 19.0 19.6 20.1 20.6 21.0 21.6 22.2 23.1
D: Reach 14.6 14.5 14.6 15.1 15.2 15.4 15.8 16.1
E: BB Height 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
F: BB Drop 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1
G: Head Tube Length 3.3 3.9 4.3 4.7 5.1 5.7 6.3 7.3
H: Head Tube Angle 69.5 ° 70.0 ° 71.0 ° 71.5 ° 72.0 ° 72.0 ° 72.0 ° 72.0 °
I: Seat Tube Angle 75.5 ° 74.5 ° 74.0 ° 74.0 ° 74.0 ° 72.5 ° 72.5 ° 72.5 °
J: Standover Height 27.7 28.6 29.6 30.6 31.1 31.7 32.4 33.2
K: Chainstay Length 15.9 15.9 15.9 15.9 15.9 16.1 16.1 16.1
L: Wheelbase 38.6 38.5 38.5 38.9 39.0 39.6 40.2 40.7
Crank Arm Length mm mm mm mm mm mm mm mm
Stem Length mm mm mm mm mm mm mm mm
Handlebar Width mm mm mm mm mm mm mm mm
Suggested Rider Height
Frame Size 38 42 46 50 52 54 56 58
Rider Height
cm
cm
cm
cm
cm
cm
cm
cm
